Name: FLIR E86 42° + 14° IR camera -20 up to 1500 °C 464 x 348 Pixel 30 Hz Wi-Fi, MSX®, MeterLink™, Touchscreen
Brand: FLIR
SKU: 3533046
Availability: BackOrder

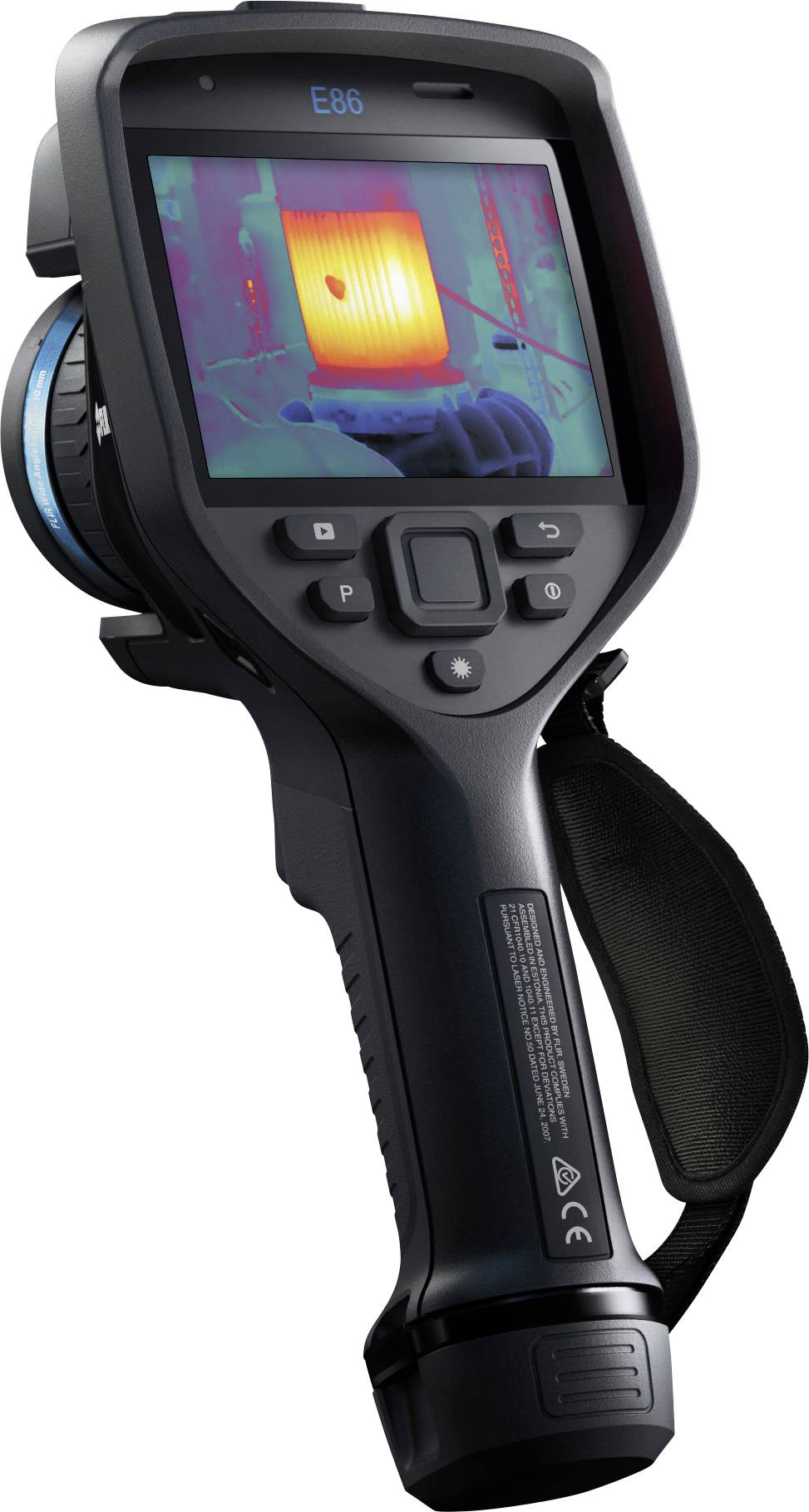

A handheld thermal imaging camera displaying a heat map on its screen, showing a brightly colored area indicating higher temperature.

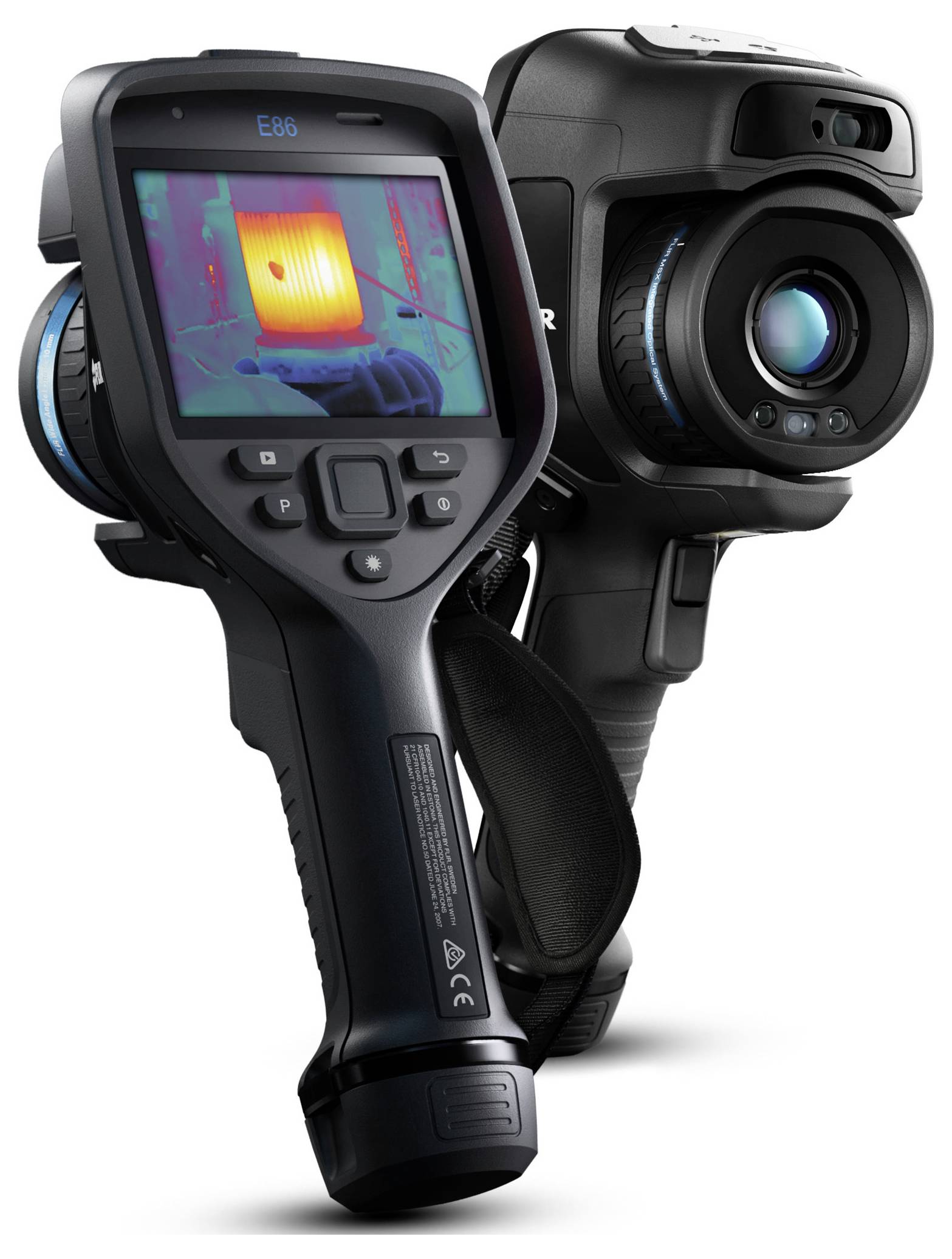

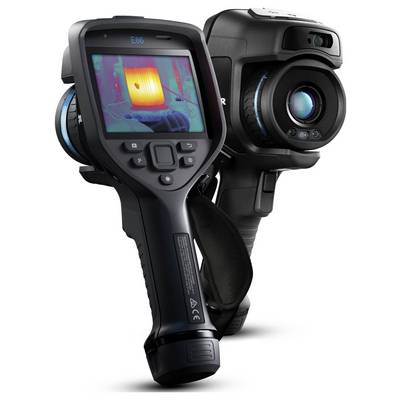

Two thermal imaging cameras, one displaying a heat map on its screen, showcasing temperature variations in a device.

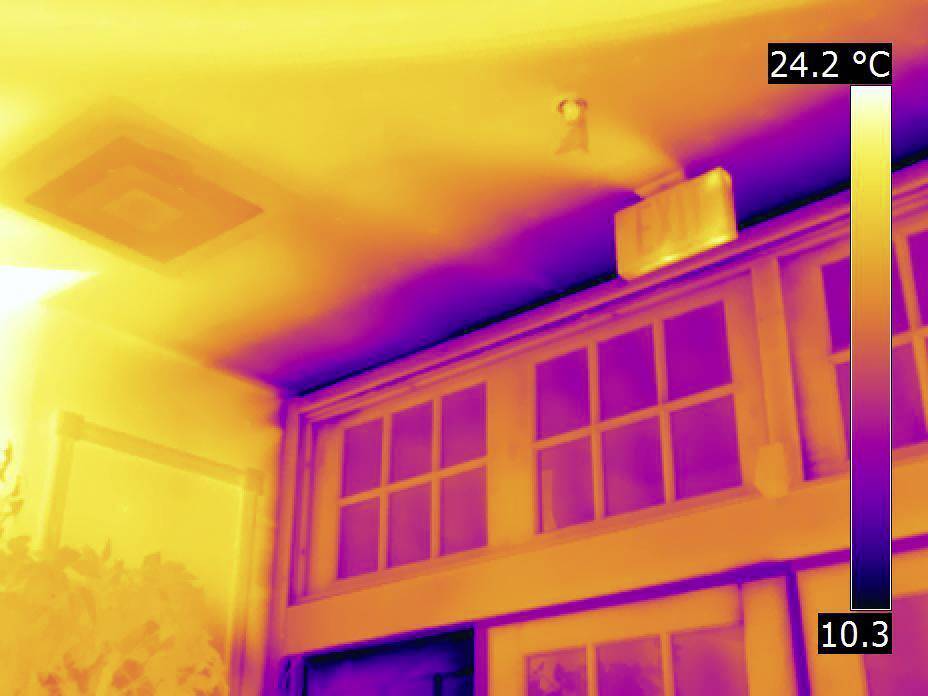

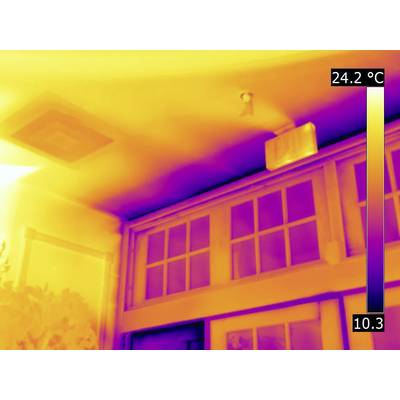

Thermal image of a ceiling and windows, showing temperature range from 10.3°C to 24.2°C; hottest area is near ceiling vent.

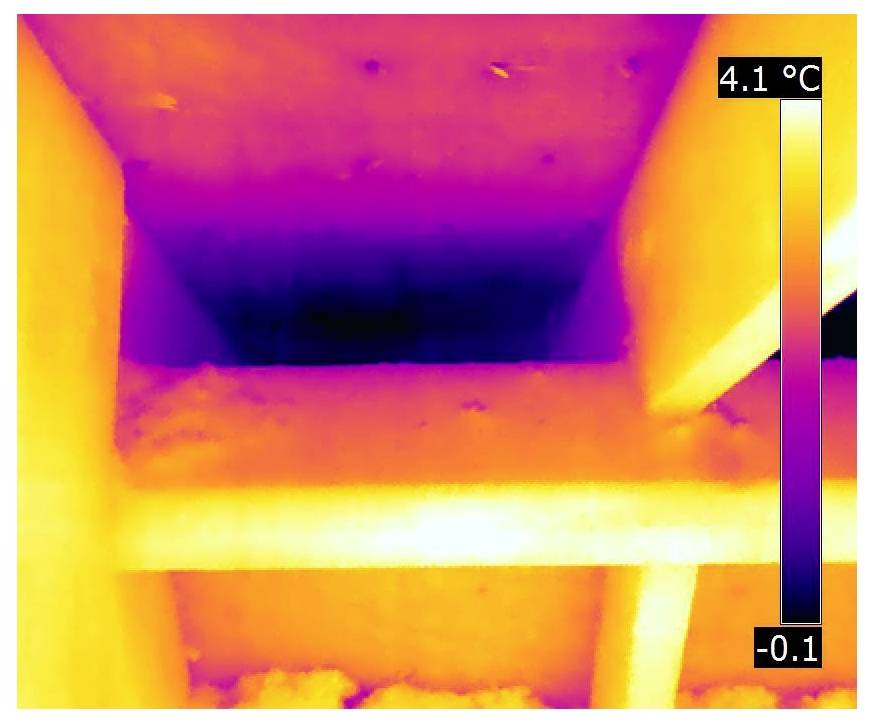

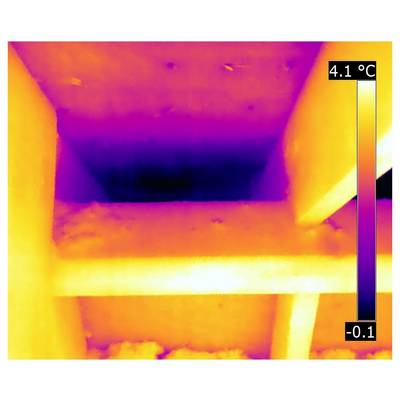

Thermal image showing a structure with varying temperatures. The color scale on the right ranges from -0.1°C to 4.1°C.

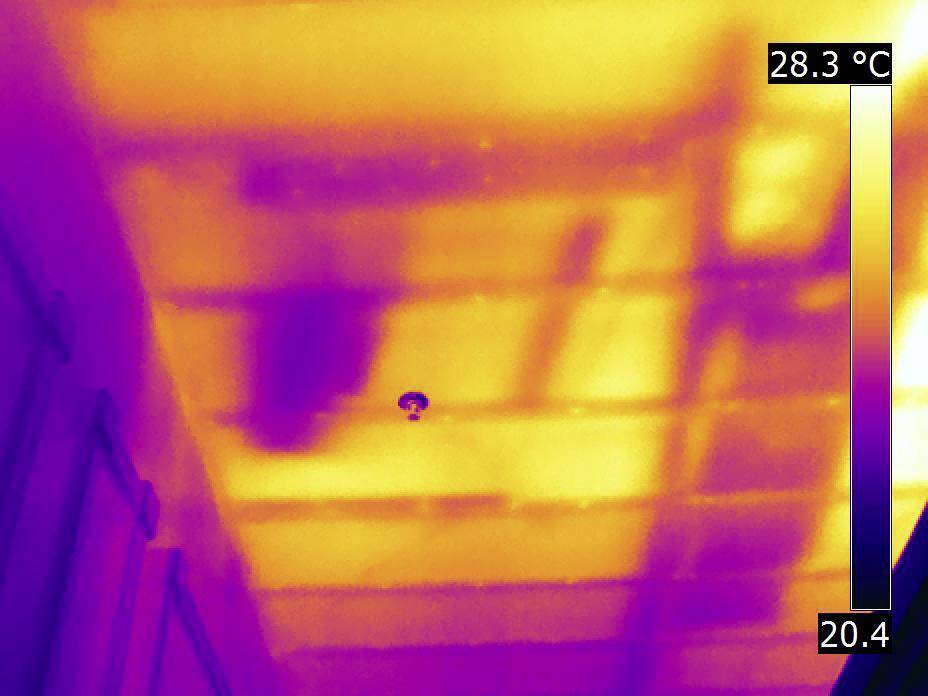

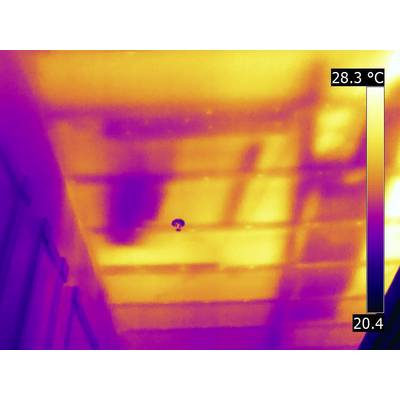

Thermal image of a ceiling showing temperature variations. Warmer areas are yellow/orange (up to 28.3°C), cooler areas are purple (20.4°C).

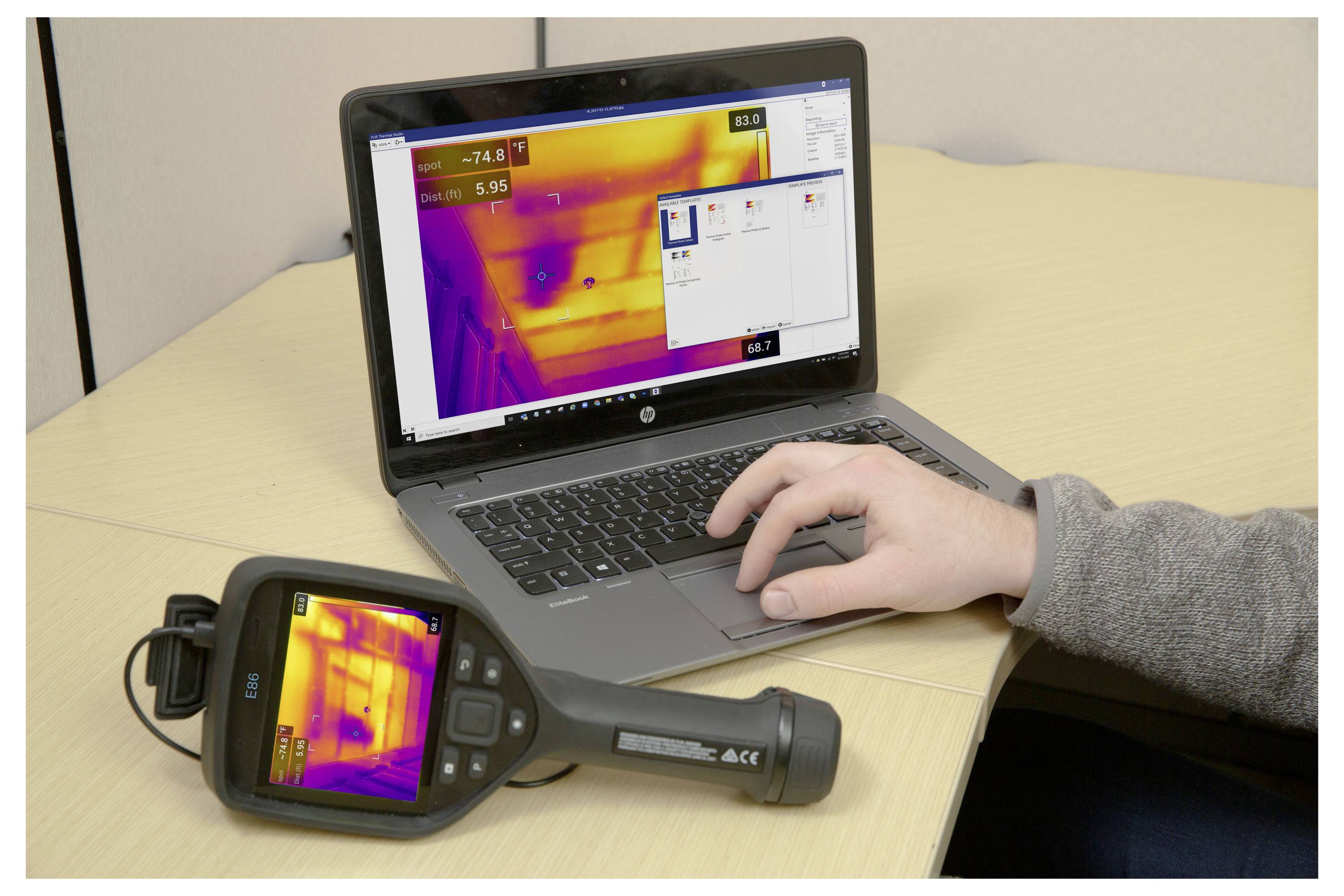

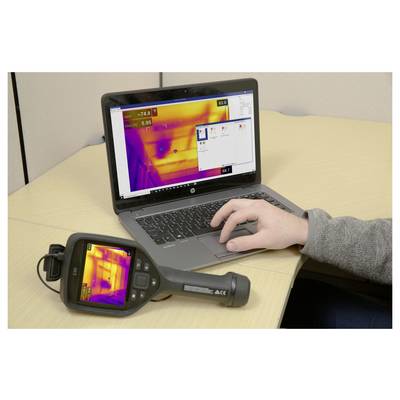

A person uses a laptop displaying a thermal imaging analysis, with a thermal camera showing similar data on its screen, on a desk.

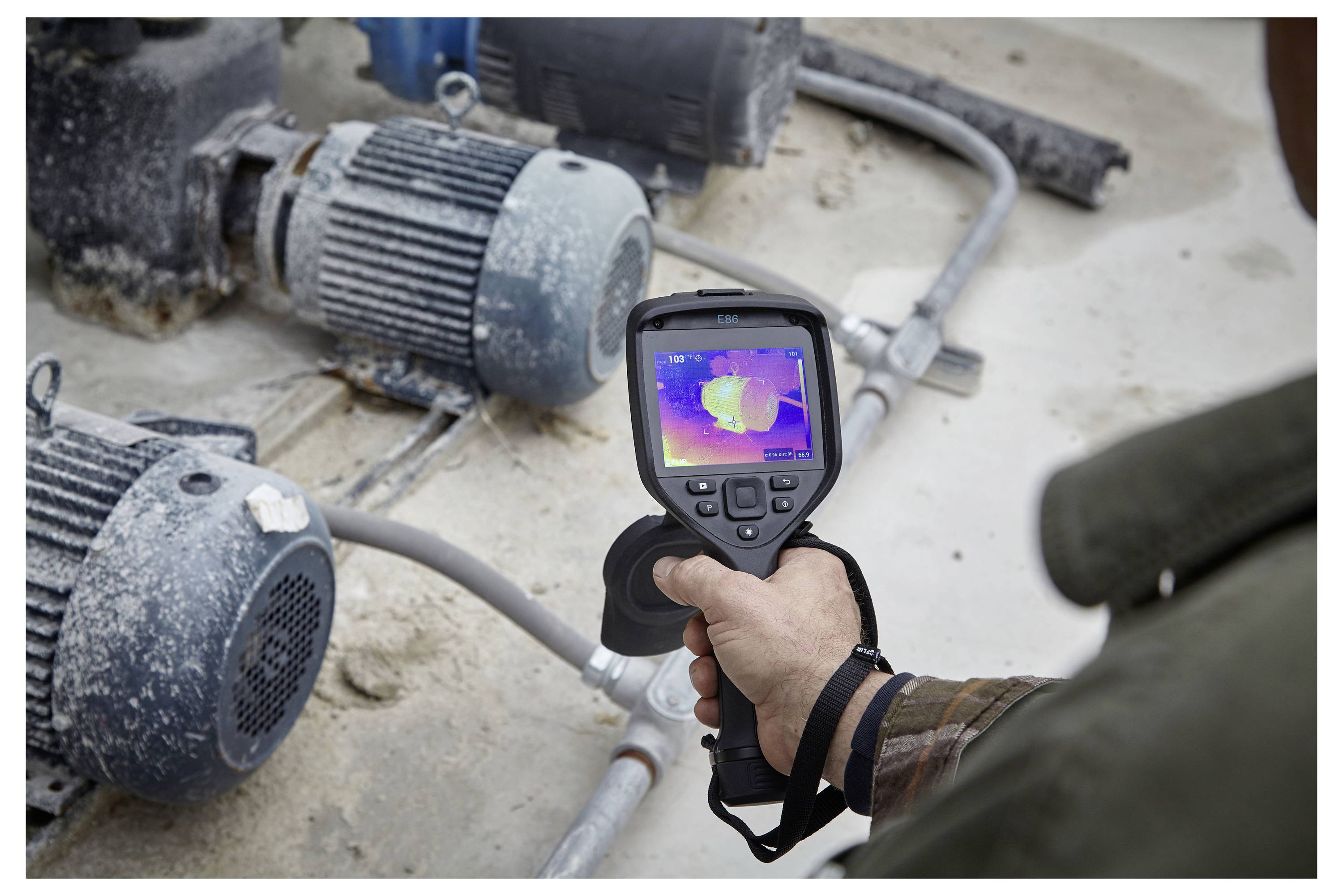

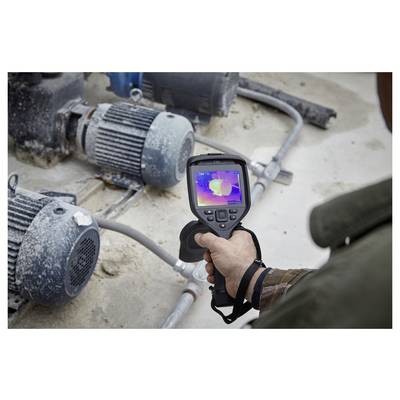

A person holds a thermal imaging camera, displaying a heat map of industrial equipment, likely for maintenance or inspection purposes.

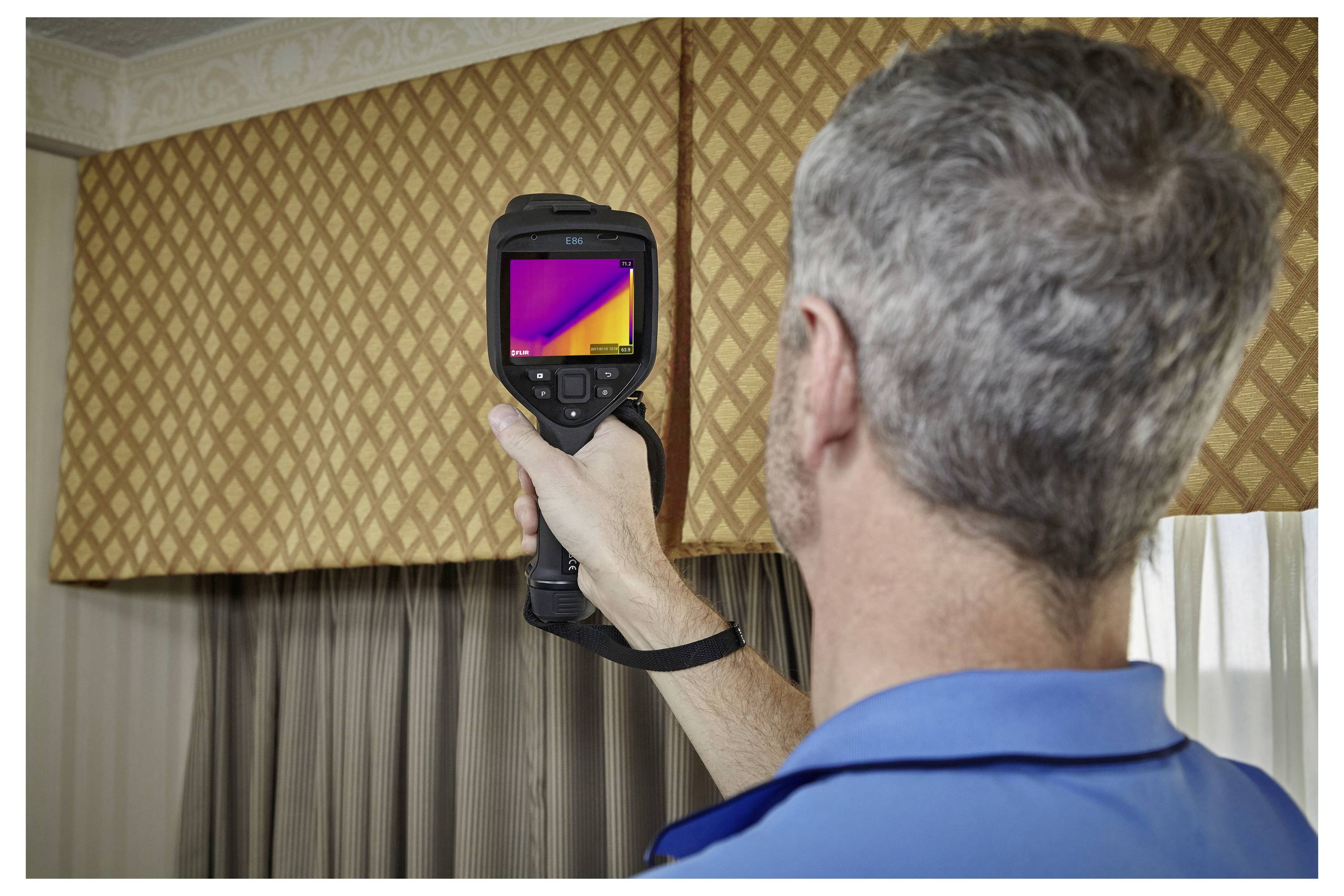

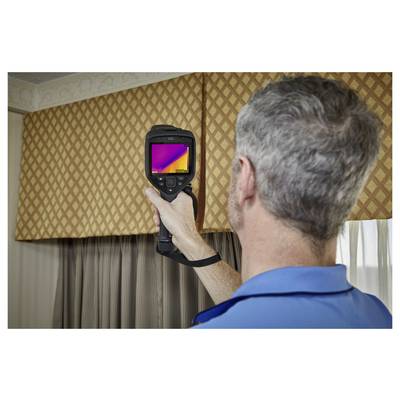

A person uses a thermal imaging camera to inspect a curtain. The camera screen shows a multicolored thermal image indicating temperature variations.

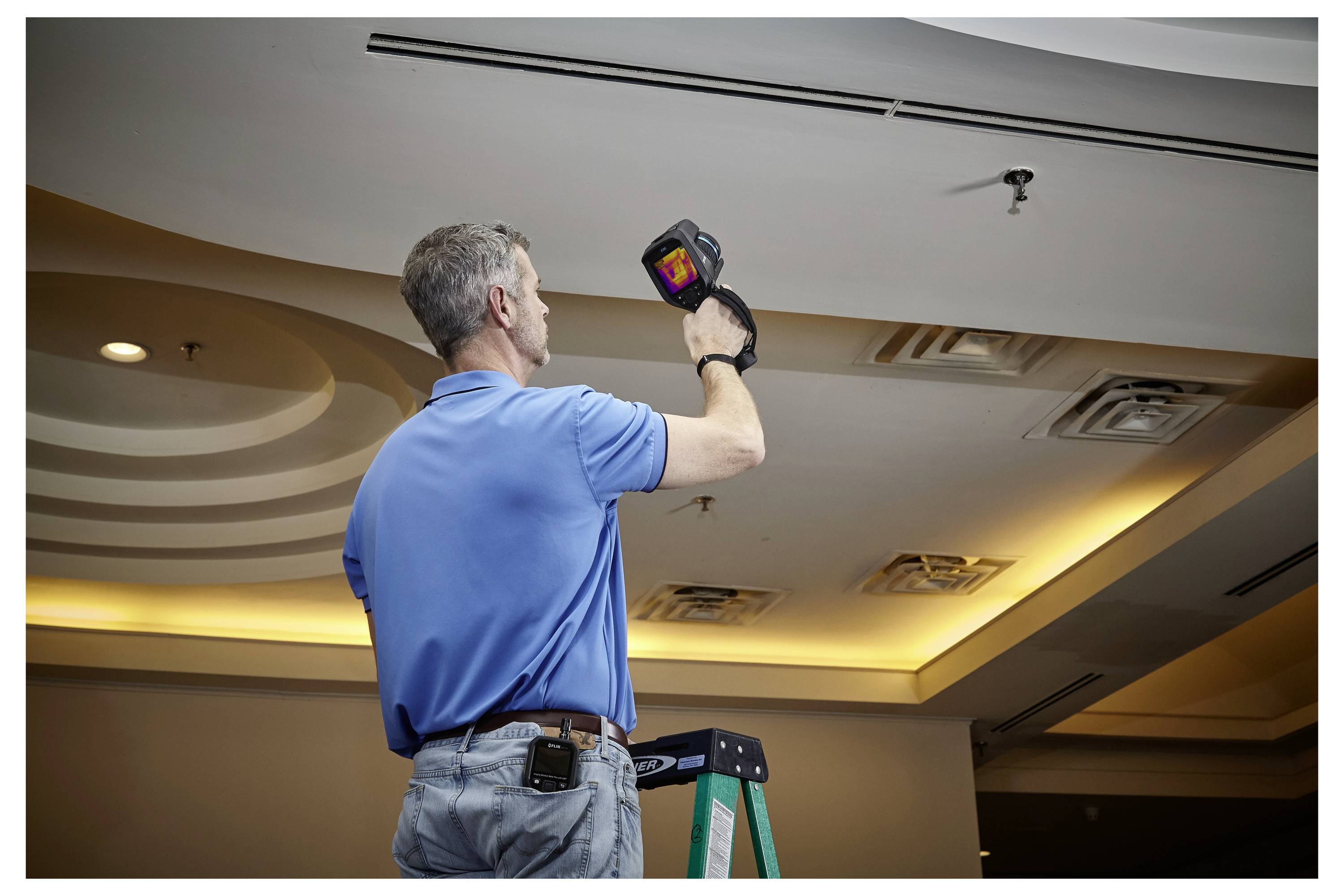

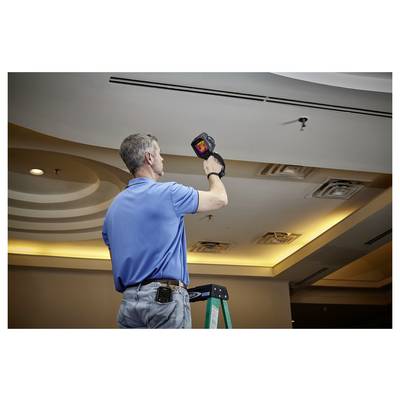

A person on a ladder uses a thermal imaging device to inspect a ceiling.

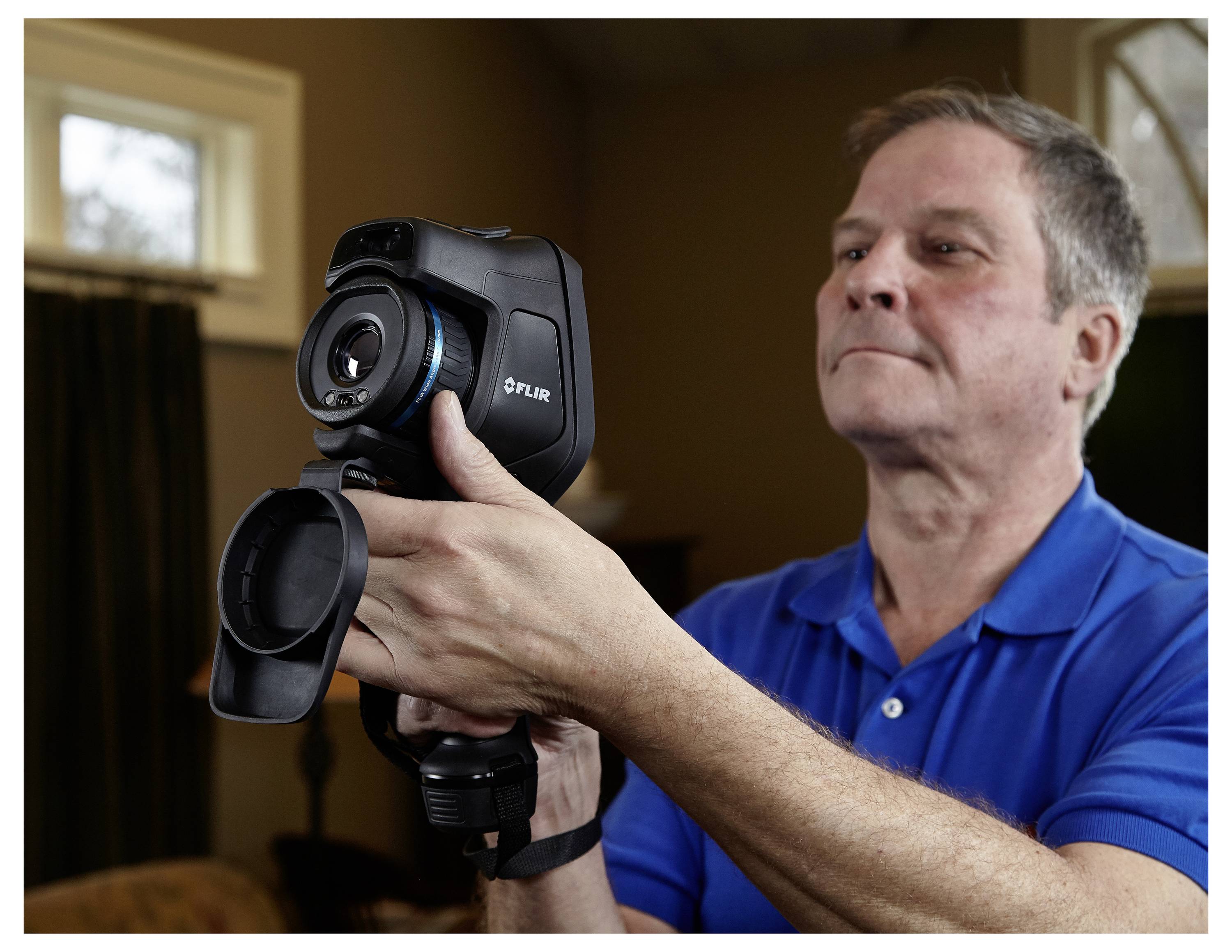

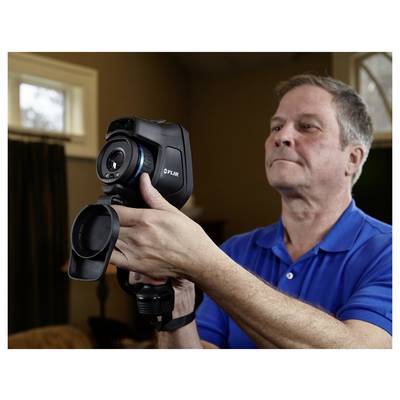

A person in a blue shirt is using a FLIR thermal imaging camera indoors.

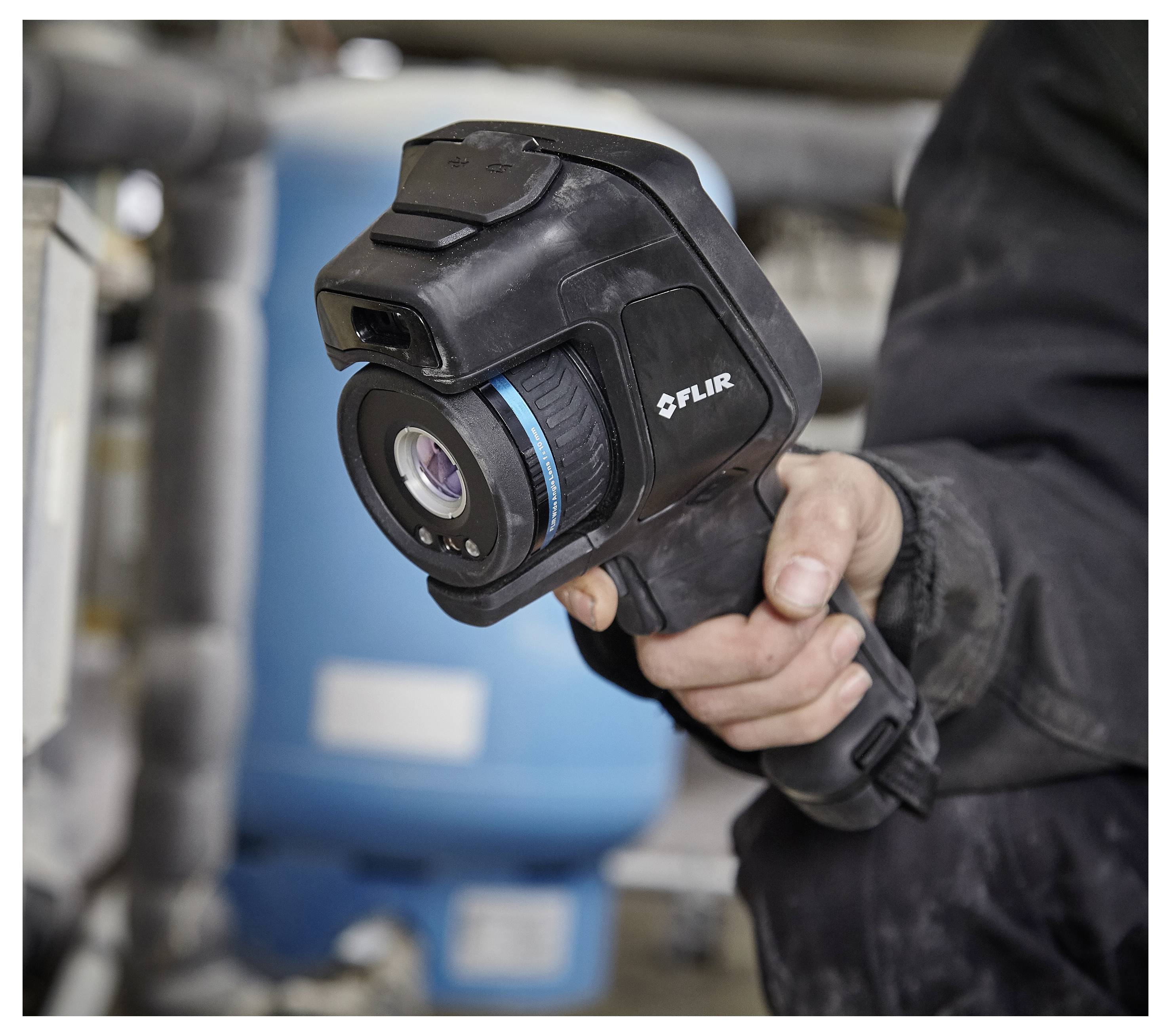

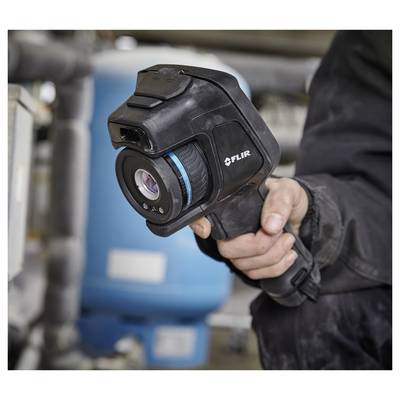

'A person holds a FLIR thermal imaging camera, used for detecting heat and identifying temperature variations in equipment or environments.'

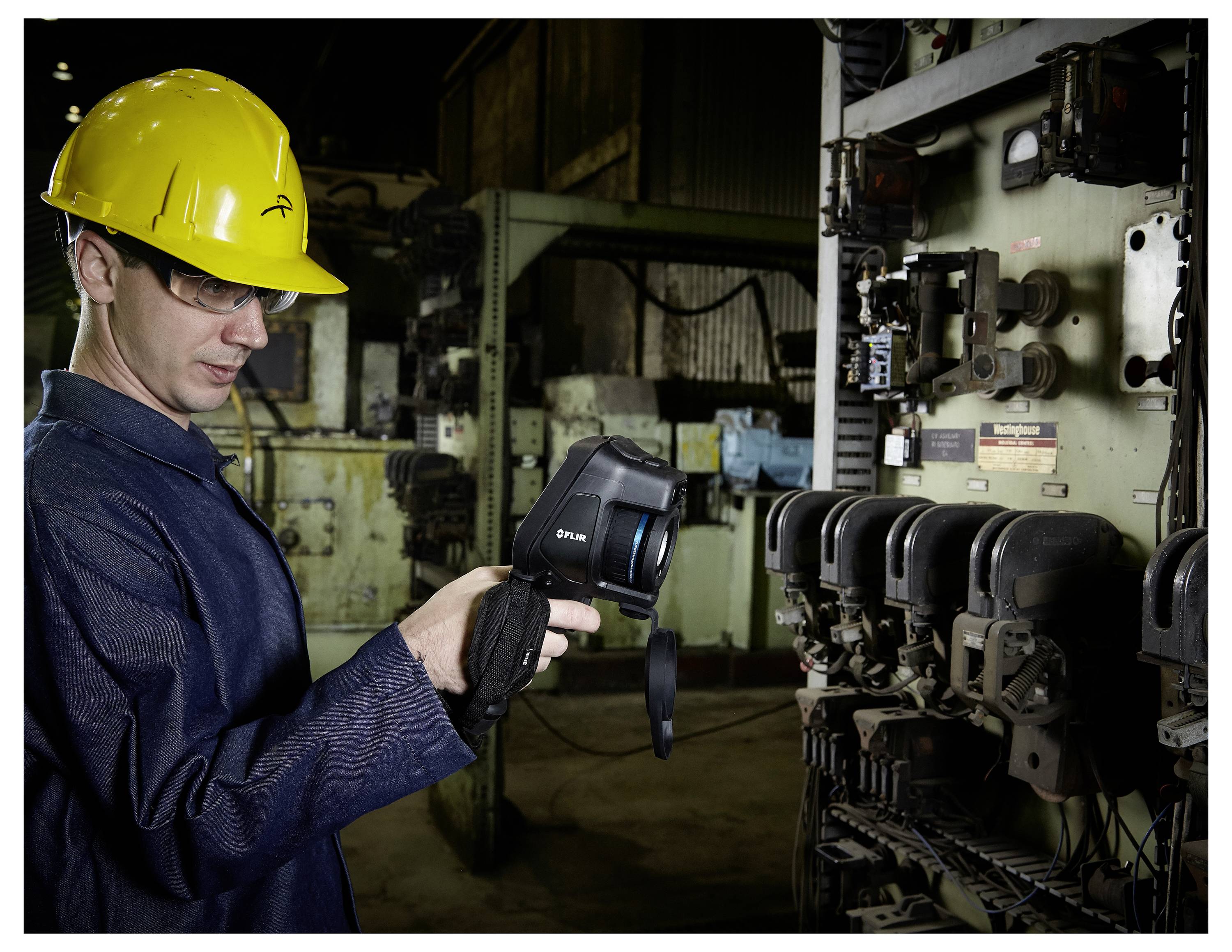

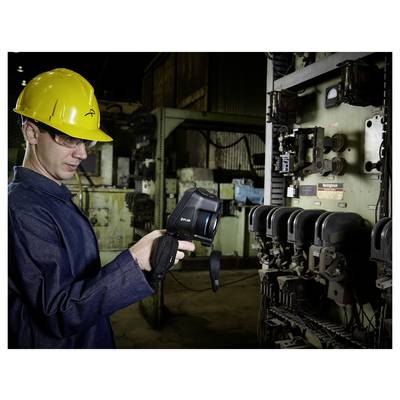

A worker wearing a yellow hard hat uses a thermal imaging camera to inspect machinery in an industrial setting.

1/12

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 14,789.00 / piece)

€ 14,789.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

FLIR E86 with 42° + 14° lens, 464x348, -20°C to +1500°C.

30 Hz Thermal imaging camera
Temperature reading range -20 up to 1500 °C
464 x 348 Pixel Bolometer matrix
Thermal sensitivity 30 mK

Technical specifications

Integrated visual camera (5 MP, fixed focus, with built-in LED light)
Radiometric JPEG images
Recording of IR, radiometric and visual videos

Type: E86 42° + 14°

Product type: IR camera

Bolometer array: 464 x 348 Pixel

Interfaces: USB A (USB 2.0)
DisplayPort
Wi-Fi
Bluetooth

Temperature reading range (max.): 1500 °C

Colour schemes: 6

Temperature reading range (min.): -20 °C

Optics: 42° x 32° (42° lens) / 14° x 10° (14° lens)

Frame rate: 30 Hz

Display resolution: 640 x 480 Pixel

: IP54

Thermal sensitivity: 30 mK

Dim: (L x W x H) 27.8 x 11.6 x 11.3 cm

Memory units: 1

Digital zoom: 4 x

Display: 640 x 480 p

Emission level (max.): 1

Emission level (min.): 0.01

Focus: Automatic
Manual

Geometric resolution (IFOV): 1.66 mrad

Weight: 1 kg

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Calibration service: AutoCal™

Temperature reading range: -20 up to 1500 °C

Min. focusing distance: 0.15 m

Width: 11.6 cm

Height: 11.3 cm

Length: 27.8 cm

Connection: USB
Bluetooth

Features: Wi-Fi
MSX®
MeterLink™
Touchscreen

: Manufacturer's standards (no certificate)

Variants(All information include VAT, plus shipping costs)

Bolometer array

Display resolution

Interfaces

Temperature reading range (max.)

Temperature reading range (min.)

Thermal sensitivity

FLIR E86 42° + 14° IR camera -20 up to 1500 °C 464 x 348 Pixel 30 Hz Wi-Fi, MSX®, MeterLink™, Touchscreen

Item no:3533046

Available soon

Conrad Electronic

This article

464 x 348 Pixel

640 x 480 Pixel

USB A (USB 2.0)

1500 °C

-20 °C

30 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14,789.00^*

FLIR E76 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533035

Fast track dispatch on Mon 2 Nov

1 Piece(s)Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E76 24° + 14° & 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533037

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

40 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14,229.00^*

FLIR E76 24° + 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533036

Fast track dispatch on Mon 2 Nov

1 Piece(s)Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

40 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 24° + 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533038

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

40 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 42° + 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533040

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

30 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533039

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E76 Dual FOV (24° - 42°) & 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Wi-Fi, Touchscreen, MSX®, MeterLink™

Item no:3533056

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13,855.00^*

FLIR E76 Dual FOV 24° - 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi, Touchscreen

Item no:3533055

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10,959.00^*

FLIR E76 IR camera 0 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi

Item no:2305183

Fast track dispatch on Mon 2 Nov

1 Piece(s)Conrad Electronic

320 x 240 Pixel

USB A (USB 2.0)

650 °C

0 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

Documents & Downloads

Datasheet

Datasheet 3533046 FLIR E86 42° + 14° IR camera -20 up to 1500 °C 464 x 348 Pixel 30 Hz Wi-Fi, MSX®, MeterLink™, Touchscreen

User & Safety Instructions

User & Safety Instructions 3533046 FLIR E86 42° + 14° IR camera -20 up to 1500 °C 464 x 348 Pixel 30 Hz Wi-Fi, MSX®, MeterLink™, Touchscreen

Description

The FLIR E86 offers numerous powerful functions for fast and accurate detection. When combined with a FLIR FlexView™ dual-field lens, you can instantly switch from wide angle to telescan. This infrared camera with a resolution of 464 × 348 pixels has an extended temperature measurement range for easier detection of hot spots and hidden anomalies in electrical and mechanical plants. AutoCal™ interchangeable lenses provide full coverage of near and distant targets, and FLIR imaging technologies such as UltraMax® and MSX® deliver crisp, high-color thermal images. With the integrated FLIR inspection route software, you can travel along pre-defined routes so that you can proceed with planning even at larger locations or when reviewing several areas. FLIR Ignite enables the automatic uploading of E86 images directly from the camera to the cloud, in order to store and share them easily and securely.

Laser distance measurement
The laser distance meter enables a fast and precise auto-focus and provides data for the in-picture area calculation (m² or ft²).

One lens, two fields of view
Pair your Exx Series camera with a dual-field FLIR FlexView lens so you can easily switch from wide angle to telescan at the touch of a button.

Streamlined reporting
With the integrated FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in microphone for recording voice comments and reporting functions, the E86 makes it easier, faster and more efficient to work. (*Optional add-on software)

This text is machine translated.

Features

464 × 348 pixels
Thermal sensitivity / NETD: Less than 30 mK, 42° at 30 °C [BR] less than 50 mK, 14° at 30 °C
Accuracy ±2°C or ±2% of reading
5 MP digital camera with integrated Photo/Video LED lamp
Display: 4" LCD touch screen with 640 × 480 pixels and automatic rotation
Storage media: Removable SD-card
Frame rate: 30 Hz
Picture-in-picture: Adjustable size and position
F-number 1.1, 42° [BR]1.5, 14°
Detector type and grid: Uncooled microbolometer, 17 µm
5 MP digital camera with integrated Photo/Video LED lamp
Digital zoom 1 to 4 times continuously
Colour palettes: Iron, Grey, Rainbow, Arctic, Lava, Rainbow HC
Focus: Continuous laser distance meter (LDM), one-point laser distance meter (LDM), one-point contrast, manual
Minimum focus distance: 0.15 m, 42° [BR]1.0 m, 14°
Non-radiometric IR video streaming: H.264 or MPEG-4 via WLAN MJPEG via UVC or WLAN
Lens recognition: Automatic
Radiometric IR video recording: Real-time radiometric recording (.CSQ)
Radiometric IR video streaming: Yes, via UVC
Spectral range: 7.5 – 14 µm
UltraMax: Yes
Accuracy ±2°C or ±2% of reading
Measuring point: 3 each in live mode
Object temperature range --20°C to 120°C; -0°C to 650°C; -300°C to 1,500°C.
Measurement presets: No measurement, Center Spot, Hot Spot, Cold Spot, Custom 1, Custom 2
Display: 4" LCD touch screen with 640 × 480 pixels and automatic rotation
Voice: Up to 60 seconds recording for still images or videos via built-in microphone (built-in speaker) or Bluetooth®
Text: Pre-defined list or touch screen keyboard
Operating temperature range -15 to +50 °C
Storage temperature range: -40 °C to +70 °C
EN/UL/CSA/PSE 60950-1

Scope of delivery

Infrared camera with lens, small viewfinder
2 rechargeable batteries
Battery charger
Hard shell carrying case
Case Carrying Systems
Front lens cover
Power supply 15W/3A
Printed documents
SD memory card (8 GB)
Cable (USB 2.0 A to USB Type C, USB Type C to HDMI, USB Type C to USB Type C)
License card: FLIR thermal studio starter

Description

Features

464 × 348 pixels
Thermal sensitivity / NETD: Less than 30 mK, 42° at 30 °C [BR] less than 50 mK, 14° at 30 °C
Accuracy ±2°C or ±2% of reading
5 MP digital camera with integrated Photo/Video LED lamp
Display: 4" LCD touch screen with 640 × 480 pixels and automatic rotation
Storage media: Removable SD-card
Frame rate: 30 Hz
Picture-in-picture: Adjustable size and position
F-number 1.1, 42° [BR]1.5, 14°
Detector type and grid: Uncooled microbolometer, 17 µm
5 MP digital camera with integrated Photo/Video LED lamp
Digital zoom 1 to 4 times continuously
Colour palettes: Iron, Grey, Rainbow, Arctic, Lava, Rainbow HC
Focus: Continuous laser distance meter (LDM), one-point laser distance meter (LDM), one-point contrast, manual
Minimum focus distance: 0.15 m, 42° [BR]1.0 m, 14°
Non-radiometric IR video streaming: H.264 or MPEG-4 via WLAN MJPEG via UVC or WLAN
Lens recognition: Automatic
Radiometric IR video recording: Real-time radiometric recording (.CSQ)
Radiometric IR video streaming: Yes, via UVC
Spectral range: 7.5 – 14 µm
UltraMax: Yes
Accuracy ±2°C or ±2% of reading
Measuring point: 3 each in live mode
Object temperature range --20°C to 120°C; -0°C to 650°C; -300°C to 1,500°C.
Measurement presets: No measurement, Center Spot, Hot Spot, Cold Spot, Custom 1, Custom 2
Display: 4" LCD touch screen with 640 × 480 pixels and automatic rotation
Voice: Up to 60 seconds recording for still images or videos via built-in microphone (built-in speaker) or Bluetooth®
Text: Pre-defined list or touch screen keyboard
Operating temperature range -15 to +50 °C
Storage temperature range: -40 °C to +70 °C
EN/UL/CSA/PSE 60950-1
