Name: FLIR E96 14° IR camera -20 up to 1500 °C 640 x 480 Pixel 30 Hz Wi-Fi, MSX®, MeterLink™, Touchscreen
Brand: FLIR
SKU: 3533047
Availability: InStock

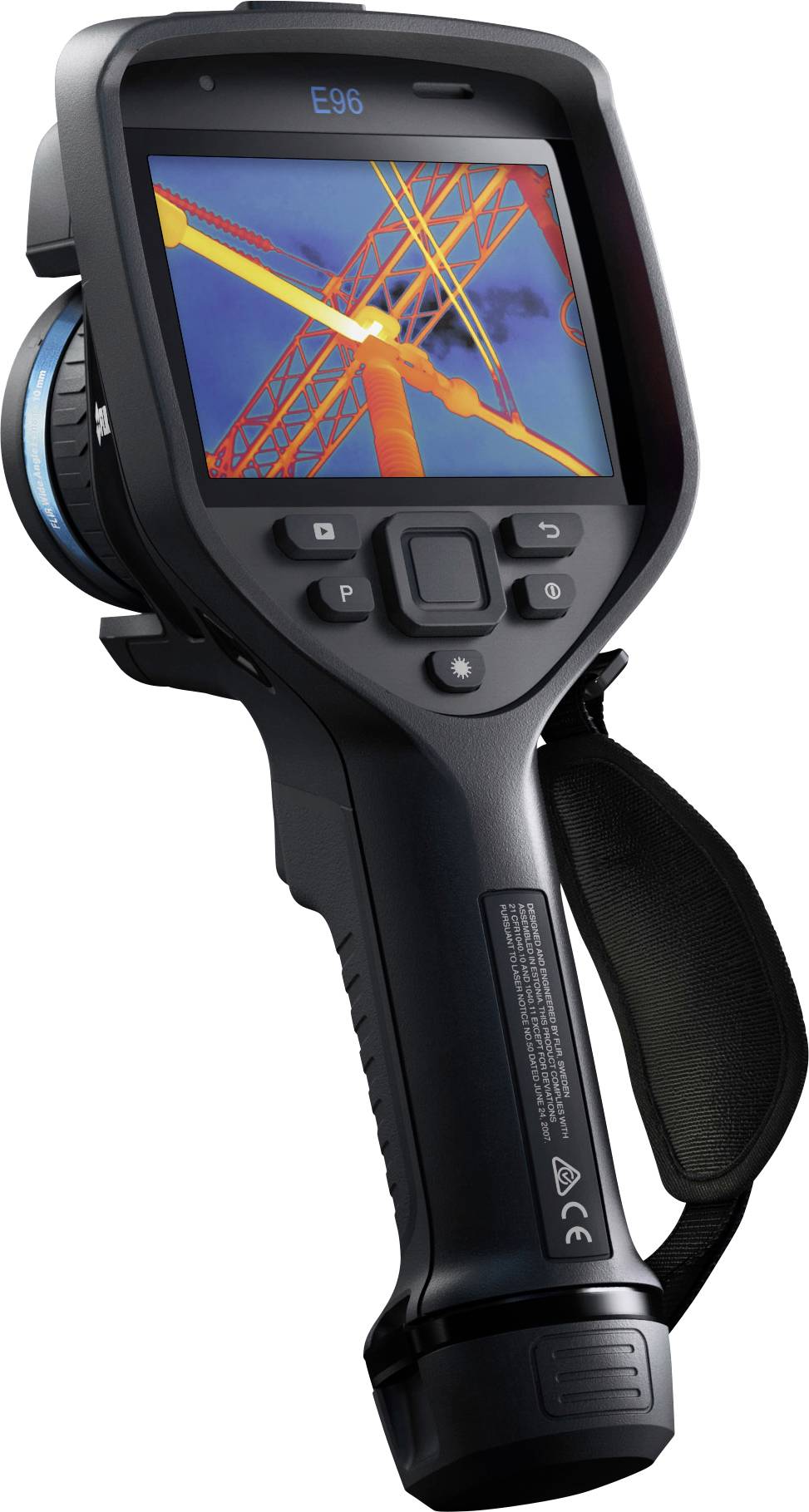

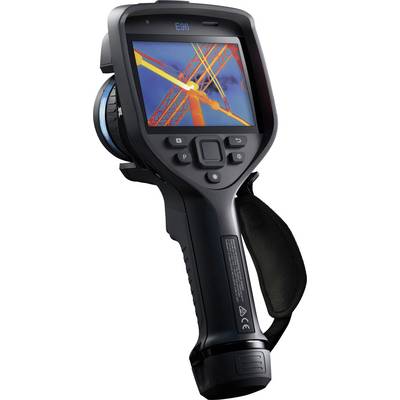

Thermal imaging camera displaying a crane on its screen, highlighting temperature variations.

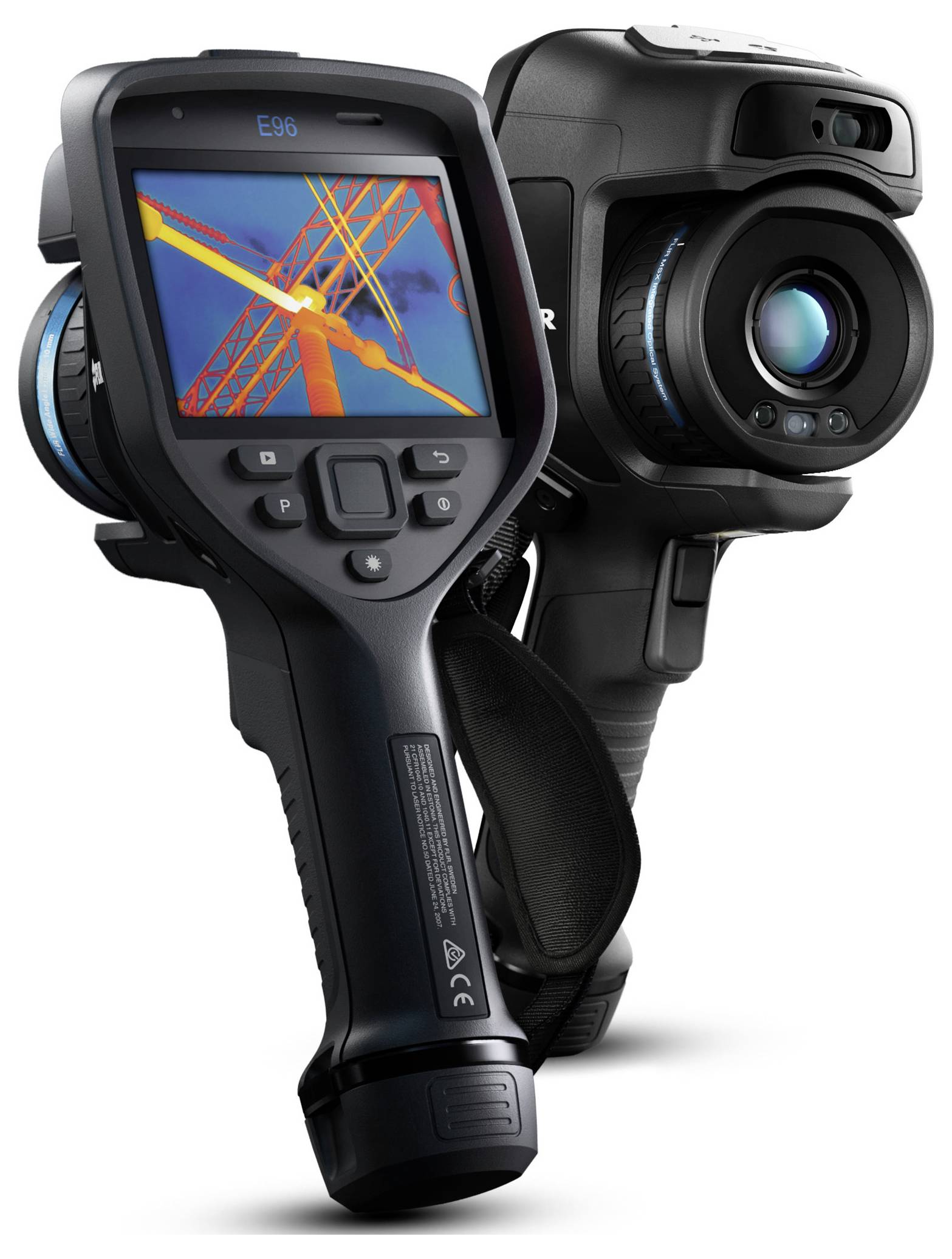

A thermal imaging camera displaying a crane on its screen, highlighting heat variations, next to another similar camera.

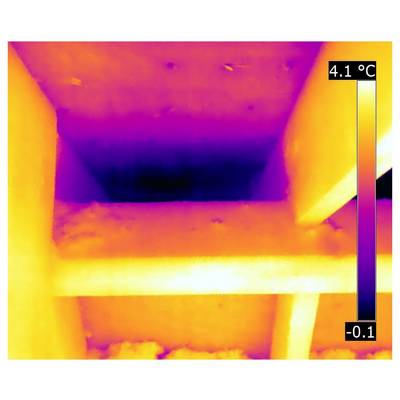

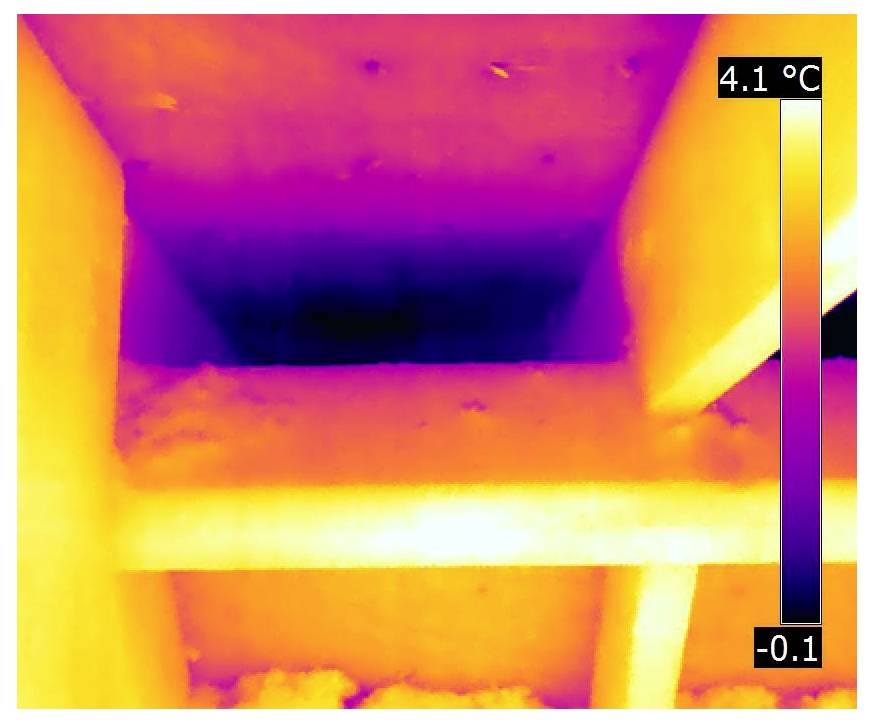

Thermal image showing a structure with temperature variations from -0.1°C to 4.1°C, highlighting heat loss areas in cool shades.

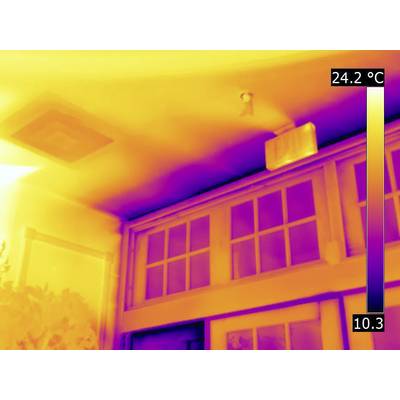

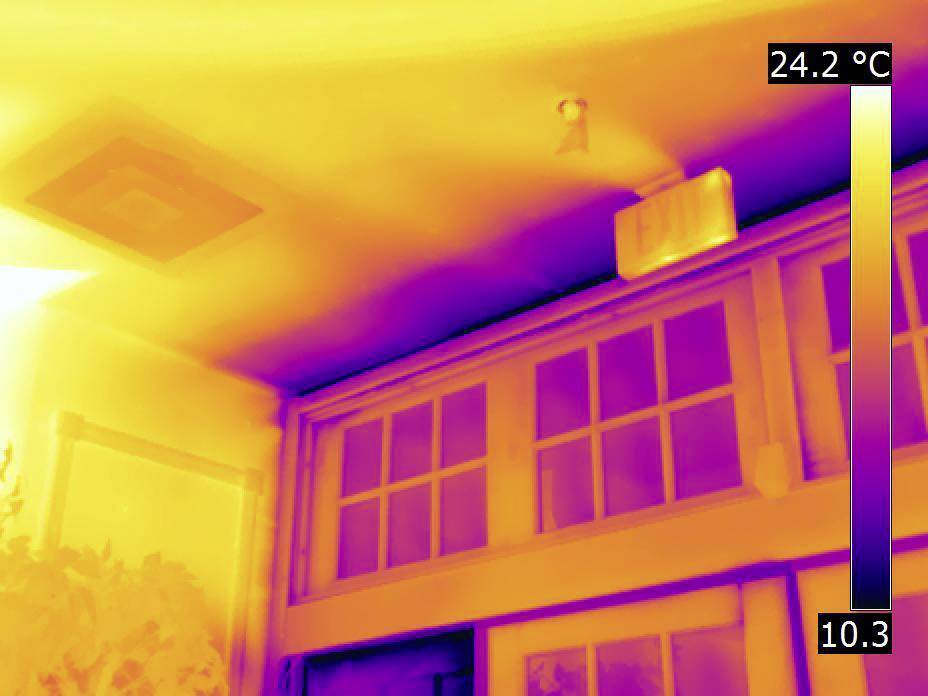

A thermal image showing a door with closed windows above it. The temperature ranges from 10.3°C to 24.2°C, with the ceiling warmer.

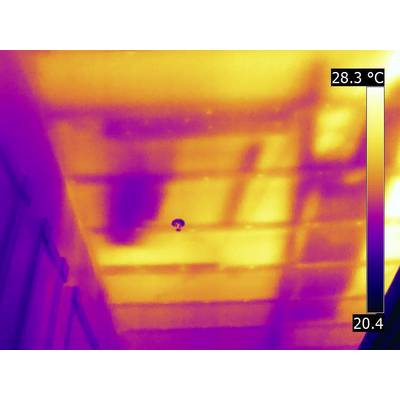

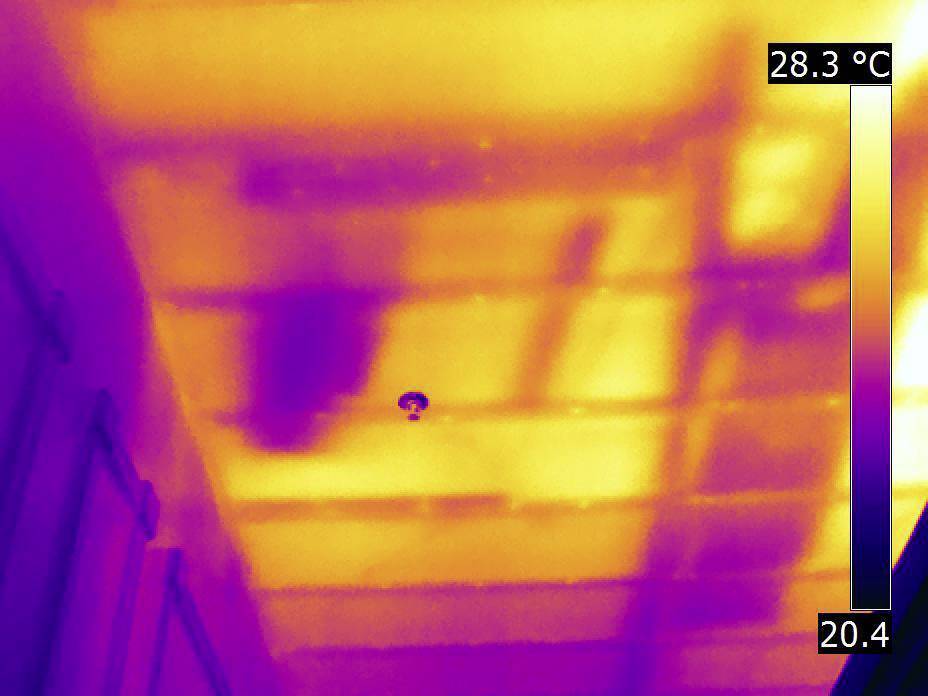

'Thermal image of a ceiling showing temperature variation, ranging from 20.4°C to 28.3°C. Darker areas indicate cooler temperatures.'

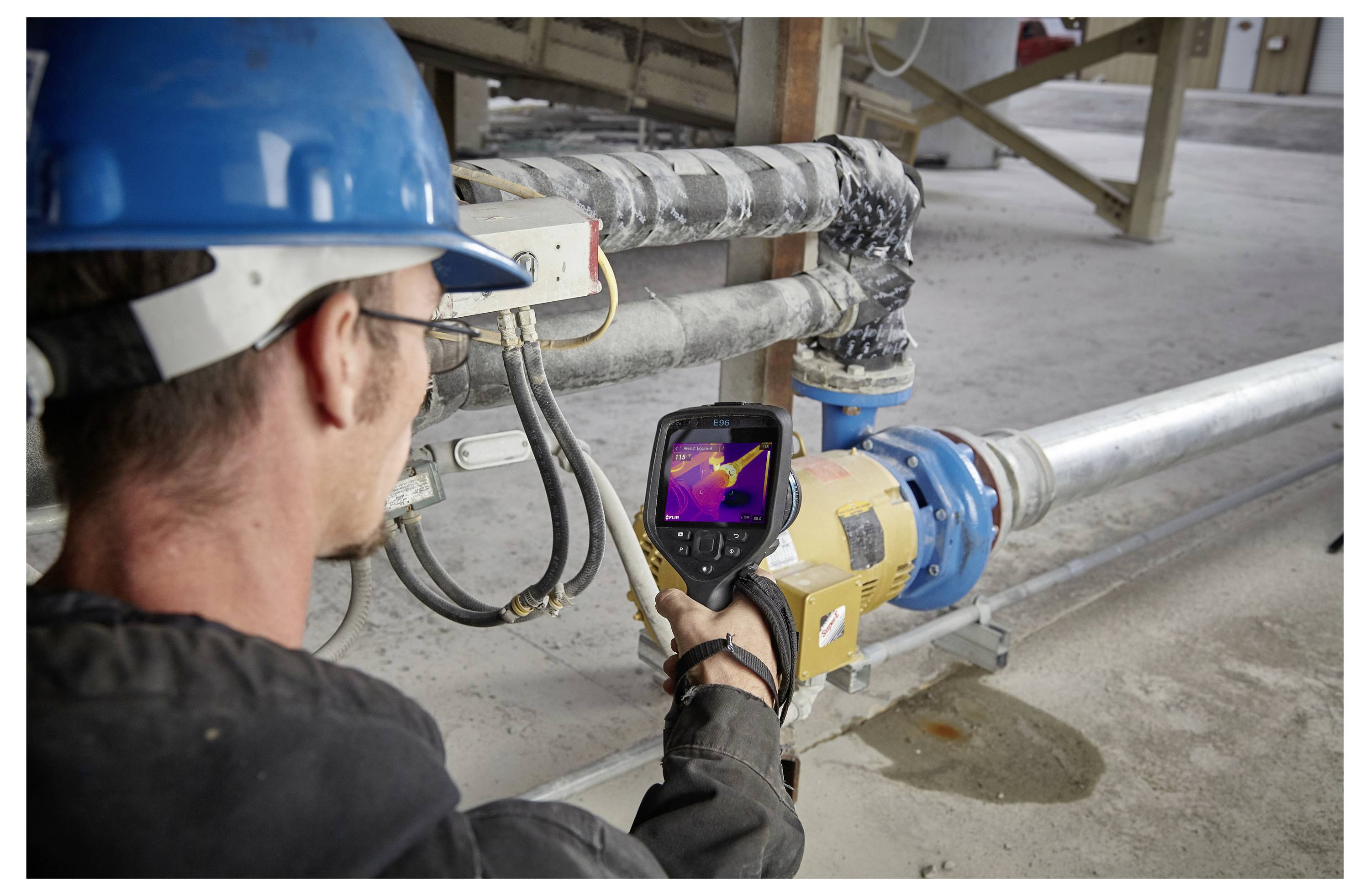

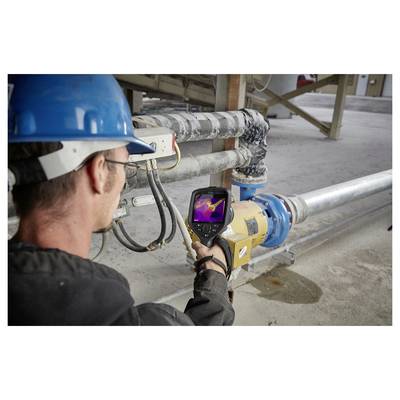

A worker uses a thermal camera to inspect industrial pipes for heat irregularities, wearing a hard hat and safety glasses on a concrete floor.

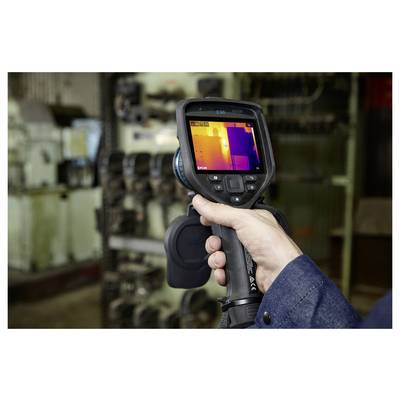

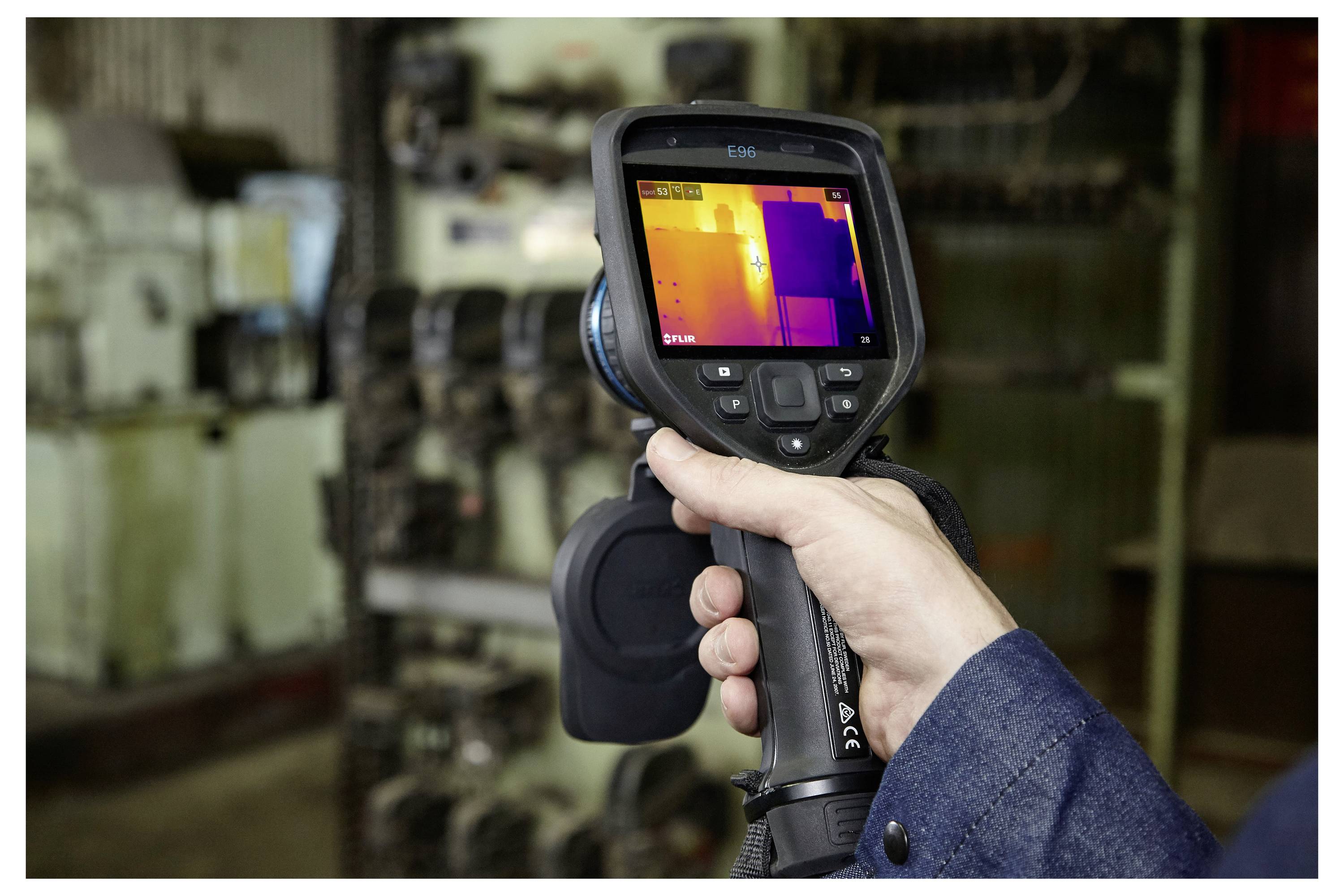

A person uses a handheld thermal camera to scan machinery, displaying a heat map of high-temperature areas on its screen.

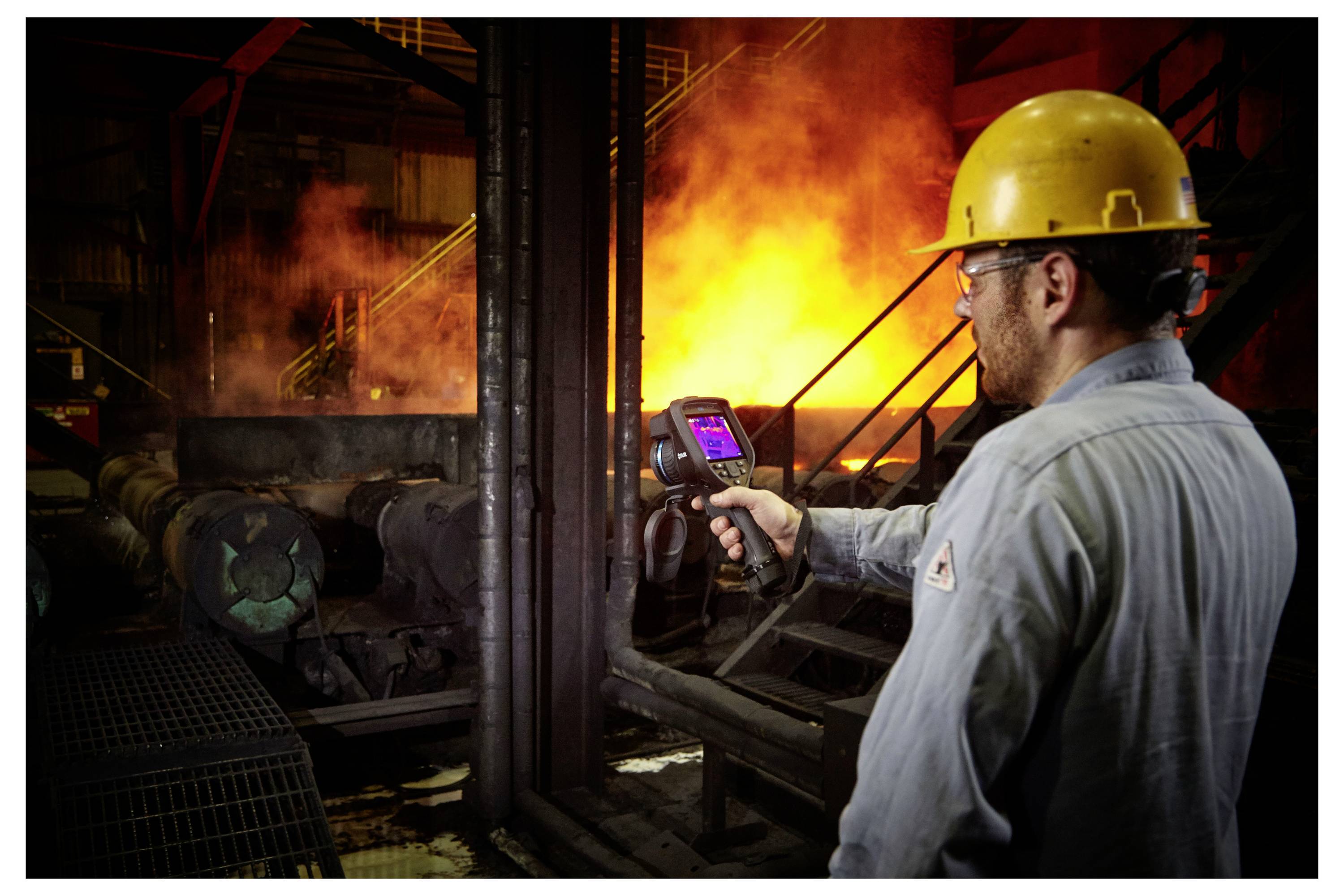

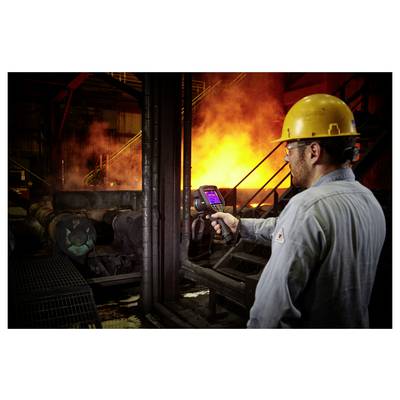

A worker in protective gear uses a thermal camera to monitor equipment in a fiery industrial setting.

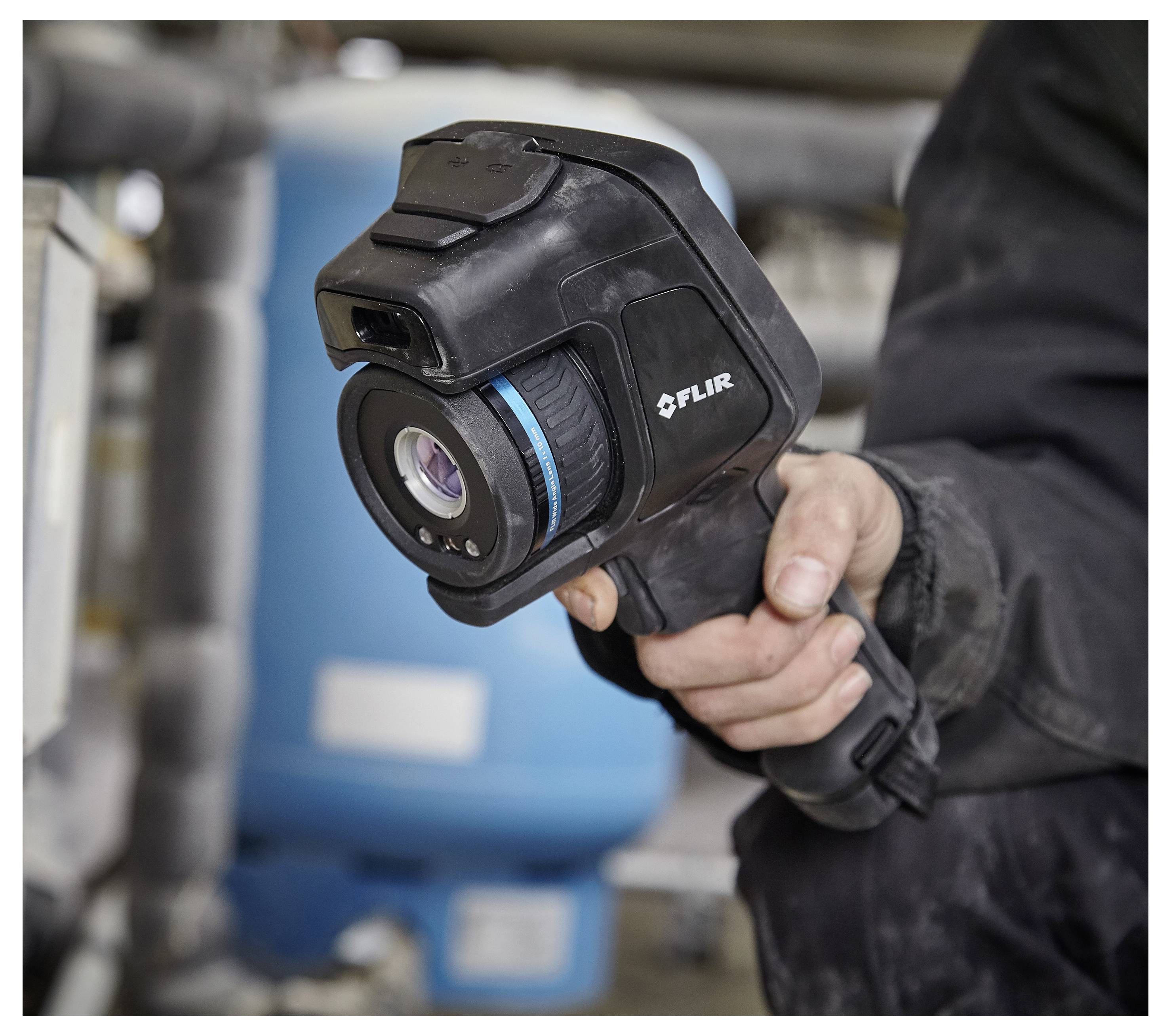

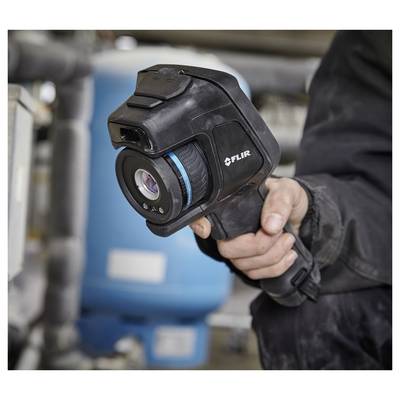

A person holds a black thermal imaging camera, aimed at industrial equipment, with 'FLIR' branding visible.

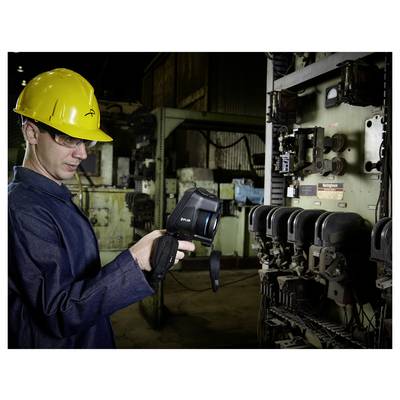

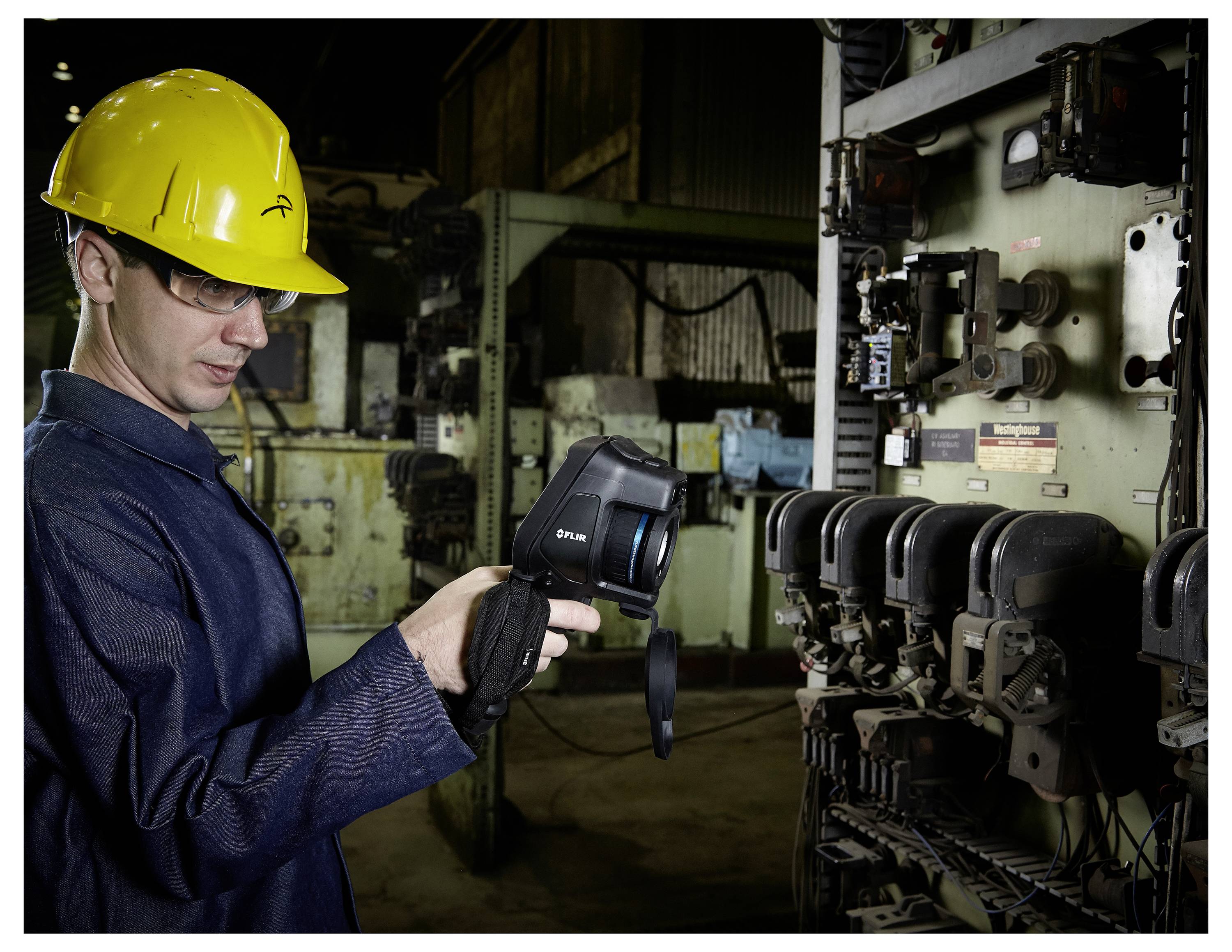

A worker in protective gear uses a thermal imaging camera to inspect industrial equipment, focusing on functionality and safety.

1/10

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 14,975.00 / piece)

€ 14,975.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

FLIR E96 with 14° lens, 640x480, 20 °C to +1500°C

30 Hz Thermal imaging camera
Temperature reading range -20 up to 1500 °C
640 x 480 Pixel Bolometer matrix
Thermal sensitivity 50 mK

Technical specifications

UltraMax
Integrated digital camera (5 MP)
Laser range finder (LDM)

Type: E96 14°

Product type: IR camera

Bolometer array: 640 x 480 Pixel

Interfaces: USB A (USB 2.0)
Wi-Fi
Bluetooth
DisplayPort

Temperature reading range (max.): 1500 °C

Colour schemes: 6

Temperature reading range (min.): -20 °C

Optics: 14° x 10°

Frame rate: 30 Hz

Display resolution: 640 x 480 Pixel

: IP54

Thermal sensitivity: 50 mK

Dim: (L x W x H) 27.8 x 11.6 x 11.3 cm

Memory units: 1

Digital zoom: 8 x

Display: 640 x 480 p

Emission level (max.): 1

Emission level (min.): 0.01

Focus: Manual
Automatic

Geometric resolution (IFOV): 0.38 mrad

Weight: 1

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Calibration service: AutoCal™

Temperature reading range: -20 up to 1500 °C

Min. focusing distance: 1 m

Width: 11.6 cm

Height: 11.3 cm

Length: 27.8 cm

Connection: USB
Bluetooth

Features: Wi-Fi
MSX®
MeterLink™
Touchscreen

: Manufacturer's standards (no certificate)

Variants(All information include VAT, plus shipping costs)

Bolometer array

Display resolution

Interfaces

Temperature reading range (max.)

Temperature reading range (min.)

Thermal sensitivity

FLIR E96 14° IR camera -20 up to 1500 °C 640 x 480 Pixel 30 Hz Wi-Fi, MSX®, MeterLink™, Touchscreen

Item no:3533047

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

This article

640 x 480 Pixel

USB A (USB 2.0)

1500 °C

-20 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14,975.00^*

FLIR E76 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533035

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E76 24° + 14° & 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533037

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

40 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14,229.00^*

FLIR E76 24° + 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533036

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

40 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10,729.00^*

FLIR E76 24° + 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533038

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

40 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 42° + 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533040

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

30 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533039

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E76 Dual FOV (24° - 42°) & 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Wi-Fi, Touchscreen, MSX®, MeterLink™

Item no:3533056

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13,855.00^*

FLIR E76 Dual FOV 24° - 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi, Touchscreen

Item no:3533055

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10,959.00^*

FLIR E76 IR camera 0 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi

Item no:2305183

Available soon

Conrad Electronic

320 x 240 Pixel

USB A (USB 2.0)

650 °C

0 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

Documents & Downloads

Datasheet

Datasheet 3533047 FLIR E96 14° IR camera -20 up to 1500 °C 640 x 480 Pixel 30 Hz Wi-Fi, MSX®, MeterLink™, Touchscreen

User & Safety Instructions

User & Safety Instructions 3533047 FLIR E96 14° IR camera -20 up to 1500 °C 640 x 480 Pixel 30 Hz Wi-Fi, MSX®, MeterLink™, Touchscreen

Description

The FLIR E96 is our first camera with pistol grip and an infrared resolution of 640 × 480 pixels. Inspectors also test power plants and other hazardous areas safely and quickly for electrical or mechanical faults. The FLIR E96 fully covers close and distant targets with a full range of lens options. Pair the E96 with a dual-field FLIR FlexView™ lens so you can instantly switch from wide angle to telescan at the touch of a button. With the integrated FLIR inspection route software, you can travel along pre-defined routes so that inspectors can proceed fully even at larger locations or check several areas. FLIR Ignite enables the automatic uploading of E96 images directly from the camera to the cloud, in order to store and share them easily and securely.

Excellent thermal imaging
With a thermal resolution of 640 × 480 pixels and the FLIR-UltraMax® and MSX® image enhancement, the E96 delivers the industry's highest color and easiest to interpret.

One lens, two fields of view
Pair your Exx Series camera with a dual-field FLIR FlexView lens so you can easily switch from wide angle to telescan at the touch of a button.

Streamlined reporting
With the integrated FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in microphone for recording voice comments and reporting functions, the E96 ensures that you can work easier, faster and more efficiently. (*Optional add-on software)

This text is machine translated.

Features

640 x 480 pixels IR resolution
Thermal sensitivity / NETD: Less than 50 mK at 30 °C.
Accuracy ±2°C or ±2% of reading
5 MP digital camera with integrated Photo/Video LED lamp
Display: 4" LCD touch screen with 640 × 480 pixels and automatic rotation
Storage media: Removable SD-card
Frame rate: 30 Hz
Picture-in-picture: Adjustable size and position
F-number 1.5
Detector type and grid: Uncooled microbolometer, 12 µm
5 MP digital camera with integrated Photo/Video LED lamp
Digital zoom 1 to 8 times continuously
Colour palettes: Iron, Grey, Rainbow, Arctic, Lava, Rainbow HC
Focus: Continuous laser distance meter (LDM), one-point laser distance meter (LDM), one-point contrast, manual
Minimum focus distance: 1.0 m.
Non-radiometric IR video streaming: H.264 or MPEG-4 via WLAN MJPEG via UVC or WLAN
Lens recognition: Automatic
Radiometric IR video recording: Real-time radiometric recording (.CSQ)
Radiometric IR video streaming: Yes, via UVC
Spectral range: 7.5 – 14 µm
Accuracy ±2°C or ±2% of reading
Measuring point: 3 each in live mode
Object temperature range --20°C to 120°C; -0°C to 650°C; -300°C to 1,500°C.
Measurement presets: No measurement, Center Spot, Hot Spot, Cold Spot, Custom 1, Custom 2
Display: 4" LCD touch screen with 640 × 480 pixels and automatic rotation
Voice: Up to 60 seconds recording for still images or videos via built-in microphone (built-in speaker) or Bluetooth®
Text: Pre-defined list or touch screen keyboard
Operating temperature range -15 to +50 °C
Storage temperature range: -40 °C to +70 °C
EN/UL/CSA/PSE 60950-1

Scope of delivery

Infrared camera with lens, small viewfinder
2 rechargeable batteries
Battery charger
Hard shell carrying case
Case Carrying Systems
Front lens cover
Power supply unit
Printed documents
SD memory card (8 GB)
Cable (USB 2.0 A to USB Type C, USB Type C to HDMI, USB Type C to USB Type C)
License card: FLIR thermal studio starter
