Name: FLIR E96 42° + 14° IR camera -20 up to 1500 °C 640 x 480 Pixel 30 Hz Wi-Fi, MSX®, MeterLink™, Touchscreen
Brand: FLIR
SKU: 3533052
Availability: BackOrder

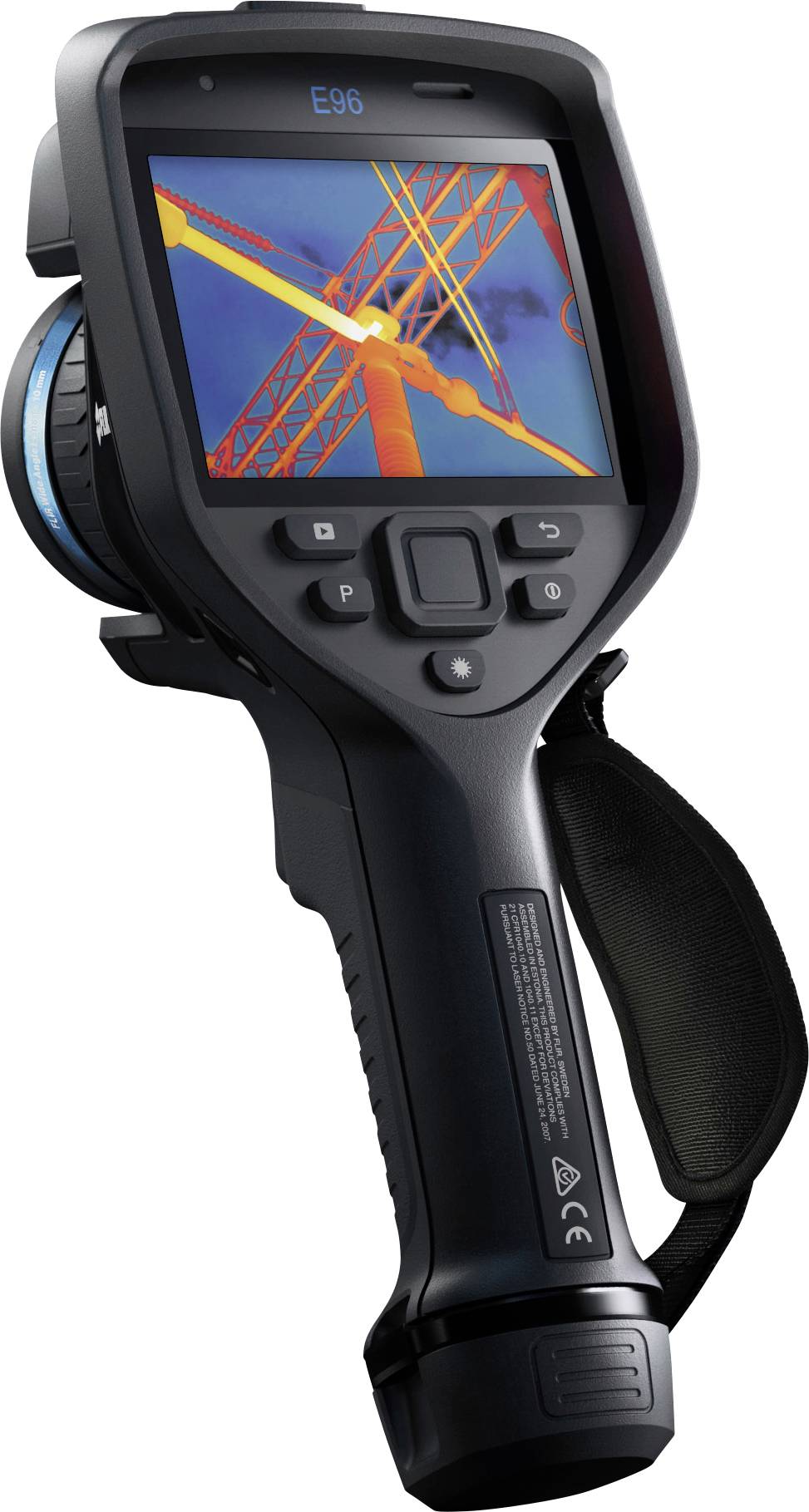

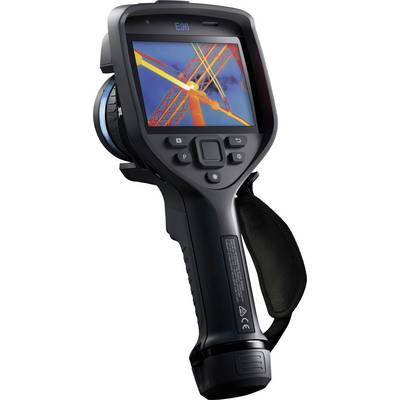

A thermal imaging camera displaying a color-coded heat map of a crane structure on its screen.

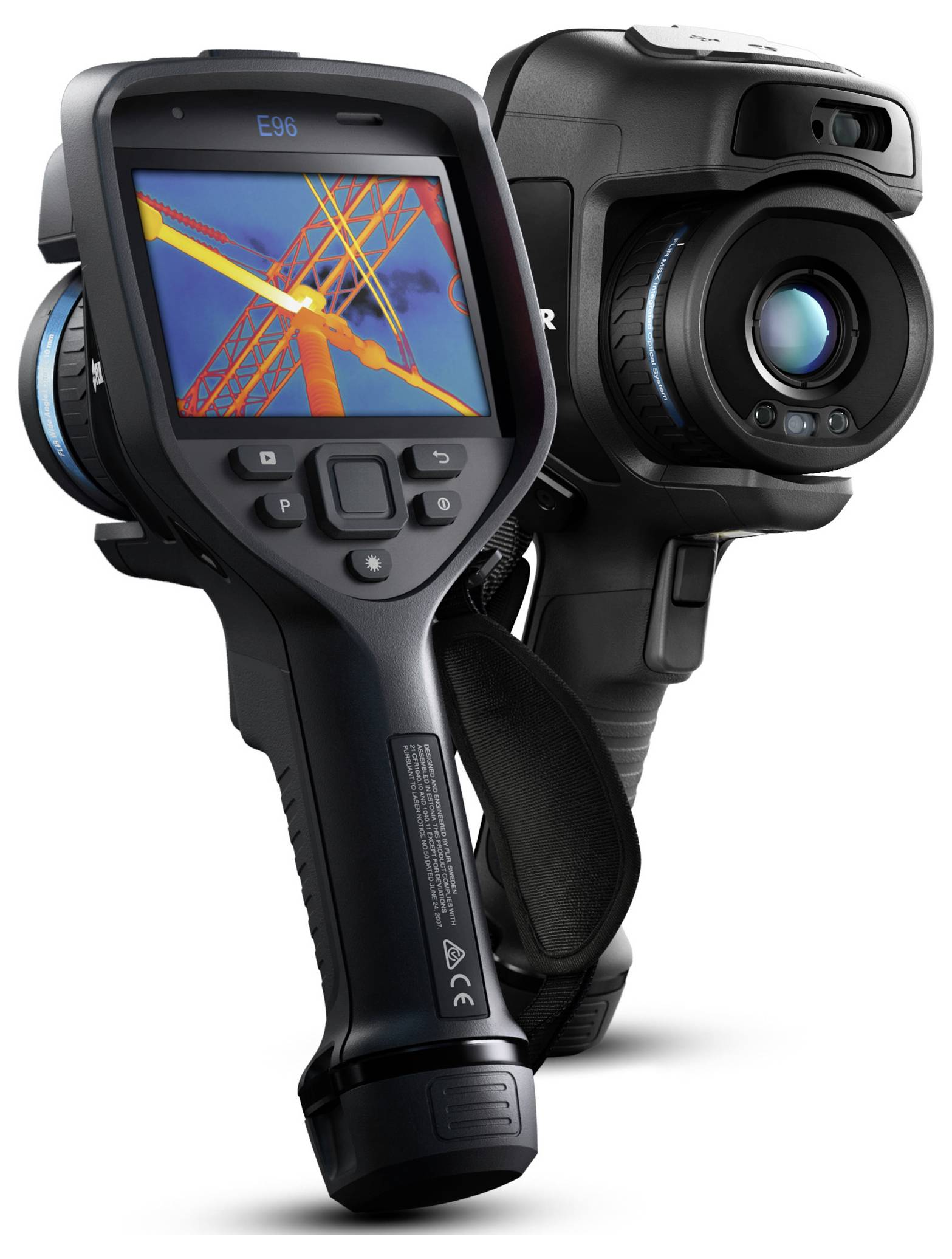

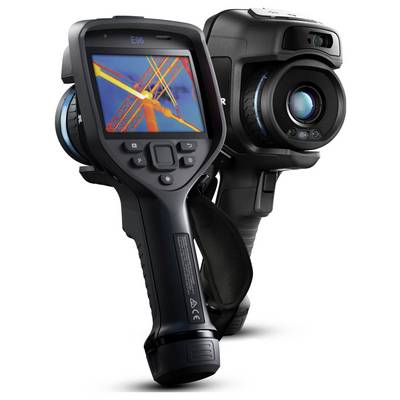

Two handheld thermal imaging cameras, one showing a crane on its screen. The devices are black with various control buttons and a strap.

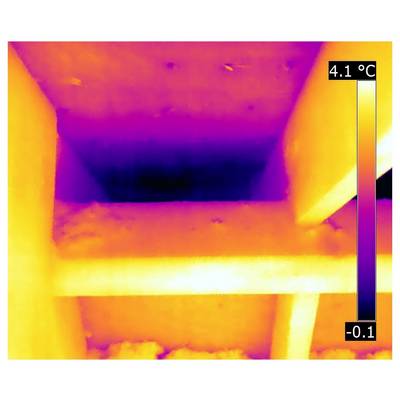

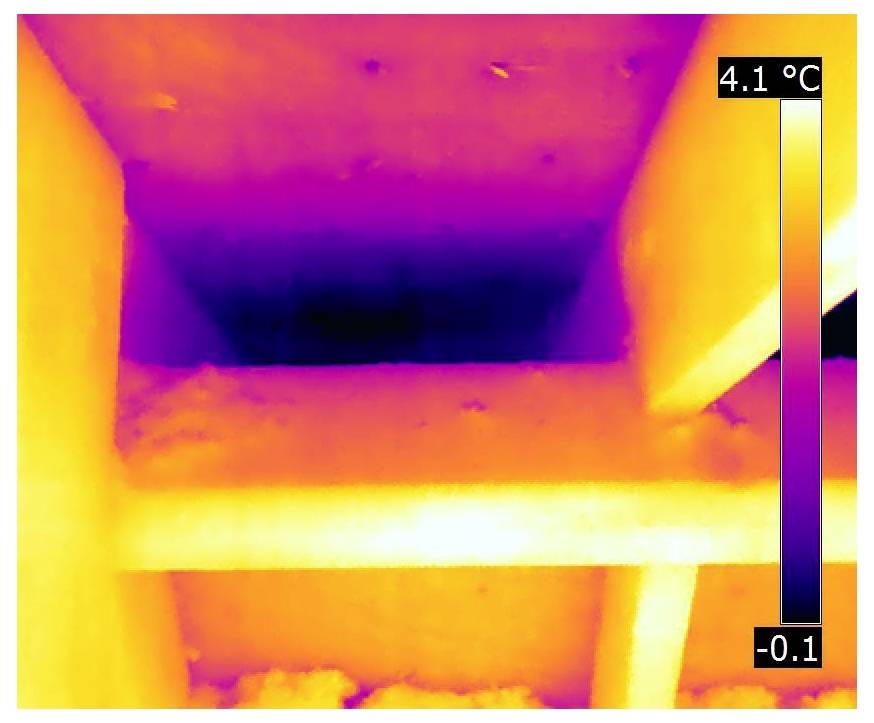

'Thermal image showing heat loss through a building's ceiling. Colors range from dark (cold) to bright (warm), with a scale of -0.1 to 4.1°C.'

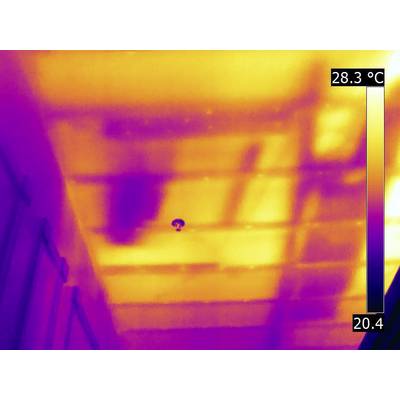

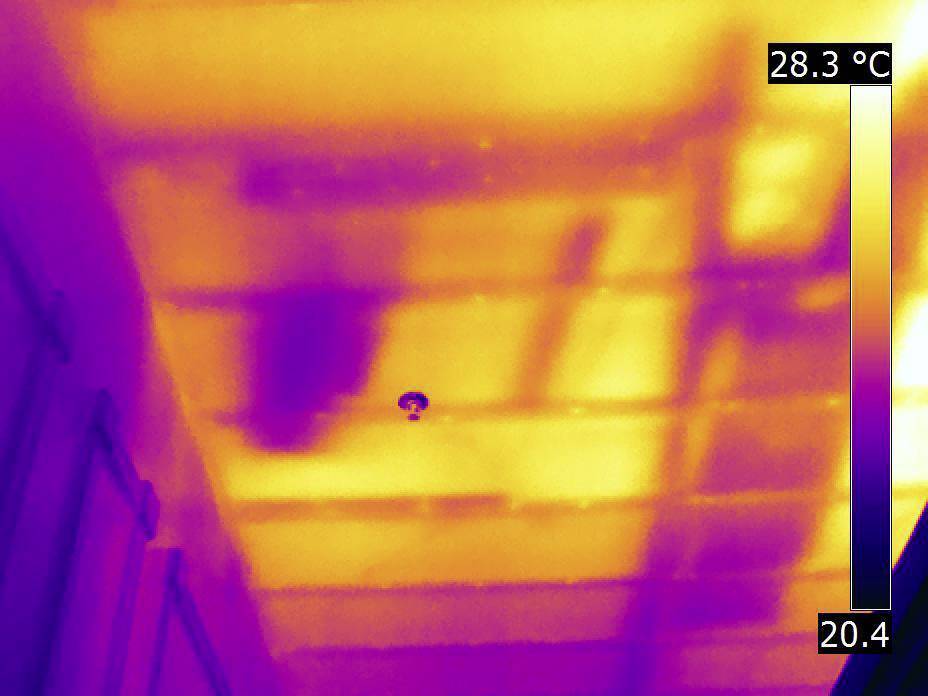

Thermal image of a ceiling, showing temperature variations from 20.4°C to 28.3°C. Warmer areas are highlighted in yellow and red.

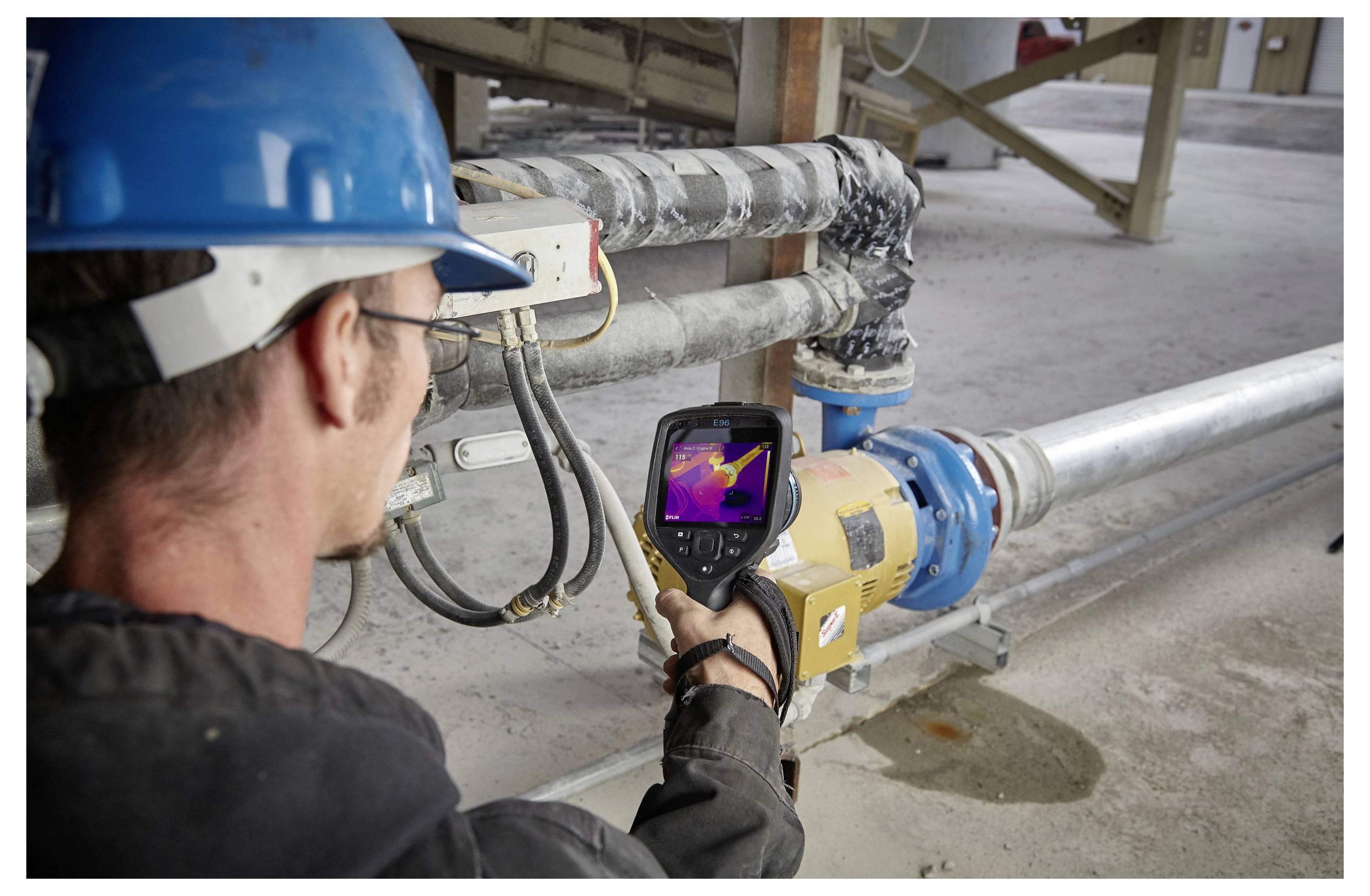

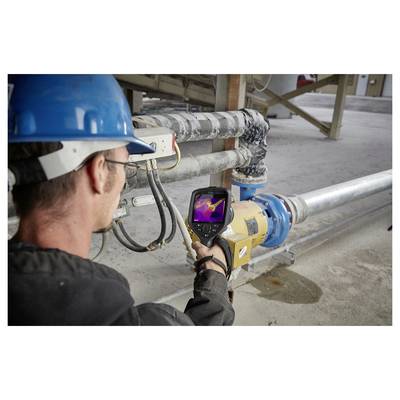

A worker uses a thermal imaging camera to inspect pipes in an industrial setting, highlighting temperature variations for maintenance.

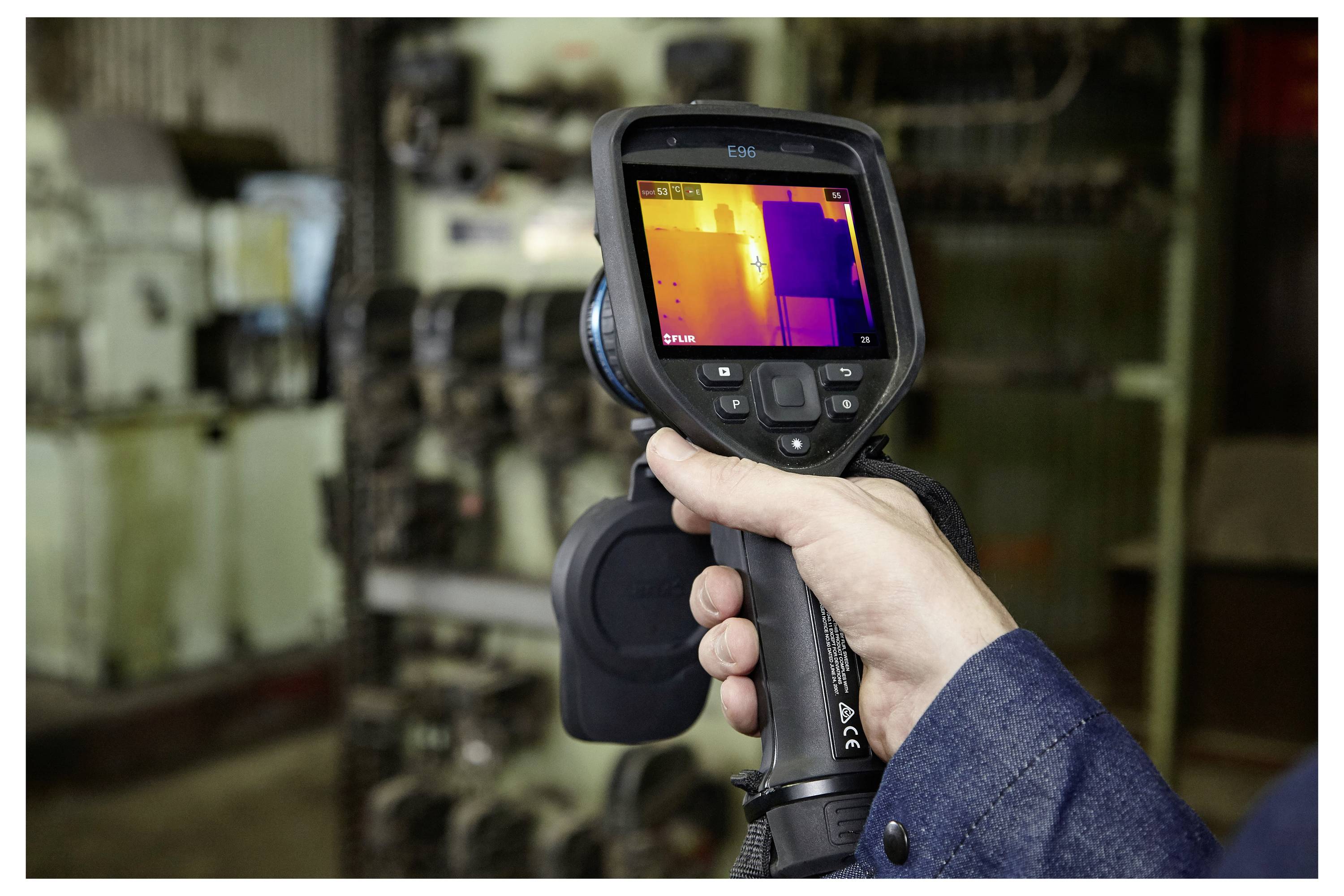

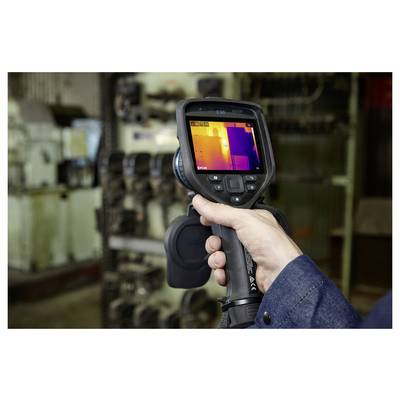

A person holds a thermal imaging camera in an industrial setting, displaying a heat map on the screen, indicating temperature variations.

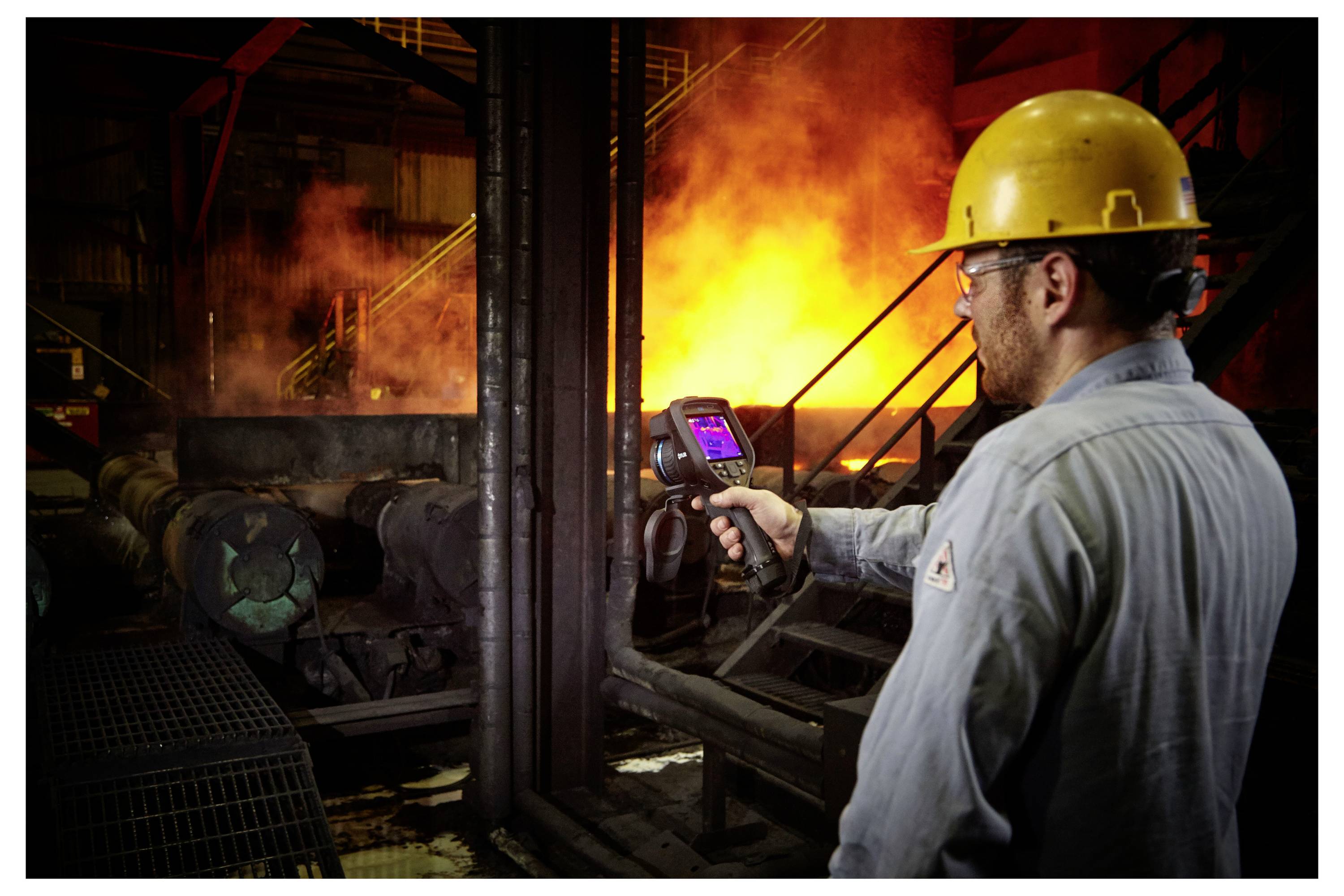

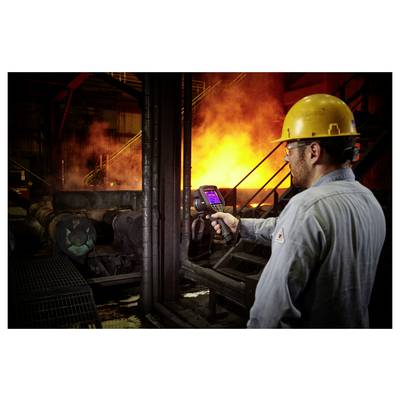

A worker in safety gear uses a thermal camera to monitor high-temperature machinery in an industrial setting, with bright flames visible.

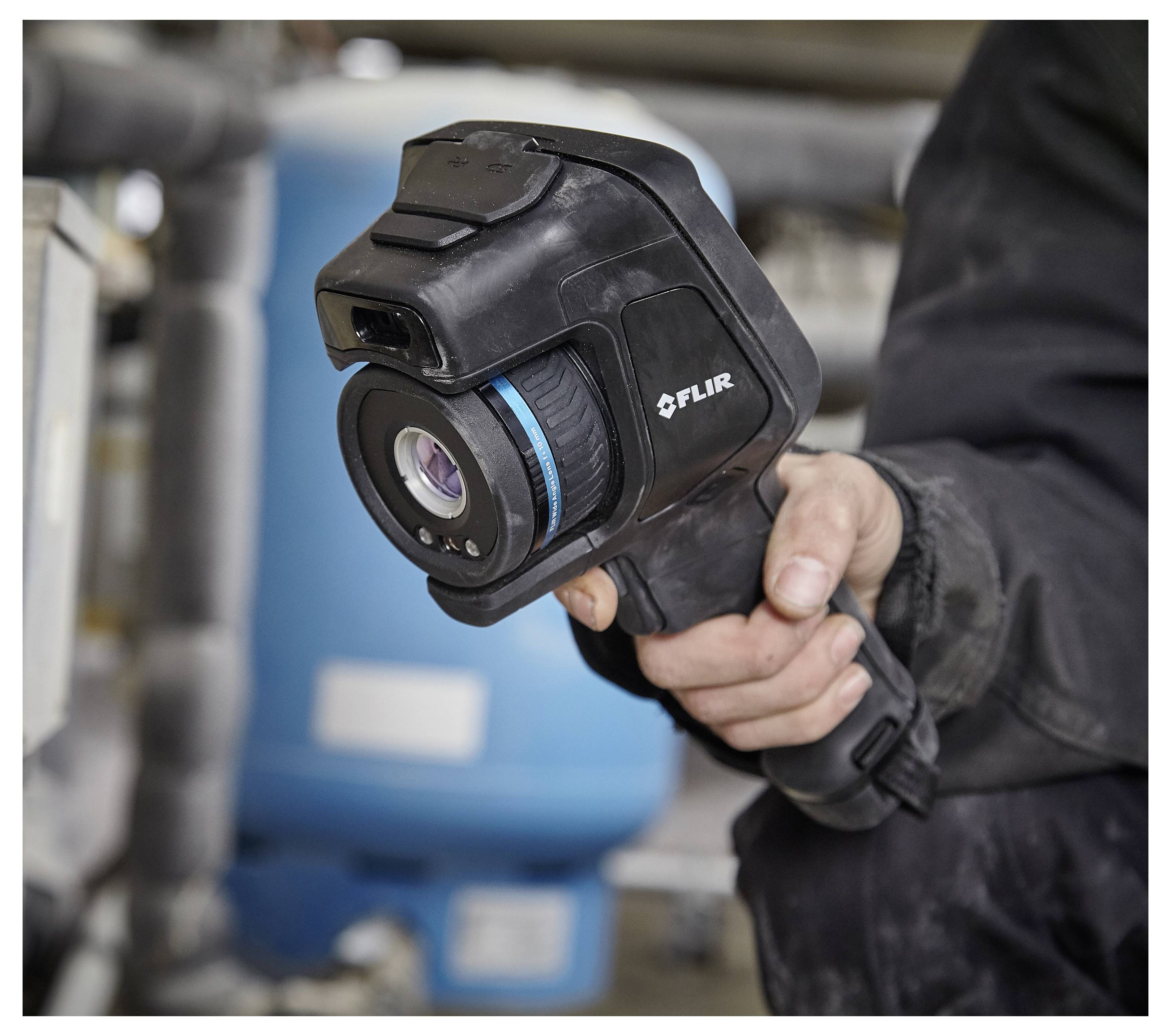

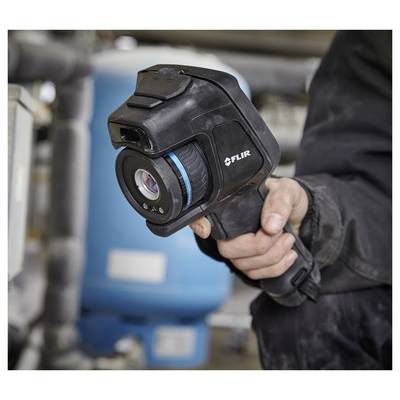

A person holding a thermal imaging camera, used for detecting heat variations, with a blue tank visible in the blurred background.

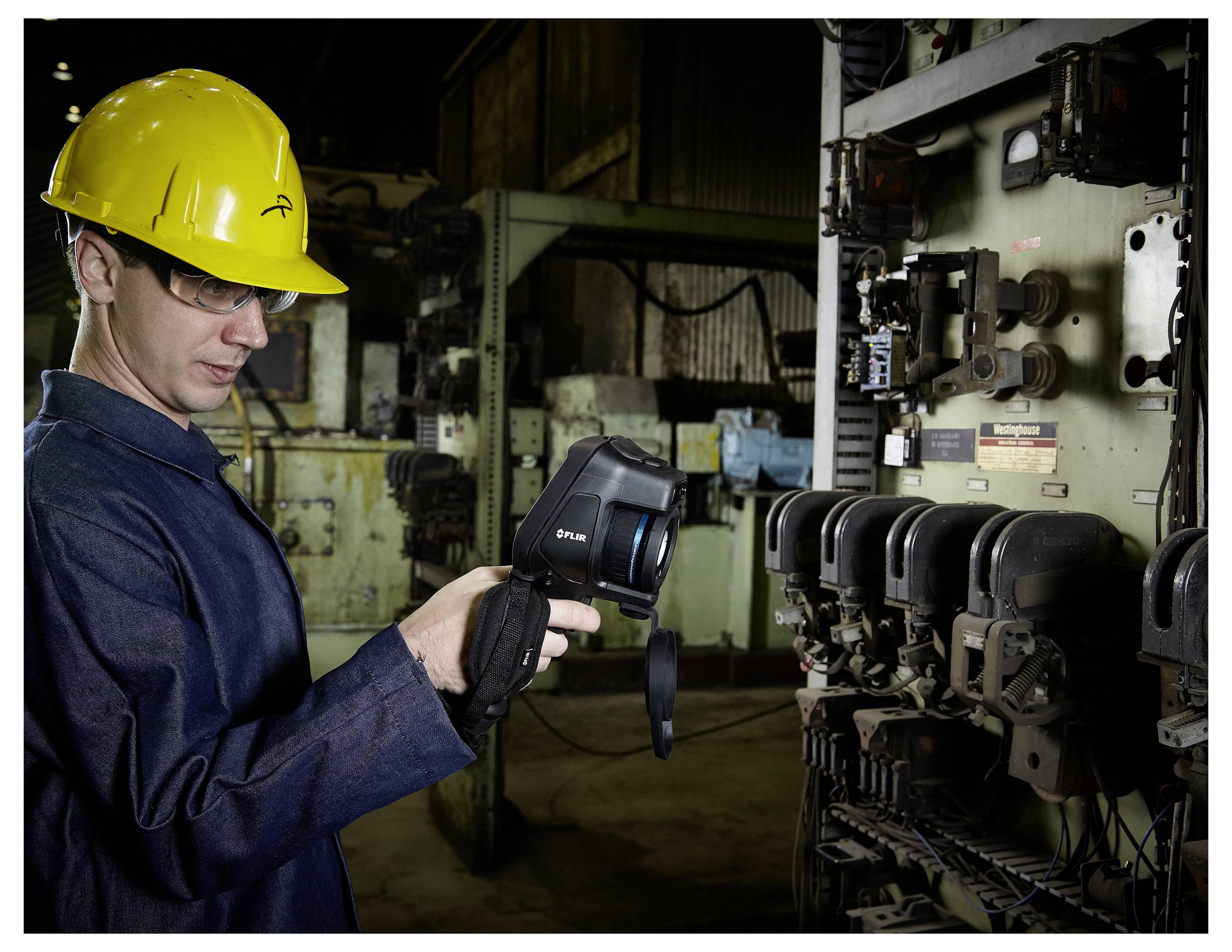

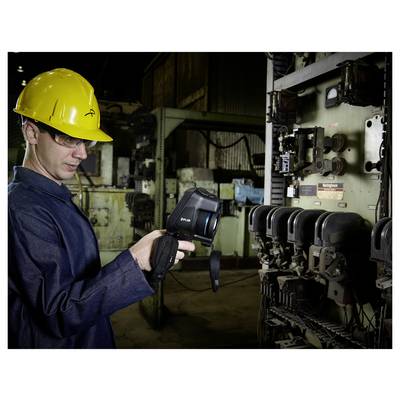

'A technician in safety gear uses a thermal imaging camera to inspect electrical equipment in an industrial setting.'

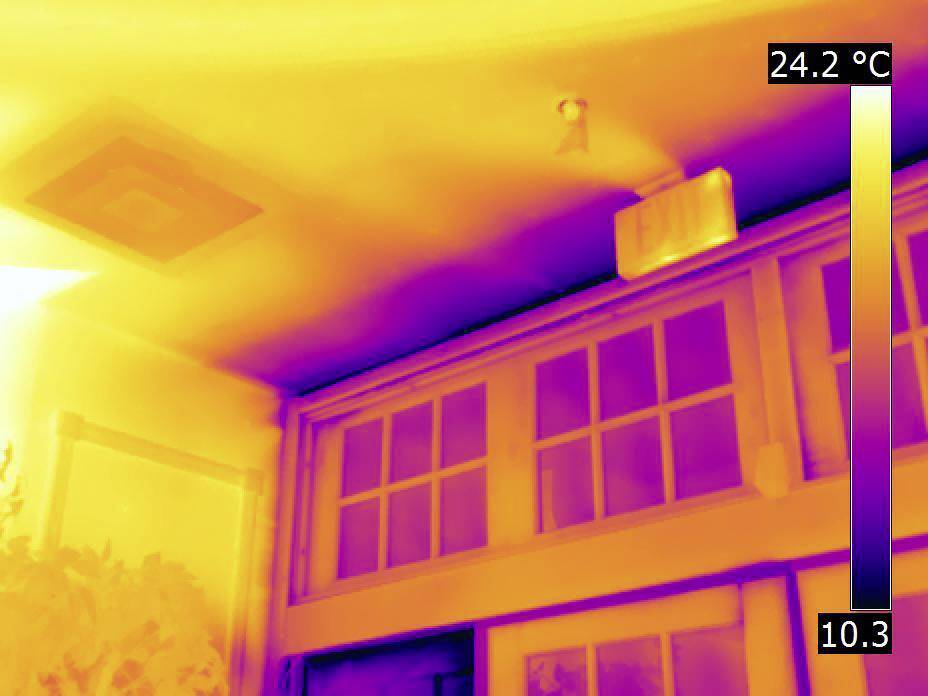

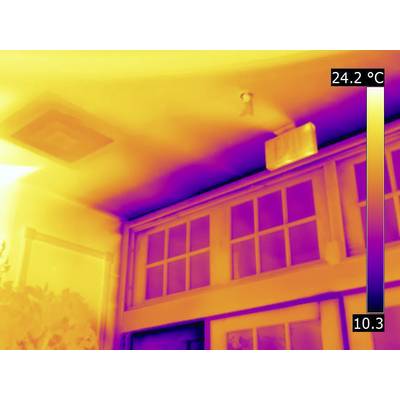

Thermal image of a room's ceiling and exit sign, showing temperature differences from 10.3°C to 24.2°C, with warmer areas in yellow.

1/10

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 17,349.00 / piece)

€ 17,349.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

FLIR E96 with 42° + 14° lens, 640x480, -20°C up to +1500°C.

30 Hz Thermal imaging camera
Temperature reading range -20 up to 1500 °C
640 x 480 Pixel Bolometer matrix
Thermal sensitivity 30 mK

Technical specifications

5 MP digital camera
4" touchscreen display
Spectral range: 7.5–14 µm

Type: E96 42° + 14°

Product type: IR camera

Bolometer array: 640 x 480 Pixel

Interfaces: USB A (USB 2.0)
Bluetooth
DisplayPort
Wi-Fi

Temperature reading range (max.): 1500 °C

Colour schemes: 6

Temperature reading range (min.): -20 °C

Optics: 42° x 32° (10 mm lens), 14° x 10° (29 mm lens)

Frame rate: 30 Hz

Display resolution: 640 x 480 Pixel

: IP54

Thermal sensitivity: 30 mK

Dim: (L x W x H) 27.8 x 11.6 x 11.3 cm

Memory units: 1

Digital zoom: 8 x

Display: 640 x 480 p

Emission level (max.): 1

Emission level (min.): 0.01

Focus: Automatic
Manual

Geometric resolution (IFOV): 1.2 mrad

Weight: 1 kg

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Calibration service: AutoCal™ interchangeable lenses, automatic calibration

Temperature reading range: -20 up to 1500 °C

Min. focusing distance: 0.15 m

Width: 11.6 cm

Height: 11.3 cm

Length: 27.8 cm

Connection: Bluetooth
USB 2.0

Features: Wi-Fi
MSX®
MeterLink™
Touchscreen

: Manufacturer's standards (no certificate)

Variants(All information include VAT, plus shipping costs)

Bolometer array

Display resolution

Interfaces

Temperature reading range (max.)

Temperature reading range (min.)

Thermal sensitivity

FLIR E76 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533035

Fast track dispatch on Tue 3 Nov

1 Piece(s)Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E76 24° + 14° & 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533037

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

40 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14,229.00^*

FLIR E76 24° + 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533036

Fast track dispatch on Tue 3 Nov

1 Piece(s)Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

40 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 24° + 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533038

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

40 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 42° + 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533040

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

30 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533039

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E76 Dual FOV (24° - 42°) & 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Wi-Fi, Touchscreen, MSX®, MeterLink™

Item no:3533056

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13,855.00^*

FLIR E76 Dual FOV 24° - 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi, Touchscreen

Item no:3533055

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10,959.00^*

FLIR E76 IR camera 0 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi

Item no:2305183

Fast track dispatch on Tue 3 Nov

1 Piece(s)Conrad Electronic

320 x 240 Pixel

USB A (USB 2.0)

650 °C

0 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E86 14° IR camera -20 up to 1500 °C 464 x 348 Pixel 30 Hz Wi-Fi, MSX®, Touchscreen, MeterLink™

Item no:3533041

Available soon

Conrad Electronic

464 x 348 Pixel

640 x 480 Pixel

DisplayPort

1500 °C

-20 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12,419.00^*

Documents & Downloads

Datasheet

Datasheet 3533052 FLIR E96 42° + 14° IR camera -20 up to 1500 °C 640 x 480 Pixel 30 Hz Wi-Fi, MSX®, MeterLink™, Touchscreen

User & Safety Instructions

User & Safety Instructions 3533052 FLIR E96 42° + 14° IR camera -20 up to 1500 °C 640 x 480 Pixel 30 Hz Wi-Fi, MSX®, MeterLink™, Touchscreen

Description

The FLIR E96 is our first camera with pistol grip and an infrared resolution of 640 × 480 pixels. Inspectors also test power plants and other hazardous areas safely and quickly for electrical or mechanical faults. The FLIR E96 fully covers close and distant targets with a full range of lens options. Pair the E96 with a dual-field FLIR FlexView™ lens so you can instantly switch from wide angle to telescan at the touch of a button. With the integrated FLIR inspection route software, you can travel along pre-defined routes so that inspectors can proceed fully even at larger locations or check several areas. FLIR Ignite enables the automatic uploading of E96 images directly from the camera to the cloud, in order to store and share them easily and securely.

Excellent thermal imaging
With a thermal resolution of 640 × 480 pixels and the FLIR-UltraMax® and MSX® image enhancement, the E96 delivers the industry's highest color and easiest to interpret.

One lens, two fields of view
Pair your Exx Series camera with a dual-field FLIR FlexView lens so you can easily switch from wide angle to telescan at the touch of a button.

Streamlined reporting
With the integrated FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in microphone for recording voice comments and reporting functions, the E96 ensures that you can work easier, faster and more efficiently. (*Optional add-on software)

This text is machine translated.

Features

640 x 480 pixels IR resolution
Thermal sensitivity / NETD: Less than 30 mK, 42° at 30 °C [BR] less than 50 mK, 14° at 30 °C
Accuracy ±2°C or ±2% of reading
5 MP digital camera with integrated Photo/Video LED lamp
Display: 4" LCD touch screen with 640 × 480 pixels and automatic rotation
Storage media: Removable SD-card
Frame rate: 30 Hz
Picture-in-picture: Adjustable size and position
F-number 1.1, 42° [BR]1.5, 14°
Detector type and grid: Uncooled microbolometer, 12 µm
5 MP digital camera with integrated Photo/Video LED lamp
Digital zoom 1 to 8 times continuously
Colour palettes: Iron, Grey, Rainbow, Arctic, Lava, Rainbow HC
Focus: Continuous laser distance meter (LDM), one-point laser distance meter (LDM), one-point contrast, manual
Minimum focus distance: 0.15 m, 42° [BR]1.0 m, 14°
Non-radiometric IR video streaming: H.264 or MPEG-4 via WLAN MJPEG via UVC or WLAN
Lens recognition: Automatic
Radiometric IR video recording: Real-time radiometric recording (.CSQ)
Radiometric IR video streaming: Yes, via UVC
Spectral range: 7.5 – 14 µm
Accuracy ±2°C or ±2% of reading
Measuring point: 3 each in live mode
Object temperature range --20°C to 120°C; -0°C to 650°C; -300°C to 1,500°C.
Measurement presets: No measurement, Center Spot, Hot Spot, Cold Spot, Custom 1, Custom 2
Display: 4" LCD touch screen with 640 × 480 pixels and automatic rotation
Voice: Up to 60 seconds recording for still images or videos via built-in microphone (built-in speaker) or Bluetooth®
Text: Pre-defined list or touch screen keyboard
Operating temperature range -15 to +50 °C
Storage temperature range: -40 °C to +70 °C
EN/UL/CSA/PSE 60950-1

Scope of delivery

Mains adapter for battery charger
Power supply, 15 W/3 A
Printed documents
SD card 8 GB
USB 2.0 A to USB Type-C cable, 1.0 m
USB Type-C to HDMI adapter, standard UH311
USB type-C to USB type-C cable (USB 2.0 standard), 1.0 m
Front protection mounting
Wrist strap holder, left
Wrist strap holder, right
Screw
Torx key T10
Carabiner
Front protection
Wrist strap
Wrist strap for camera
Lens cover strap
Wrist strap
Rechargeable battery (2 pieces)
Charger
Hard case
Infrared camera with lens
Objective cover, front
Lens cover, front and rear (for additional lenses only)
Additional lens: 14° FLIR Thermal studio
