Fluke 566 IR thermometer Display (thermometer) 30:1 -40 - +650 °C Contact measurement
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 684.87 / piece)
€ 684.87
plus VAT.
Highlights & Details
IR-Thermometer Fluke 566

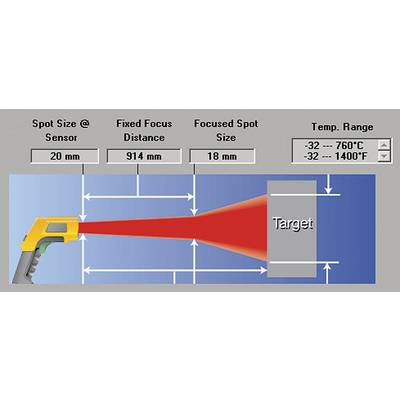

- Optics 30:1
- IR-measurement range -40 to +650 °C
- IR and contact measurement
Technical specifications
- Display: Point matrix 98 x 96 pixels
- Emissivity
0.10 - 1.0
- Dim
(L x W x H) 191 x 69 x 254 mm
- Height
254 mm
- Length
191 mm
- Width
69 mm
- Emission level (max.)
1.0
- Emission level (min.)
0.1
- Features
Contact measurement
- Sensor type
K
- Display
30:1
- Basic accuracy
1 %
- Accuracy ± °C
1 °C
- Resolution (temperature)
0.1 °C
- Pick-up time (details)
< 500 ms
- Accuracy
± 1% or 1 °C
- Temperature
IR: -40 to +650 °C/K-type: -40 to +1372 °C
- Power supply (details)
2 AA batteries
- Temperature resolution
0.1 °C
- Max. temperature
+650 °C
- Min. temperature
-40 °C
- Weight
0.965 kg
- Product type
IR thermometer
Documents & Downloads
Datasheet
Datasheet 122370 Fluke 566 IR thermometer Display (thermometer) 30:1 -40 - +650 °C Contact measurement
User & Safety Instructions
User & Safety Instructions 122370 Fluke 566 IR thermometer Display (thermometer) 30:1 -40 - +650 °C Contact measurement
Description
Simple and user-friendly menu guide via three keys. Combined, contact-less IR- and contact measurement. All K-type sensors can be used as the contact sensors. An internal measured value storage for 20 measured values with date and timestamp as well as connectable target laser supplement the extensive functions.
Features
- Menu guide in different languages
- Graphics display with 2-stage illumination
- Alarm display with colour change of the display
- Measured value storage with timestamp
- Setting the degree of emission with integrated material table.

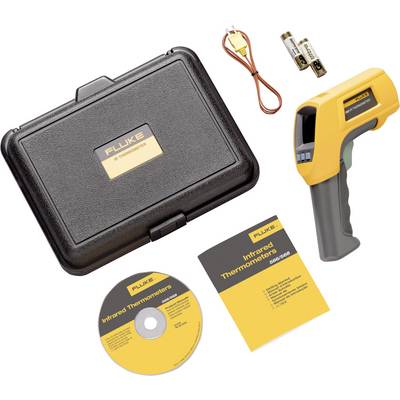

Scope of delivery
- 2 Mignon batteries
- K-type wire-sensor
- Bag
- Instructions for use.
