Name: Fluke 714B Calibrator Temperature, Voltage
Brand: Fluke
SKU: 1374240
Availability: BackOrder

A yellow thermocouple calibrator is displaying a temperature of 300.0 °C and a current of 20.002 mA. Mode: Type K.

A yellow and black thermocouple calibrator with a display showing temperature in degrees Celsius, voltage in millivolts, and current in milliamperes.

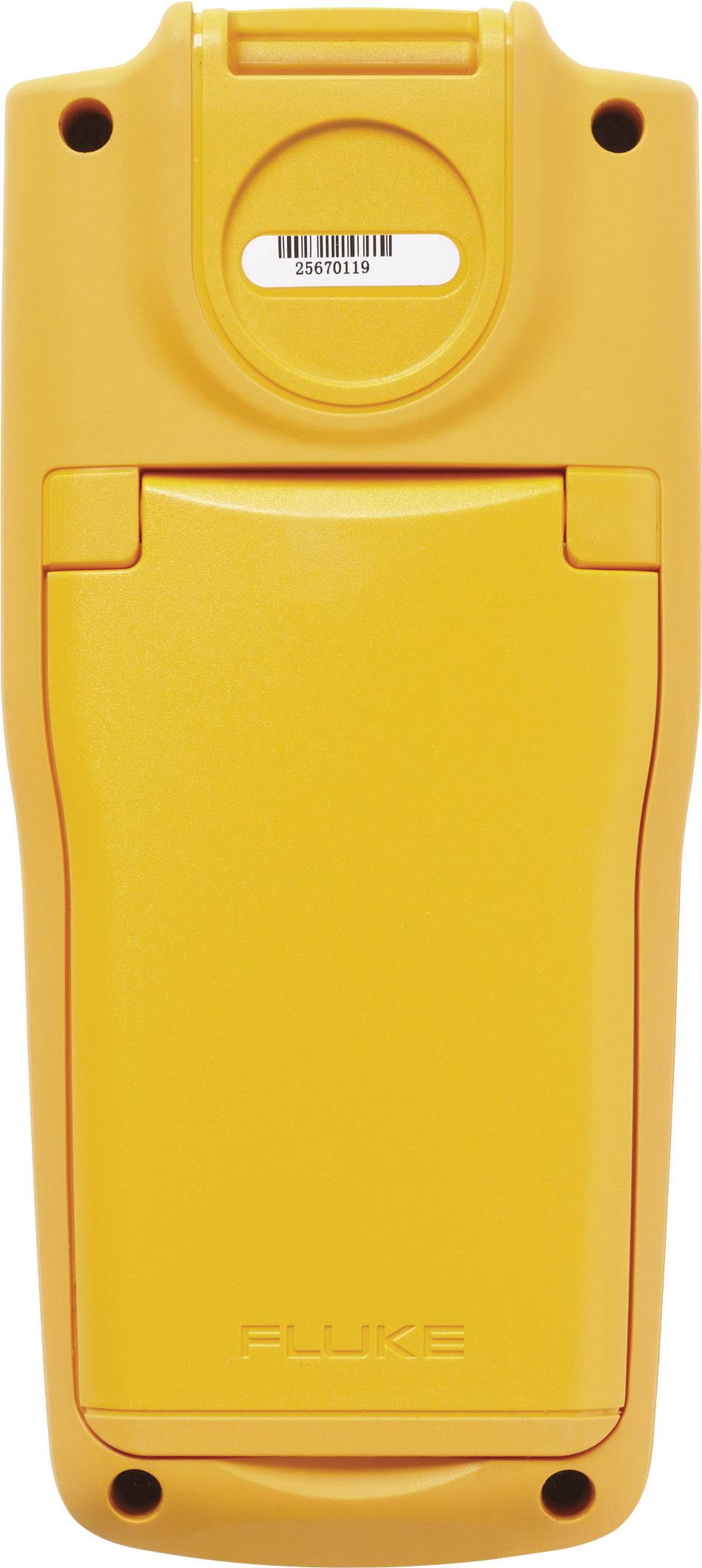

A yellow portable electronic measuring device from the back, with a folding support stand and a serial number on top.

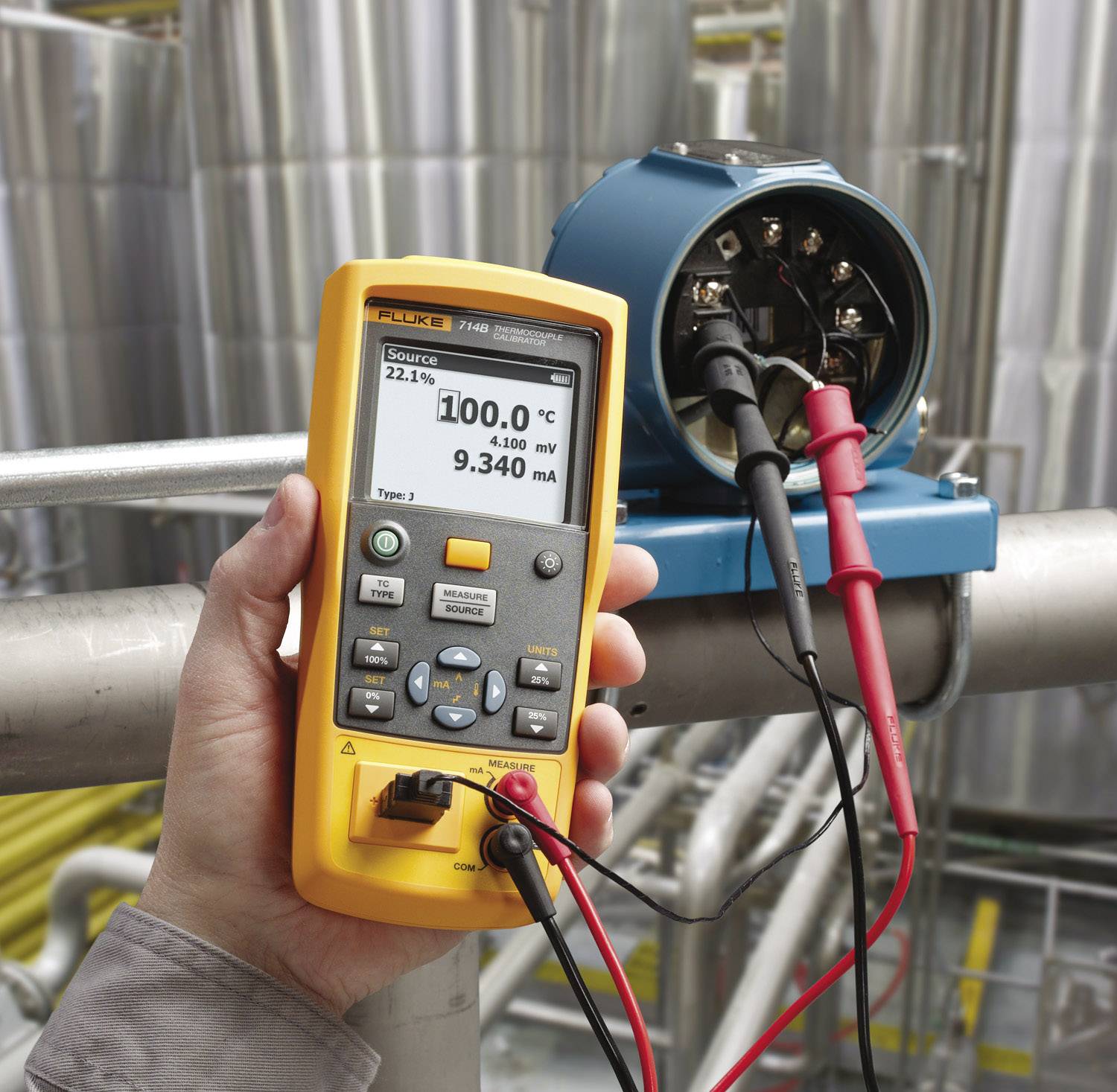

A person is holding an electrical measuring device to calibrate a sensor. The display shows temperature and current.

1/4

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,175.00 / piece)

€ 2,175.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

TE-types: E, N, J, K, T, B, R, S, C, L, U, BP, XK, G, D, P, M
Display: LCD
Dc source, range: -10 mV to +75 mV.

: Manufacturer's standards (no certificate)

Product type: Calibrator

Unit of measurement: Temperature
Voltage

Calibration range (thermometer): -250 up to +2500 °C

Dim: (L x W x H) 53 x 84 x 189 mm

Weight: 515 g

Width: 84 mm

Height: 189 mm

Length: 53 mm

Power supply: 4 x AA battery (included)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1374240 Fluke 714B Calibrator Temperature, Voltage

Description

For Technicians in the field of temperature calibration, which can be an extremely precise and easy-to-use temperature calibrator for thermocouples with a function of the Fluke 714 B is the ideal testing device.

This text is machine translated.

Features

The 714 B can (17) different thermocouple types and millivolt voltages and simulate.
Measure 4-20 mA signals at the same time simulation of a temperature signal
Hanger included in the delivery
Configurable device settings from 0% to 100% for a quick check of the 25% linearity
Linear ramp and automatic ramp function in 25% increments, on the basis of the 0% and 100% setting
Two inputs and display with backlight for easy reading of measurement data
When switched on, the last used settings, so that test series can easily be continued.

Scope of delivery

Test Leads
Magnetic hanger
Batteries
User manual

Description

Features

The 714 B can (17) different thermocouple types and millivolt voltages and simulate.
Measure 4-20 mA signals at the same time simulation of a temperature signal
Hanger included in the delivery
Configurable device settings from 0% to 100% for a quick check of the 25% linearity
Linear ramp and automatic ramp function in 25% increments, on the basis of the 0% and 100% setting
Two inputs and display with backlight for easy reading of measurement data
When switched on, the last used settings, so that test series can easily be continued.
