Name: Fluke FLK-87VMAX-PVLEAD1 Handheld multimeter Digital Waterproof (IP67) CAT III 1000 V, CAT IV 600 V
Brand: Fluke
SKU: 2694122
Availability: InStock

Technical specifications

Voltage reading range DC (min.): 0.1 mV

Product type: Handheld multimeter

Voltage DC reading range (max.): 1000 V

V AC reading range (min.): 0.1 mV

V AC reading range (max.): 1000 V

Amperage reading range DC (min.): 0.1 µA

A DC reading range (max.): 10 A

A AC reading range (min.): 0.1 µA

Amperage reading range AC (max.): 10 A

Reading range - resistance: 0.1 Ω - 50 MΩ

Reading range - capacity: 0.01 nF - 9999 µF

Frequency reading range: 0.01 Hz – 199.99 kHz

Temperature: +1090 - -200 °C

Basic accuracy: 0.05 %

Interfaces: none

Power supply (details): 3x AA mignon battery

Height: 60 mm

Width: 101 mm

Length: 215 mm

: Manufacturer's standards (no certificate)

Reading category: CAT III 1000 V
CAT IV 600 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: FLK-87VMAX-PVLEAD1

Display: Digital

Dim: (L x W x H) 215 x 101 x 60 mm

Features: Waterproof (IP67)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2694122 Fluke FLK-87VMAX-PVLEAD1 Handheld multimeter Digital Waterproof (IP67) CAT III 1000 V, CAT IV 600 V

Description

The Fluke 87V MAX multimeter is the ideal solution for fault finding and removal in inverters, connection boxes and battery storage systems of solar systems. It has a robust housing with protection class IP 67 and a removable holster. The holster also serves as holder for the measuring tips for simple and single-handed operation. This measurement device is waterproof and dustproof and works reliably no matter where you work. Securely connect the MC4 test leads to the meter to measure the voltage of individual panels or a series of panels in PV-systems.

This text is machine translated.

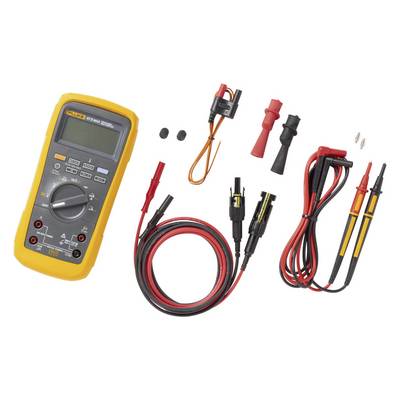

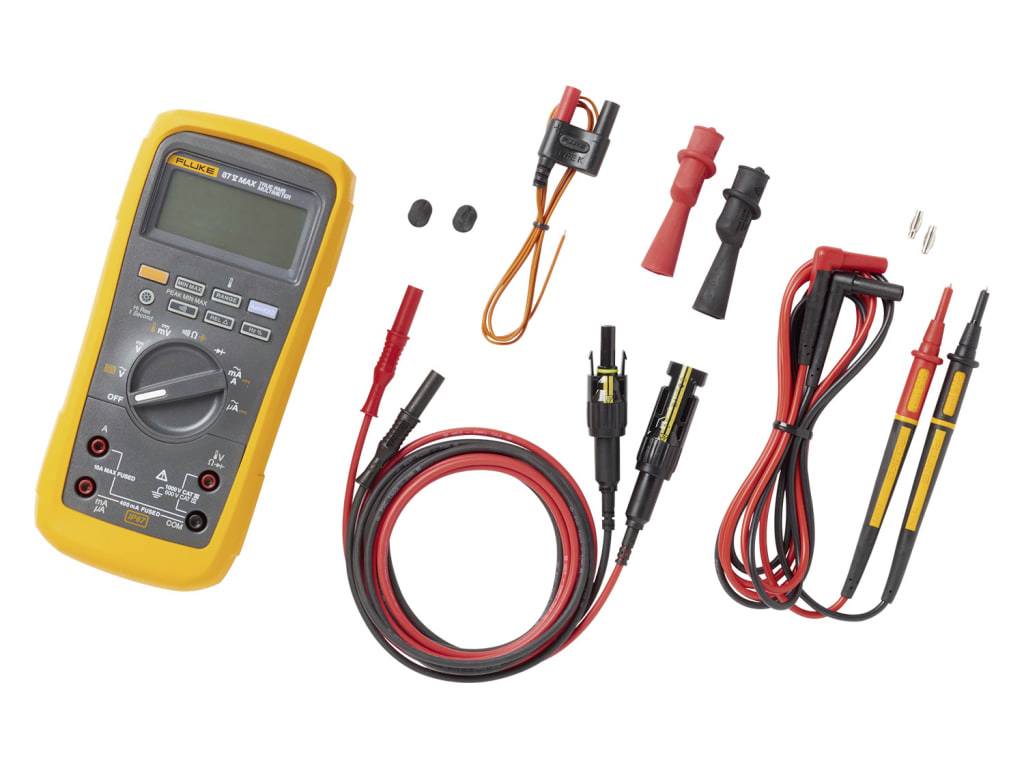

Scope of delivery

Fluke 87V MAX real effective-digital multimeterTL175 TwistGuard® Test LeadsAC175 alligator clips80BK-A Temperature measurement sensorRemovable holster with storage for the test leads3x AA batteries (installed)Measuring lead set Pomona PVLEAD1, MC4 auf 4 mm

Description

The Fluke 87V MAX multimeter is the ideal solution for fault finding and removal in inverters, connection boxes and battery storage systems of solar systems. It has a robust housing with protection class IP 67 and a removable holster. The holster also serves as holder for the measuring tips for simple and single-handed operation. This measurement device is waterproof and dustproof and works reliably no matter where you work. Securely connect the MC4 test leads to the meter to measure the voltage of individual panels or a series of panels in PV-systems.

This text is machine translated.

Scope of delivery

Fluke 87V MAX real effective-digital multimeterTL175 TwistGuard® Test LeadsAC175 alligator clips80BK-A Temperature measurement sensorRemovable holster with storage for the test leads3x AA batteries (installed)Measuring lead set Pomona PVLEAD1, MC4 auf 4 mm
