Fluke FLK-TI300U 9HZ/AP IR camera -20 up to 650 °C 384 x 288 Pixel 9 Hz
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 7,005.00 / piece)
€ 7,005.00
incl. VAT
Only 2 Piece(s) available
Highlights & Details

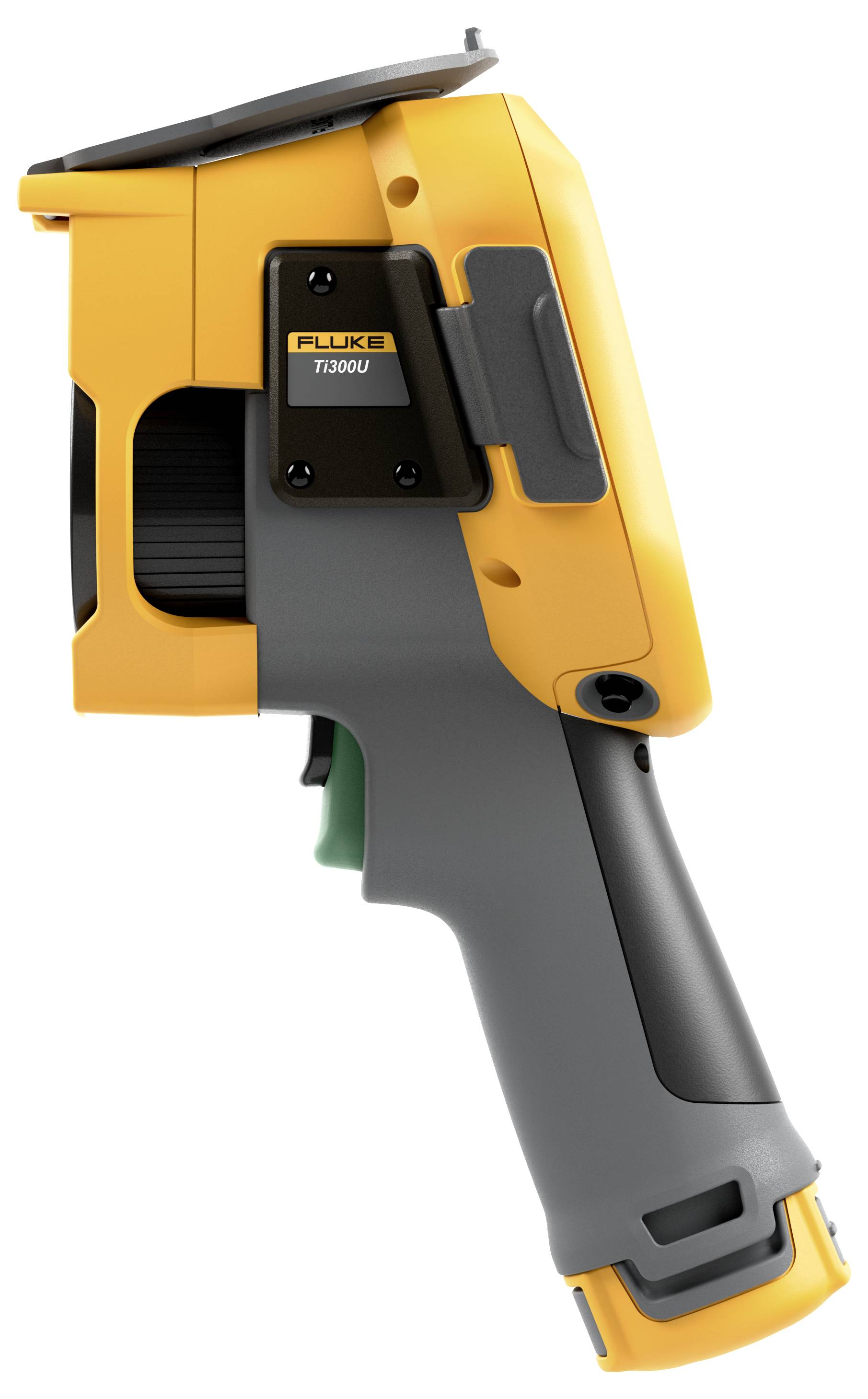

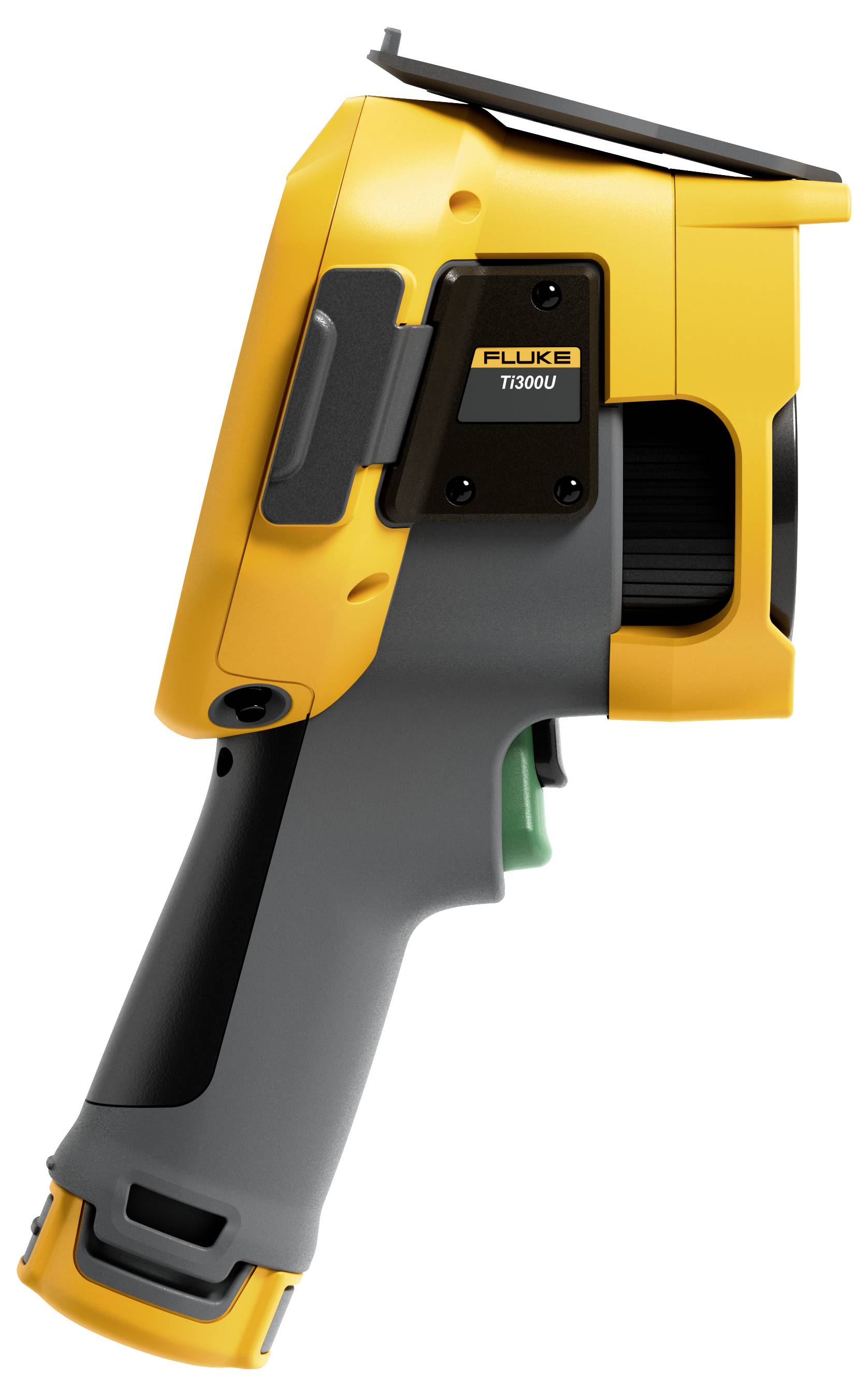

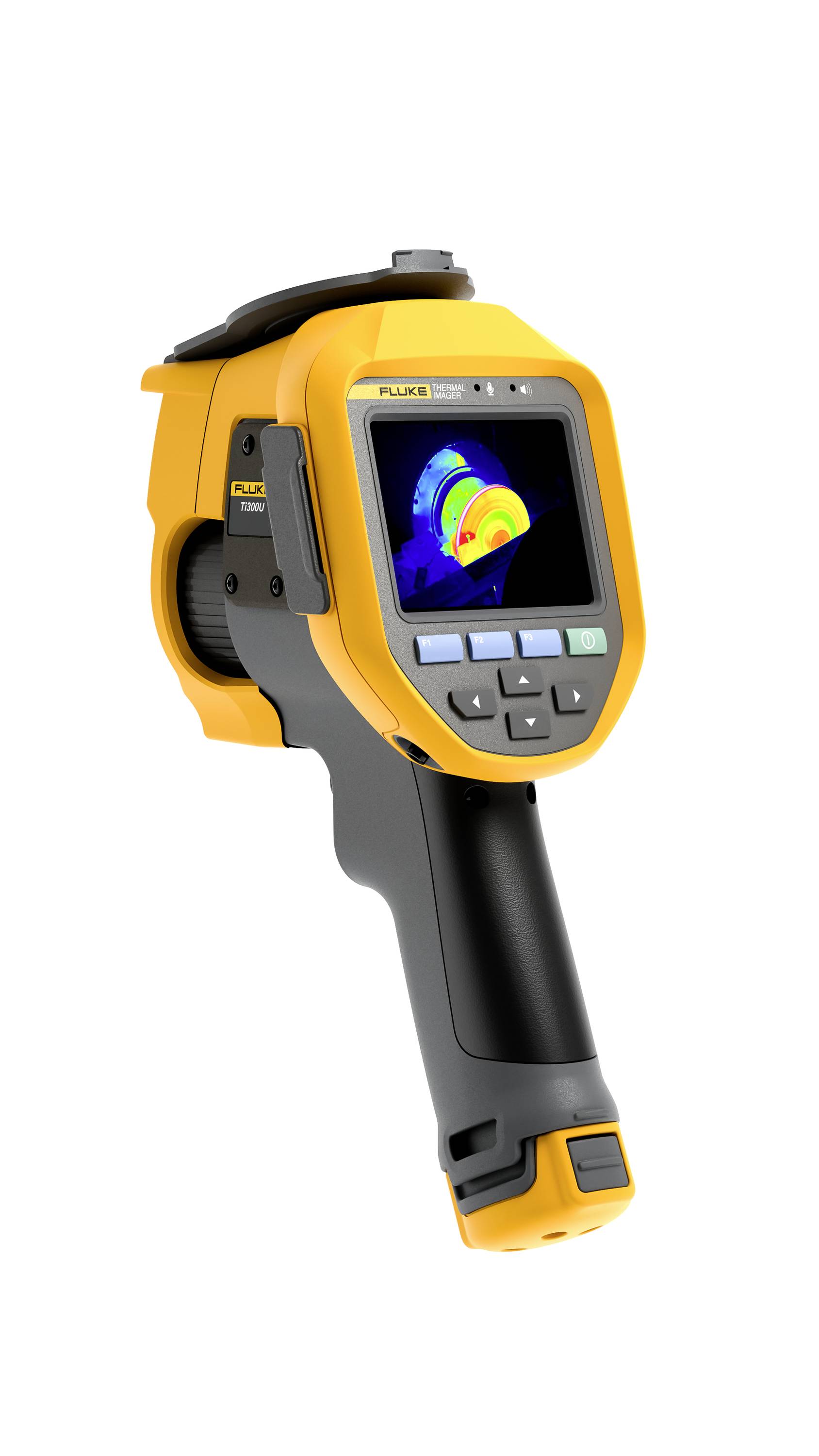

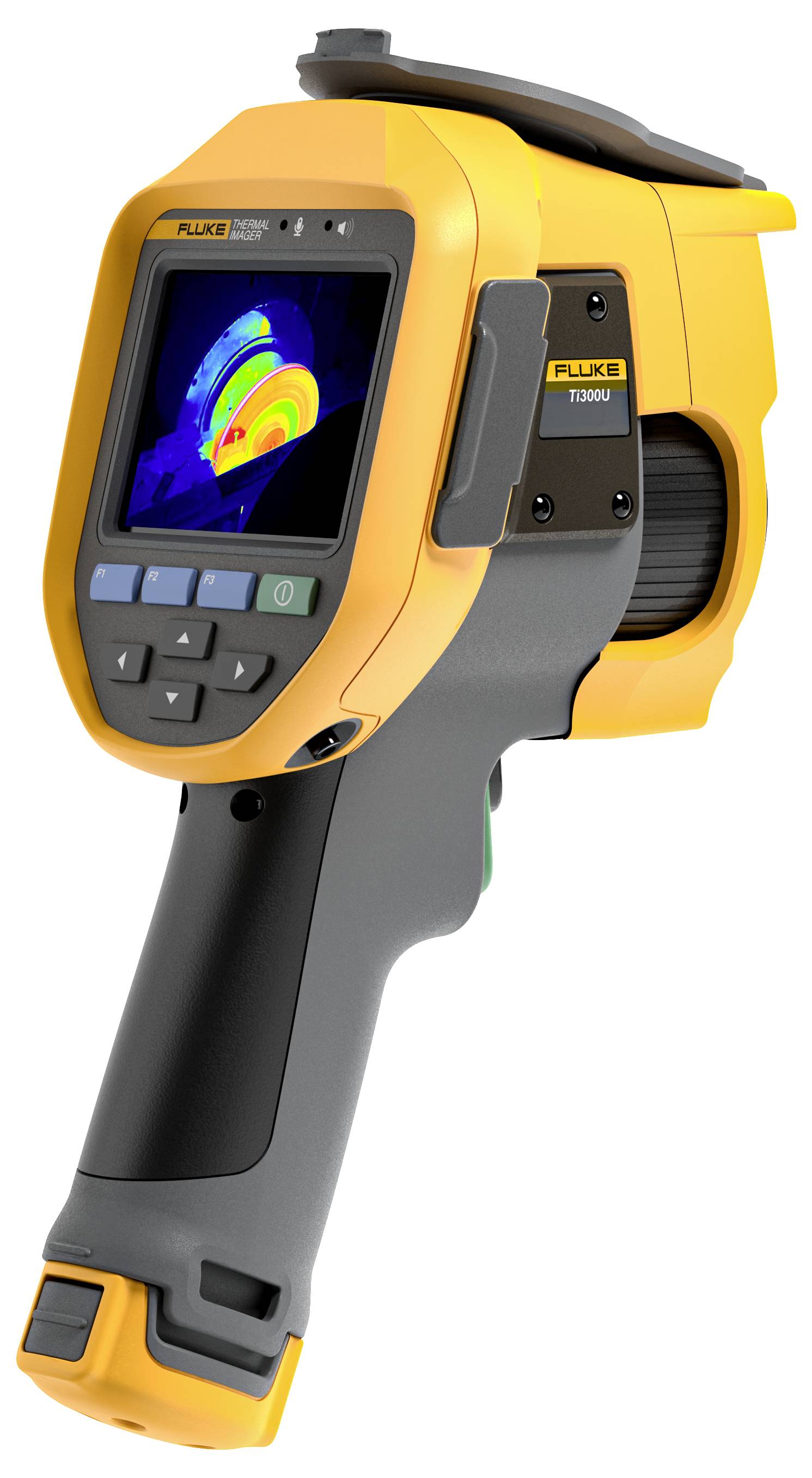

Thermal imaging camera Fluke Ti300U Ultra 9 Hz
- 9 Hz Thermal imaging camera
- Temperature reading range -20 up to 650 °C
- 384 x 288 Pixel Bolometer matrix
- Thermal sensitivity 75 mK
Technical specifications
- Type
FLK-TI300U 9HZ/AP
- Product type
IR camera
- Bolometer array
384 x 288 Pixel
- Interfaces
USB
Bluetooth
Mini HDMI™
- Temperature reading range (max.)
650 °C
- Colour schemes
8
- Temperature reading range (min.)
-20 °C
- Frame rate
9 Hz
- Display resolution
640 x 480 Pixel
IP52
- Thermal sensitivity
75 mK
- Dim
(L x W x H) 279 x 122 x 175 mm
- Temperature resolution
0.075 °C
- Weight
1215 g
- Basic accuracy
2 %
- Accuracy ± °C
2 °C
- Temperature reading range
-20 up to 650 °C
- Width
122 mm
- Height
175 mm
- Length
279 mm
- Connection
USB
HDMI
- Power supply (details)
Lithium rechargeable batteries
Manufacturer's standards (with certificate)
Documents & Downloads
Datasheet
Datasheet 3813209 Fluke FLK-TI300U 9HZ/AP IR camera -20 up to 650 °C 384 x 288 Pixel 9 Hz
User & Safety Instructions
User & Safety Instructions 3813209 Fluke FLK-TI300U 9HZ/AP IR camera -20 up to 650 °C 384 x 288 Pixel 9 Hz
Description
The Fluke Ti300U delivers powerful infrared images for professional use by combining improved image quality, increased thermal sensitivity and an simplified workflow to detect fine temperature differences and capture clear on-screen details. With high pixel resolution, improved spatial resolution, and UltraFocus technology, it provides fast, precise focusing and the necessary clarity to get the job done right - all in the context of Fluke's proven industrial design, which supports faster and more efficient workflows.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Thermal imaging camera (standard wide-angle lens included)
- 2x SBP3 Smart battery pack
- SBC3 Power supply
- SBC3 battery charging station
- Strap
- Carrying case
- Padded carrying case
- Mini-HDMI cable
- USB-A cable Dual port
- 64 GB MicroSD card
- Quick guide
- Safety information
- Calibration report
