Fluke FLUKE-1550C FC Insulation tester 250 V, 500 V, 1000 V, 2500 V, 5000 V 2 TΩ
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 16,925.00 / piece)
€ 16,925.00
incl. VAT
14-day return policy included
Highlights & Details
Insulation measuring device (5kV) with IR-interface Fluke Connect IR3000FC
- Digital insulation testing up to 5 kV – Ideal for testing high-voltage equipment such as switchgear, motors, generators and cables
- Includes Fluke Connect IR3000 FC adapter for wireless transmission of the measured values to the Fluke Connect® APP
- Testing voltages can be set flexibly in 50-V steps from 250 V to 1000 V as well as in 100-V steps via 1000 V.
- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) without additional settings
Technical specifications
- Leakage current measurement 1 nA to 2 mA
- Capacity measurement 0.01 µF to 15.00 µF
- Timer settings 0 to 99 minutes
- Operating temperature: -20°C to +50 °C
- Battery life: Approximately 750 tests at 5 kV per charge
- Product type
Insulation tester
- Test voltage
250 V
500 V
1000 V
2500 V
5000 V
- Reading type
Insulation resistance
Voltage
Manufacturer's standards (no certificate)
- Reading range - resistance
200 kΩ - 2 TΩ
- Interfaces
IR
USB
IP40
- Power supply (details)
Rechargeable 12 V lead battery
- Dim
(L x W x H) 330 x 242 x 170 mm
- Weight
3.6 kg
- Display type
Digital (LCD)
- Max. frequency
60 Hz
- Min. frequency
45 Hz
- Frequency range
45 Hz - 60 Hz
- Insulation resistance (max.)
2 TΩ
- Calibration service
ISO / DAkkS optionally available
- Voltage reading range (max.)
600 V AC
600 V DC
- Voltage reading range (min.)
85 V AC
85 V DC
- Reading category
CAT III 1000 V
CAT IV 600 V
- Width
242 mm
- Height
170 mm
- Length
330 mm
Documents & Downloads
Datasheet
Datasheet 3828192 Fluke FLUKE-1550C FC Insulation tester 250 V, 500 V, 1000 V, 2500 V, 5000 V 2 TΩ
User & Safety Instructions
User & Safety Instructions 3828192 Fluke FLUKE-1550C FC Insulation tester 250 V, 500 V, 1000 V, 2500 V, 5000 V 2 TΩ
Description
The insulation measuring device Fluke 1550C is suitable for the digital insulation test up to 5 kV. Thus it is the ideal equipment for the testing of high-voltage equipment such as switchgear, motors, generators and cables.
This text is machine translated.
This text is machine translated.
Features
- Adjustable test voltages from 250 V to 5000 V
- Automatic calculation of PI (Polarisation index) and DAR (Dielectric absorption)
- Measured value storage for up to 99 measurement points for later recording and retrieval
- Measurement of capacitance and leakage current
- Ramp function (0-100%) for breakdown tests
- Automatic discharge of the test voltage after the measurement is completed
- Warning function with pending voltage (above 30 V AC/DC)
- Large LCD display with background lighting and analogue bar graph display
- Robust housing for harsh industrial ambient

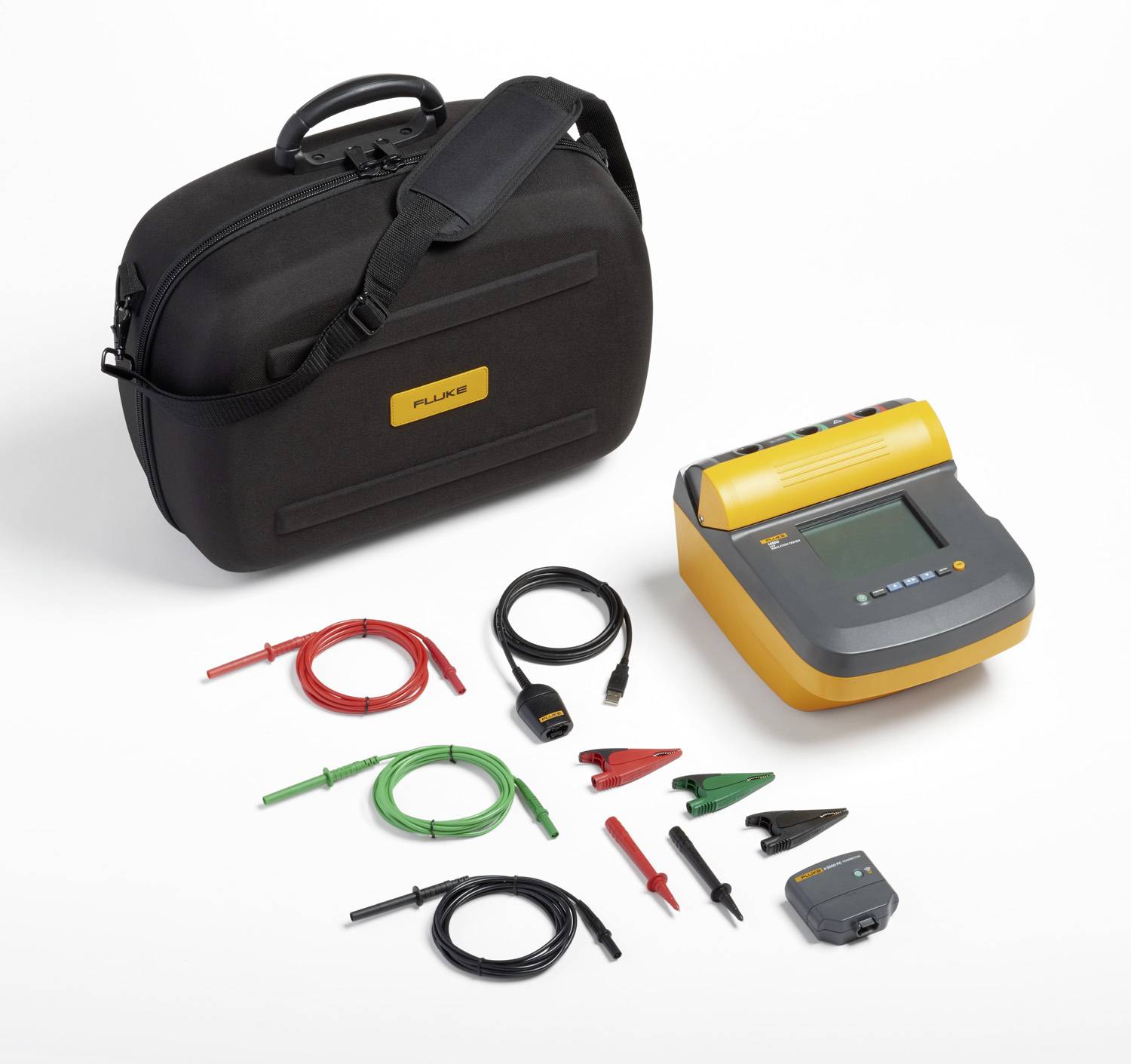

Scope of delivery
- Fluke 1550C Insulation tester (5 kV)
- Fluke connect IR3000 FC adapter
- Heavy-duty test leads with alligator clips (red, black, green)
- USB cable
- Power cable;
- Soft carrying case
- Quick start guide and documentation
