Fluke FLUKE-1555 FC Insulation tester 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V 2 TΩ
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 18,655.00 / piece)
€ 18,655.00
incl. VAT
14-day return policy included
Highlights & Details
Insulation measuring device (10kV) with IR-interface Fluke Connect IR3000FC
- Testing voltages up to 10 kV for testing high voltage systems and cables
- Wireless connectivity and data transfer via the Fluke Connect® IR3000 FC adapter
- Automatic calculation of absorption ratio (DAR) and polarization index (PI)
- Integrated memory for up to 99 measurements for simple documentation
- Robust, durable housing for tough field use (CAT IV 600 V)
Technical specifications
- Measurement function: Insulation resistance, leakage current, capacity, polarization index (PI), dielectric absorption (DAR), Alternating and direct voltage (AC/DC)
- Memory capacity: 99 memory slots
- Max. Short-circuit current 2 mA
- Capacity measuring range 0.01 µF to 15.00 µF
- Leakage current measurement range 1 nA to 2 mA
- Operating temperature: -20°C to +50 °C
- Storage temperature -20 °C to +65 °C.
- Product type
Insulation tester
- Test voltage
250 V
500 V
1000 V
2500 V
5000 V
10000 V
- Reading type
Insulation resistance
Voltage
Manufacturer's standards (no certificate)
- Reading range - resistance
200 kΩ to 2 TΩ
- Interfaces
IR
Bluetooth®
IP40
- Power supply (details)
Rechargeable lead-acid battery (12 V, 2.6 Ah) incl. plug-in power supply (85 V to 250 V AC charging adapter)
- Dim
(L x W x H) 269 x 242 x 170 mm
- Weight
3.6 kg
- Display type
Digital (LCD)
- Max. frequency
60 Hz
- Min. frequency
15 Hz
- Frequency range
15 Hz - 60 Hz
- Insulation resistance (max.)
2 TΩ
- Voltage reading range (max.)
600 V
- Voltage reading range (min.)
85 V
- Reading category
CAT IV 600 V
CAT III 1000 V
- Width
242 mm
- Height
170 mm
- Length
269 mm
Documents & Downloads
Datasheet
Datasheet 3828194 Fluke FLUKE-1555 FC Insulation tester 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V 2 TΩ
User & Safety Instructions
User & Safety Instructions 3828194 Fluke FLUKE-1555 FC Insulation tester 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V 2 TΩ
Description
New Fluke connect option for Fluke 1550C / 1555 insulation tester. Fluke connect increases safety while saving time in conducting insulation tests on high voltage systems: Faster testing and greater security by enabling configuration, set up testing, starting and stopping, and downloading data remotely.Real-time trends provide visual insight and are easier to track than rapidly changing measurements. Drag-and-drop reporting saves time and makes test results easier to understand. Less paper work when creating an auditable data trail by saving the results via Fluke Connect.
This text is machine translated.
This text is machine translated.
Features
- Pre-set test voltages (250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V) and freely configurable test voltages in steps from 50 V to 100 V.
- Automatic discharge of capacity after measurement for maximum safety
- Measurement of capacitance and leakage current
- Ramp function for breakdown tests
- Large, easy to read LCD display with backlight and bar graph
- Warning function with supplied external voltage (from 30 V AC/DC)
- Protective conductor terminal (guard connection) for avoiding surface leakage currents

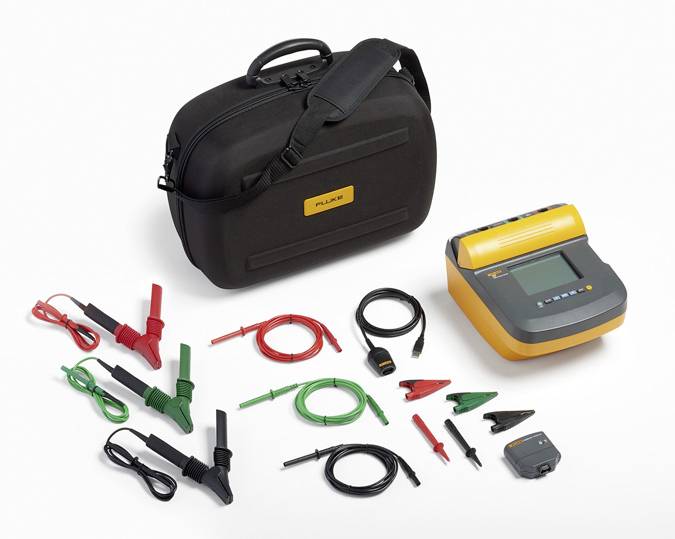

Scope of delivery
- Fluke 1555/FC insulation tester
- Fluke connect IR3000 FC adapter
- Heavy-duty test leads with alligator clips (red, black, green)
- Network cable / power supply for charging
- Robust carry bag
- Quick start guide and calibration certificate
