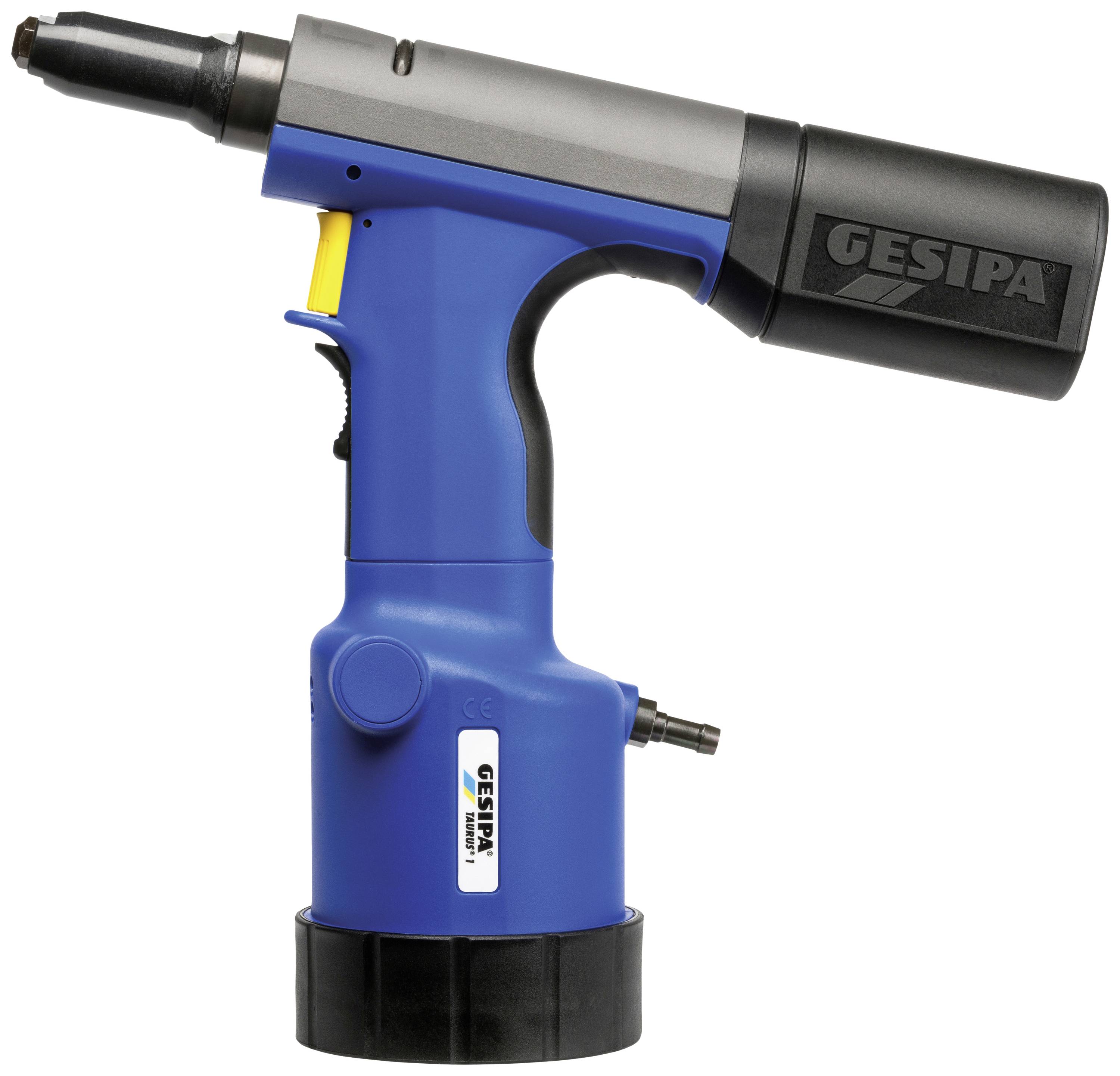

Gesipa 1457665 Hydraulic riveter 1 pc(s)

TAURUS 1

Working range
Set blind rivets from 2.4 to 3.2 mm Ø all materials and up to 4 mm Ø aluminum/steel (max. Mandrel-Ø 2.5 mm).

Technical data
Weighs 1.3 kg.
Operating pressure 5-7 bar
Hose connection: 6 mm Ø (1/4’’)
Air consumption: Approx. 1.0 l. Per rivet
Setting force 5,500 N at 6 bar
Device travel 15 mm

equipment
Mouthpieces: 17/18, 17/20 and 17/22,
Mounting wrench SW12/14, SW14/17,
1 bottle of hydraulic oil 100 ml, 1 oil refill tanks,
Operating instructions with list of spare parts

Pneumatic-hydraulic blind rivet setting devices from GESIPA cover almost all applications of Ideal.
Economic design, perfect handling and well-thought-out accessories make the TAURUS series so unique and flexible.

01 Construction set principle
- Many identical parts – low spare parts maintenance and easy maintenance
- Flexible adaptation to new applications

02 performance
- High setting forces with low weight
- Fast duty cycle
- Optimized hub for the entire series

03 Patented gripping mechanism
- Forced guided jaws and pneumatic contact
- Safe, non-slip gripping of the rivet punches
- One design for all dimensions
- Extremely long service life

04 Economy / Ecology
- Economical compressed air consumption through dual use: Set the rivet and suction of the residual mandrel
- Highest economic efficiency and low environmental impact
- Inlet can be switched by locking slide switch

05 work comfort / safety
- Rubberised, hand-shaped handle
- Balanced center of gravity
- Low vibration and noise-damped
- Dorn collection container with rotating air deflector
- Pressure relief valve prevents overload
- Very low recoil
- No rivet ejection with the collection container removed

This text is machine translated.
