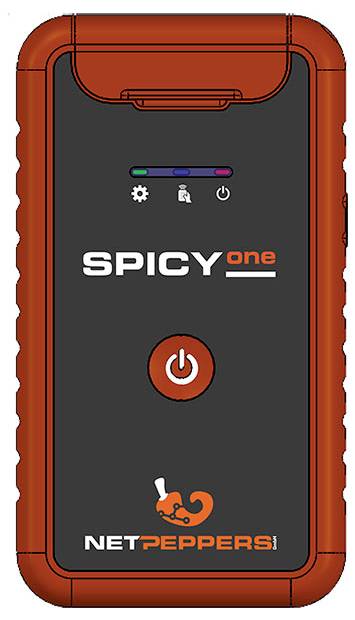

Glass fibre tester NP-FIBER-SPI1QUADKIT PROMO NetPeppers Spicy ONE QUAD Calibrated to (ISO standards) Networks

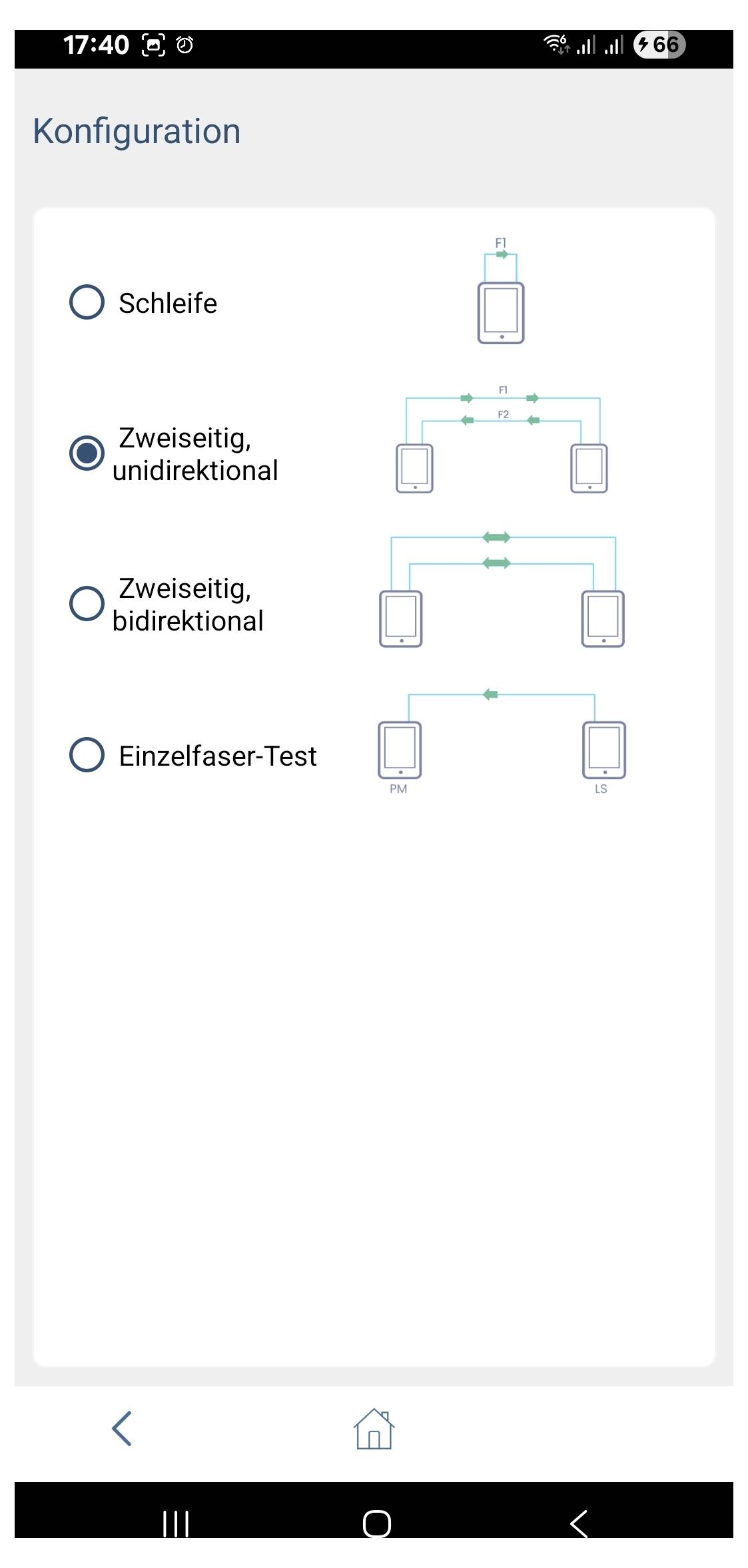

The Spy ONE sets new standards in the LWL-measurement technology. Certify your fiber optic cable cabling according to the standards ISO / IEC 11801/14673-3, DIN EN 50173-1 and TIA-568.3, and application certification to IEEE 8802-3. As the first certification of the world, the Spicy ONE is completely APP-controlled. This enables a user-friendly state-of-the-art operation. The Encircled Flux (EF)-compliant light sources with wavelengths 850/1300 nm (MM) and the two 1310/1550 nm (SM) light sources meet the highest stability requirements with a deviation of only ± 0.02dB/15 min. Measurements of different configurations are possible: Single, two, three jumpers such as loopback and two-sided measurements in simplex or duplex mode. With each measurement, the parameters attenuation, fiber length, delay time and polarity are recorded and immediately compared with the set limit value. The installed VFL enables the optical error search by means of visible laser light.

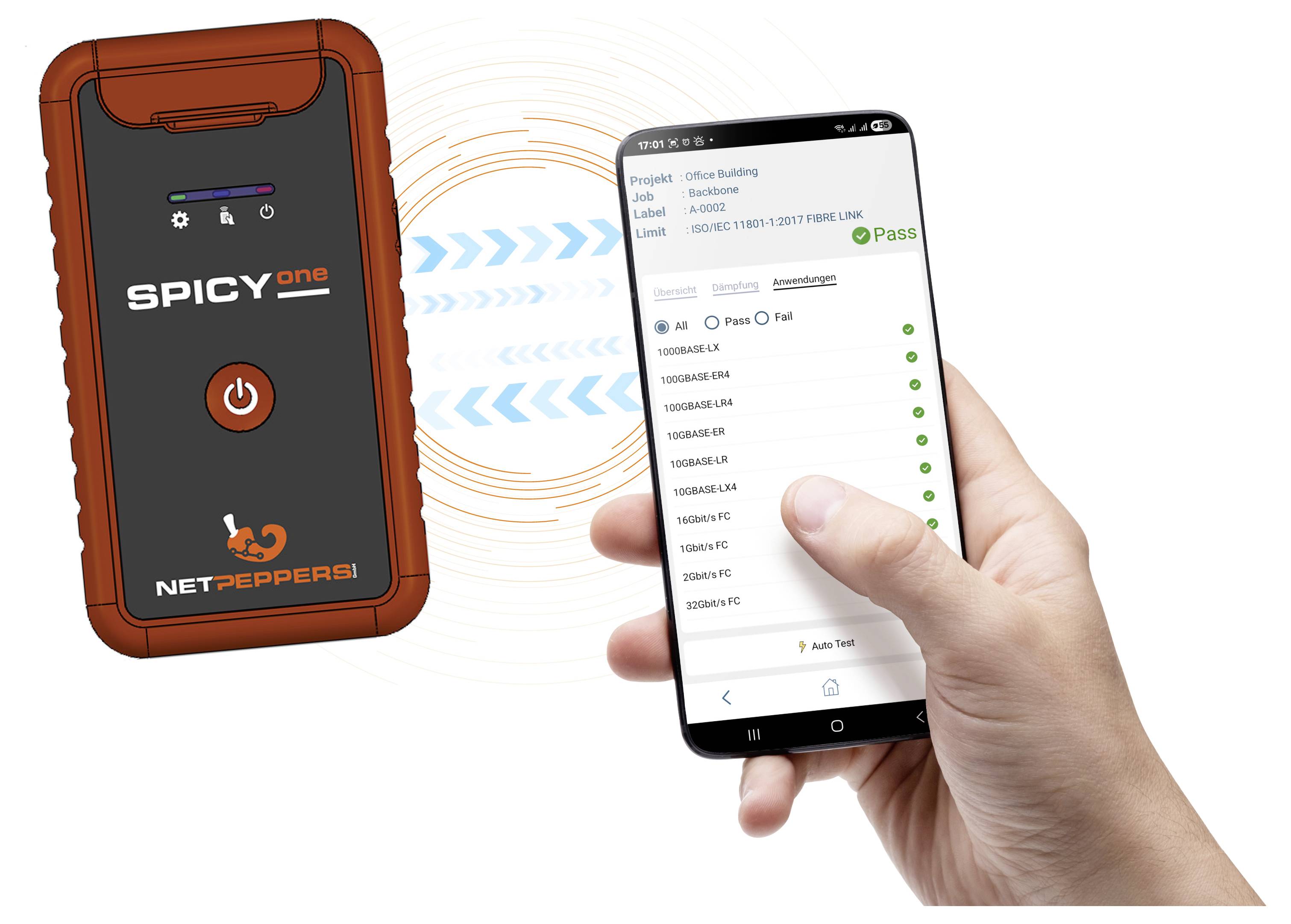

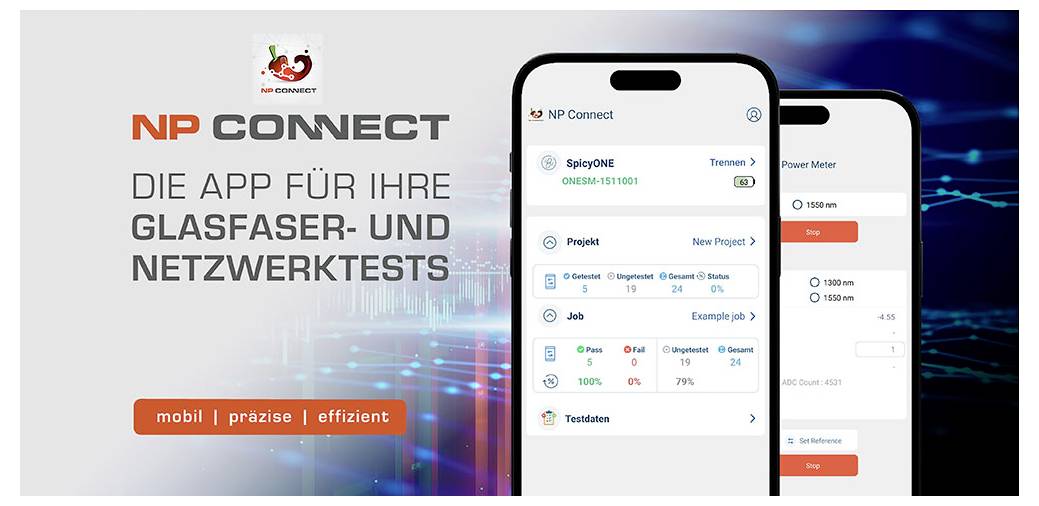

The NP-Connect APP is available free of charge for Android and iOS, and in the future it is compatible with various measuring devices from the house of NetPeppers. Assign user rights within your company, design projects, manage and create measurement results such as test reports, and share them with people from your organization or outside. The NP-Connect APP is the control center of the metrology technician and the most modern solution on the market.
