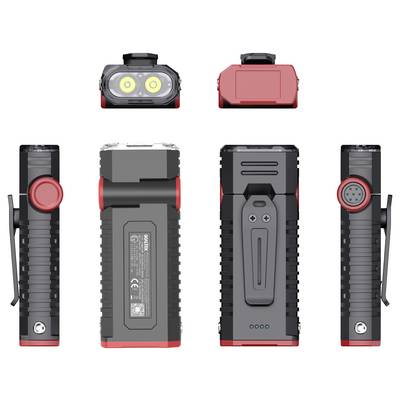

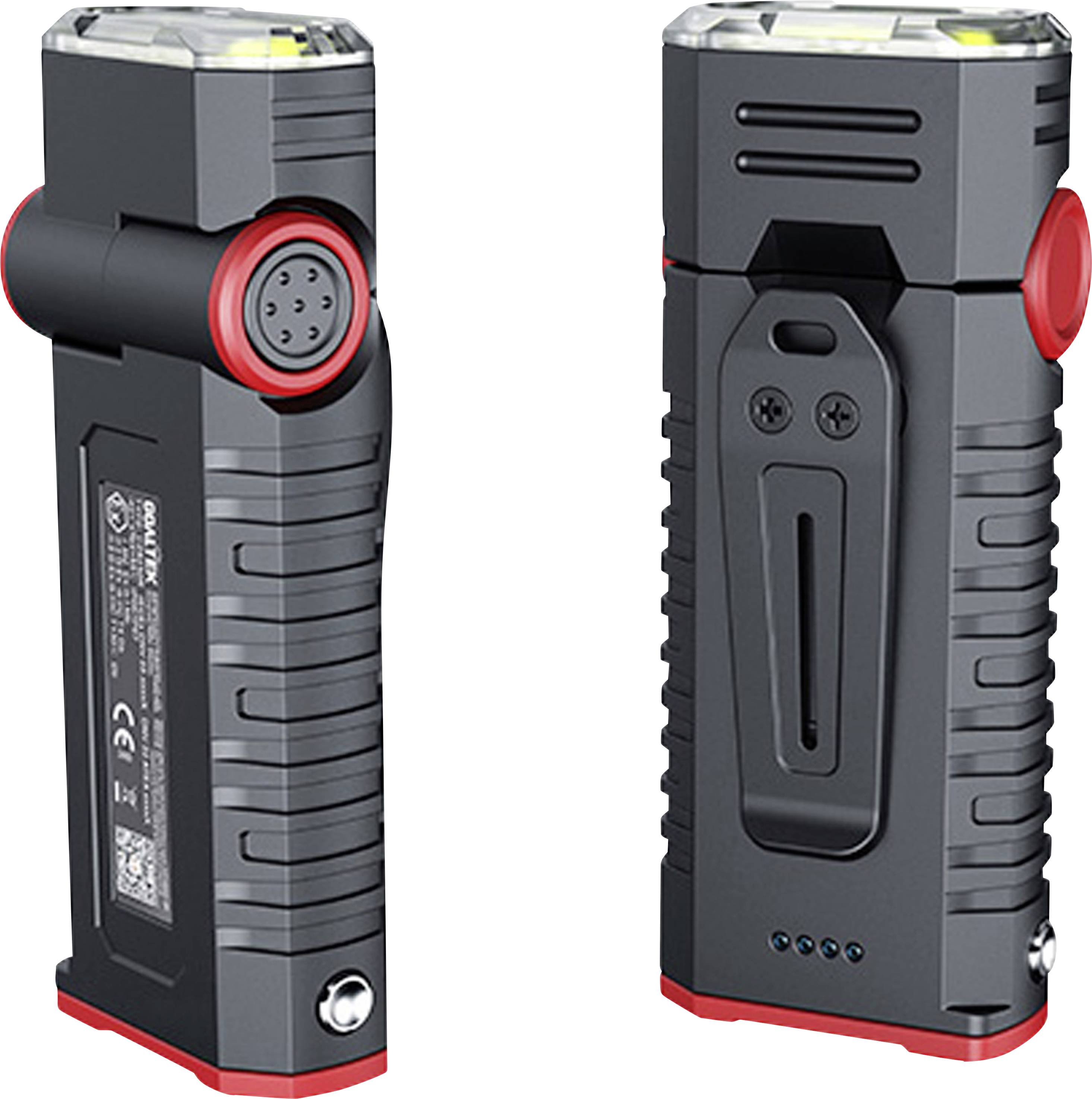

Goaltek ExMP32R Cordless handheld searchlight, Cordless handheld searchlight, Inspection lamp, Torch, Work light Ex Zoni
EAN:
Part number:
Item no:
Number
Total (€ 273.11 / piece)
€ 273.11
plus VAT.
Highlights & Details
GOALTEK EX hand lamp ExMP32R, zone 1/2,21/22
- Certified according to zone 1/2 and zone 21/22 for explosive environments
- Temperature resistant from -40 to +55 °C
- Protection class IP66/67
- Impact-resistant up to 1 m at -45 °C.
- Three light modes: Working light (max. 110 lm), strong light (max. 220 lm) and SOS (max. 110 lm)
- Fire retardant, antistatic and corrosion resistant nylon housing
- Constant current output switching
Technical specifications
- Product type
Cordless handheld searchlight
- Ex Zoning
1
2
21
22
- Factory colour
Black
- Dim
(L x W x H) 37 x 133 x 54 mm
- ATEX no.
I M2 Ex ib I Mb, II 2 G Ex ib IIC T4 Gb, II 2 D Ex ib IIIB T130°C Db
- Operating voltage
3.6 V
- Weight
220 g
- Weight, information
incl. rechargeable battery
- Light duration (high)
14 h
- Light duration (low)
27 h
- Illumination range (high)
85 m
- Illumination range (low)
51 m
- Luminous flux (range)
200 lm - 499.9 lm
- Luminous flux (high)
220 lm
- Luminous flux (low)
110 lm
- Material
Nylon
- Width
133 mm
- Height
54 mm
- Length
37 mm
IP67
- Power supply (LOV)
Li-ion rechargeable batteries
- Waterproof
Yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740276 Goaltek ExMP32R Cordless handheld searchlight, Cordless handheld searchlight, Inspection lamp, Torch, Work light Ex Zoni
Description
The GOALTEK EX hand lamp ExMP32R is a compact rechargeable flashlight, which has been specifically developed for professional use in industrial environments. As a mobile working lamp it is primarily aimed at business customers who need a reliable and handy light source in hazardous areas. The device is delivered in an environmentally friendly plastic-free packaging.
Certified protection for Ex-zones and extreme temperatures
The torch has ATEX certification and is approved for use in hazardous zones 1/2 and 21/22. In addition, the device is designed for a wide temperature range of -40 to +55 °C. This provides users with a correct and fail-safe lighting solution for sensitive and climatically demanding industrial areas.

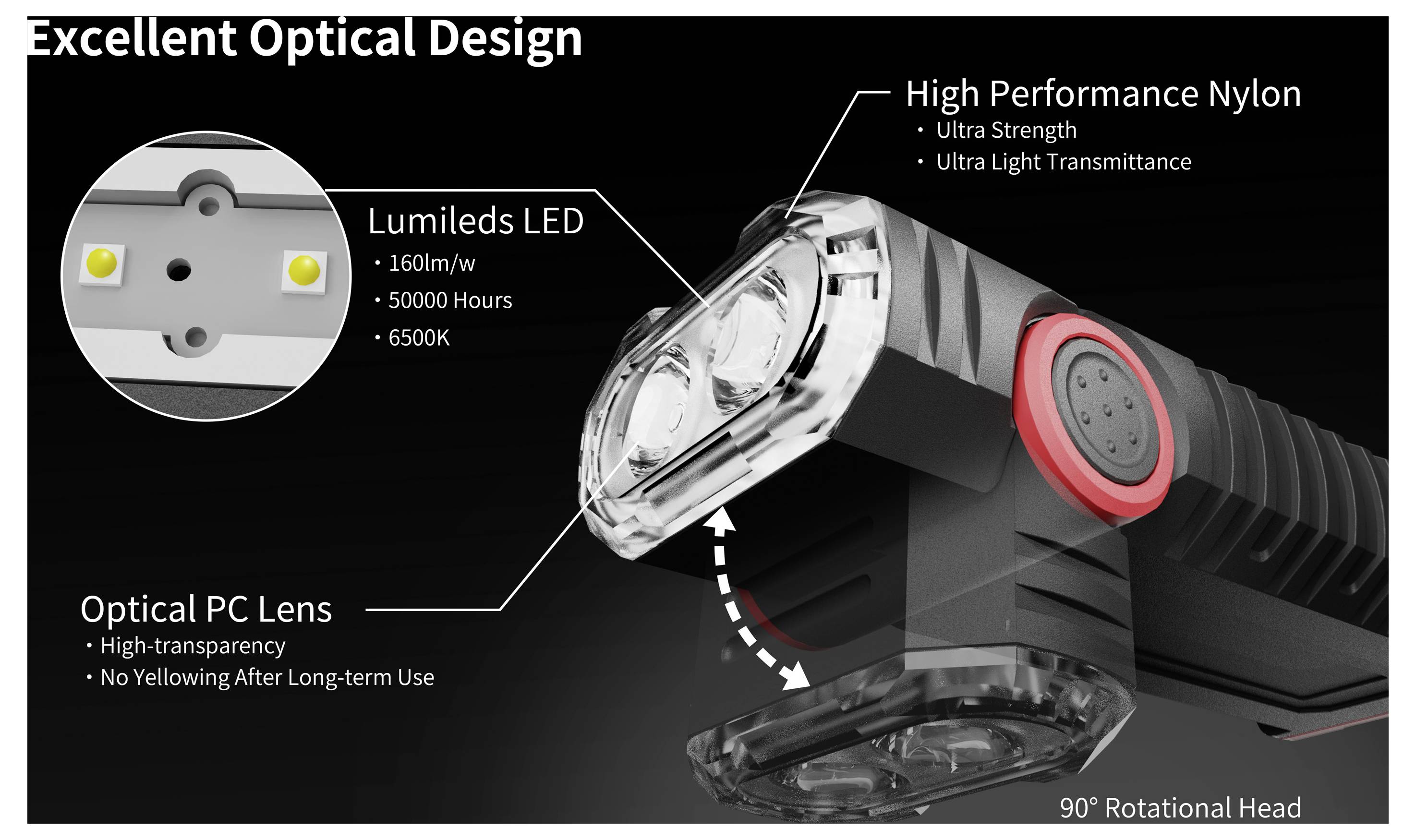

Flexible lighting modes and rotating head

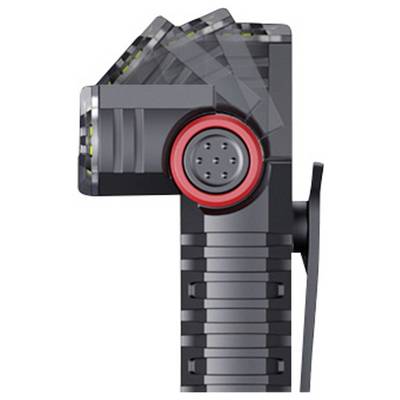

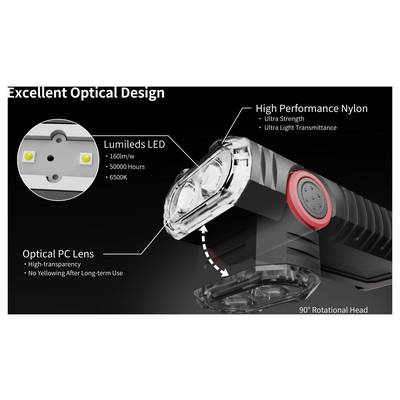

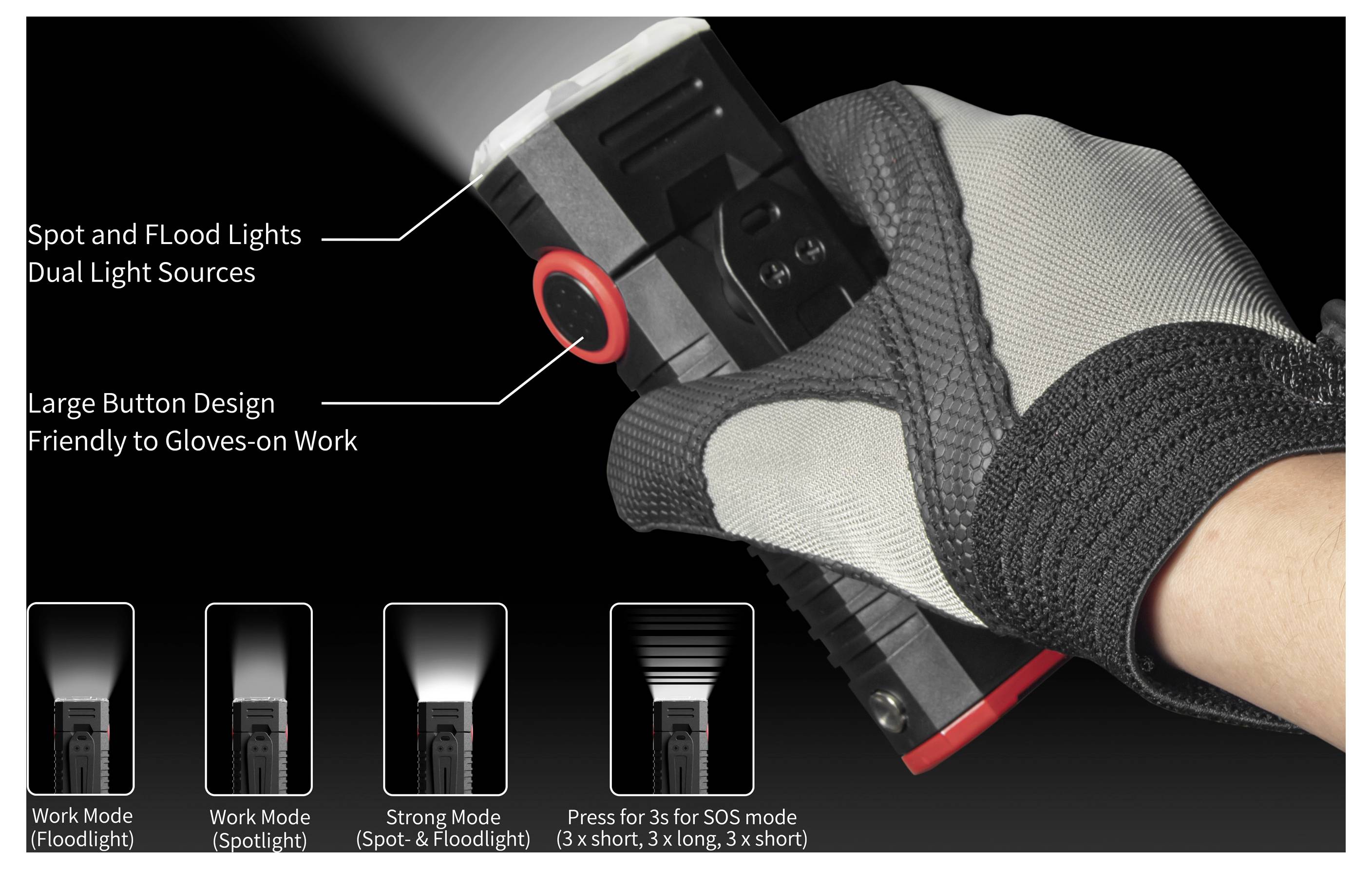

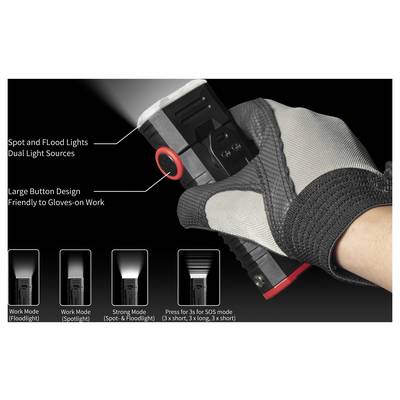

An integrated constant-current output switching controls the three available light modes: A work light (max. 110 lumen), a high-light (max. 220 lumen) and a SOS-mode (max. 110 lumen). The maximum beam range is 85 meters. With the metal head that can be rotated by 90° the light cone can be aligned precisely, WAS supports the illumination in manual activities.

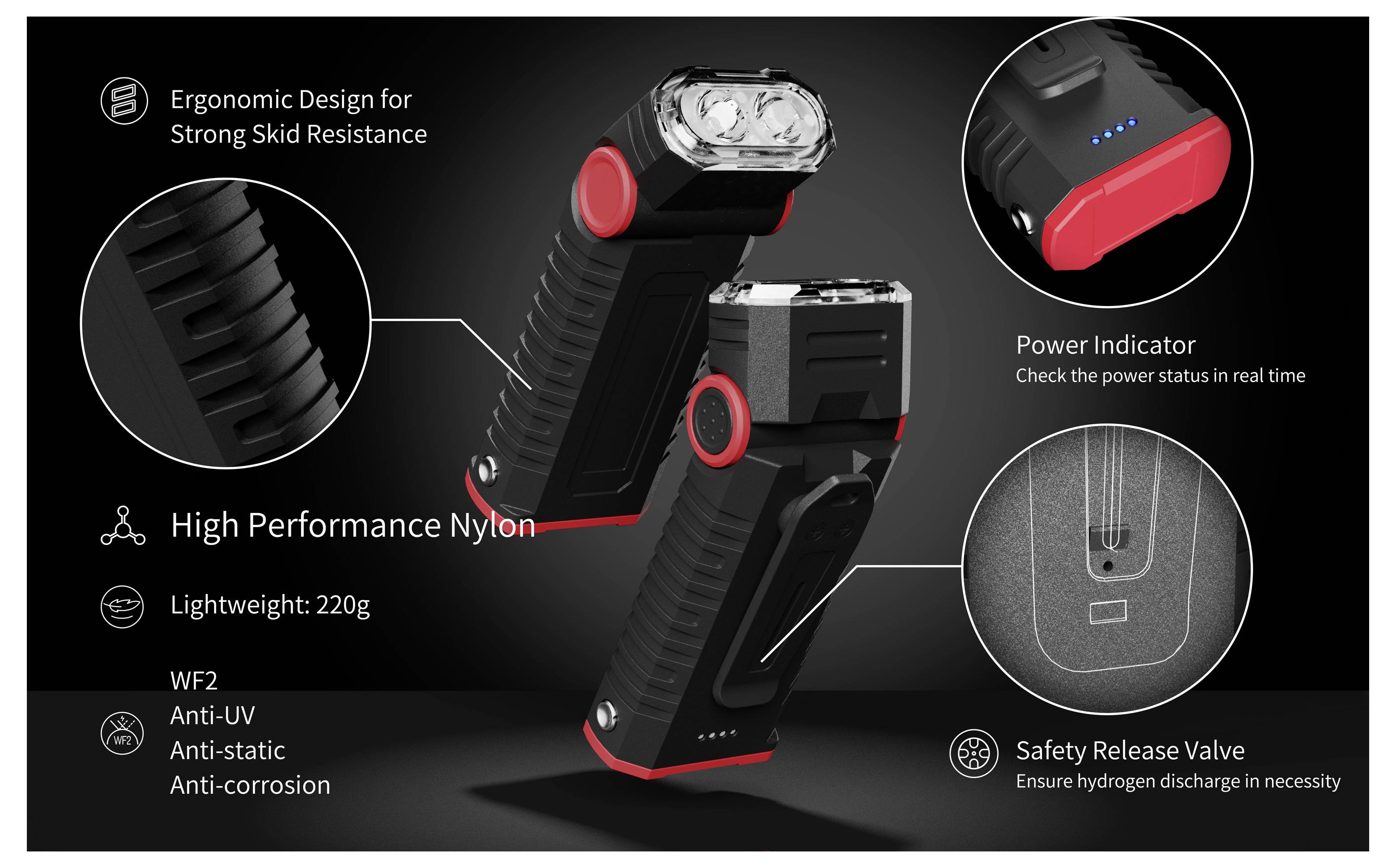

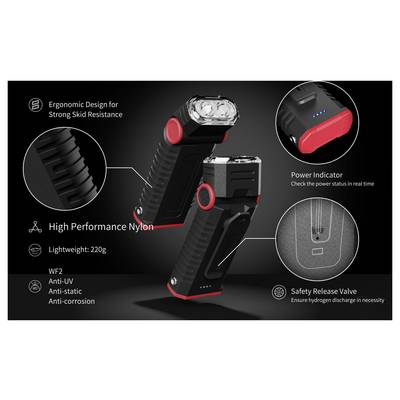

Resistant nylon housing

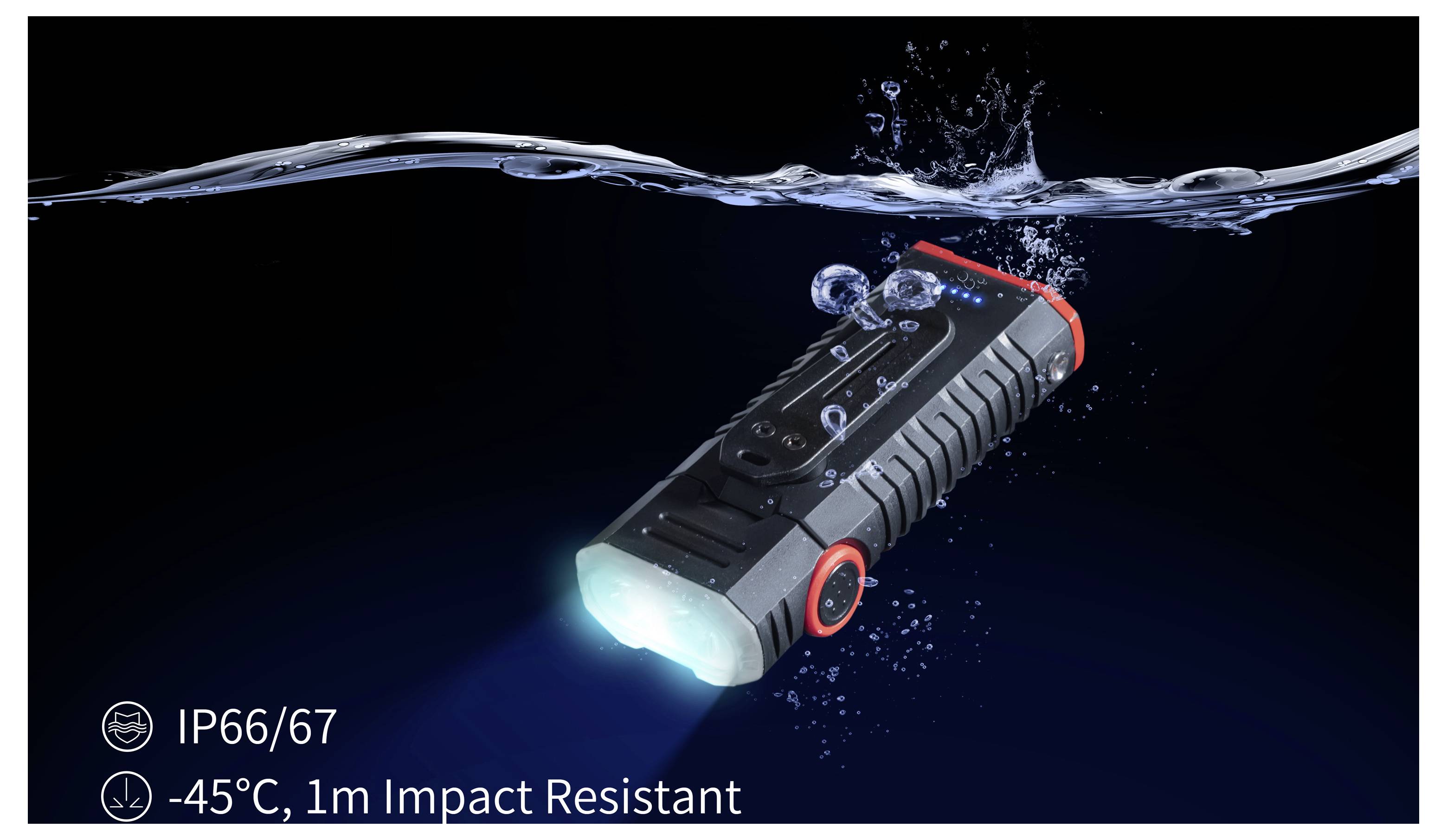

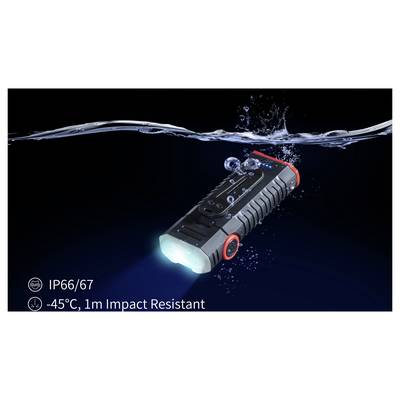

The casing made of fire-retardant nylon is anti-static and corrosion resistant. It is dust and waterproof according to protection class IP66/67. Even at an extreme ambient temperature of -45 °C the hand-held device has a tested shock resistance of up to 1 meters drop height. This ensures a high resistance and a long-term readiness for use in wet or harsh working environments.
Low weight and long battery life
With a weight of 220 grams including integrated Li-Ion battery, the lamp is light and ergonomic in daily use. It achieves a continuous light duration of up to 27 hours in the low-mode and 14 hours in the high-mode. The rod lamp is conveniently charged via the accompanying charging station, WAS simplifies the provision for long working layers.
This text is machine translated.
Certified protection for Ex-zones and extreme temperatures
The torch has ATEX certification and is approved for use in hazardous zones 1/2 and 21/22. In addition, the device is designed for a wide temperature range of -40 to +55 °C. This provides users with a correct and fail-safe lighting solution for sensitive and climatically demanding industrial areas.
Flexible lighting modes and rotating head
An integrated constant-current output switching controls the three available light modes: A work light (max. 110 lumen), a high-light (max. 220 lumen) and a SOS-mode (max. 110 lumen). The maximum beam range is 85 meters. With the metal head that can be rotated by 90° the light cone can be aligned precisely, WAS supports the illumination in manual activities.
Resistant nylon housing
The casing made of fire-retardant nylon is anti-static and corrosion resistant. It is dust and waterproof according to protection class IP66/67. Even at an extreme ambient temperature of -45 °C the hand-held device has a tested shock resistance of up to 1 meters drop height. This ensures a high resistance and a long-term readiness for use in wet or harsh working environments.
Low weight and long battery life
With a weight of 220 grams including integrated Li-Ion battery, the lamp is light and ergonomic in daily use. It achieves a continuous light duration of up to 27 hours in the low-mode and 14 hours in the high-mode. The rod lamp is conveniently charged via the accompanying charging station, WAS simplifies the provision for long working layers.
This text is machine translated.
Features

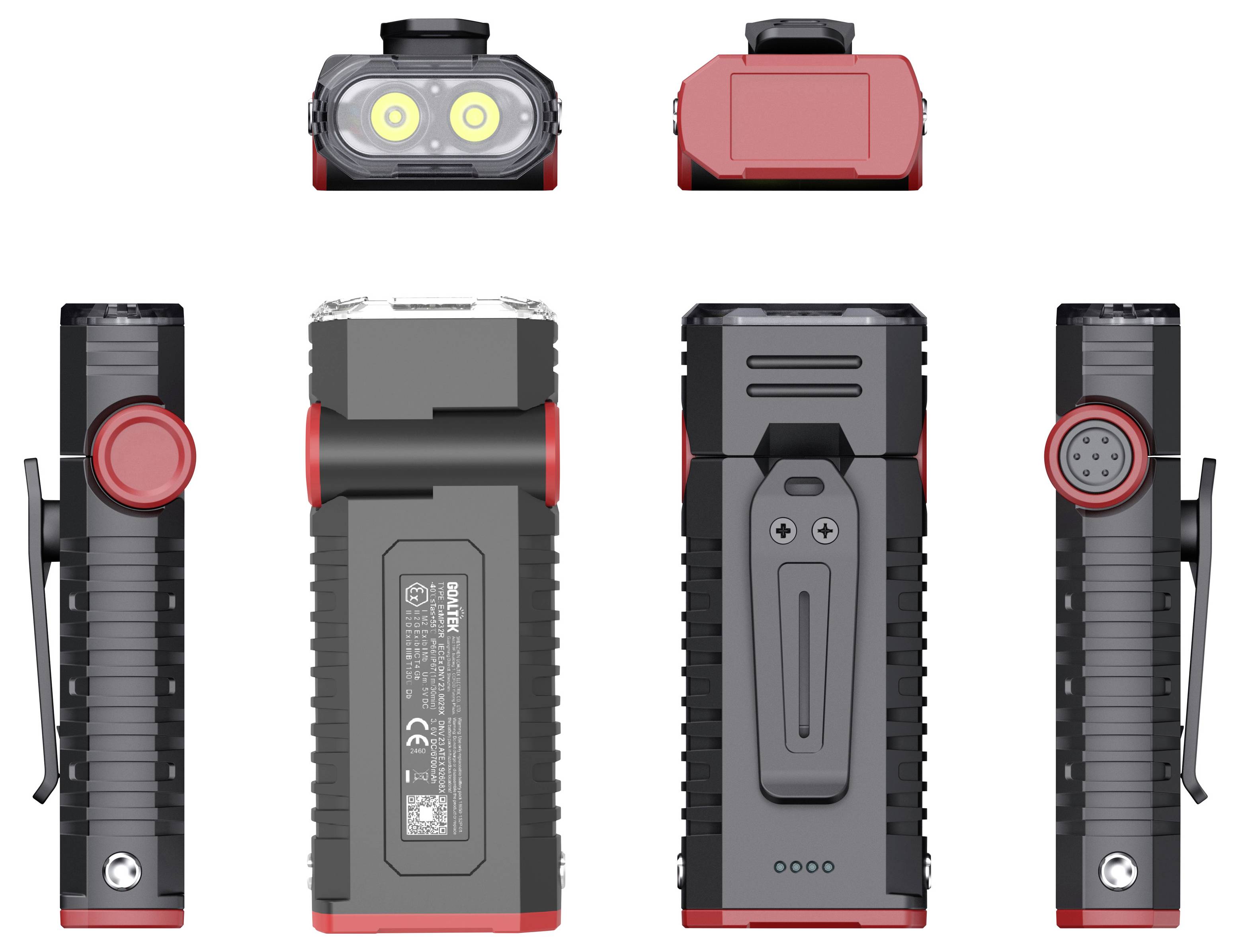

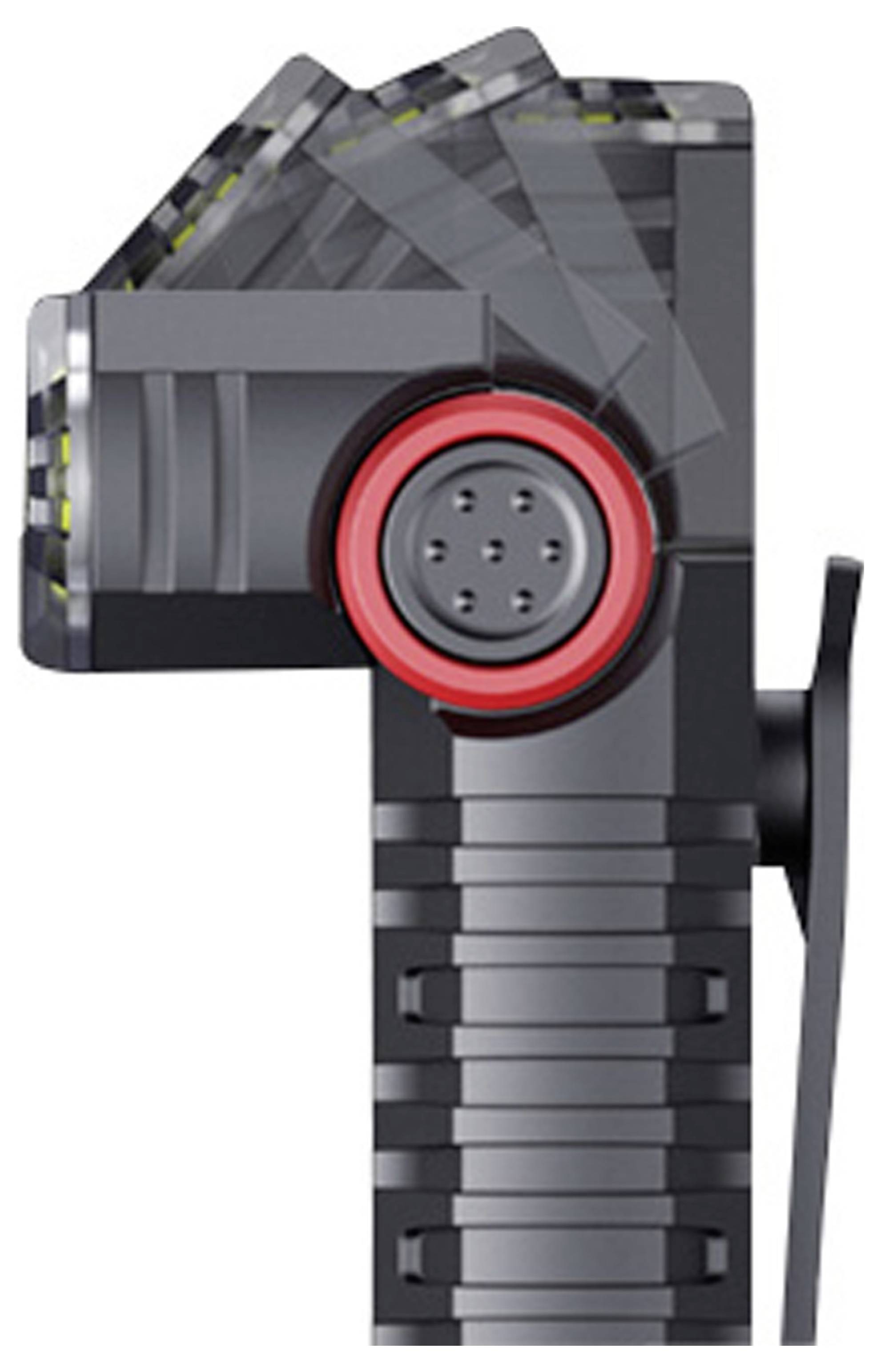

- 90° rotating metal head
- Ergonomic, light handset

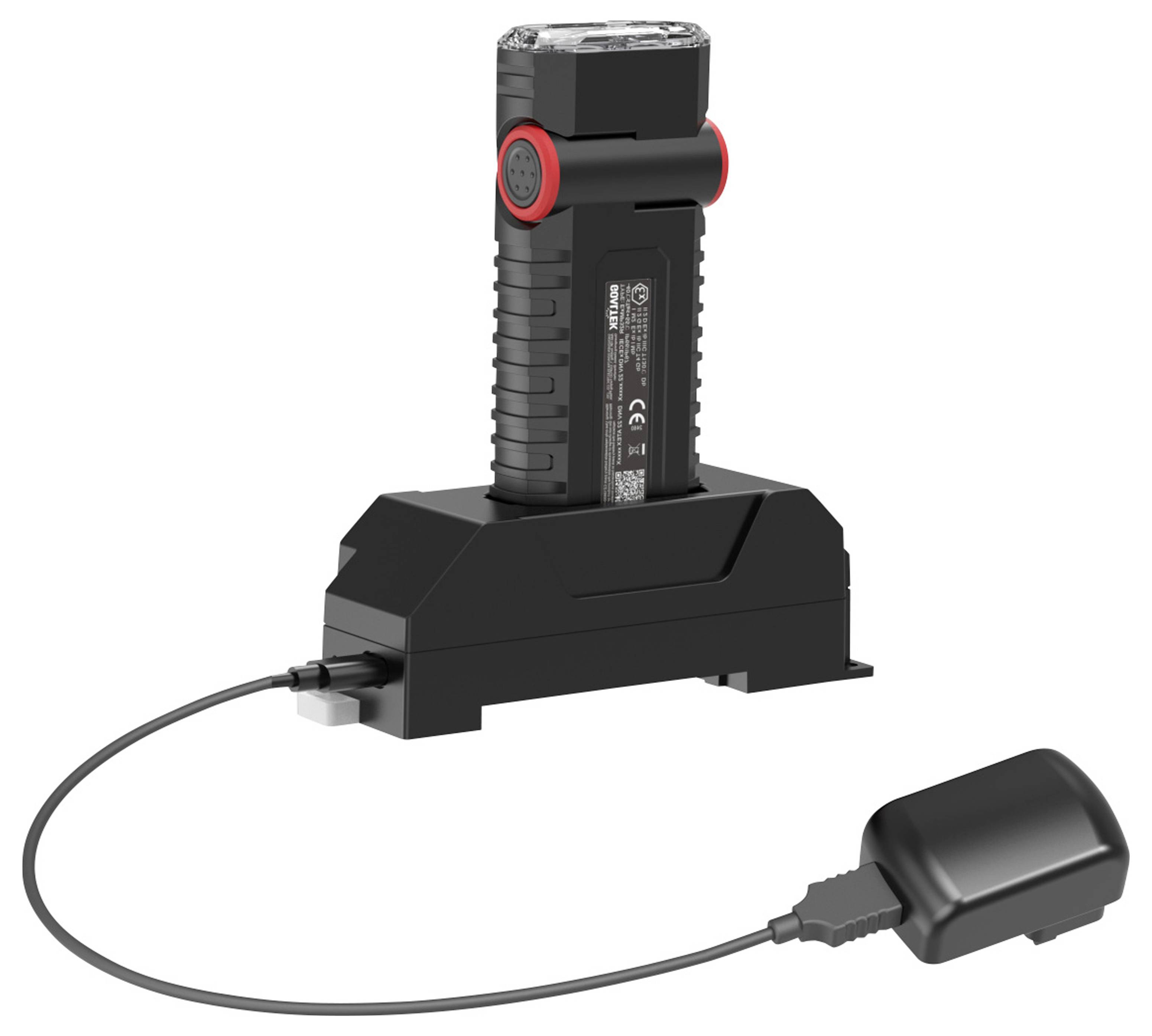

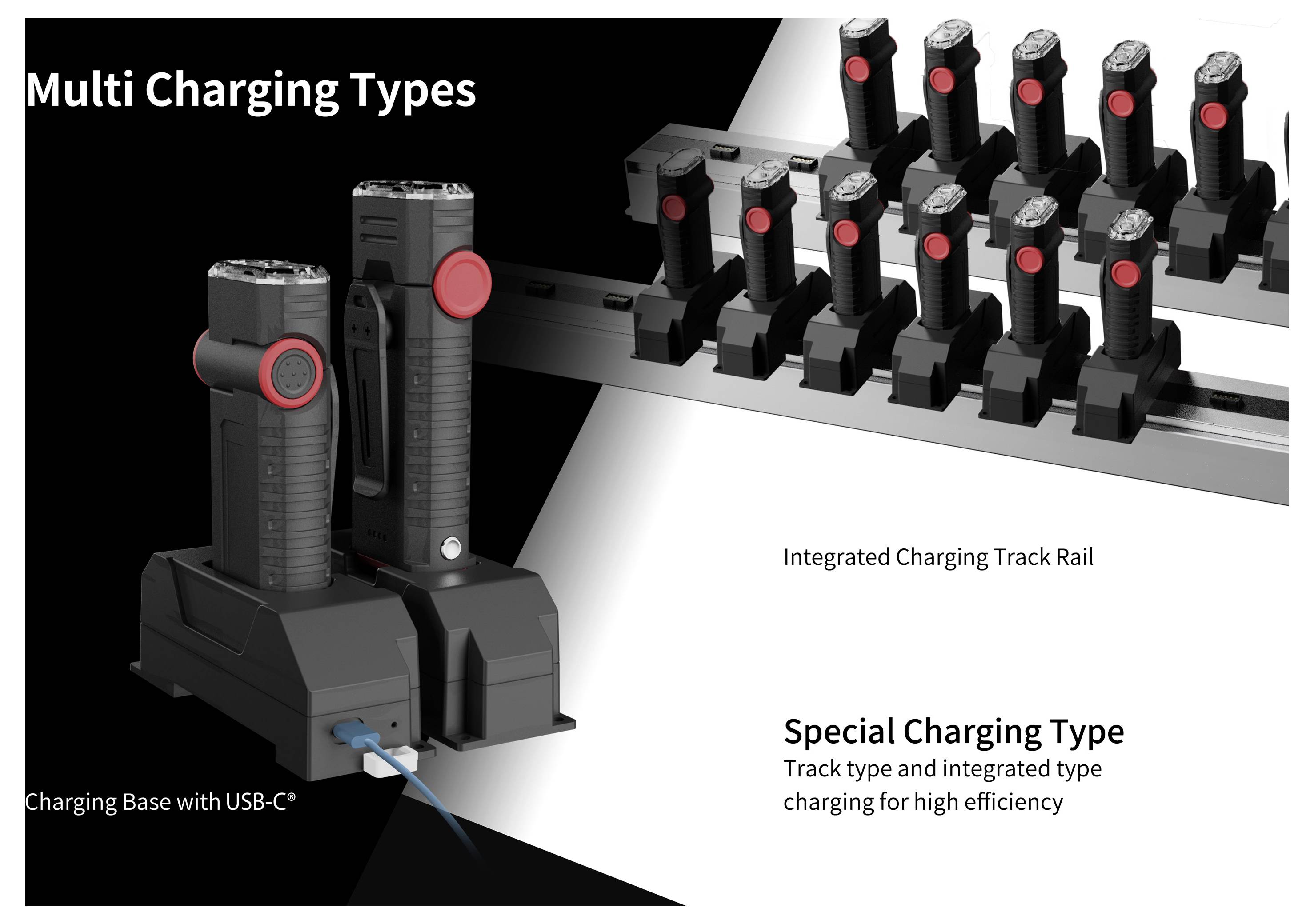

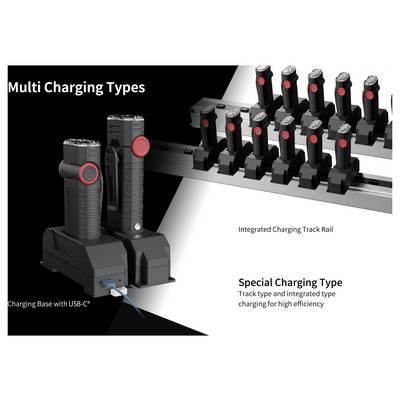

- Rechargeable via charging station
Scope of delivery
- Torch with wrist strap
- Charging station
- AC charging cable
- User manual
