UK Underwater Kinetics UK 4AA eLED® CPO TS Torch Ex Zoning: 1 130 lm 150 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
Highlights & Details
Helmet-u work lamp UK 4 AA eLED® CPO TS
- The life span of the eLED approx. 10,000 hours
- 100% water and dust-proof
- Rubberized Rear Switch
Technical specifications
- Product type
Torch
- Ex Zoning
1
- Factory colour
Black
- Dim
(L x W x H) 157 x 34 x 40 mm
- ATEX no.
II 2G Ex eib IIC T4
II 2D Ex ibD 21 T98°C
- LEDs
1
- Weight
177 g
- Weight, information
incl. batteries
- Light duration (high)
10 h
- Bulb type
LED (monochrome)
- Illumination range (high)
150 m
- Luminous flux (range)
100 lm - 199.9 lm
- Luminous flux (high)
130 lm
- Material
Plastic
- Width
34 mm
- Height
40 mm
- Length
157 mm
IP67
- Power supply (LOV)
battery-powered
- Waterproof
Yes
Documents & Downloads
Datasheet
Datasheet 1646358 UK Underwater Kinetics UK 4AA eLED® CPO TS Torch Ex Zoning: 1 130 lm 150 m
User & Safety Instructions
User & Safety Instructions 1646358 UK Underwater Kinetics UK 4AA eLED® CPO TS Torch Ex Zoning: 1 130 lm 150 m
Warranty Terms
Warranty Terms 1646358 UK Underwater Kinetics UK 4AA eLED® CPO TS Torch Ex Zoning: 1 130 lm 150 m
Description
This high-end model from the UK 4 AA-model series with explosion-proof LED technology. The lamp is equipped with special eLEDs and the revolutionary CPO (Compound Path optics) and TRS (Thermal Recovery System) technology. The Electronics holds the luminosity over the entire duration of burning on constant high level and extends the burn time with one battery charge up to 10%. With 130 Lumens light output, it is the strongest lamp in the UK 4 AA-program. In addition, this lamp via an excellent gas and dust-protection.
This text is machine translated.
This text is machine translated.
Features
- "On-off" switch can be operated well even with gloves
- Special Energy Management" TRS (Thermal Recovery System)"

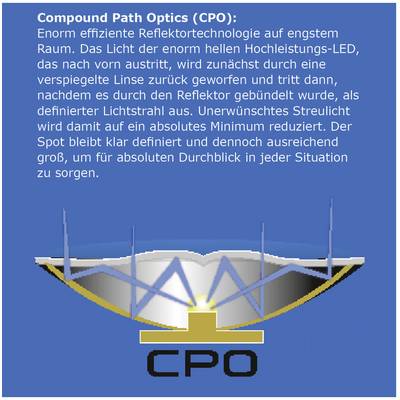

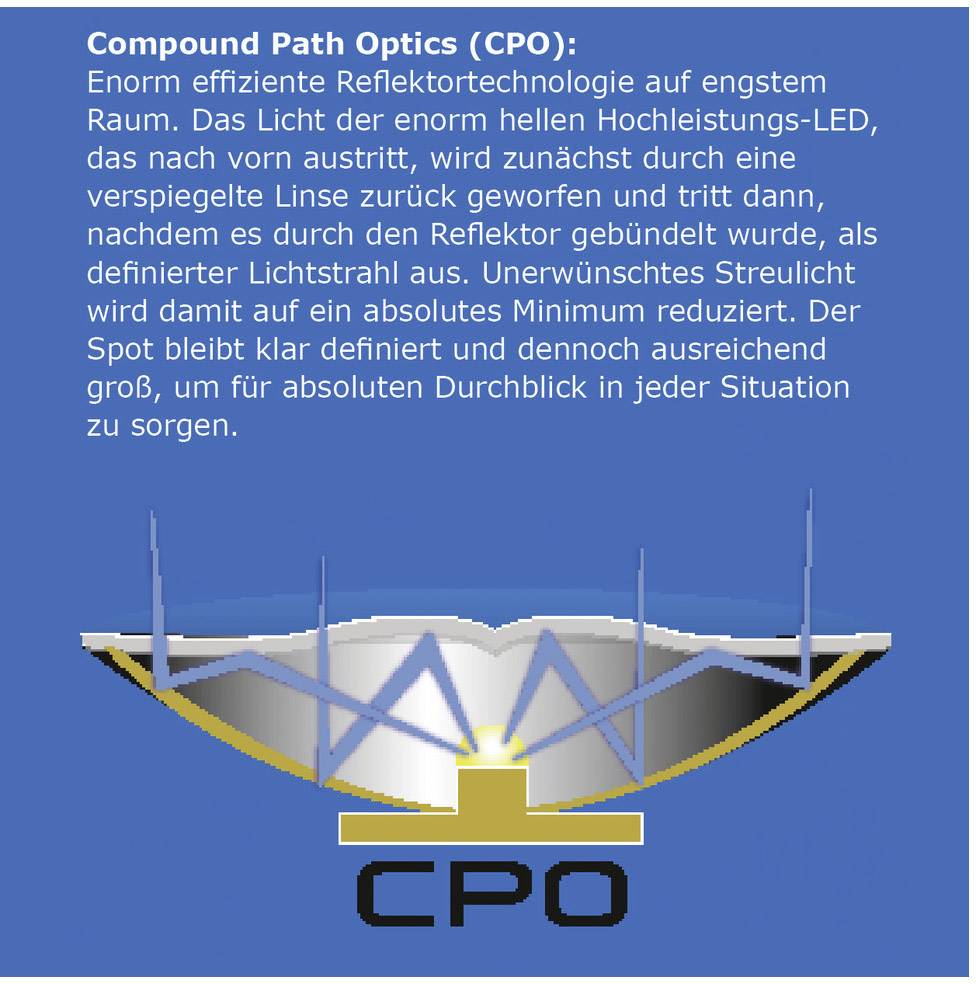

- Optics for bundling of the light beam" CPO (Compound Path Optics)"
- Electrically conductive, corrosion-resistant
- Waterproof up to 3m.
- Robust ABS-casing, electrically conductive, corrosion-resistant
- Pressure Compensating valve
- Simplified battery replacement by special rocker.
Scope of delivery
- Helmet and working lamp UK 4 AA CPO TS
- 4 x AA-battery
- User manual.
