Buy Ledlenser EXH6R Headlamp Ex Zoning: 0, 21 250 lm 170 m

Yellow head torch with black band, Ledlenser EXH6R model, with side adjustment and battery on the back.

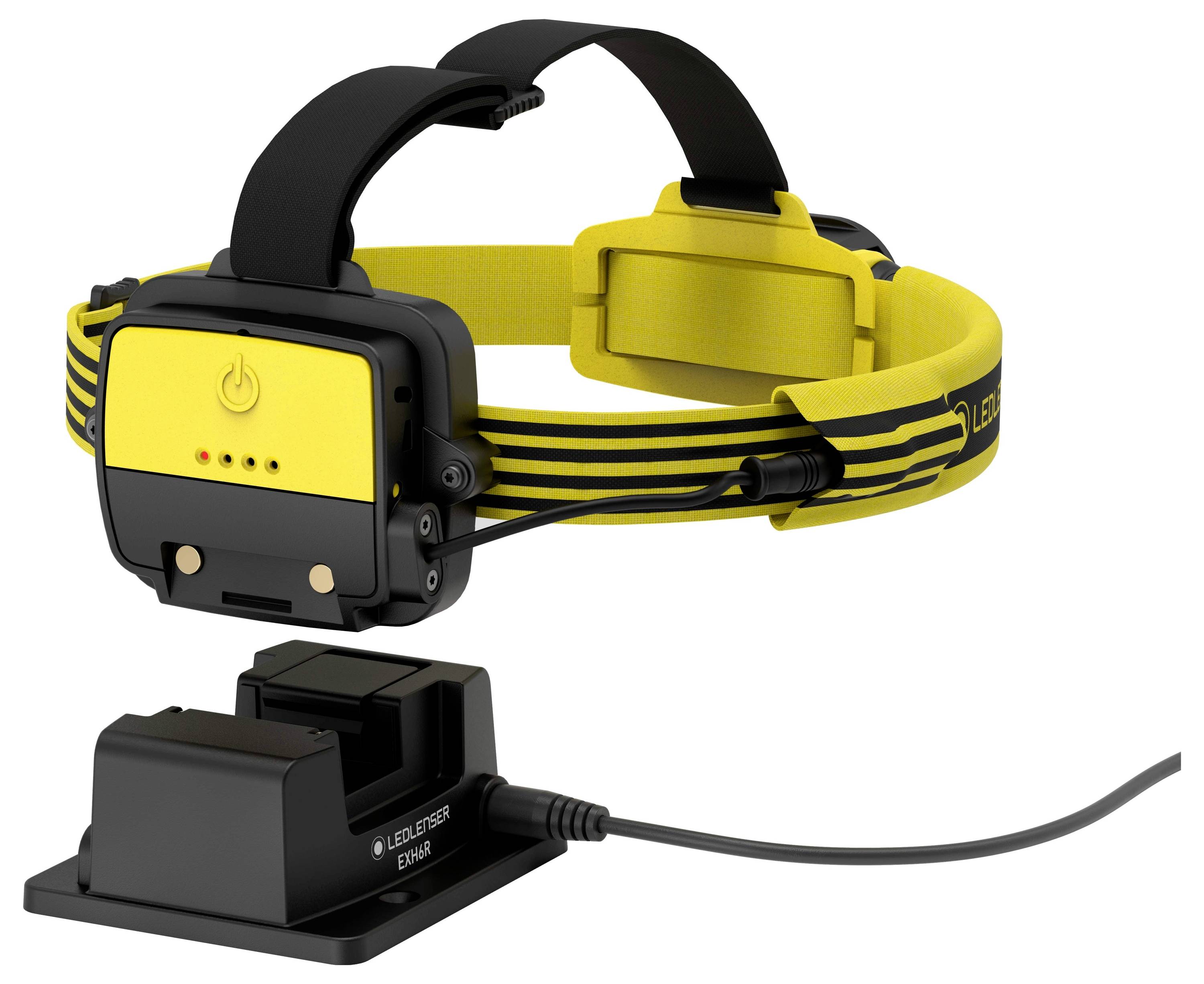

Yellow head torch with black headband and charger. The lamp is sturdy and has a simple user interface, suitable for adventures or working in the dark.

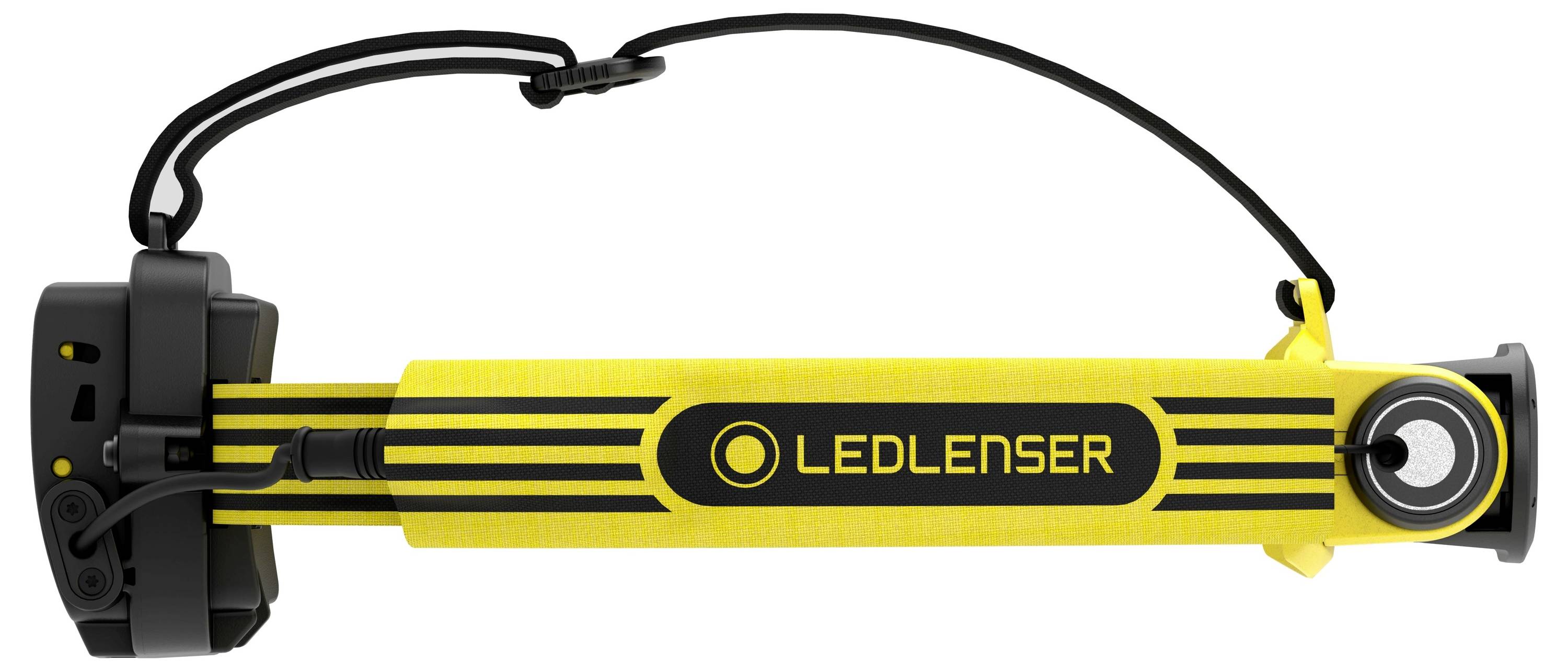

Yellow, tubular LED torch by 'Ledlenser', with black cable and mounting device, shown lying down.

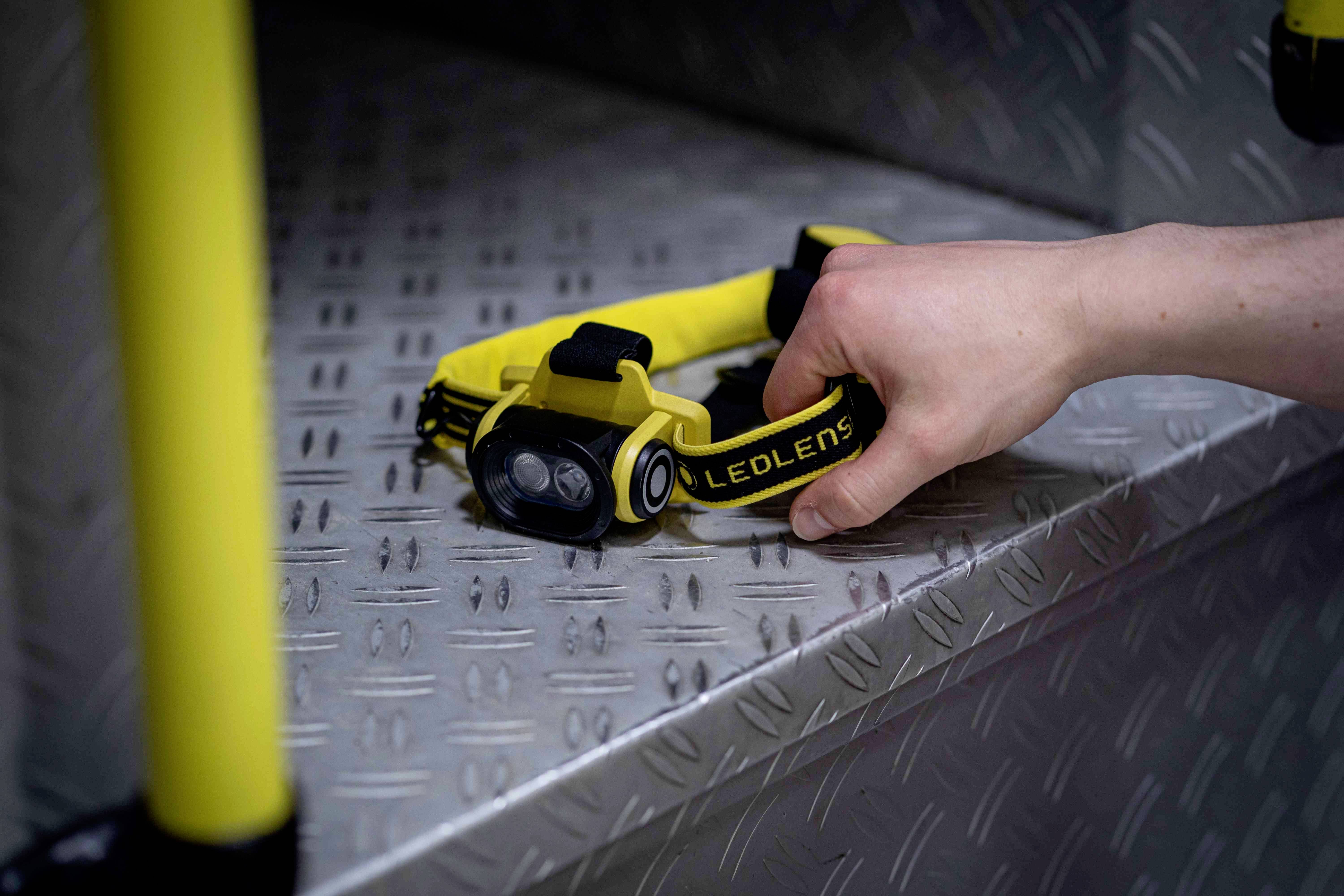

A hand places a yellow head torch on a metal surface. The torch has a black strap and is branded by 'LEOLENS'.

1/4

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

24 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 117.64 / piece)

€ 117.64

plus VAT.

Report legal concerns

Ledlenser head lamp EXH6R

Highlights & Details

Very comfy
Separate LEDs for long range and close range
Dust resistant and water proof

Technical specifications

Lamp head pivoting angle 135 °
Rechargeable battery 1900 mAh
ATEX certificate: SGS22ATEX0039
IEC Ex certificate IECEx BAS 22.0027
GAS GROUP: IIA,IIB,IIC
Temperature class gas: T4
Ex-zone gas/dust: 0, 21
DUST GROUP: IIIA,IIIB,IIIC
Max. Surface temp. 135 °C
Colour temperature 4600 to 5400 K
Colour rendering index 70 cri
Drop-tested: Height 2 m.

Product type: Headlamp

Ex Zoning: 0
21

Factory colour: Yellow
Black

ATEX no.: II 1G Ex ia IIC T4 Ga
II 2D Ex ib IIIC T135°C Db

LEDs: 2

Operating voltage: 3.7 V

Weight: 330 g

Weight, information: incl. rechargeable battery

Light duration (high): 3 h

Light duration (low): 15 h

Light duration (medium): 10 h

Bulb type: LED (monochrome)

Illumination range (high): 170 m

Illumination range (low): 30 m

Illumination range (medium): 90 m

Luminous flux (range): 200 lm - 499.9 lm

Luminous flux (high): 250 lm

Luminous flux (low): 50 lm

Luminous flux (medium): 100 lm

: IP68

Power supply (LOV): rechargeable

Temperature range: -20 to +40 °C

Waterproof: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2998426 Ledlenser EXH6R Headlamp Ex Zoning: 0, 21 250 lm 170 m

Security datasheet

Security datasheet 2998426 Ledlenser EXH6R Headlamp Ex Zoning: 0, 21 250 lm 170 m

Description

Free hands for critical applications: The compact professional headlamp EXH6R supplies light in hazardous work areas. It can be mounted comfortably (also on helmets with the suitable, separately available accessories) and lights up the near and distant areas reliably. The lamp head can be swiveled by 135° on both sides in order to adjust the light cone individually. If the energy is scarce, a light signal warns and the remaining time is sufficient to leave the working area safely. The EXH6R convinces with its built-in battery, which can be replaced when required, with a status LED and a separate charger station for mounting e.g. in workshops or vehicles. By placing the battery on the back of the head, the weight distribution is optimal; by means of extension cable the battery can also be attached to clothes or equipment. Explosion protection II 1G Ex ia IIC T4 Ga, II 2D Ex ib IIIC T135°C DB. With battery and charging status indicator.

This text is machine translated.

Features

Compact, versatile head lamp for work areas at risk of explosion
Separate LEDs for focused high beam or homogeneous, glare-free work light at close range
Lamp head rotates on both sides for individual adjustment of the light cone
Extreme dust and water protection: IP68
Built-in, changeable battery with professional charging cradle for installation, e.g. in workshops or
Vehicles; incl. Battery and battery level indicator
