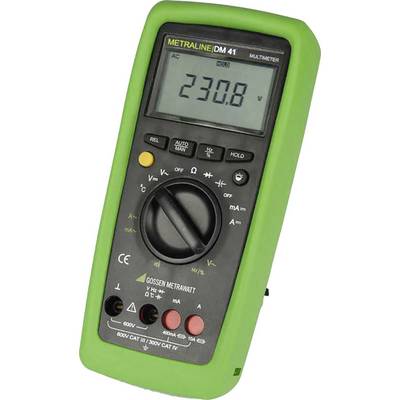

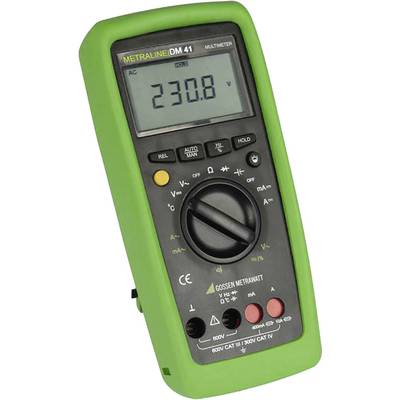

Gossen Metrawatt METRALINE DM 41 Handheld multimeter Calibrated to (ISO standards) Digital ISO calibration CAT III 600 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Highlights & Details
METRALINE DM 41
- CAT III 600 V, CAT IV 300 V
Technical specifications
- Voltage reading range DC (min.)
100 µV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
100 µV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
10 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
10 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
100 mΩ - 40 MΩ
- Frequency reading range
0,001 Hz - 500 kHz
- Temperature
-50 to + 1,300 °C
- Basic accuracy
0.4 %
- Measurement type (details)
True RMS
- Power supply (details)
2 x type AA 1.5 batteries V
- Height
53 mm
- Width
86 mm
- Length
188 mm
- Weight
480 g
ISO standards
- Reading category
CAT III 600 V
CAT IV 300 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
METRALINE DM 41
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 188 x 86 x 53 mm
- Features
ISO calibration
Documents & Downloads
Datasheet
Datasheet 3089738 Gossen Metrawatt METRALINE DM 41 Handheld multimeter Calibrated to (ISO standards) Digital ISO calibration CAT III 600 V
User & Safety Instructions
User & Safety Instructions 3089738 Gossen Metrawatt METRALINE DM 41 Handheld multimeter Calibrated to (ISO standards) Digital ISO calibration CAT III 600 V
Description
The multimeter with an excellent price/performance ratio. Proven reliability and security from Gossen Metrawatt. Reliable measurement results in the measurement categories CAT IV 300 V and CAT III 600 V with additional safety for user and device thanks to automatic blocking sockets (ABS). The robust METALLINE DM41 digital multimeter offers a variety of convincing performance features. It is equipped with latest technology and ensures precise measurement results. The extremely compact and ergonomic design provides for maximum user-friendliness and safety. By the TRMS-measurement and a broad functional spectrum it is suitable universally for demanding measuring tasks in the most different applications.
Reliable readings thanks to ISO calibration
Diagnostics tools used in an environment that complies with ISO 9001 standards require ISO calibration. Moreover, most safety inspectors as well as accredited testing and certification bodies need to use ISO-certified equipment.
This text is machine translated.
Reliable readings thanks to ISO calibration
Diagnostics tools used in an environment that complies with ISO 9001 standards require ISO calibration. Moreover, most safety inspectors as well as accredited testing and certification bodies need to use ISO-certified equipment.
This text is machine translated.
Features
- Temperature and switch-on duration measurement
- Automatic locking sockets (ABS)
- Measurement with digital display (4000 digits)
Scope of delivery
- Multimeters
- Rubber protective cover with carrying strap
- Cable set
- Set of batteries
- User manual
- Testing procedure
Hints
A K-type thermocouple is required for temperature measurement.
