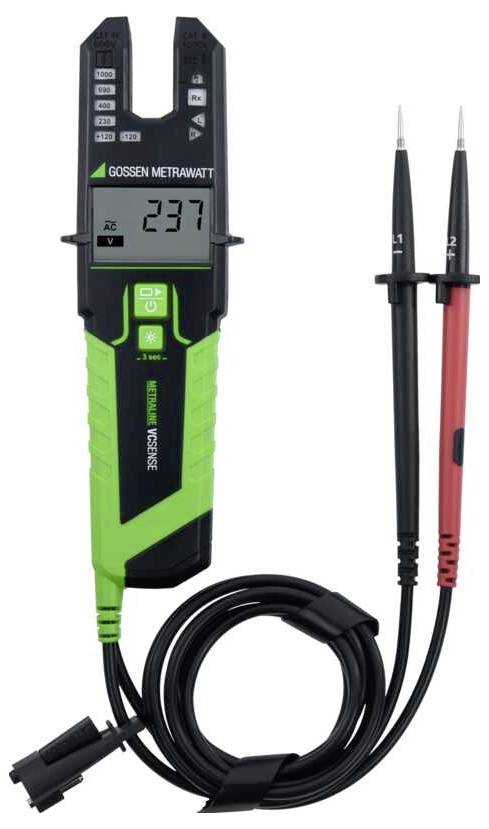

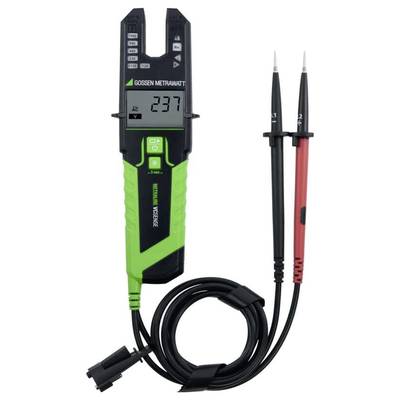

Gossen Metrawatt METRALINE VC Sense Voltage tester CAT III 1000 V, CAT IV 600 V LED
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 189.07 / piece)
€ 189.07
plus VAT.
Highlights & Details
Current-voltage tester with 7-segment display
- Inductive current measurement
- Vibration motor and transducer for reliable feedback
Technical specifications
- Product type
Voltage tester
- Reading type
Voltage testing
Resistance
Rotating magnetic field
Two pole voltage testing
- Display
LED
- V AC reading range
1 up to 1000 V
- V DC reading range
1 up to 1500 V
- Reading category
CAT III 1000 V
CAT IV 600 V
IP64
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 60 x 205 x 35 mm
- Max. frequency
800 Hz
- Min. frequency
0 Hz
- Frequency range
0 Hz - 800 Hz
- V AC reading range (max.)
1000 V
- V AC reading range (min.)
1 V
- Voltage DC reading range (max.)
1500 V
- Voltage reading range DC (min.)
1 V
- Width
205 mm
- Height
35 mm
- Length
60 mm
- Type
METRALINE VC Sense
- Factory colour
Multicolour
- UKCA
not relevant
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3203914 Gossen Metrawatt METRALINE VC Sense Voltage tester CAT III 1000 V, CAT IV 600 V LED
User & Safety Instructions
User & Safety Instructions 3203914 Gossen Metrawatt METRALINE VC Sense Voltage tester CAT III 1000 V, CAT IV 600 V LED
Description
The METALLINE VC SENSE is an extremely versatile test instrument with numerous measurement functions, which has proven itself in different applications. Whether voltage testing, resistance measurement, continuity testing or diode testing - thanks to the vibration motor and the sound generator the device gives reliable feedback and precise test results. This current voltage tester allows non-contact and single-pole voltage measurement from over 90 V to 1000 V L-L.
This text is machine translated.
This text is machine translated.
Features
- Vibration motor and transducer for reliable feedback
- Opening of current fork 14 mm
