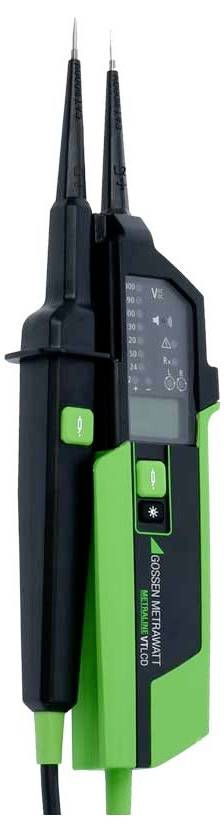

Gossen Metrawatt METRALINE VT LCD Voltage and continuity tester CAT IV 600 V LCD, Acoustic, Visual
EAN:
Part number:
Item no:
11 Piece(s)
Sales and shipping:
Number
Total (€ 105.03 / piece)
€
Highlights & Details
Two-pole voltage tester
- LCD-display with background lighting
- Standard testing according to EN 61324-3
- Automatic mode for voltage/continuity
Technical specifications
- Dim
(L x W x H) 280 x 75 x 35 mm
- Weight
280 g
- Height
35 mm
- Length
280 mm
- Width
75 mm
- Max. frequency
950 Hz
- Frequency range
1 Hz - 950 Hz
Manufacturer's standards (no certificate)
- Display
LCD
Acoustic
Visual
- Reading category
CAT IV 600 V
- Reading type
Rotating magnetic field
Continuity
Voltage testing
Resistance
Phase
- Type
METRALINE VT LCD
- Min. frequency
1 Hz
- Product type
Voltage and continuity tester
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3411551 Gossen Metrawatt METRALINE VT LCD Voltage and continuity tester CAT IV 600 V LCD, Acoustic, Visual
Description
The two-pole voltage tester METALLINE VT LCD convinces with its robustness and an LCD-display with background lighting for a clear reading under all conditions. With an integrated automatic mode for voltage and continuity, as well as the possibility of quickly and easily carrying out an RCD-trigger test for 30 mA via two push-buttons, this device offers an optimum combination of user-friendliness and functionality. In addition, the METALLINE VT LCD has a wide range of functions that includes not only voltage testing but also continuity tests, diode tests and polarity tests. With its certification according to CAT III 1000 VAC/1500 VDC CAT IV 600 V the device offers a high safety standard and is therefore an indispensable companion for every electrical technician.
This text is machine translated.
This text is machine translated.
Features
- 12…1000 V AC / 12…1500 V DC
- LED display for defined voltage ranges
- Frequency range 16.7 950 Hz
- Polarity indicator
- LCD-display with background lighting
- Automatic mode for voltage/continuity
- RCD trip test for 30 mA using two push-buttons
- Frequency measurement
- Continuity check, resistance measurement
- Single pole phase test, rotating field display
- Diode test
- Torch, voltage vibration
- Measurement category CAT III 1000 VAC/1500 VDC CAT IV 600 V.
- IP 64, GS 38 probe tip cap and probe tip extension can be screwed on
Scope of delivery
- 2x 4 mm probe tip adapter (round contact pins) (in holder at probe tip protection)
- 2x safety caps, screw-on for CAT IV 600 V / CAT III 1000 V / GS-38 (mounted on probe tip protection)
- 1x test prod protection (on the cable)
- 2x batteries (1.5 V, IEC AAA)
- 1x user manual
