Name: Gossen Metrawatt METRISO PRIME+ Insulation tester Calibrated to (DAkkS standards) 100 V, 250 V, 500 V, 1000 V, 1500 V, 2
Brand: Gossen Metrawatt
SKU: 3808197
Availability: InStock

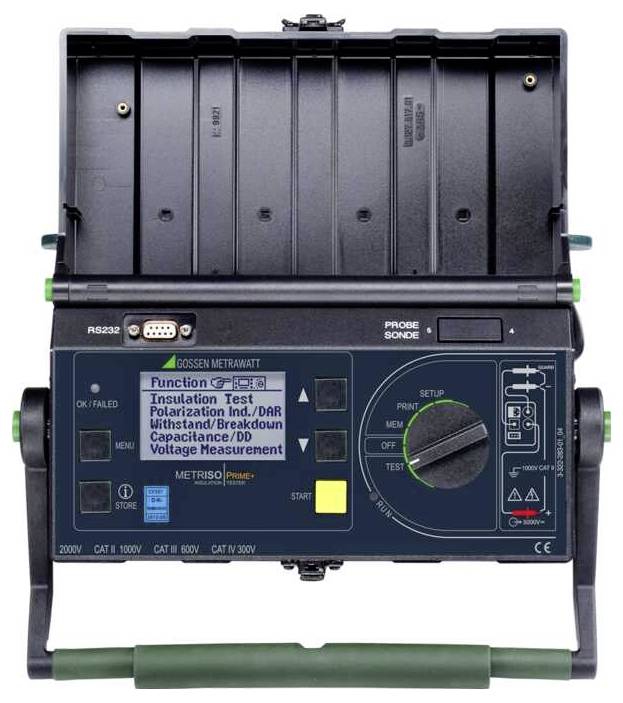

Portable electrical test instrument with screen and controls, showing an insulation and voltage measurement menu.

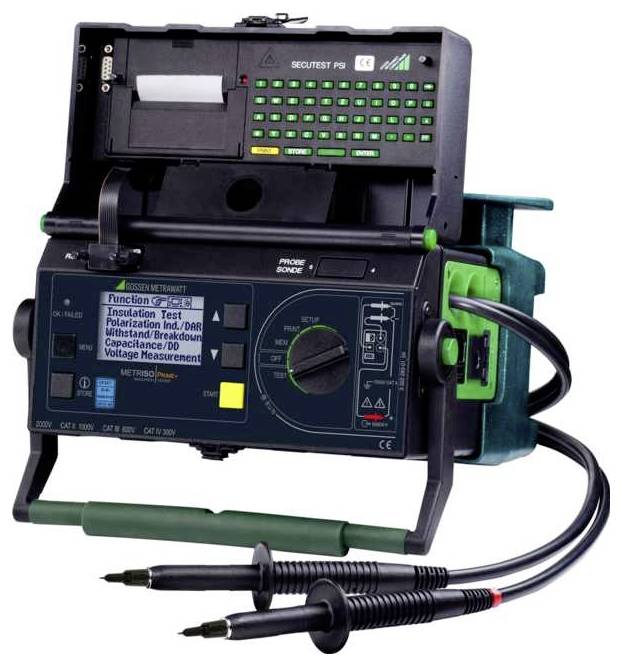

Portable electrical test instrument with built-in keypad, screen, leads, and probes for insulation and voltage measurements.

Portable electrical test instrument with display and keypad, connected to two probe leads on a green carrying frame.

1/3

Datasheet (PDF)

Fast track dispatch on Fri 16 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,795.00 / piece)

€ 3,795.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

High voltage insulation measuring instrument 5000 V, digital

Time-dependent insulation measurements such as, for example, polarization index and absorption ratio, dielectric discharge, capacity measurement
Danger of contact voltage
Digital display of measurement and limit values
Data logger

Technical specifications

Product type: Insulation tester

Test voltage: 100 V
250 V
500 V
1000 V
1500 V
2000 V
2500 V
5000 V

Reading type: Insulation resistance

: DAkkS standards

Interfaces: RS232

: IP40

Power supply (details): 207-253 V

Dim: (L x W x H) 133 x 255 x 240 mm

Weight: 5000 g

Display type: Digital
Acoustic

Max. frequency: 1 kHz

Frequency range: 1 kHz (max)

Voltage reading range (max.): 5000 V DC

Reading category: CAT IV 300 V

Width: 255 mm

Height: 240 mm

Length: 133 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3808197 Gossen Metrawatt METRISO PRIME+ Insulation tester Calibrated to (DAkkS standards) 100 V, 250 V, 500 V, 1000 V, 1500 V, 2

User & Safety Instructions

User & Safety Instructions 3808197 Gossen Metrawatt METRISO PRIME+ Insulation tester Calibrated to (DAkkS standards) 100 V, 250 V, 500 V, 1000 V, 1500 V, 2

Description

The device for classical insulation measurement with selectable voltages up to 5000 V - develops and built in addition for all known types of long-term insulation measurement

This text is machine translated.

Scope of delivery

High-voltage insulation measuring device with permanently attached measuring leads and test prods; 2 alligator clamps (5 kV design); power cable; interface cable

Description

Scope of delivery

High-voltage insulation measuring device with permanently attached measuring leads and test prods; 2 alligator clamps (5 kV design); power cable; interface cable
