Name: Gossen Metrawatt U2389-V015 U2389-V015 Electricity meter (3-phase) incl. converter jack Digital MID-approved: Yes 1 pc(s
Brand: Gossen Metrawatt
SKU: 1462933
Availability: InStock

Electricity meter with digital display showing '97 kWh' and '0 kW'. Model number and technical details visible on the casing.

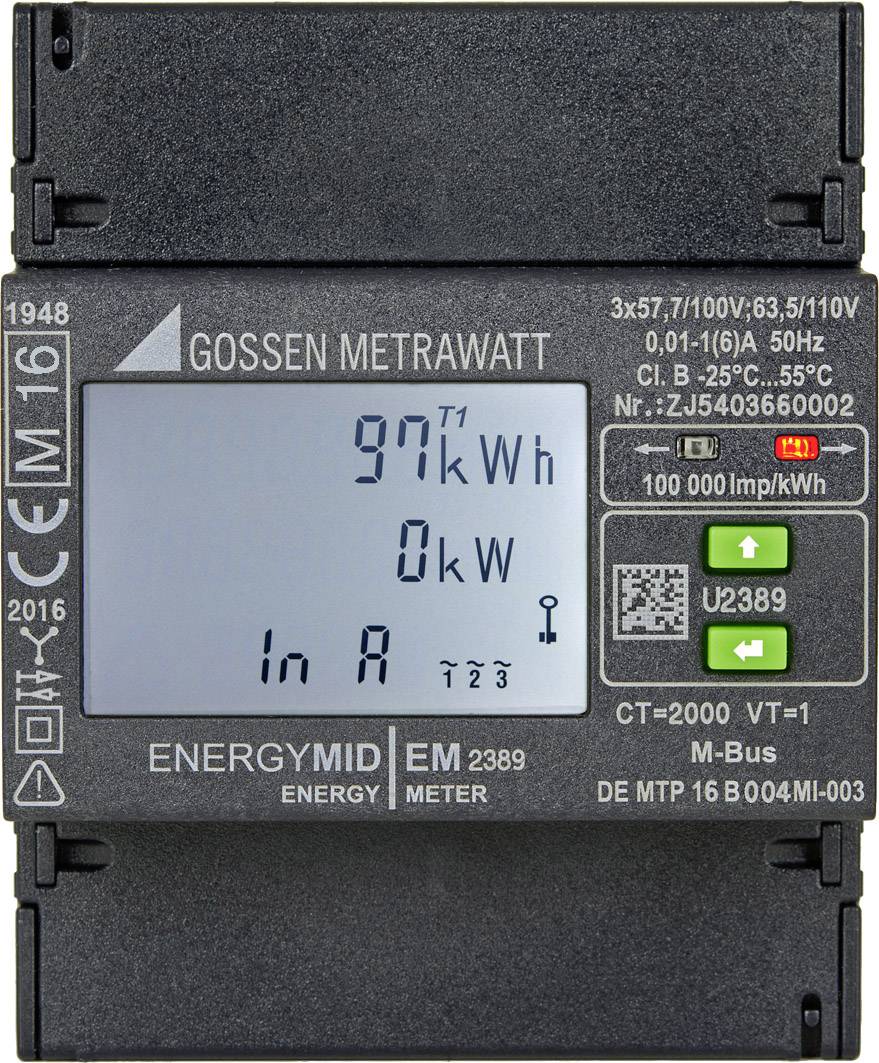

Digital electricity meter with display showing '97 kWh', '0 kW'. Model: Gossen Metrawatt EnergyMID EM 2389. Buttons and QR code visible.

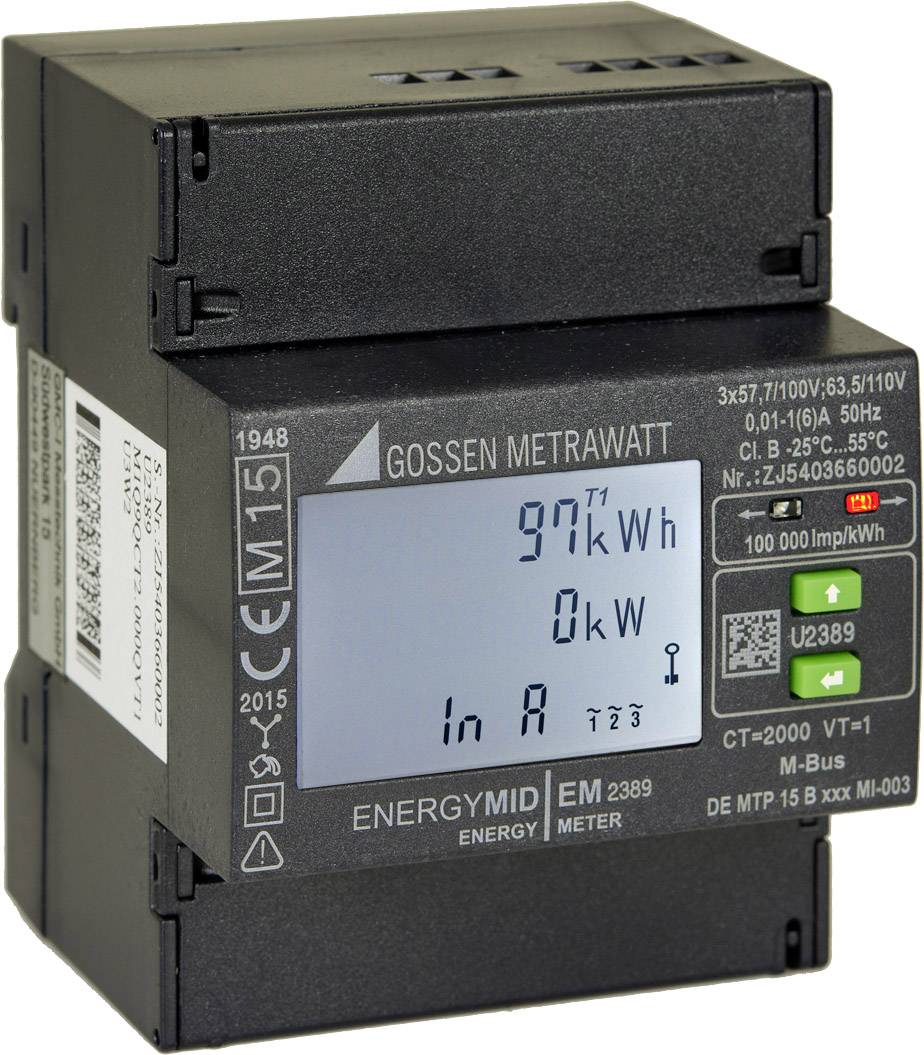

'Gossen Metrawatt Energymid EM 2389' energy metre with digital display shows 97 kWh, 0 kW power. Dimensions and circuit symbols visible.

1/3

Product type

Electricity meter (3-phase) incl. converter jack

Display

Digital

Calibration

Calibrated

Counter type

3-Phase 4-conductor meter

Operating voltage

3x 230 / 400 V

Datasheet (PDF)

Dispatches on Wed 21 Oct

12 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 439.00 / piece)

€ 439.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Gossen Metrawatt, power meter ENERGYMID for converter connection, M-Bus, MID, 4 L

Energy meter for transformer connection 5 (6) A and 1 (6) A, 4-wire power supply, 400V, M-Bus, MID

Technical specifications

Category rotary current meter with converter connection 5 (6) A and 1 (6) A, version for DIN rail, CT/VT: programmable

Counter type: 3-Phase 4-conductor meter

Product type: Electricity meter (3-phase) incl. converter jack

Display: Digital

Calibration: Calibrated

Operating voltage: 3x 230 / 400 V

Special feature: Up to 8 tariff inputs, M-Bus interface

Dim: (L x W x H) 90 x 72 x 70 mm

Weight: 300 g

Display: LCD

Operating voltage: 400 V

Recess width: 72 mm

Frequency: 50 Hz

MID-approved: Yes

Reading type: Active energy

Width: 72 mm

Height: 70 mm

Length: 90 mm

Current (max.): 6 A

Current (min.): 1 A

Current range: 1 up to 6 A

Type: U2389-V015

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1462933 Gossen Metrawatt U2389-V015 U2389-V015 Electricity meter (3-phase) incl. converter jack Digital MID-approved: Yes 1 pc(s

User & Safety Instructions

User & Safety Instructions 1462933 Gossen Metrawatt U2389-V015 U2389-V015 Electricity meter (3-phase) incl. converter jack Digital MID-approved: Yes 1 pc(s

Description

Multifunctional Power Meter for 4-conductor networks with 1 (6) A and 5 (6) A converter connection
Simple network monitoring through a recording of up to 33 other measured variables
Active energy measurement according to EN 50470-3, Class B for industry and trade as well as increased requirements in households
For accounting purposes thanks to initial verification after mid factory
4-quadrant measurement (import and export)
Ultra-compact design (4TE = 72 mm)
Future-proof thanks to up to 8 tariff inputs
Fast detection of error thanks to color on the display: phase sequence, phase failure, connected with reverse polarity converter, Overload
High-contrast LCD display with background lighting
M-Bus interface
Protection against manipulation by sealable cover and parameterization lock
Quality product "Made in Germany"

This text is machine translated.
