Name: GP GP Ni-MH Industrial 170 AAAH 1A1P-C1 AA battery (rechargeable) NiMH 1.2 V 170 mAh 1 pc(s)
Brand: GP
SKU: 3450982
Availability: InStock

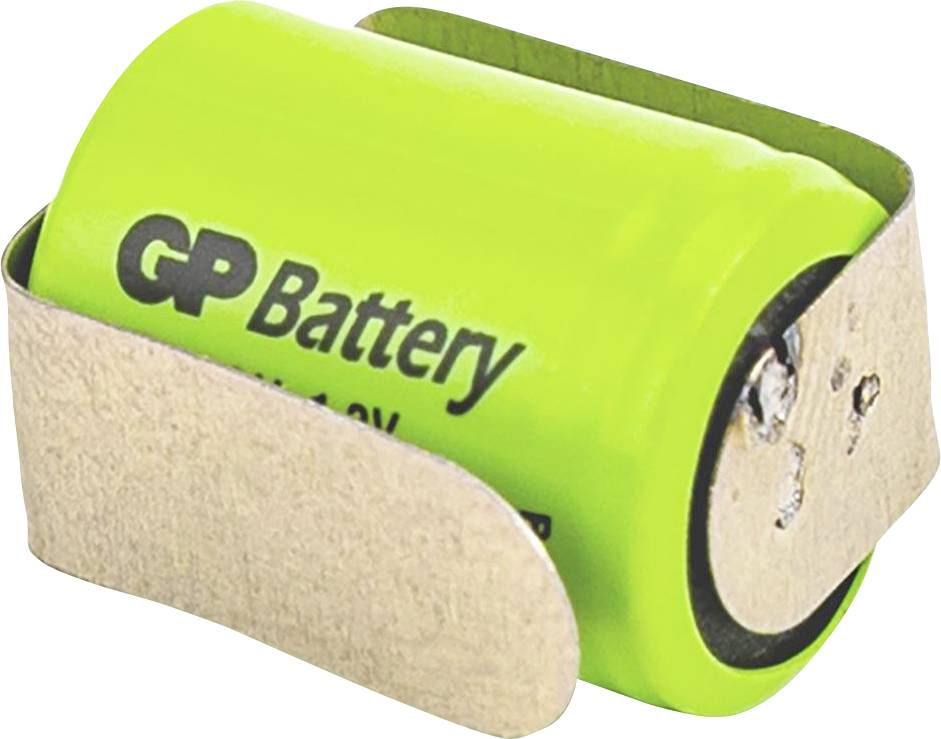

A green GP battery wrapped in cardboard, featuring visible metal terminals on the side.

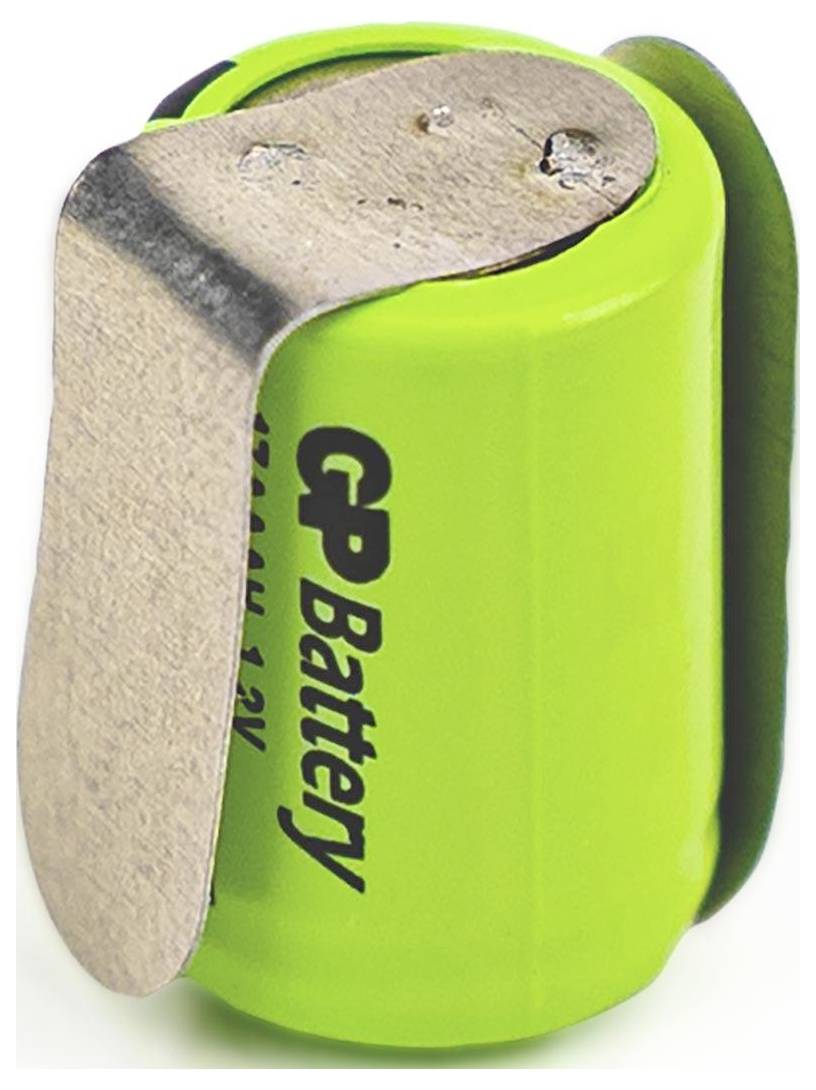

A small green GP battery with metallic contacts visible at the top, indicating it is likely a single-cell cylindrical battery.

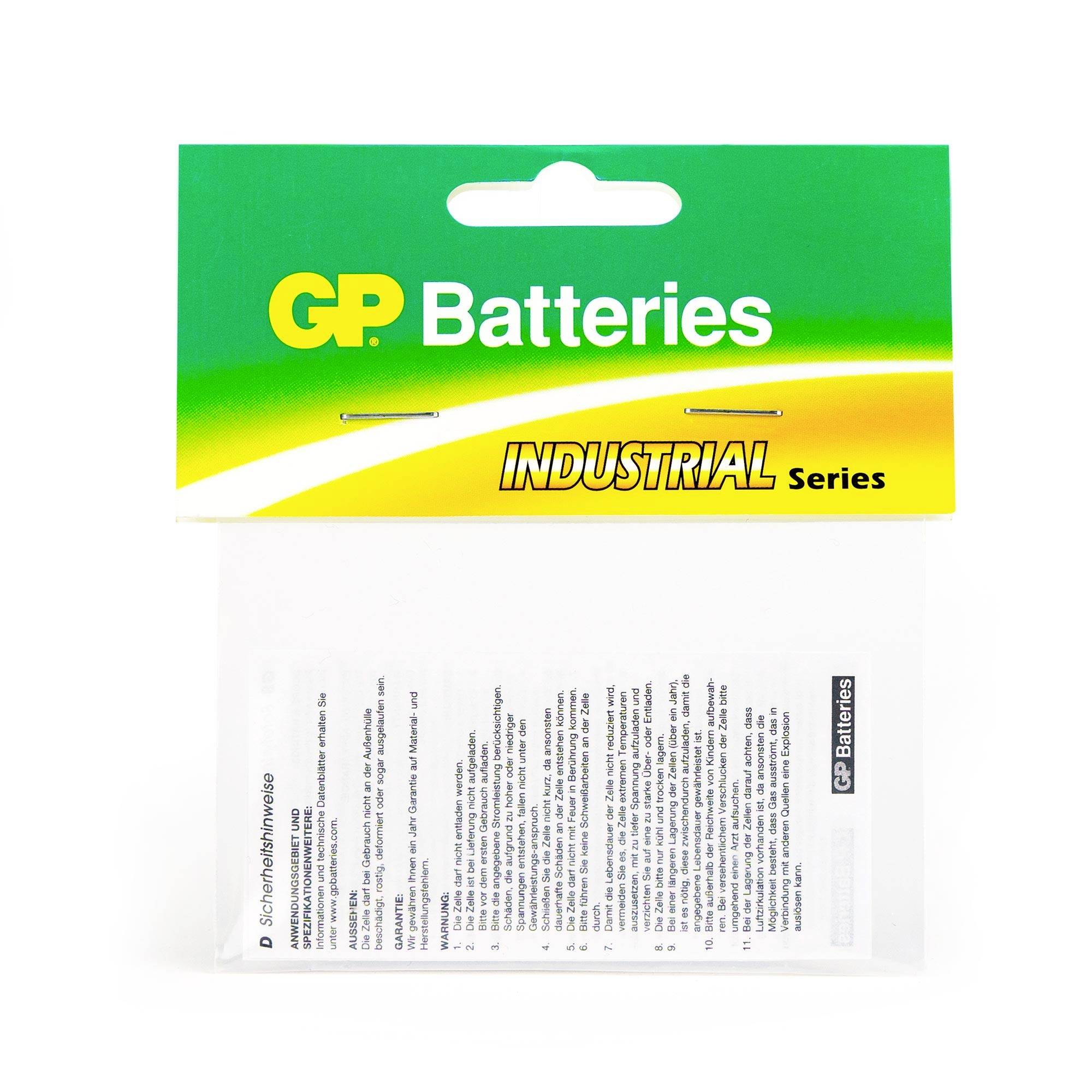

GP GP Ni-MH Industrial 170 AAAH 1A1P-C1 AA battery (rechargeable) NiMH 1.2 V 170 mAh 1 pc(s)-2

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

6 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3.79 / piece)

€ 3.79

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

GP Ni-MH industrial 170 AAAH 1A1P-C1, 1 pieces

Capacity 170 mAh

Technical specifications

Service life: Greater than 500 cycles (IEC61951-2)
Charging options: Standard charging (17mA, 16 hours) and quick charging (85mA-170mA, charging monitoring required)
Temperature range: Charging 0°C to 45°C,
Discharge: -20°C to 50°C.
Overload protection: 17mA continuous over 1 year without deformation or leakage internal
Resistance: Average 120mΩ at full charge

Product type: AA battery (rechargeable)

Technology: NiMH

Voltage: 1.2 V

Capacity (mAh, Ah): 170 mAh

Height: 14.1 mm

(Ø): 10.5 mm

Content: 1 pc(s)

Type: GP Ni-MH Industrial 170 AAAH 1A1P-C1

Rechargeable: No

Dim: (Ø x H) 10.5 mm x 14.1 mm

Documents & Downloads

Datasheet

Datasheet 3450982 GP GP Ni-MH Industrial 170 AAAH 1A1P-C1 AA battery (rechargeable) NiMH 1.2 V 170 mAh 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3450982 GP GP Ni-MH Industrial 170 AAAH 1A1P-C1 AA battery (rechargeable) NiMH 1.2 V 170 mAh 1 pc(s)

Description

GP17AAAH industrial NiMH battery cell

The GP17AAAH is an industrial NiMH battery cell, designed for applications that require a compact and reliable source of energy. With a rated voltage of 1.2V and a capacity of 170mAh, this cell provides a stable power supply and a long service life of over 500 charging cycles in accordance with IEC61951-2 standards. Equipped with a soldering thread for easy integration in battery packs and industrial applications, this cell is suitable for discharge currents from 17mA to 510mA. The GP17AAAH supports
Both standard and quick charging options, whereby a charging monitoring is necessary in case of fast charging (85mA-170mA) in order to avoid overloading and overheating.1 pieces in package.

This cell is designed exclusively for industrial applications and is not suitable for retail trade.
