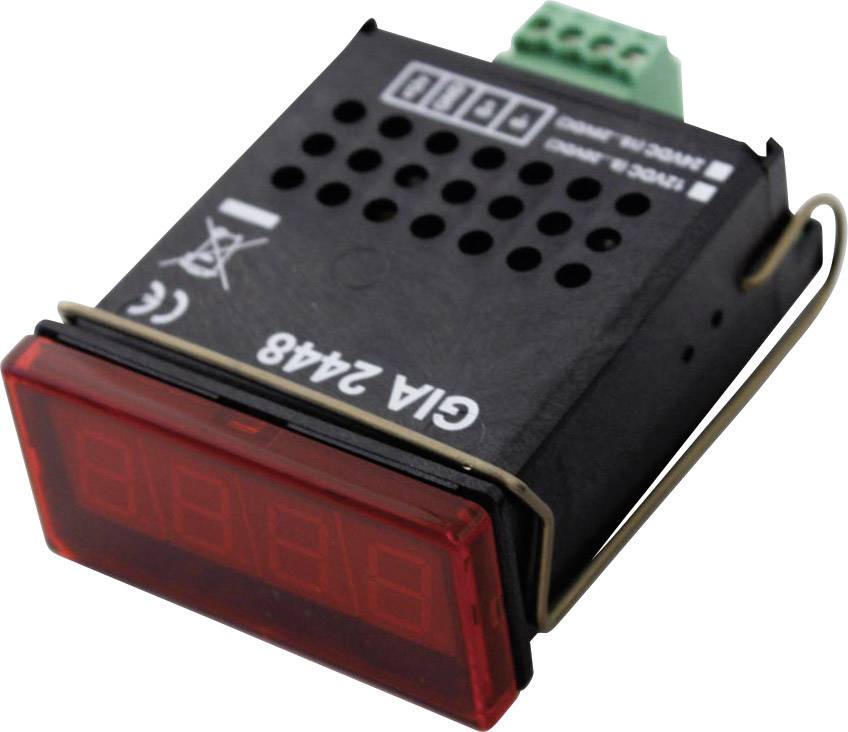

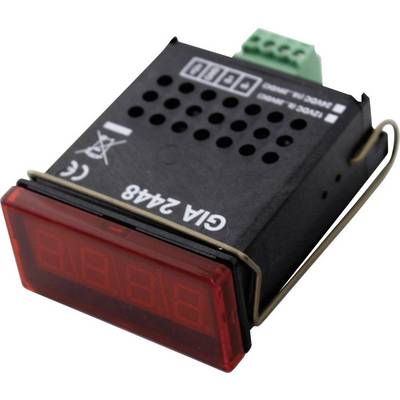

Greisinger GIA 2448 Digital rack-mount meter 0 - 20 V/0 - 10 V/0 - 2 V/0 - 1 V/0 - 200 mV/0 - 20 mA, 4 - 20 MA mA
EAN:
Part number:
Item no:
70 Piece(s)
Sales and shipping:
Number
Total (€ 88.23 / piece)
€ 109.24
-19 %
€
Highlights & Details
Greisinger LED panel-mounted display for standard signals 48 x 24 mm GIA 2448
- 24 x 48 mm.
- Standard signals.
Technical specifications
- Measurement rate: 3/s
- Product type
Digital rack-mount meter
- Type
GIA 2448
IP54 (front)
- Dim
(W x H x D) 48 x 24 x 65 mm
- Width
48 mm
- Height
24 mm
- Digit height
10 mm
- Depth
65 mm
- Connections
Screw-plug terminals
- Digits
3.5
- Display (details)
Red LED
- Assembly dimensions
22 mm x 45 mm
- Power supply (details)
18 - 29 V/8 - 20 V DC
- Display range
-1999 to +1999 Counts
- Reading range
0 - 20 V/0 - 10 V/0 - 2 V/0 - 1 V/0 - 200 mV/0 - 20 mA, 4 - 20 MA mA
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 102977 Greisinger GIA 2448 Digital rack-mount meter 0 - 20 V/0 - 10 V/0 - 2 V/0 - 1 V/0 - 200 mV/0 - 20 mA, 4 - 20 MA mA
Description
The built-in display enables the measurement of standard signals. The user can select the desired measurement ranges via soldering bridges. The following measurement functions for selection: 0 - 20 V, 0 - 10 V, 0 - 2 V, 0 - 1 V, 0 - 200 mV, 0 - 20 mA, 4 - 20 mA.
This text is machine translated.
This text is machine translated.
Features
- Power supply via solder bridges can be selected (Standard 18 - 29 V/DC)
- Freely scalable display range of solder bridges and potentiometers.
