Greisinger GLMU 200 MP Multi tester TDS, Conductivity, Temperature
EAN:
Part number:
Item no:
Number
Total (€ 457.98 / piece)
€ 457.98
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Greisinger 2-pin conductivity transducer with measuring cell GLMU 200 MP-TR
- Cell constant K = 0.30 to 1.20 can be set freely
- Measuring Range/output signal freely scalable
- Temperature compensation type can be selected
- On-site display of conductance and temperature
Technical specifications
- Measuring range: freely selectable
- Different units can be displayed: spec. resistance, TDS and Saliniat
- Output signal: 4 - 20 mA
- Specific resistance:
- 5.0 to 100.0 kΩ/cm
- 0.50 to 10.00 kΩ/cm
- 50 to 1000 Ω/cm
- 5.0 to 100.0 Ω/cm
- Product type
Multi tester
- Reading type
TDS
Conductivity
Temperature
- Display
Digital
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 55 x 82 x 80 mm
- Conductivity reading range
0.00 - 2000 µS/cm
- Conductivity reading range (max.)
2000 µS/cm
- Conductivity reading range (min)
0.00 µS/cm
- TDS reading range
0.00 - 2000 mg/l
- TDS reading range (max.)
2000 mg/l
- TDS reading range (min.)
0.00 mg/l
- Temperature reading range
+140 up to -5.0 °C
- Temperature reading range (max.)
-5.0 °C
- Temperature reading range (min.)
+140 °C
- Width
82 mm
- Height
80 mm
- Length
55 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 650872 Greisinger GLMU 200 MP Multi tester TDS, Conductivity, Temperature
Description
Galvanically isolated LF-transducer with microprocessor control and extended range of functions. You can also salinity (salt content of sea water), TdS or specific resistance as the output signal can be output.
This text is machine translated.
This text is machine translated.
Features
- Includes 12 mm 2-pin. Measuring cell LFE 202
- Suitable for drinking water monitoring
- Automatic or manual temperature compensation
Scope of delivery

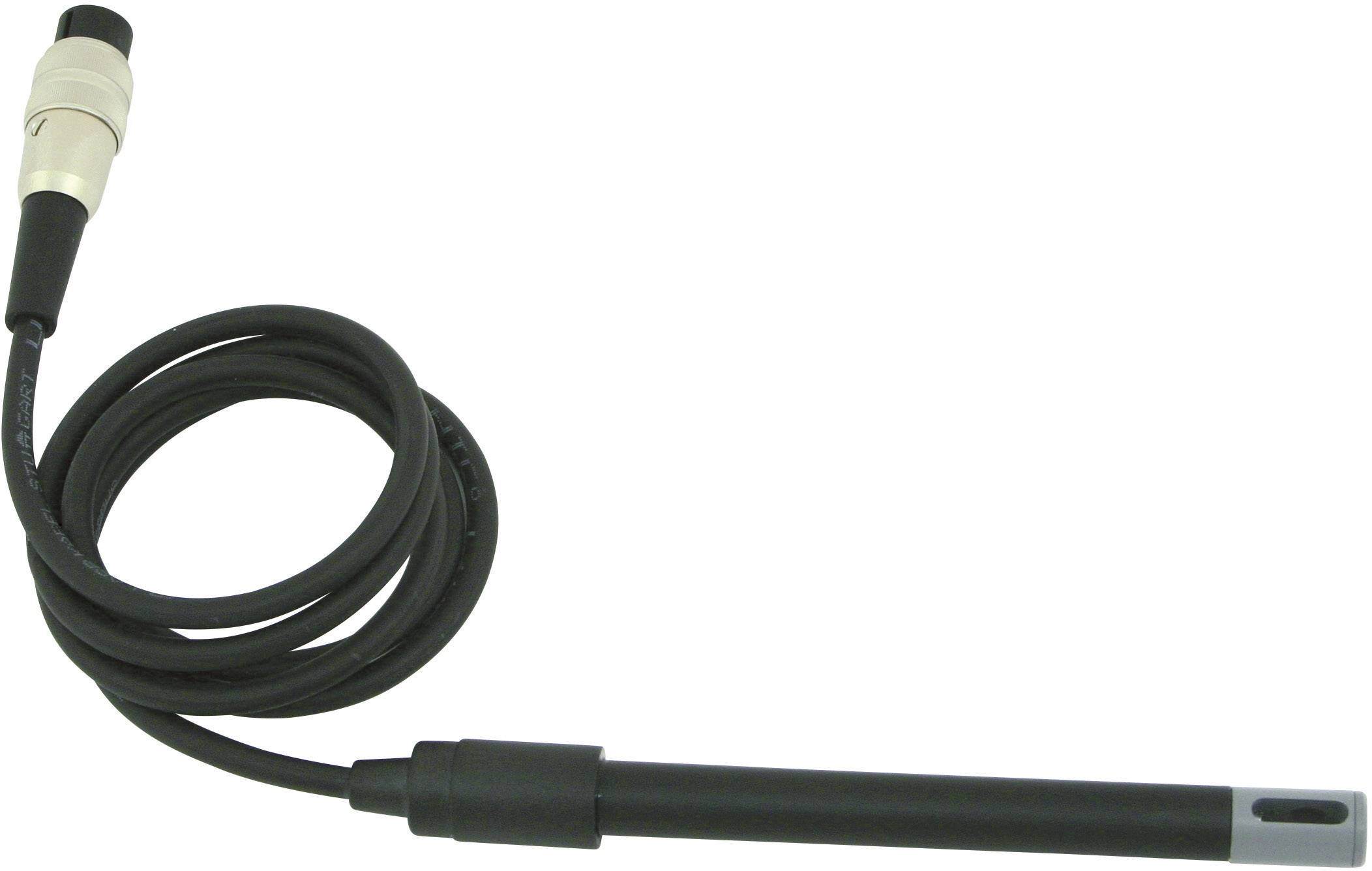

- Conductivity electrode
- Insertable measuring units
- Operating Instructions lead tung
