VOLTCRAFT LWT-110 Conductivity tester Conductivity, Resistance
EAN:
Part number:
Item no:
Number
Total (€ 377.31 / piece)
€
Only 4 Piece(s) available
Highlights & Details

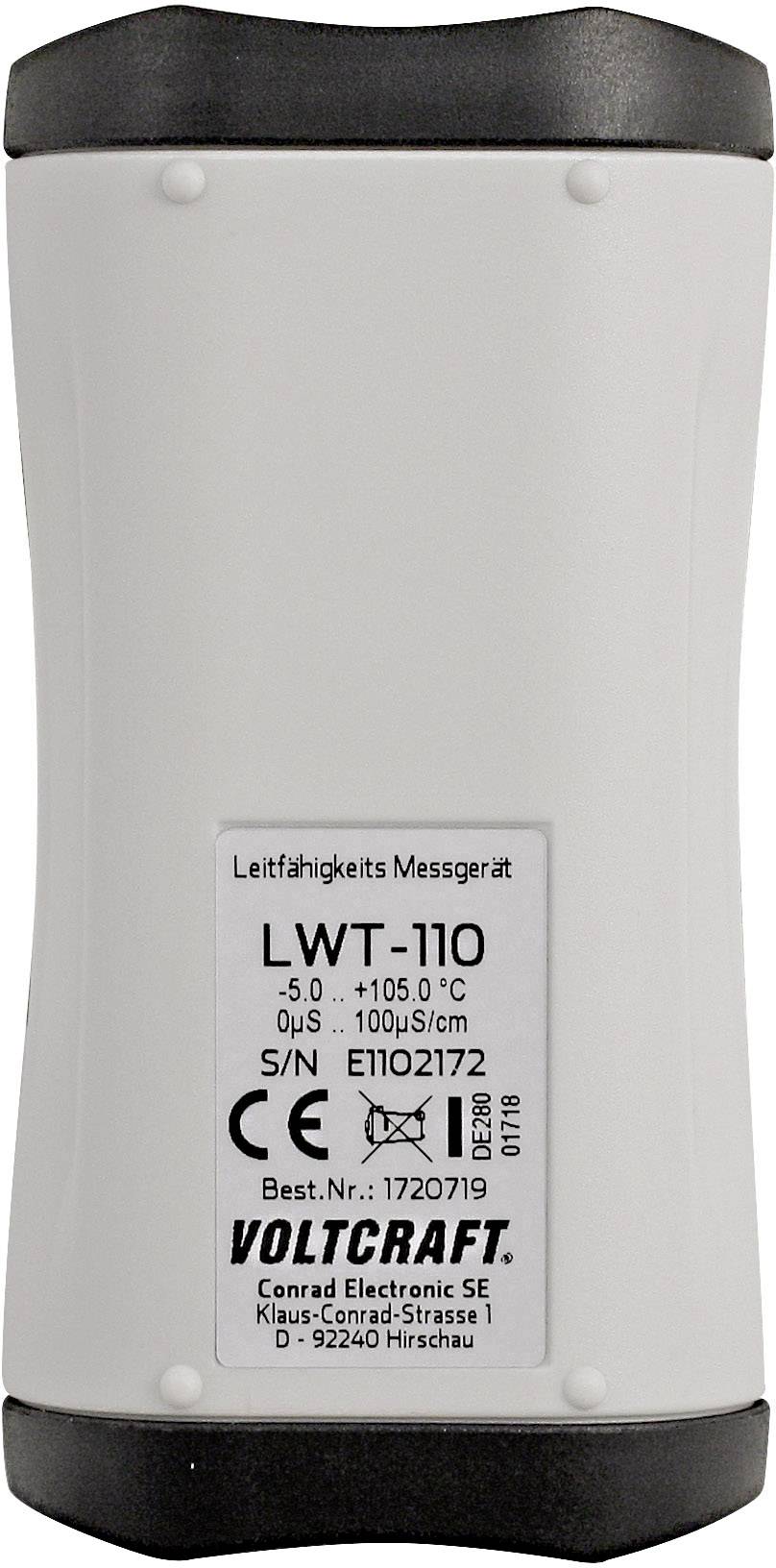

VOLTCRAFT LWT-110 Conductivity tester Conductivity, Resistance
- Watertight to IP67 standard
- With high-quality stainless steel measuring cells
- Fast identification of the measurement
Technical specifications
- Specific Resistance: 0,0100.. 2,000 MOhm * cm; 0.010.. 2,000 MOhm * cm; 0.01.. 20.00 MOhm * cm
- Temperature compensation: off: Disables; according to EN 27888: not linear, nLF; LIN: linear with adjustable coefficient; NaCl-solutions according to EN 60746-3
- Reference temperatures: 20 and 25°C

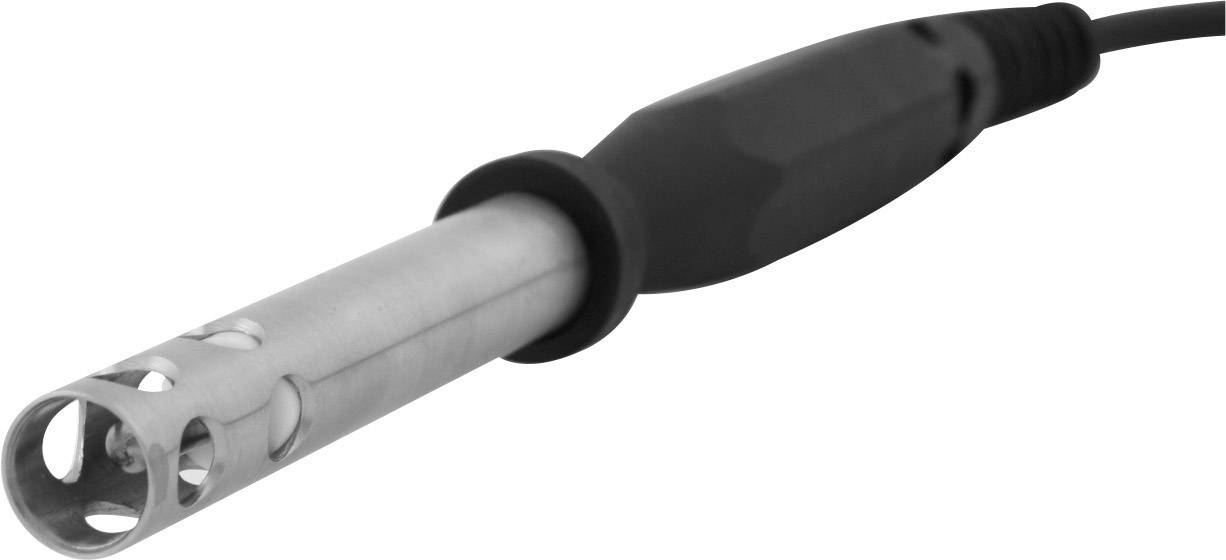

- Measuring cell: 2-pin. Measuring cell (stainless steel 1.4404, 1.4435, Ø 12 mm), Cable 1.2 m
- Application area measuring cell: -5..+80 °C (short-term 100 °C)
- Display: 3-line display with battery status display, backlight, protected by unbreakable disc, overhead display at the push of a button.
- Ambient Display Unit: -20..+50°C, 0..95 % RH
- Protection class: IP67
- RoHS compliant
- Accuracy
Conductivity type. ± 1% of MW. ±0.5 % FS
Temperature: ±0.3 °C
- Automatic temperature compensation
Yes (built-in)
- Operating temperature
-20 … +50 °C
- Dim
(L x W x H) 28 x 54 x 108 mm
- Weight
230 g
- Height
108 mm
- Length
28 mm
- Width
54 mm
- Chlorine reading range
- Conductivity reading range
0.001 - 100.0 µS/cm
- Copper reading range
- Nitrate reading range
- Nitrite reading range
- Phosphate reading range
- pH reading range
- Opacity reading range
- Silicon reading range
- TDS reading range
- Temperature reading range
-5.0 up to +105.0 °C
Manufacturer's standards (with certificate)
- Display
LCD
Digital
Numeric
- Reading type
Conductivity
Resistance
- Conductivity reading range (max.)
100.0 µS/cm
- Conductivity reading range (min)
0.001 µS/cm
- Temperature reading range (max.)
+105.0 °C
- Temperature reading range (min.)
-5.0 °C
- Product type
Conductivity tester
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1720719 VOLTCRAFT LWT-110 Conductivity tester Conductivity, Resistance
Warranty Terms
Warranty Terms 1720719 VOLTCRAFT LWT-110 Conductivity tester Conductivity, Resistance
Description
The LWT-110 convinces through the ergonomic design, the dust-and waterproof design according to IP 67 and the illuminated display. The compact conductivity meter VOLTCRAFT LWT-110 has a specialized measuring cell for high resolution pure/ultrapure water applications.
Areas of application are reverse osmosis and similar filter, laboratories, quality assurance, Service.
This text is machine translated.
Areas of application are reverse osmosis and similar filter, laboratories, quality assurance, Service.
This text is machine translated.
Features
- Automatic measurement range switching
- Automatic temperature compensation.
- 4 durable, easy to use buttons
- Unbreakable ABS housing with shatter-proof display pane.
Scope of delivery
- Conductance measuring device with measuring cell
- 2 type AA batteries.
- User manual.
