PCE Instruments PCE-CP 04 Multi tester pH, Alkalinity, Calcium hardness, Total hardness
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 368.91 / piece)
€ 368.91
plus VAT.
Only 2 Piece(s) available
Highlights & Details

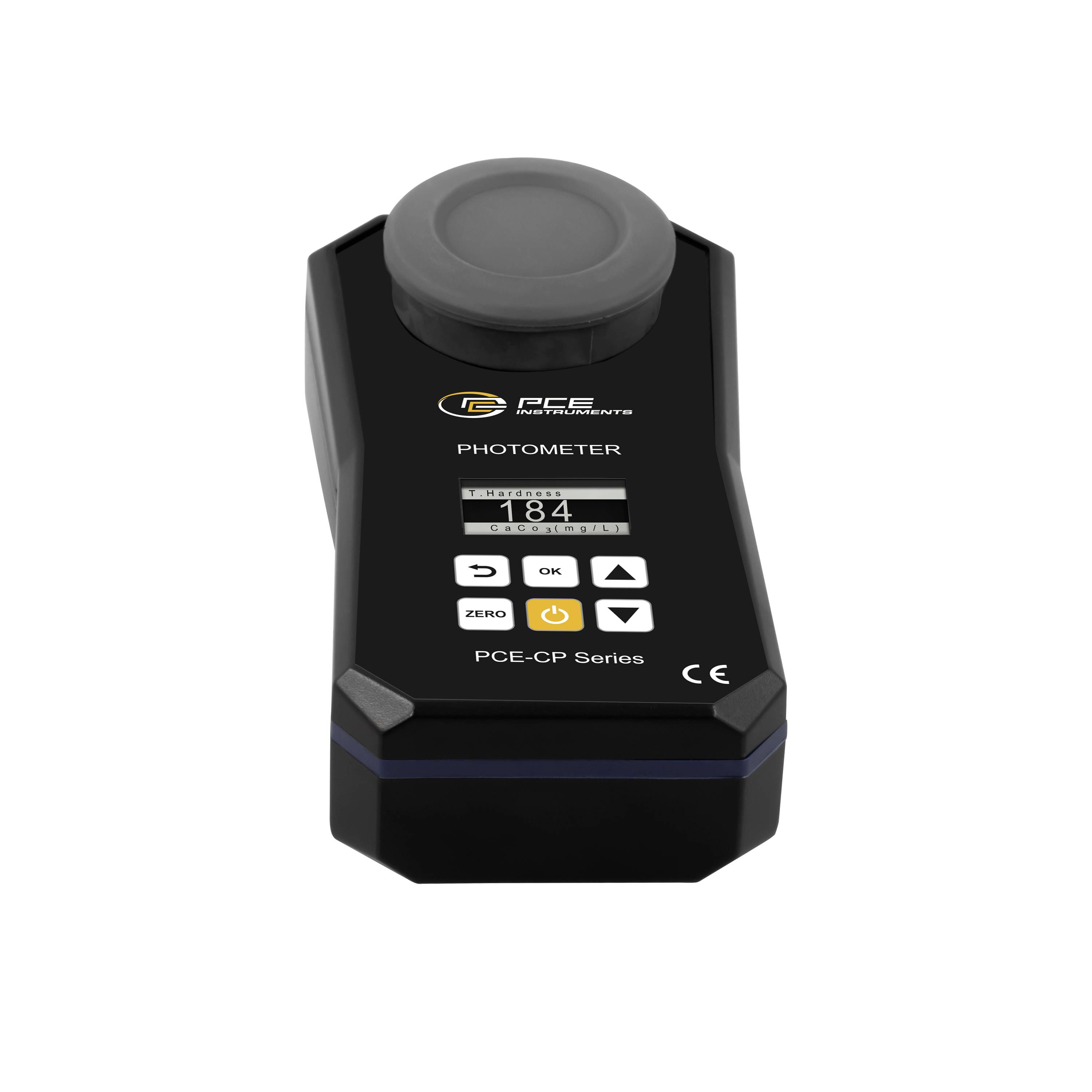

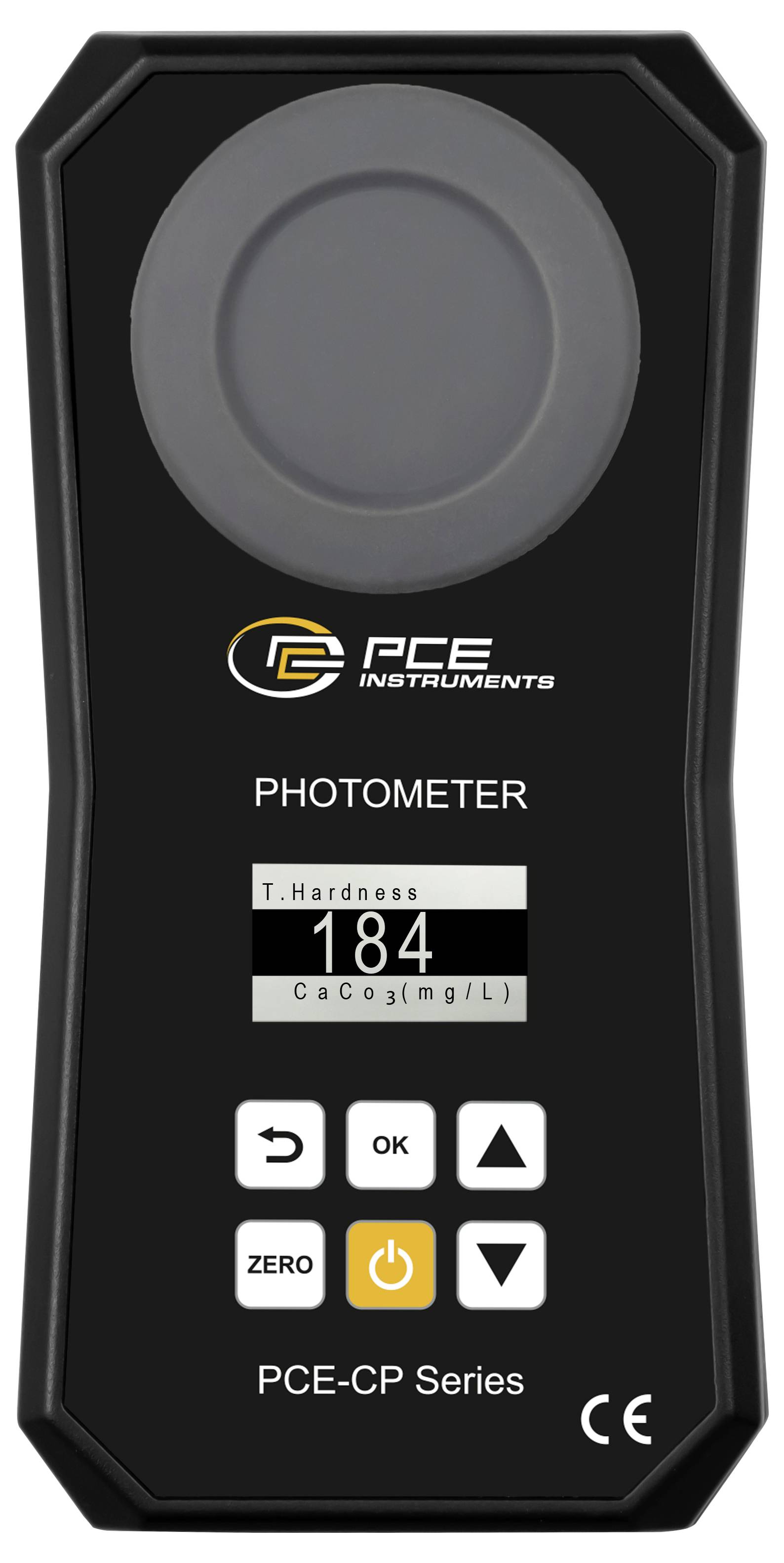

PPCE-CP 04 photometer
- Up to 5 selectable parametersBluetooth connection appExchangeable and lockable cuvette503 nm / 570 nm / 620 nm LEDAutomatic switch-off during inactivityMany different menu languagesLight detector: PhotodiodeCuvette 36 x ø 21 mm (10ml)
Technical specifications
- AlkalinityMeasuring range: 0 … 30 mg/l30 … 60 mg/l60 … 100 mg/l100 … 200 mg/l Accuracy: 3 mg/l7 mg/l12 mg/l18 mg/l Resolution: 1 mg/lPHAccuracy 0.11 pHResolution 0.01 pHCalcium hardnessMeasuring range: 0 - 25 mg/l25 … 100 mg/l100 … 300 mg/l300 … 500 mg/l Accuracy: 8 mg/l22 mg/l34 mg/l45 mg/l Resolution: 1 mg/lTotal hardnessMeasuring range: 0 - 30 mg/l30 … 60 mg/l60 … 100 mg/l100 … 200 mg/l200 … 300 mg/l300 … 500 mg/l Accuracy: 3 mg/l5 mg/l10 mg/l17 mg/l22 mg/l58 mg/l Resolution: 1 mg/lLight source: 503 nm / 570 nm / 620 nm LEDLight detector: Photodiode Dimensions cuvette 36 x ø 21 mm (10ml)Menu languages: English, German, French, Spanish and ItalianMemory: Automatic measurement storage and readingMemory: 256 valuesInterface: Bluetooth connection with app and PC software Auto power off: After 300 seconds of inactivity
- Power supply (details)
4x 1.5 V AA batteries
- Dim
(L x W x H) 50 x 165 x 50 mm
- Weight
230 g
- Height
50 mm
- Length
50 mm
- Width
165 mm
- pH reading range
6.5 - 8.4 pH
Manufacturer's standards (no certificate)
- Display
LED
- Interfaces
Bluetooth®
- Reading type
pH
Alkalinity
Calcium hardness
Total hardness
- pH reading range (max.)
8.4 pH
- pH reading range (min.)
6.5 pH
- Product type
Multi tester
Documents & Downloads
Datasheet
Datasheet 2583849 PCE Instruments PCE-CP 04 Multi tester pH, Alkalinity, Calcium hardness, Total hardness
User & Safety Instructions
User & Safety Instructions 2583849 PCE Instruments PCE-CP 04 Multi tester pH, Alkalinity, Calcium hardness, Total hardness
Description
The multi-parameter photometer is a mobile measuring device for liquid analysis. This allows a wide range of measurements to be made with the multi-parameter photometer. This multi-parameter photometer allows, for example, the determination of alkalinity, chlorine, cyanuric acid or also the pH value. In order to take a measurement with the multi-parameter photometer, a water sample of 10 ml must be given in a cuvette. The built-in LED in the multi-parameter photometer generates a test light on the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now detects the value to be measured based on the light transmission of the sample. Each measurement is automatically saved by the multi-parameter photometer. The stored measured values can then be read out via a mobile device, for example, via the Bluetooth interface installed on the multi-parameter photometer. A free app is available to analyze the measurements from the multi-parameter photometer. It is also possible to establish a Bluetooth connection between the multi-parameter photometer and a computer. A free software is also available to analyze the measured data. As a further special feature of the multi-parameter photometer, the measured data can be uploaded to a cloud via both variants and retrieved from her place. This service for the multi-parameter photometer is also free of charge.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x multi-parameter photometer PCE-CP 04 incl. cuvette 1x spare cuvette 1x Light protection cover 1x micro-fiber cloth 1x plunger 1x 10 ml dosing pipette 4x AA battery 1x Quick Start Guide 1x service case 1x app 1x free PC software 1x free cloud service
