Ground modular terminal block UTMED 6-PE 3047442 Phoenix Contact

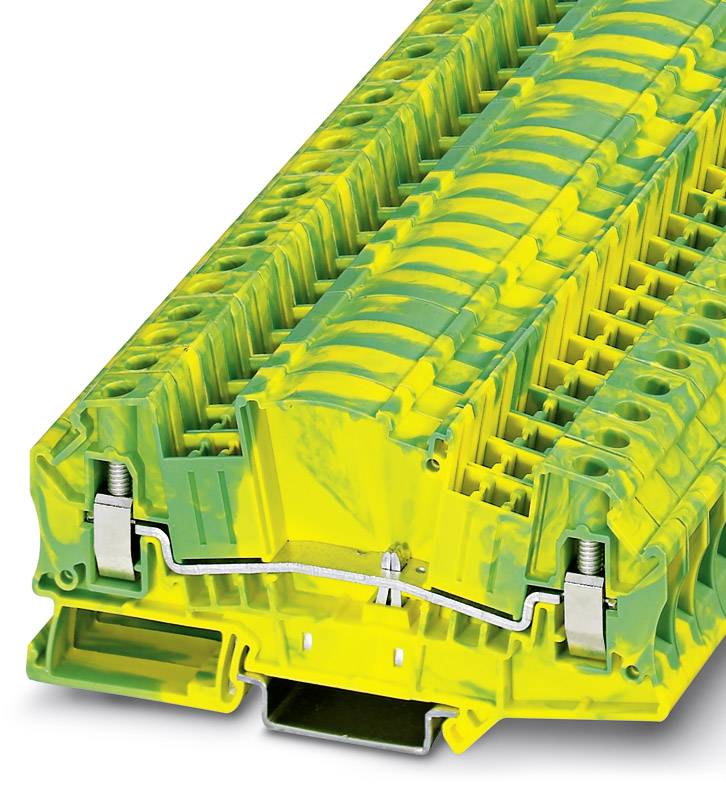

Yellow-green terminal block with multiple connections and screws for wiring, insulated structure for electrical installations.
Image similar
Packaging type
Piece
Product type
Triple port PG terminal
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 3 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 9.78 / piece)
€ 635.00
-23 %
€ 489.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Ground modular terminal block UTMED 6-PE

  • UTMED 6-PE

Technical specifications

Packaging type

Piece

Product type

Triple port PG terminal

Features

with screw connection

Connection

Screws

Cross section (flexible) (min.)

0.2 mm²

Cross section (flexible) (max.)

10 mm²

Cross section (inflexible) (min.)

0.2 mm²

Cross section (inflexible) (max.)

10 mm²

AWG (min.)

24

AWG max.

8

Clamp width

8.2 mm

No. of rows

1

Number of pins

2

Factory colour

Green

Yellow

Stripping length (max.)

10 mm

Manufacturer part #

3047442

Content

50 pc(s)

Industrial packaging

Yes

Type

UTMED 6-PE

Dim

(L x W x H) 100.8 x 8.2 x 49.6 mm

Width

8.2 mm

Height

49.6 mm

Length

100.8 mm

Flammability rating

V0

Insulation material

PA

Insulation

PA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 566298 Ground modular terminal block UTMED 6-PE 3047442 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 566298 Ground modular terminal block UTMED 6-PE 3047442 Phoenix Contact

Description

Ground modular terminal block, Connection method: Screw connection, Cross section: 0.2 mm² - 10 mm², AWG: 24 - 8, Width: 8.2 mm, Color: green-yellow, Mounting type: NS 35/7,5, NS 35/15
