Name: GW Instek GPT-15012 (CE) Safety tester 50 Ω
Brand: GW Instek
SKU: 3439064
Availability: BackOrder

GW Instek GPT-15012 (CE) Safety tester 50 Ω-0

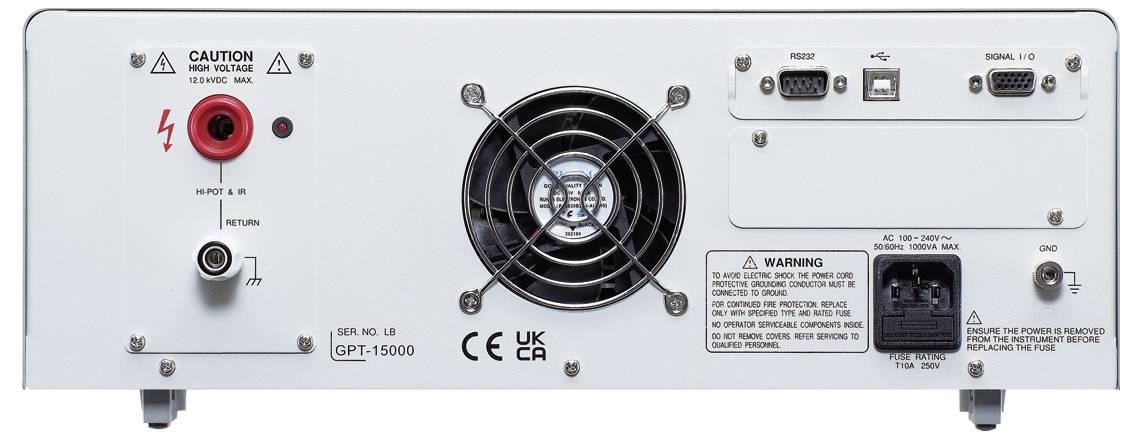

GW Instek GPT-15012 (CE) Safety tester 50 Ω-1

1/2

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 5,969.00 / piece)

€ 5,969.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

GW Instek GPT-15012 (CE) electrical safety analyzer

High-voltage specialist: Tests up to 12 kV DC and 5 kV IR.
Precise measurements: High accuracy with voltage and current measurement.
Easy to use: 7" TFT LCD color display.
Flexible testing modes: Can be selected manually and automatically.
Adjustable ramps: Controllable up and fall times.
Capacity load test: Suitable for loads up to 47 µF.
Data management: Statistics, analysis, sweep function, internal and USB storage.
Versatile interfaces: RS-232C, USB, signal I/O, optional GPIB/LAN.
Reliable manufacturer: From GW Instek, an ISO-9001 certified company.

Technical specifications

7" color LCD display
Manual / auto mode
RMS current measuring
Zero crossing turn-on operation
Controllable rise and fall time
Capacity testing up to 47 µF
Statistics- and analysis function
Sweep function for DUT characteristic analysis
Internal memory and USB memory available
Rear output available
Maximum power rating: 120W (at 12kV/10mA)

Product type: Safety tester

Reading type: Insulation resistance

: Manufacturer's standards (no certificate)

Reading range - resistance: 0.1 MΩ to 50 GΩ

Interfaces: RS232C

Dim: (W x H) 38 cm x 14.8 cm

Weight: 9.8 kg

Display type: Digital (LCD)

Insulation resistance (max.): 50 Ω

Voltage reading range (max.): 12000 V

Voltage reading range (min.): 50 V

Width: 38 cm

Height: 14.8 cm

Documents & Downloads

Datasheet

Datasheet 3439064 GW Instek GPT-15012 (CE) Safety tester 50 Ω

User & Safety Instructions

User & Safety Instructions 3439064 GW Instek GPT-15012 (CE) Safety tester 50 Ω

Description

GW Instek GPT-15012 (CE) Electrical safety analyzer: Your certainty for high voltage safety

Are you looking for a reliable and precise solution for the electrical safety testing of your products? The GW Instek GPT-15012 (CE) electrical safety analyzer is the ideal device for demanding applications, especially in the field of high-voltage DC testing. It is designed to ensure compliance with strict security standards and offers unsurpassed performance and ease of use.

The GPT-15012 is a specialized device of the GPT-10000 series from GW Instek, which has distinguished itself by its outstanding capabilities in the field of DC strength and insulation resistance testing. With its high testing voltage of up to 12 kV DC and an insulation resistance test of up to 5 kV, it is perfectly suitable for products which require the highest electrical insulation.

Invest in the GW Instek GPT-15012 (CE) and get not only a powerful test device, but also the certainty that your products conform to the highest safety standards.

This text is machine translated.
