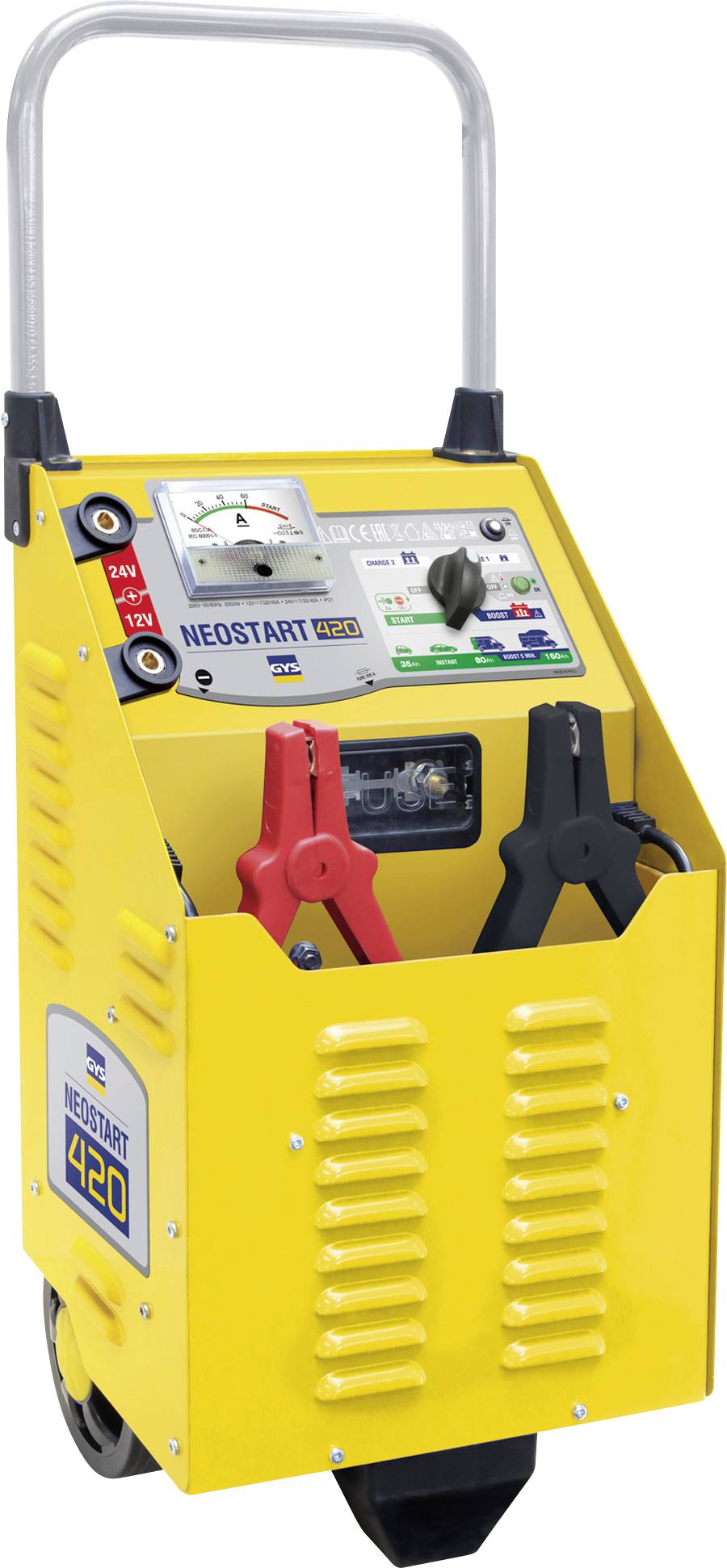

GYS NEOSTART 420 025295 Quick start system 12 V, 24 V 70 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 410.92 / piece)
€ 410.92
plus VAT.
Highlights & Details
GYS NEOSTART 420 025295 Quick start system 12 V, 24 V 70 A
- Suitable for lead-acid batteries with liquid electrolyte
- Also for deep-discharged batteries
- Overload and short-circuit protection
Technical specifications
- Product type
Quick start system
- Dim
(W x H x D) 300 x 480 x 230 mm
- Battery voltage
12 V
24 V
- Operating voltage
230 V / AC
- Recommended battery capacity at 12 V max.
1000 Ah
- Recommended battery capacity at 12 V min.
20 Ah
- Recommended battery capacity at 24 V (max.)
1000 Ah
- Recommedned battery capacity at 24 V min.
20 Ah
- Suitable for
Lead acid
- Weight
20.5 kg
- Charging current at 12 V
70 A
- Charging current at 24 V
70 A
- Width
300 mm
- Height
480 mm
- Depth
230 mm
IP21
- Jump start current (12 V)
300 A
- Jumpstart current (24 V)
300 A
Documents & Downloads
Datasheet
Datasheet 1331064 GYS NEOSTART 420 025295 Quick start system 12 V, 24 V 70 A
User & Safety Instructions
User & Safety Instructions 1331064 GYS NEOSTART 420 025295 Quick start system 12 V, 24 V 70 A
Description
The NEOS TART is a conventional, portable jump starter and battery charger (charging characteristic W) for all 12/24 V lead-acid batteries with liquid electrolyte. The device is also for deep-discharged batteries suitable enet and with an overload and short-circuit protection.
