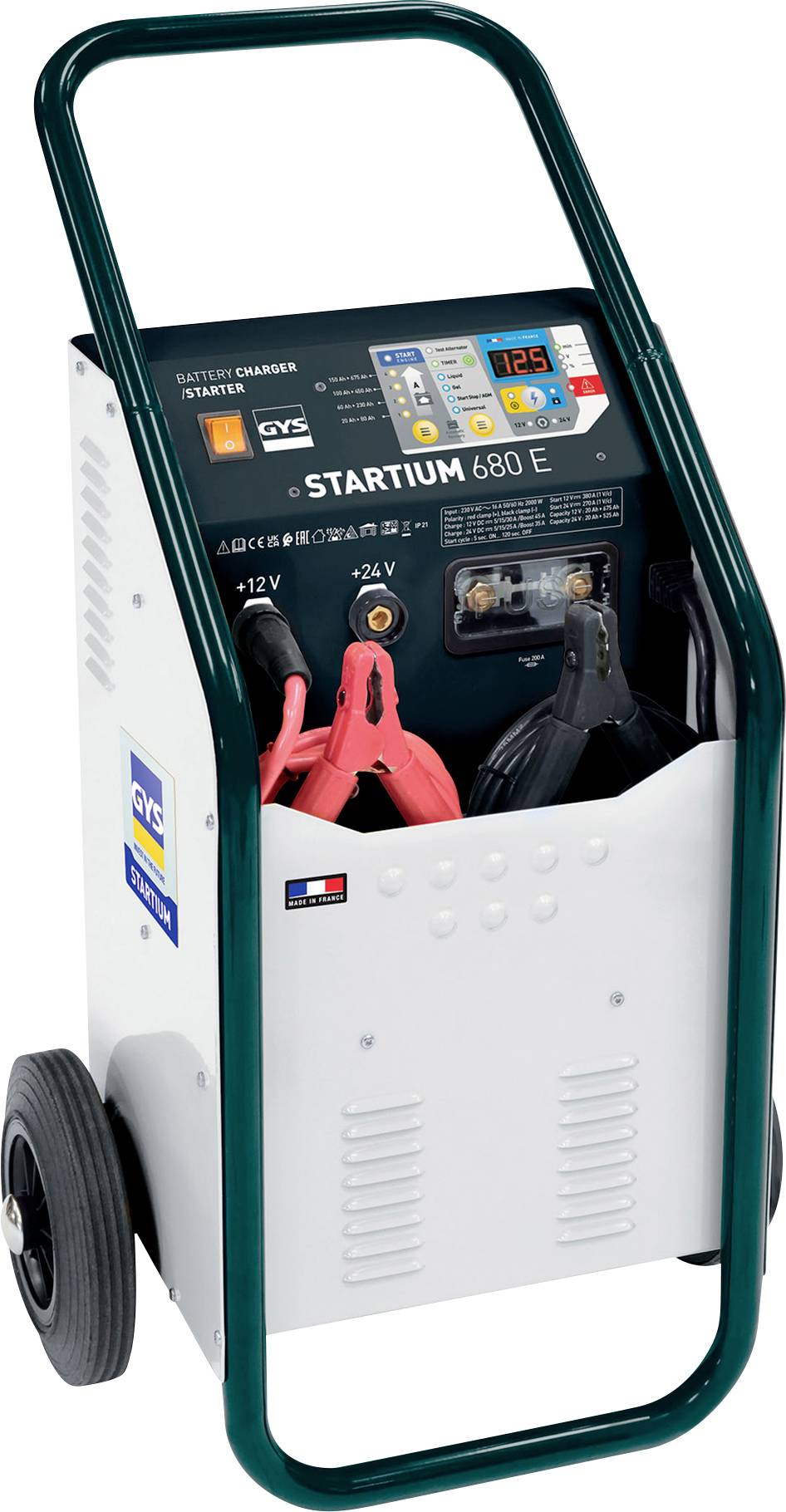

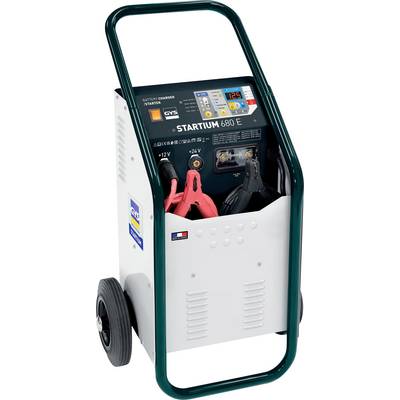

Name: GYS STARTIUM 680E 026490 Automatic charger, Quick start system 12 V, 24 V 5 A, 15 A, 30 A, 45 A
Brand: GYS
SKU: 1331073
Availability: InStock

Highlights & Details

Jump starter and battery charger STARTIUM 680E

SOS Recovery function
Starting and Charging Function
Charging characteristic IWUoU
Alternator test function

Technical specifications

Product type: Automatic charger

Dim: (W x H x D) 30.5 x 79.5 x 47.5 cm

Battery voltage: 12 V
24 V

Operating voltage: 230 V / AC

Recommended battery capacity at 12 V max.: 675 Ah

Recommended battery capacity at 12 V min.: 20 Ah

Recommended battery capacity at 24 V (max.): 525 Ah

Recommedned battery capacity at 24 V min.: 20 Ah

Suitable for: VRLA AGM
PbCa
SLA
Lead acid
VRLA AGM

Weight: 30 kg

Charging current at 12 V: 5 A
15 A
30 A
45 A

Charging current at 24 V: 5 A
15 A
25 A
35 A

Width: 30.5 cm

Height: 79.5 cm

Depth: 47.5 cm

: IP21

Jump start current (12 V): 380 A

Jumpstart current (24 V): 270 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1331073 GYS STARTIUM 680E 026490 Automatic charger, Quick start system 12 V, 24 V 5 A, 15 A, 30 A, 45 A

User & Safety Instructions

User & Safety Instructions 1331073 GYS STARTIUM 680E 026490 Automatic charger, Quick start system 12 V, 24 V 5 A, 15 A, 30 A, 45 A

Description

The STARTIUM 680E is an automatic and compact jump starter and charger with the charging characteristic IWUoU for all lead-acid batteries with 12/24 V. The device has a high starting performance automatically when the ignition is produced. In automatic mode, the batteries, even discharged batteries 1 V, no over-charged and the on-board electronics protected. The device continuously analyzes the battery status and regulates the charging intensity. The STARTIUM 680E has a timer function for the manual charge as well as a light machines test function.

This text is machine translated.

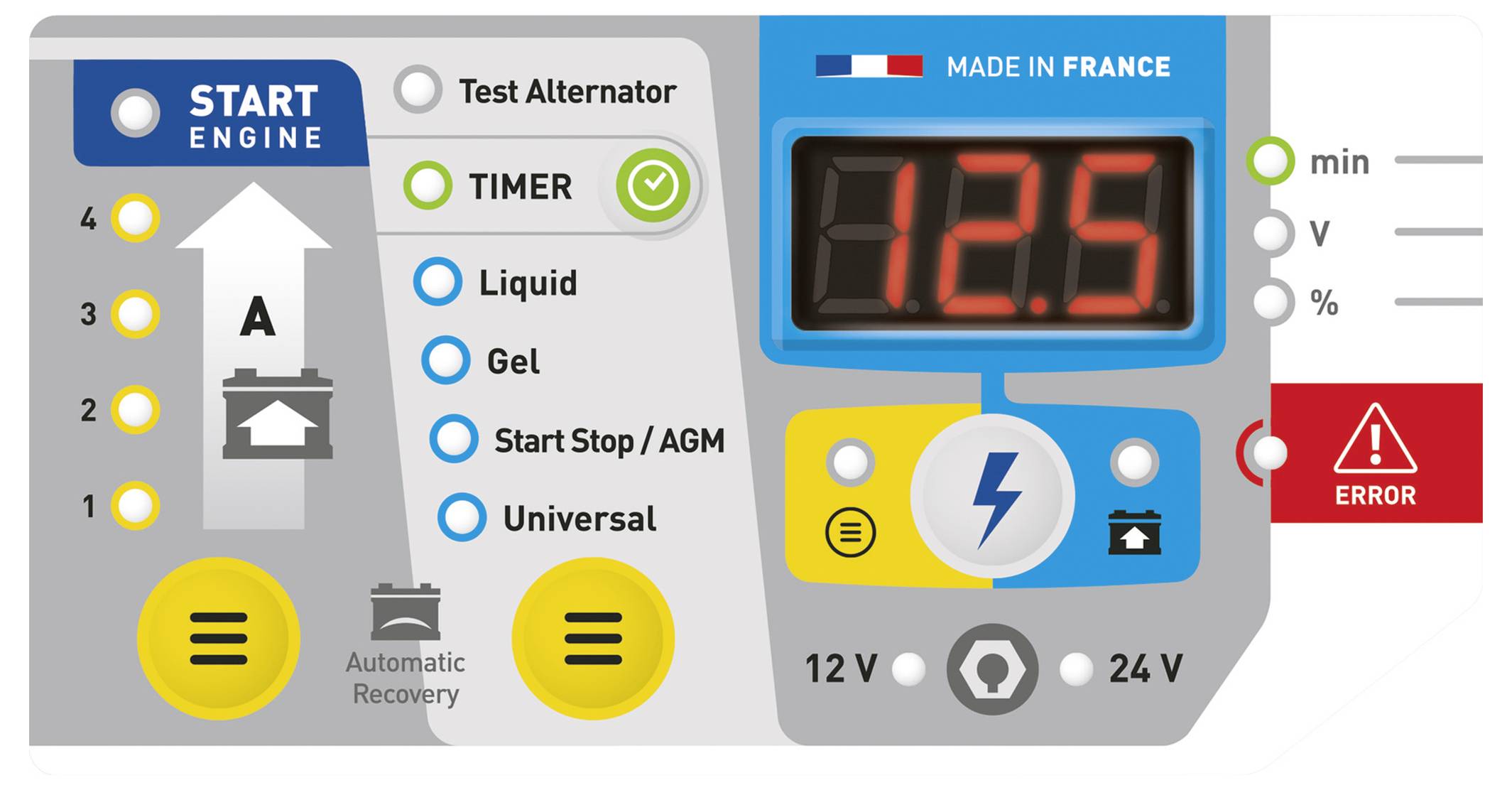

Features

Starting and Charging Function
Charging characteristic IWUoU
Timer function for manual charge
Alternator test function
Overload and short-circuit protection
Automatic high starting performance when the ignition
Charging of deeply discharged batteries 1 V is possible, SOS Recovery function
Monitoring free charge of all common 12/24 V starter batteries without surge
Alternator test function
Timer function for manual charging.

Description

The STARTIUM 680E is an automatic and compact jump starter and charger with the charging characteristic IWUoU for all lead-acid batteries with 12/24 V. The device has a high starting performance automatically when the ignition is produced. In automatic mode, the batteries, even discharged batteries 1 V, no over-charged and the on-board electronics protected. The device continuously analyzes the battery status and regulates the charging intensity. The STARTIUM 680E has a timer function for the manual charge as well as a light machines test function.

This text is machine translated.
