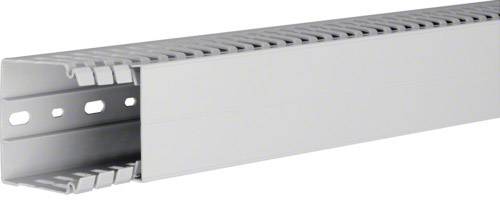

Hager HA760060 Cable duct (L x W x H) 2000 x 60 x 60 mm 1 pc(s) Light grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 15.12
€ 30.24
3
1 M = € 14.53
€ 29.06
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 15.12)
€ 30.24
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable duct
- Content
1 pc(s)
- Factory colour
Light grey
- Dim
(L x W x H) 2000 x 60 x 60 mm
- Length
2000 mm
- Width
60 mm
- Height
60 mm
- Depth
60.0000 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2249219 Hager HA760060 Cable duct (L x W x H) 2000 x 60 x 60 mm 1 pc(s) Light grey
User & Safety Instructions
User & Safety Instructions 2249219 Hager HA760060 Cable duct (L x W x H) 2000 x 60 x 60 mm 1 pc(s) Light grey
Certificate
Certificate 2249219 Hager HA760060 Cable duct (L x W x H) 2000 x 60 x 60 mm 1 pc(s) Light grey
Description
Wiring trunking consisting of lower section with side punching. Bars can be broken out to the ground using tools. One wire retaining clip for all dimensions including top. Floor punching according to EN 50085.
This text is machine translated.
This text is machine translated.
Features
- Material: PC - ABS
- Halogenfre:i yes
- RAL Color number: 7035
- Light/inner cross-section: 2708 mm²
- Number of wires 1.5 mm² - Fill level 40%: 102
- Number of wires 2.5 mm² - Fill level 40%: 73
- Number of wires 1.0 mm² - Fill level 40%: 142
- Bottom holes: EN 50085-2-3:1999
- Approvals: EN50085-2-3
