Name: Handheld Microphone set Omnitronic UHF-301 Transfer type (details):Radio Steel enclosure
Brand: Omnitronic
SKU: 2585753
Availability: InStock

Microphone lies on a wireless receiver with an antenna. The receiver displays a digital screen showing channel information.

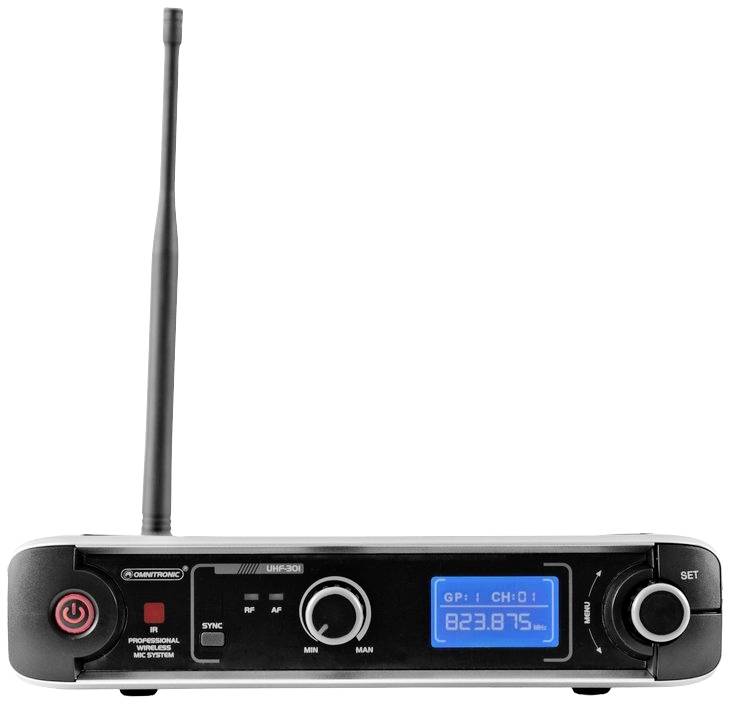

A wireless microphone receiver with an antenna, digital display showing '823.875', and control knobs for settings.

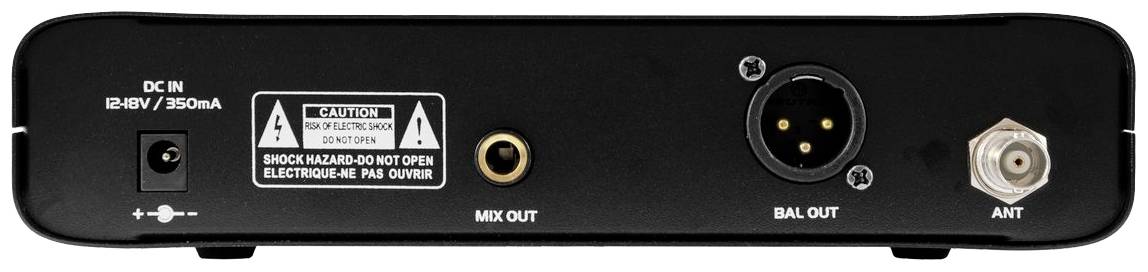

Back of an audio device with mains connection, mix output, balanced output and antenna connection. Warning notice about electrical shock.

1/3

Fast track dispatch on Fri 23 Oct

1 Set(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 129.99 / piece)

€ 129.99

incl. VAT

Only 1 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Omnitronic UHF-301 1-channel wireless microphone system 823-832/863-865MHz

1-channel multi-frequency receiver and hand-held microphone in UHF PLL technology93 preset channels in 10 channel groupsInfrared interface for fast and error-free synchronization between transmitter and receiver1 dynamic hand-held microphone with cardioid characteristic and LCD display for battery capacity and frequencySuitable pocket transmitter can be ordered separatelyRegistration and toll-free in large parts of the EU (please check country-specific)Has a range of up to 60m
This text is machine translated.

Technical specifications

Frequency selection : 93 frequencies can be switchedModulation: FMFrequency stability : ± 0.001%Range: 60 mWeight: 1.51 kgReceiver power supply 100-240 V AC, 50/60 Hz; 12 V DC 350 mAReceiver total connection value : 4 W.Receiver Power connection: Power feed hollow plug (M) Built-in version Power connection cable with plug-in power supply (included)Receiver Number of channels: 1Receiver frequency range 50 - 18000 HzReceiver Noise-voltage distance:> 80 dBReceiver distortion factor<: 0.5 % at 1 kHzReceiver Display type: LCD displayReceiver controls: Power switch, volume control, encoderReceiver connections: Input: Antenna via BNC (W); outputs: Microphone via 1 x 6.3 mm jack (unbalanced); microphone via 1 x 3-pin XLRReceiver material : MetalReceiver housing design: Desktop box housing; (19") 48.3 cm rack installation (included) 1 HEReceiver dimensions : 20.5 x 24.5 x 4.8 cm (WxDxH)Microphone power supply : 3 V DCMicrophone Power connection: Battery/rechargeable batteryMicrophone capsule type : DynamicMicrophone battery: 2 x AA (not included)Microphone Display type: LCD displayMicrophone RF output power 10 mWMicrophone dimensions : 25 cm length x 5.2 cm diameter

Product type: Microphone set

Type: Handheld

Transfer type: Radio

Characteristics: Cardioid/unidirectional

Features: Steel enclosure

On/off switch: Yes

Frequency: 823 - 832 MHz
823 - 865 MHz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2585753 Handheld Microphone set Omnitronic UHF-301 Transfer type (details):Radio Steel enclosure

Features

LCD display for group, frequency and channelLED for carrier and audio signalVolume controlSym. XLR outputUnbal. 6.3 mm jack outputJack cable included in deliveryDetachable BNC antennaIncl. Mounting bracket for 483 mm rack installation (1 HE)

Description

Features

LCD display for group, frequency and channelLED for carrier and audio signalVolume controlSym. XLR outputUnbal. 6.3 mm jack outputJack cable included in deliveryDetachable BNC antennaIncl. Mounting bracket for 483 mm rack installation (1 HE)
