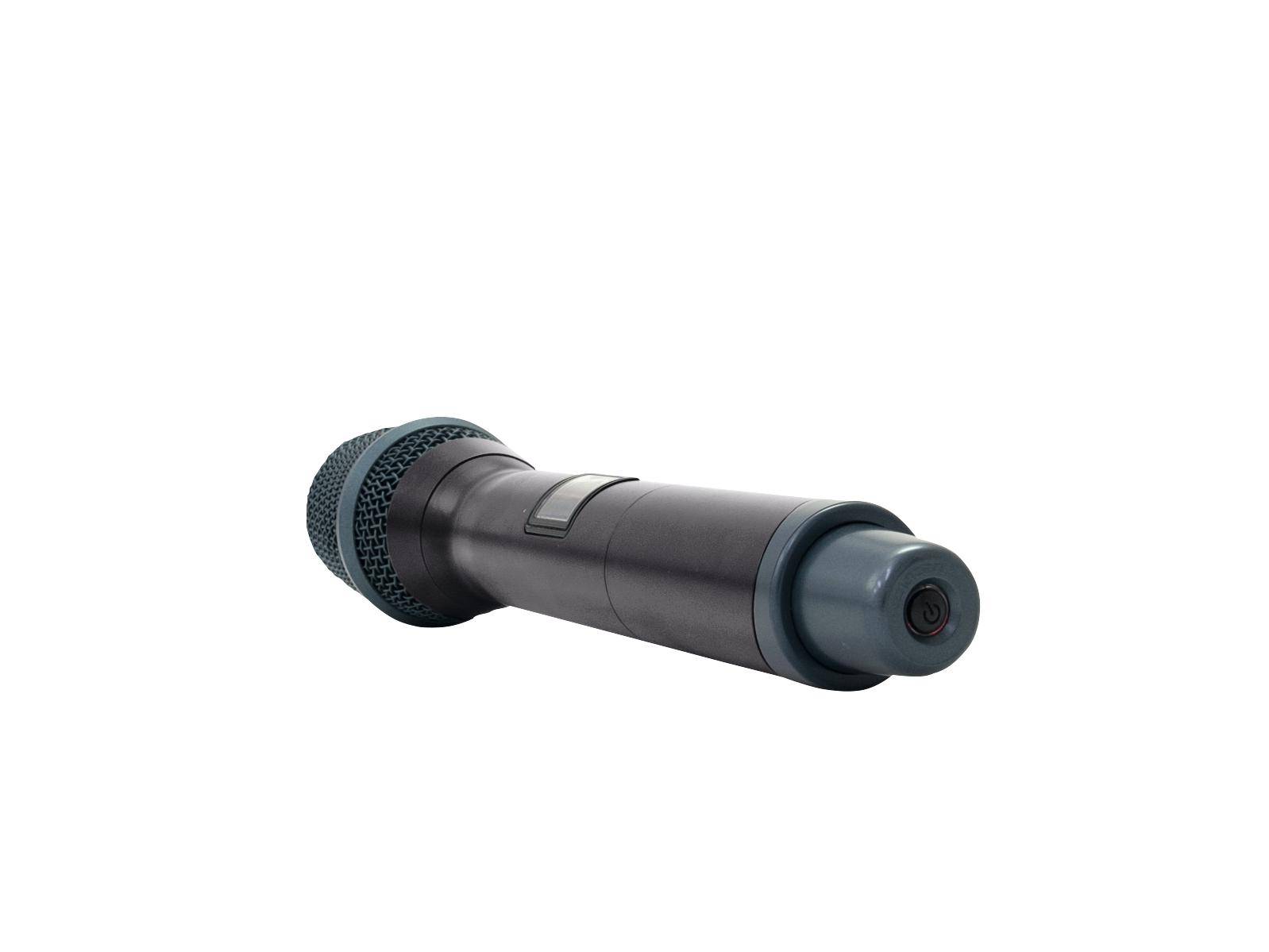

Name: Handheld Microphone transmitter Relacart H-31 Transfer type (details):Radio Steel enclosure
Brand: Relacart
SKU: 1529897
Availability: InStock

Highlights & Details

Hand-held microphone with PLL-multi-frequency transmitter

Dynamic hand-held microphone with UHF PLL technology (PLL)
Ergonomic, aluminiumlegiertes casing, suitable for hard tour use
2 frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries, registration-free)
Infrared interface for fast and error-free synchronization with the receiver via radio signal.
Range of sight contact approx. 80 meters
Fully compatible with the SM58 capsule of Shure
Free registration and in large parts of the EU (please check country-specific)
This text is machine translated.

Technical specifications

Type: dynamic
Directional characteristics: Cardoid
UHF 731-790 MHz and 823-832 MHz carrier frequency:
Transmission frequencies: 292
10 banks of channels each with up to 25 pre-set channels +
8 banks of channels each with up to 7 pre-set channels
Switch bandwidth: 68 MHz
Frequency deviation ±45 kHz
Modulation: FM
Range: 80 m (direct visual contact)
Power supply: 2 x 1.5 V battery (AA)
Power consumption: approx. 90 mA
Battery life: approx. 15 hours
Dimensions: 51 x 256 mm
Weight 215 g
Shipping weight: 0.41 kg

Product type: Microphone transmitter

Type: Handheld

Transfer type: Radio

Characteristics: Cardioid/unidirectional

Features: Steel enclosure

Weight: 215 g

Width: 51 mm

Height: 256 mm

Length: 256 mm

(Ø): 51 mm

Dim: (Ø x H) 51 mm x 256 mm

Interfaces: Infrared

No. of frequencies (adjustable): 292

No. of transmitters: 1

Operating time: 15 h

: 80 m

Frequency: 823 - 832 MHz

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1529897 Handheld Microphone transmitter Relacart H-31 Transfer type (details):Radio Steel enclosure

Features

Dynamic hand-held microphone with UHF PLL technology (PLL)
Ergonomic, aluminiumlegiertes casing, suitable for hard tour use
Suitable for the receiver HR-31 S
2 Registration-free frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
731-790 MHz (subject to registration in D) is lockable and offers 244 fixed frequencies (10 banks of channels each with up to 25 channels)
823-832 MHz (login free in D) offers 48 fixed frequencies (8 banks of channels each with up to 7 channels)
292 frequencies can be selected freely in 25 steps within 68 MHz switching bandwidth
Infrared interface for fast and error-free synchronization with the receiver via radio signal.
Range of sight contact approx. 80 meters

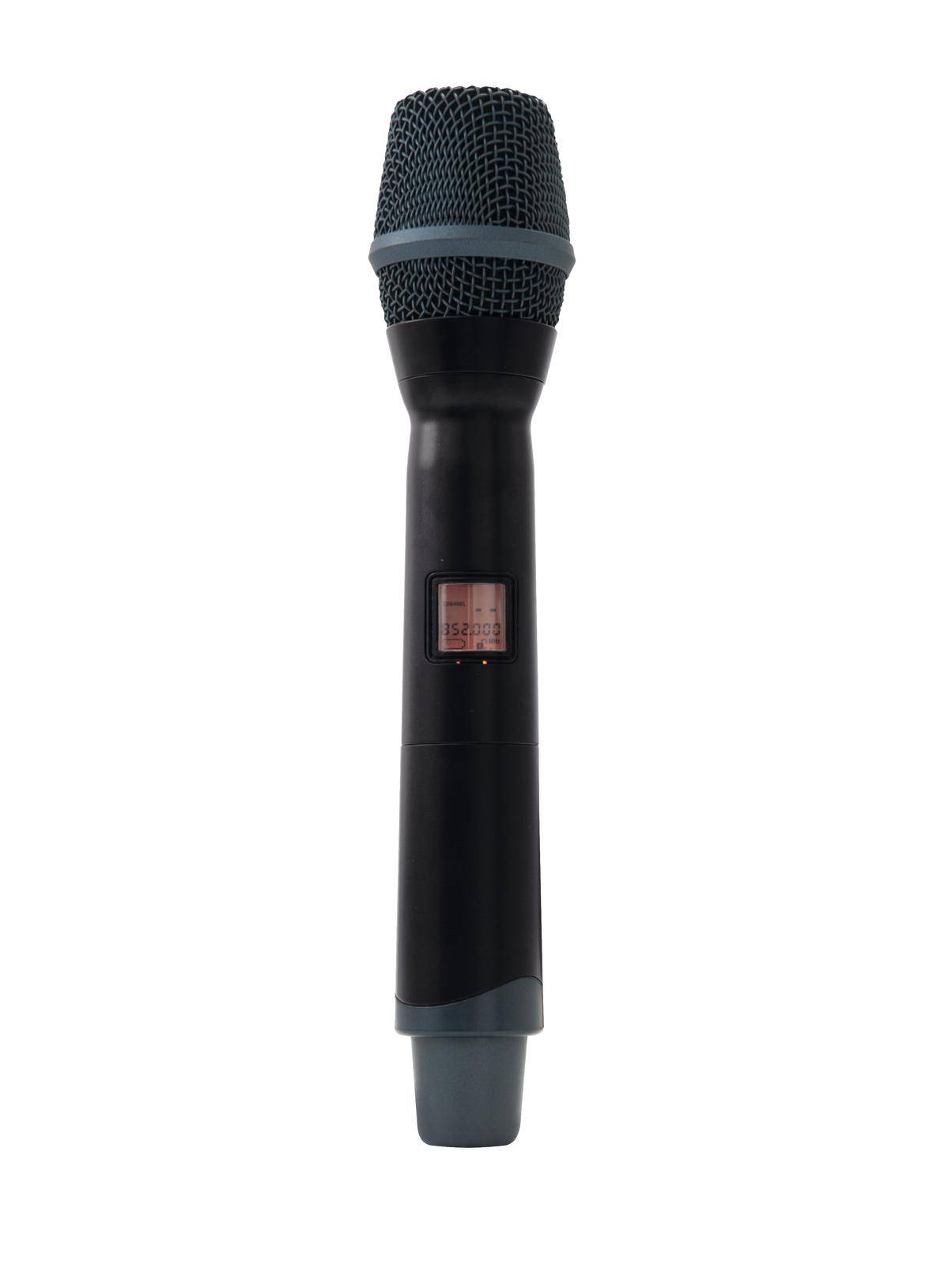

OLED-display for battery capacity, frequency and channel
Mute button
Hi/Low Transmitter power can be set
Fully compatible with the SM58 capsule of Shure
High battery power for up to 15 hours continuous operation

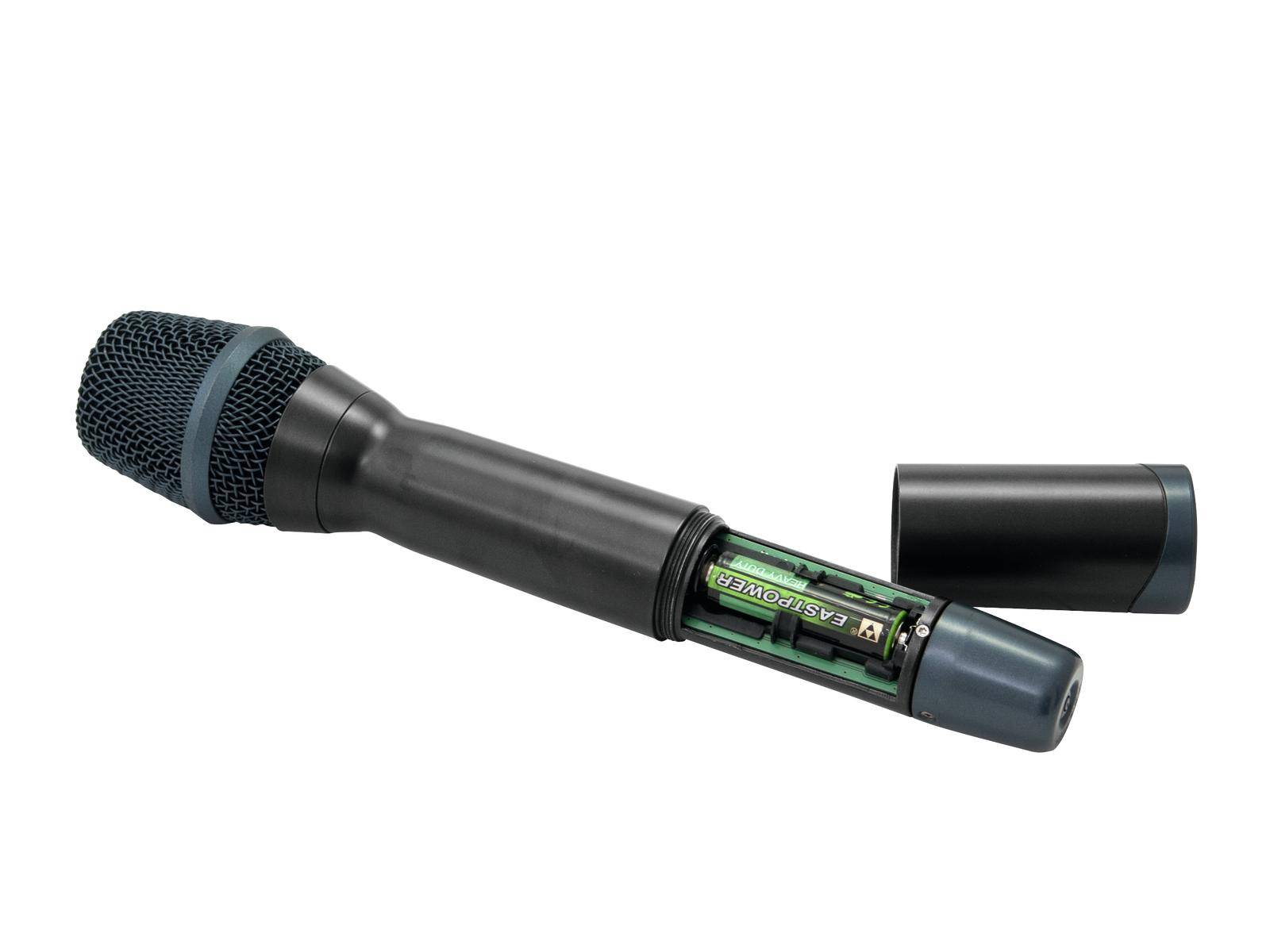

Power supply via 2 x 1.5 V battery (AA), not including
Free registration and in large parts of the EU (please check country-specific)

Description

Features

Dynamic hand-held microphone with UHF PLL technology (PLL)
Ergonomic, aluminiumlegiertes casing, suitable for hard tour use
Suitable for the receiver HR-31 S
2 Registration-free frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
731-790 MHz (subject to registration in D) is lockable and offers 244 fixed frequencies (10 banks of channels each with up to 25 channels)
823-832 MHz (login free in D) offers 48 fixed frequencies (8 banks of channels each with up to 7 channels)
292 frequencies can be selected freely in 25 steps within 68 MHz switching bandwidth
Infrared interface for fast and error-free synchronization with the receiver via radio signal.
Range of sight contact approx. 80 meters
OLED-display for battery capacity, frequency and channel
Mute button
Hi/Low Transmitter power can be set
Fully compatible with the SM58 capsule of Shure
High battery power for up to 15 hours continuous operation
Power supply via 2 x 1.5 V battery (AA), not including
Free registration and in large parts of the EU (please check country-specific)
