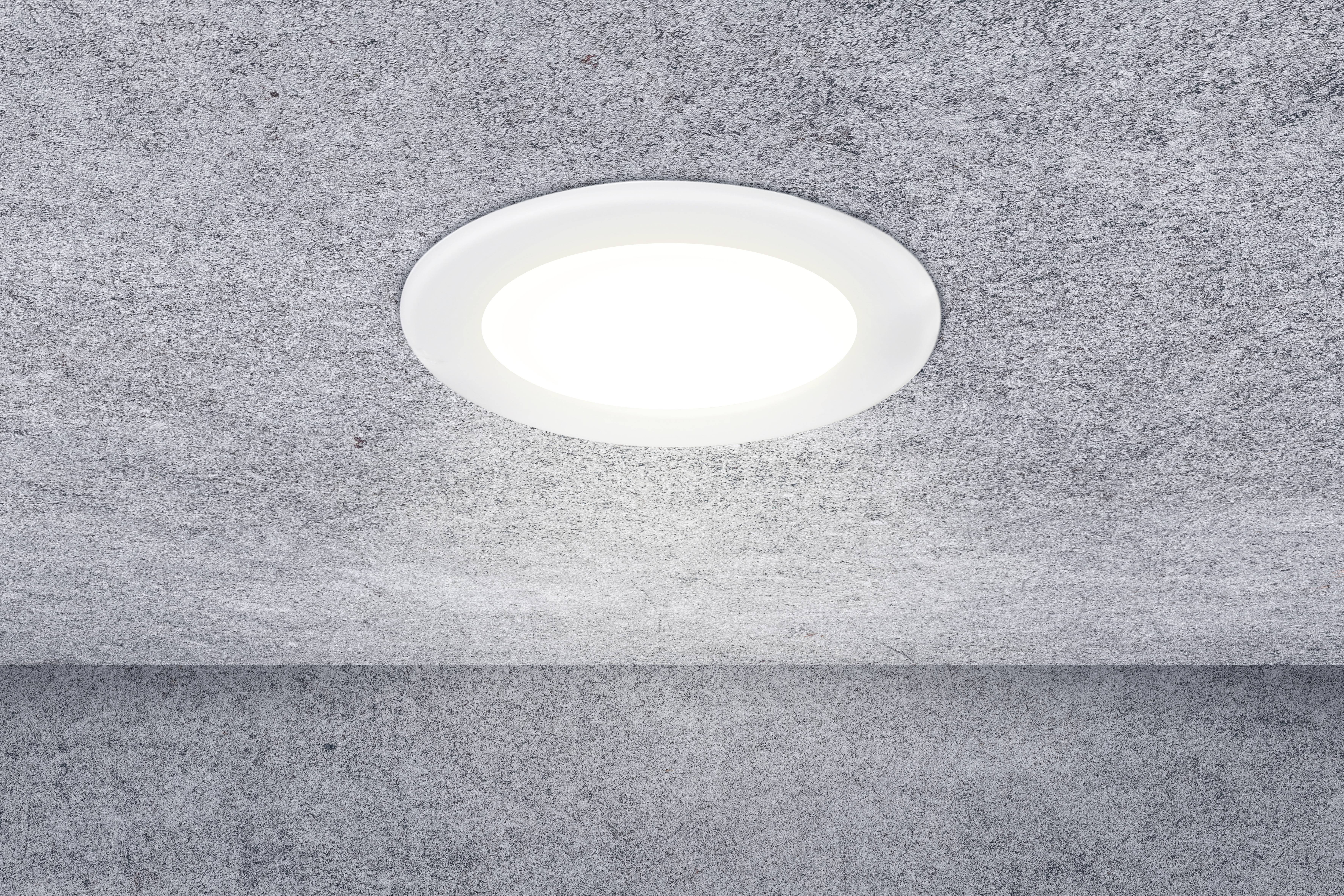

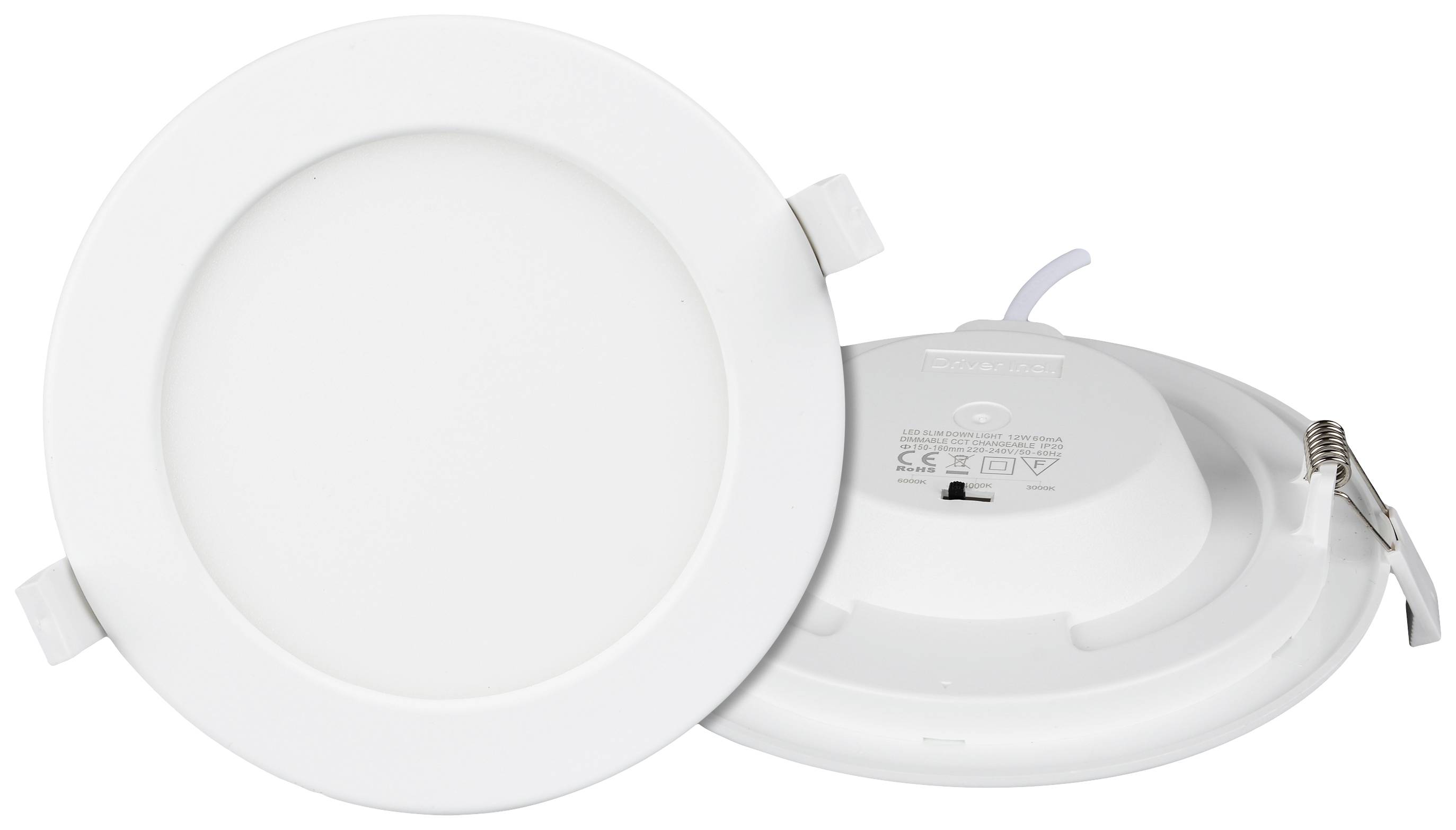

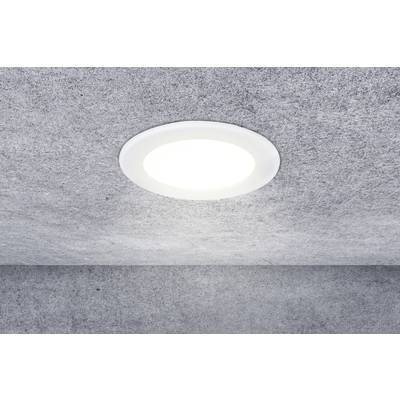

Heitronic 501376 Le Mans LED recessed light LED (monochrome) 12 W White
- Very low mounting depth - only 27 mmLight color before the assembly can be set via sliding switch (warm white, neutral white or cold white)Suitable for damp rooms, dust and splash-proof (IP44)
Technical specifications
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
12 W
12 W
1000.00 lm
- Total luminous flux
1000 lm
3000 K
- Colour
Warm white to cool white
- Type
Circular
- Radiation angle
120°
- Light features
Dimmable
- Recess diameter
150 mm
- Recess length
0 mm
- Recess width
0 mm
- Recess depth
27 mm
- Outside Ø
170 mm
IP44
- Protection class
II
- Factory colour
White
- Material
Plastic
- Weight
1.00 kg
n.rel.
- Dim
(Ø x H) 170 mm x 32 mm
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
32 mm
- (Ø)
170 mm
Documents & Downloads
Datasheet
Datasheet 2638209 Heitronic 501376 Le Mans LED recessed light LED (monochrome) 12 W White
User & Safety Instructions
User & Safety Instructions 2638209 Heitronic 501376 Le Mans LED recessed light LED (monochrome) 12 W White
Warranty Terms
Warranty Terms 2638209 Heitronic 501376 Le Mans LED recessed light LED (monochrome) 12 W White
Description
This text is machine translated.
Features
- The wide covering ring also covers larger installation openings till outer dimensions, if necessaryHousing and diffuser PC, white or transparentUniform illumination of the bright area through side light feed with micro-compressed extractor
Scope of delivery
- LED Downlight Heitronic Le Mans, roundMounting material (spring clamps)Installation manual
