Name: Heitronic 501382 Le Mans LED recessed light LED (monochrome) 18 W White
Brand: Heitronic
SKU: 2638215
Availability: InStock

White, square LED recessed light with smooth surface, suitable for ceiling mounting.

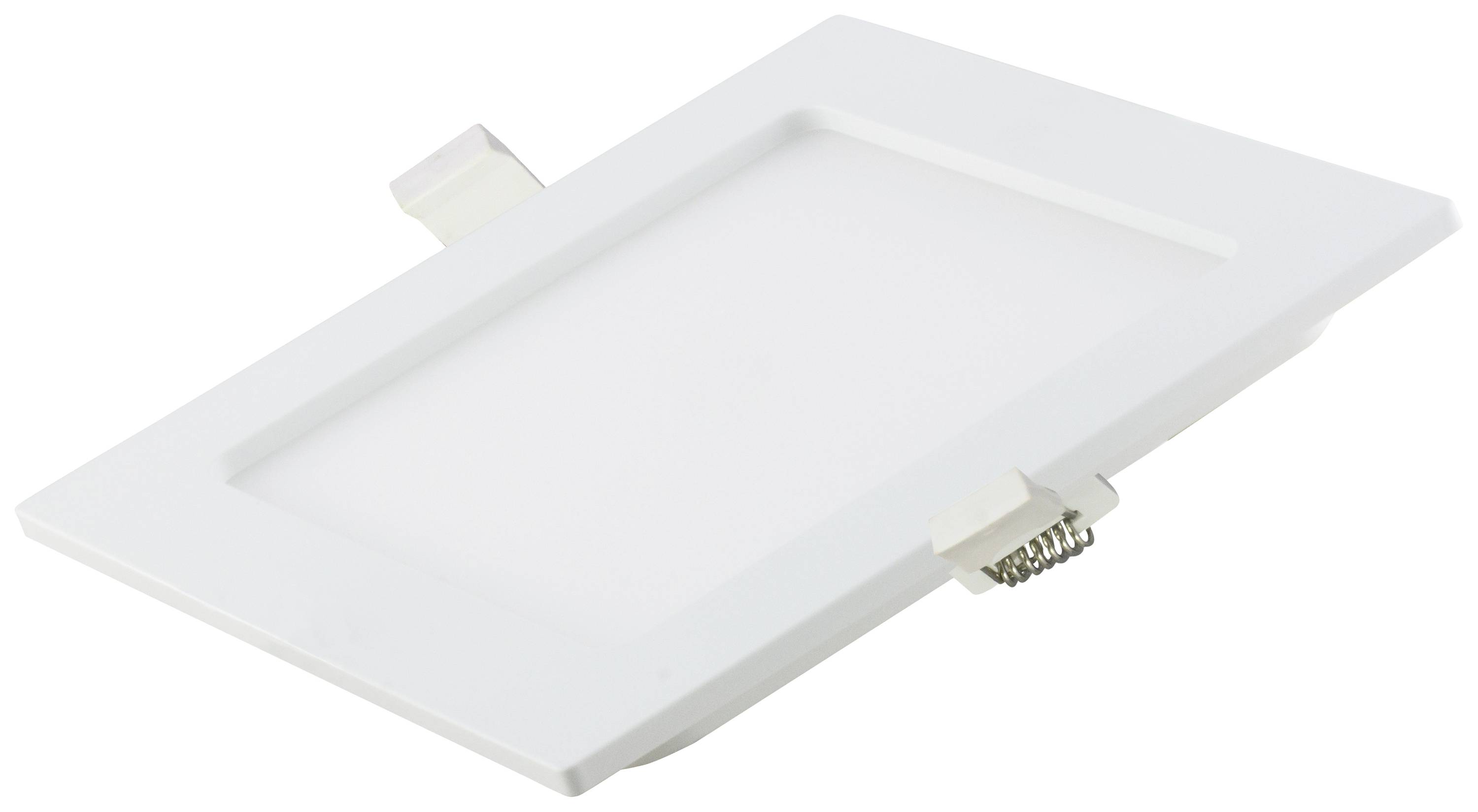

Square, white LED ceiling light with a flat design and visible mounting brackets.

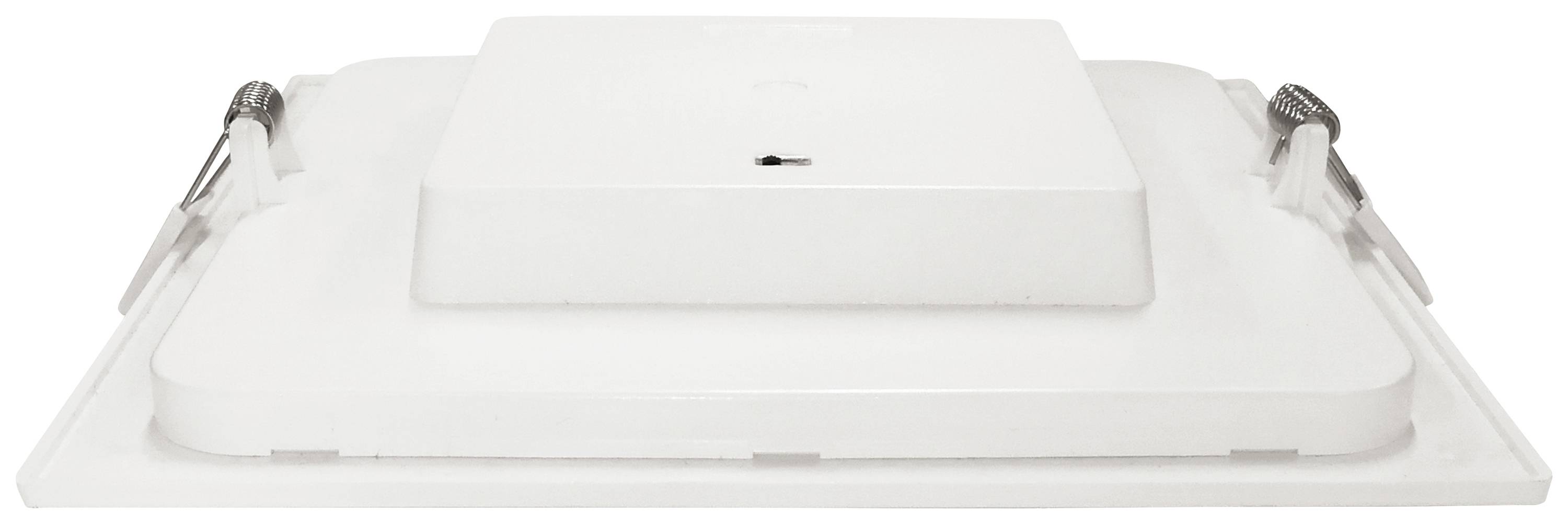

A square, white LED panel with mounting clips on the sides, suitable for ceiling installation for lighting purposes.

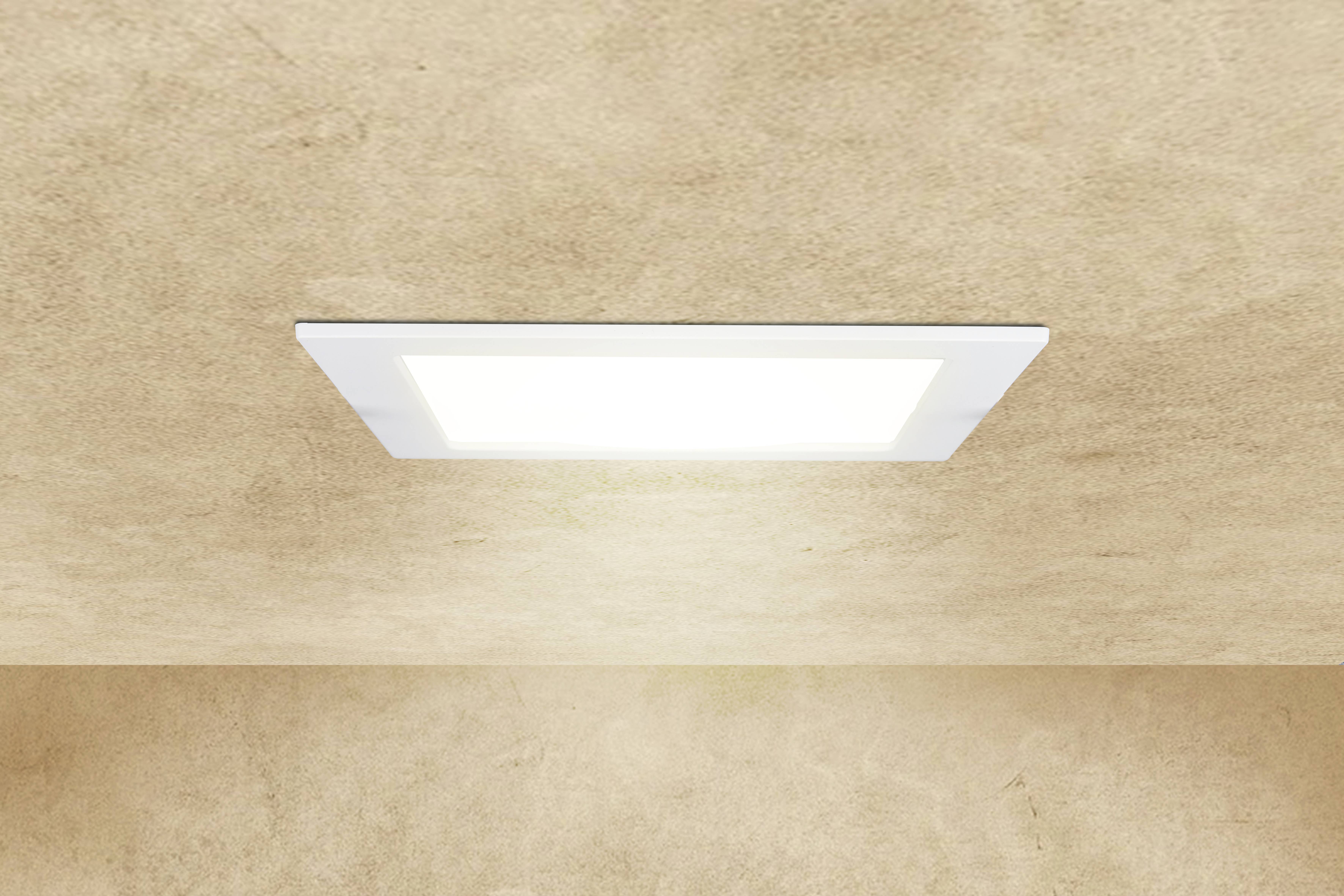

A square LED recessed ceiling light emits bright, white light in a room with beige wall and ceiling surfaces.

Rectangular ceiling light shines brightly on a beige ceiling.

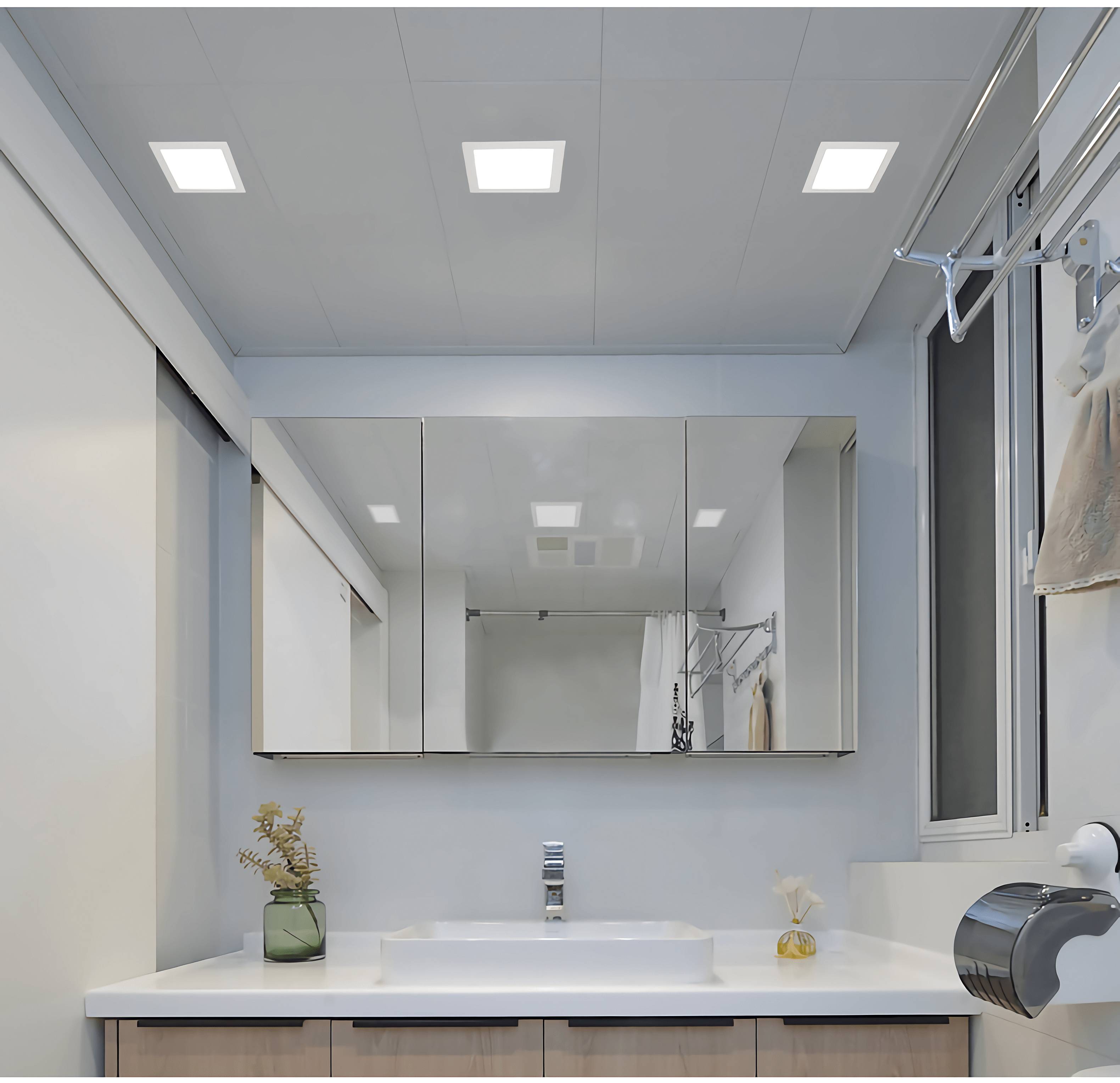

Modern bathroom with a large mirror, washbasin, light wall colours, and concealed lighting units on the ceiling.

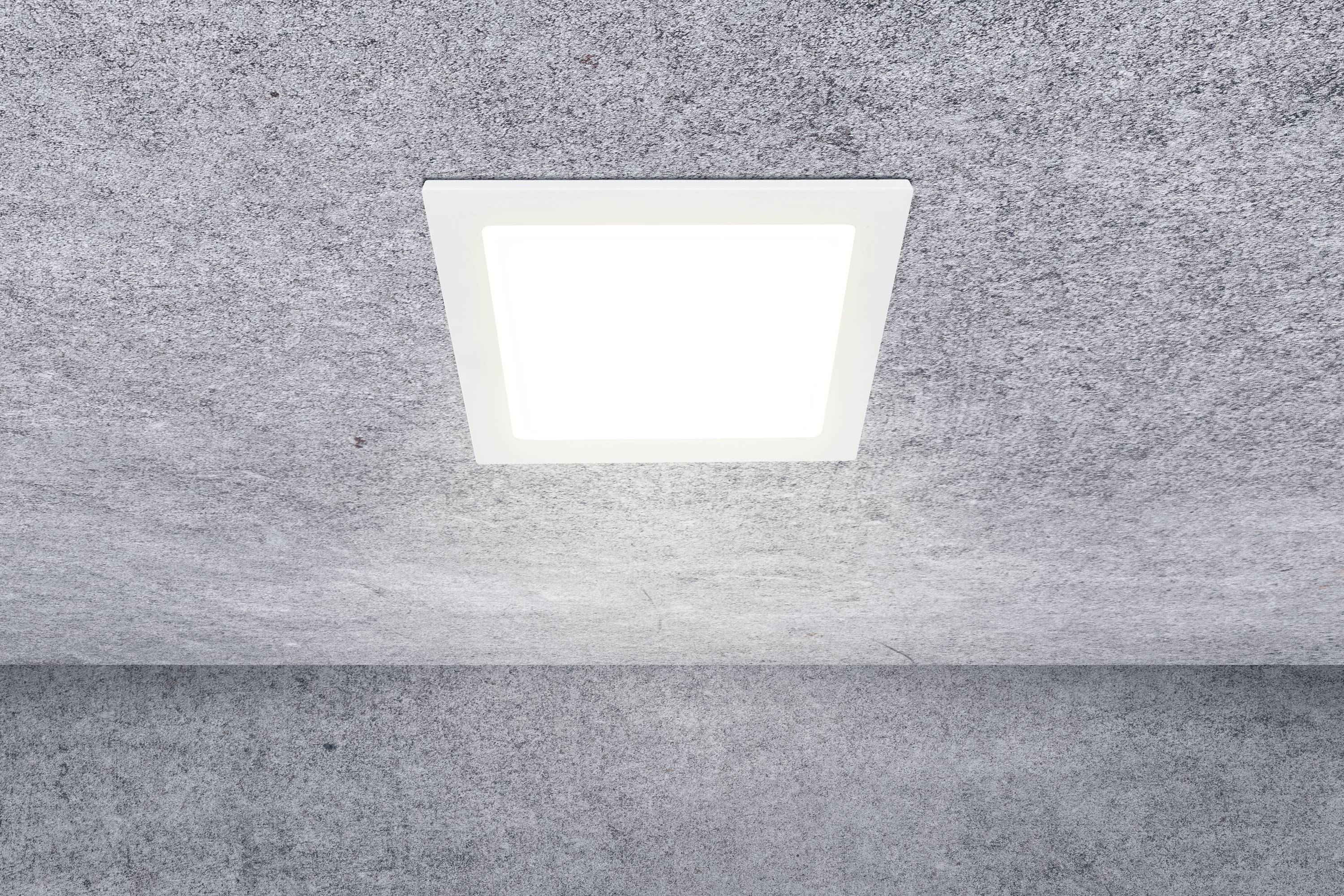

Square ceiling light mounted with bright, even illumination in a grey room.

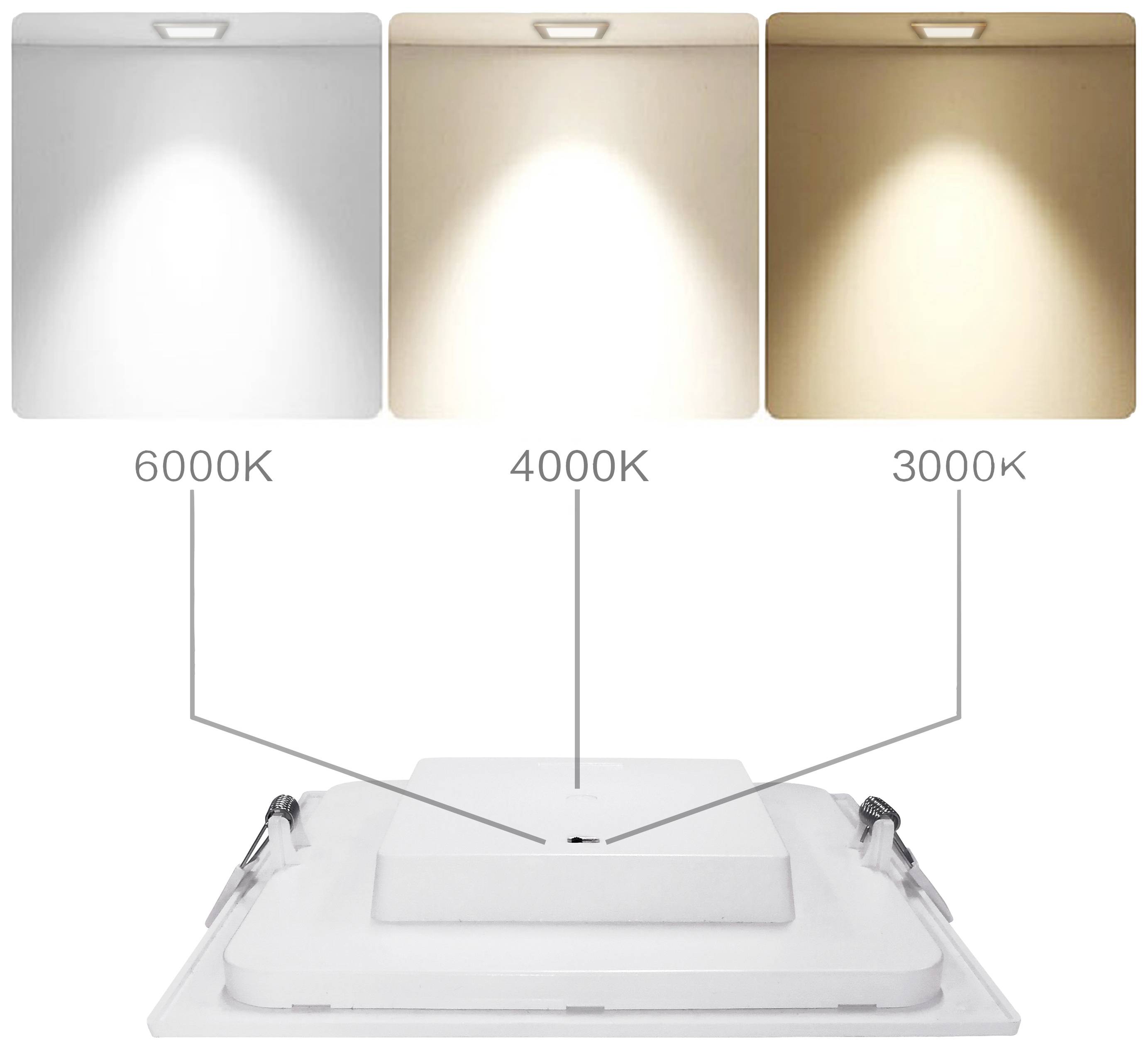

Three LED panel light colours: left cold white (6000K), centre neutral white (4000K), right warm white (3000K).

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

17 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LED Downlight LE MANS square white 18W 220x220x32 mm 3000/4000/6000K IP44 dimmable

Power= 18 W Total luminous flux= 1650 lm Colour temperature= 3000 K Warm white to cool white

Technical specifications

Product type: LED recessed light

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: LED (monochrome)

: 18 W

Total luminous flux: 1650 lm

: 3000 K

Colour: Warm white to cool white

Type: Square

Light features: Dimmable

Recess length: 205 mm

Recess width: 205 mm

Recess depth: 27 mm

External length: 220 mm

External width: 220 mm

: IP44

Protection class: II

Factory colour: White

: n.rel.

Dim: (L x W x H) 220 x 220 x 32 mm

Light bulb included: Yes

Colour temperature range: 3000 K

Width: 220 mm

Height: 32 mm

Length: 220 mm

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2638215 Heitronic 501382 Le Mans LED recessed light LED (monochrome) 18 W White

User & Safety Instructions

User & Safety Instructions 2638215 Heitronic 501382 Le Mans LED recessed light LED (monochrome) 18 W White

Warranty Terms

Warranty Terms 2638215 Heitronic 501382 Le Mans LED recessed light LED (monochrome) 18 W White

Description

The very flat LED downlight can be used almost everywhere thanks to its low installation depth of only 27 mm, even in difficult installation conditions, especially when retrofitting to economical and durable LED technology. The LED ballast is already built into the downlight and does not need to be installed separately. The power connection is made directly at 230 V with open wire ends (length approx. 150 mm). The LED recessed spotlight can be dimmed with all the common phase section dimmers. In addition, the color temperature can be set easily and without tools before mounting via sliding switch (warm white, neutral white or cold white as required).The built-in LED light emits light evenly and almost without glare thanks to a white/transparent diffuser. Thanks to protection class IP44, the LED-built-in beamer Le Mans from Heitronic can also be used in damp rooms or in roofed outdoor areas.

This text is machine translated.

Features

Colour temperature before installation easily adjustable via switch (warm white with 3000 K, neutral white with 4000 K or cold white with 6000 K)
Good color reproduction with 80 Ra
LED life up to 35,000 operating hours
Robust plastic housing
Almost glare-free light thanks to white/transparent diffuser
Dust- and splashproof (IP44)
Installation depth only 27 mm, the LED ballast is integrated in the lamp housing)
Total height 32 mm (of which 5 mm body height)
Dimmable with all standard phase section dimmers
Operation directly at 230 V, connection via open cable ends (length approx. 150 mm)
Border color: White

Scope of delivery

LED Downlight Heitronic Le Mans, square
Mounting material (spring clamps)
Installation manual

Description

Features

Colour temperature before installation easily adjustable via switch (warm white with 3000 K, neutral white with 4000 K or cold white with 6000 K)
Good color reproduction with 80 Ra
LED life up to 35,000 operating hours
Robust plastic housing
Almost glare-free light thanks to white/transparent diffuser
Dust- and splashproof (IP44)
Installation depth only 27 mm, the LED ballast is integrated in the lamp housing)
Total height 32 mm (of which 5 mm body height)
Dimmable with all standard phase section dimmers
Operation directly at 230 V, connection via open cable ends (length approx. 150 mm)
Border color: White
