Buy HellermannTyton HV1201B-PVC-BK-N1 Cable grommet Terminal Ø (max.) 4 mm Board thickness (max.) 2.5 mm PVC Black 1 pc(s)

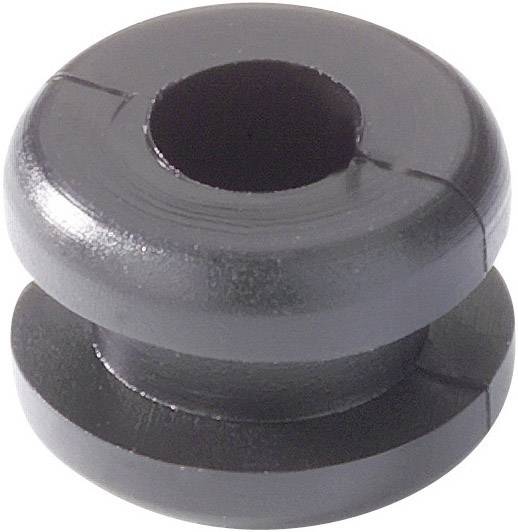

A black, cylindrical rubber buffer with a central bore, commonly used as a shock absorber or spacer.

Technical drawing of a ring with dimensions 'D', 'd', 'B', 'H', 'h', indicating radial and axial measurements.

'Schematic sketch of a rubber metal buffer mounting direction with dimensions: ØD max, H2, H, D and FH. Shows vertical and horizontal distances.'

Technical drawing of a bearing cross-section. Shows dimensions: outer diameter 'D', inner diameter 'd', width 'h', and height 'H'.

1/4

Product type

Cable grommet

Material

PVC

Terminal Ø (max.)

4 mm

Mounting hole

6.4 mm

Factory colour

Black

Datasheet (PDF)

Fast track dispatch on Fri, 25 Sep

2388 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 50

Total (€ 0.08 / piece)

€ 4.00

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

HellermannTyton HV1201B-PVC-BK-N1 Cable grommet Terminal Ø (max.) 4 mm Board thickness (max.) 2.5 mm PVC Black 1 pc(s)

Our service for you

Technical specifications

Product type: Cable grommet

Factory colour: Black

Material: PVC

Height: 6.5 mm

(Ø): 9.5 mm

Dim: (Ø x H) 9.5 mm x 6.5 mm

Terminal Ø (max.): 4 mm

Mounting hole: 6.4 mm

Board thickness (max.): 2.5 mm

Min. temperature: -30 °C

Halogen-free: No

Content: 1 pc(s)

Manufacturer part #: 633-02020

Type: HV1201B-PVC-BK-N1

RoHS-compliant: Yes

Material (details): PVC

Fire protection properties: Corresponds to UL94 V2

Temperature range: -30 - +60 °C

Documents & Downloads

Datasheet

Datasheet 544449 HellermannTyton HV1201B-PVC-BK-N1 Cable grommet Terminal Ø (max.) 4 mm Board thickness (max.) 2.5 mm PVC Black 1 pc(s)

User & Safety Instructions

User & Safety Instructions 544449 HellermannTyton HV1201B-PVC-BK-N1 Cable grommet Terminal Ø (max.) 4 mm Board thickness (max.) 2.5 mm PVC Black 1 pc(s)

Description

Hellermann Tyton grommets made of cadmium-free soft PVC or polyethylene are available in a wide range of designs and sizes. They are resistant to various minerals and environmental factors.
