HellermannTyton HV2206 PVC-FR BK 500 Bend relief Terminal Ø (max.) 5.6 mm PVC Black 1 pc(s)

Technical drawing of a conical sleeve with length specifications: diameter varying from 8 mm to 11 mm, total length 47 mm.

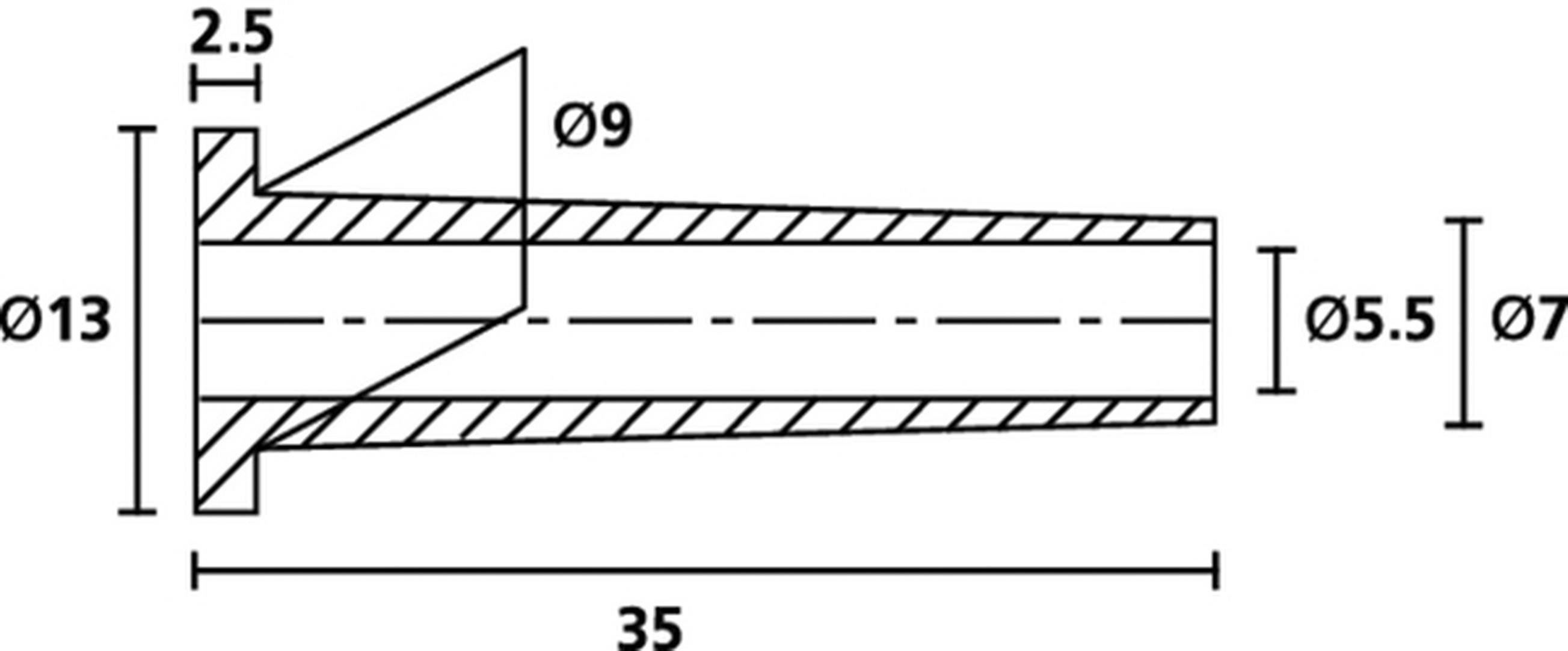

Technical drawing of a conical metal part. Front diameter 13 mm, rear diameter 5.5 mm. Length 35 mm. Dimensions given in millimetres.

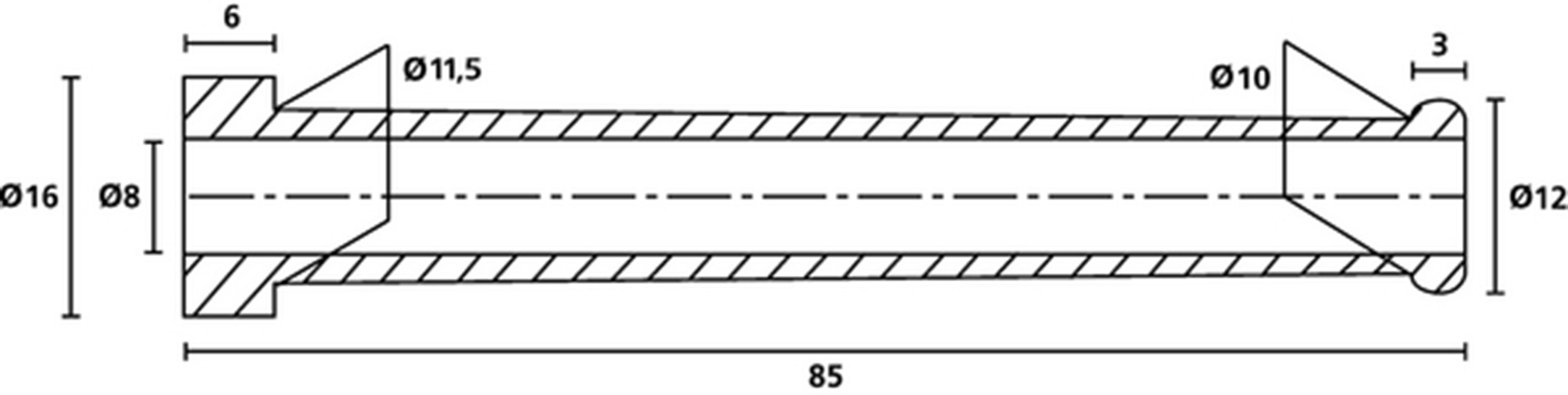

Technical Drawing of a Cylindrical Pipe Section with Diameter Specifications: Outer Diameter 16mm, Inner Diameter 8mm, Length 85mm, End Diameter 12mm.

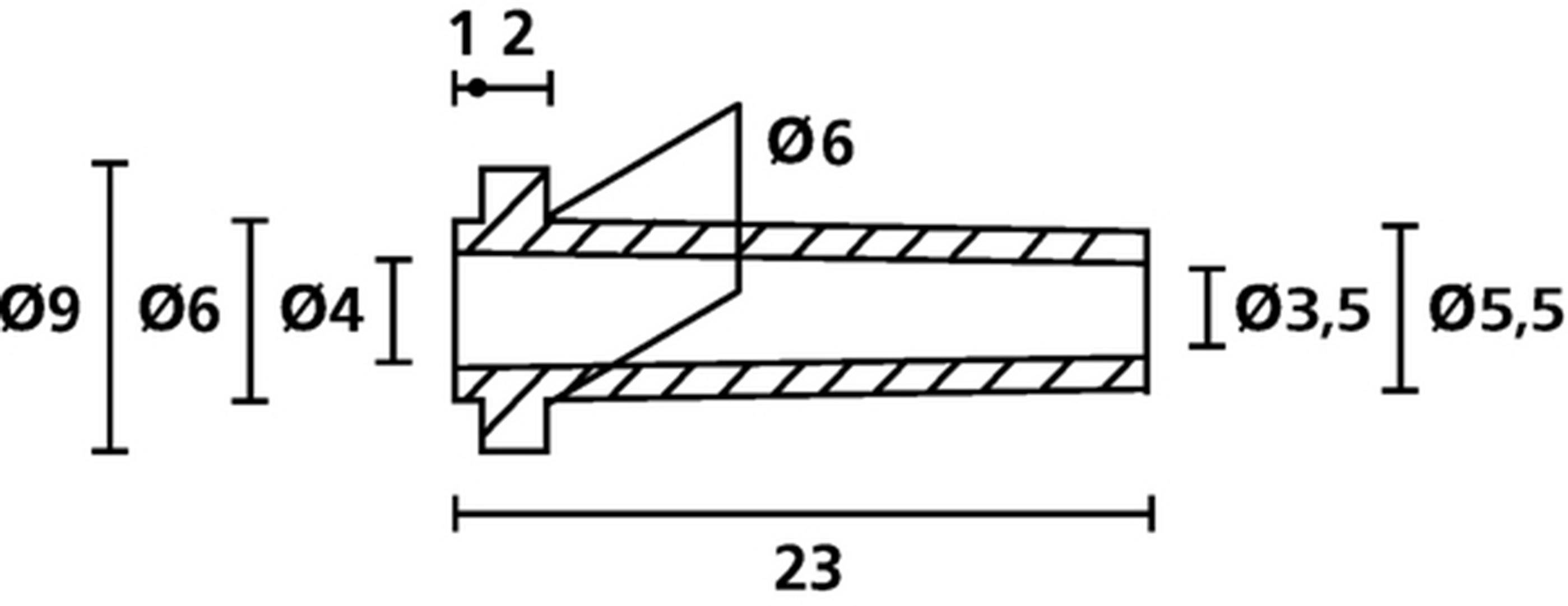

Technical drawing of a bolt with dimensions: Total length 23 mm, diameter 9 mm, front diameter 6 mm, rear diameter 4 mm.

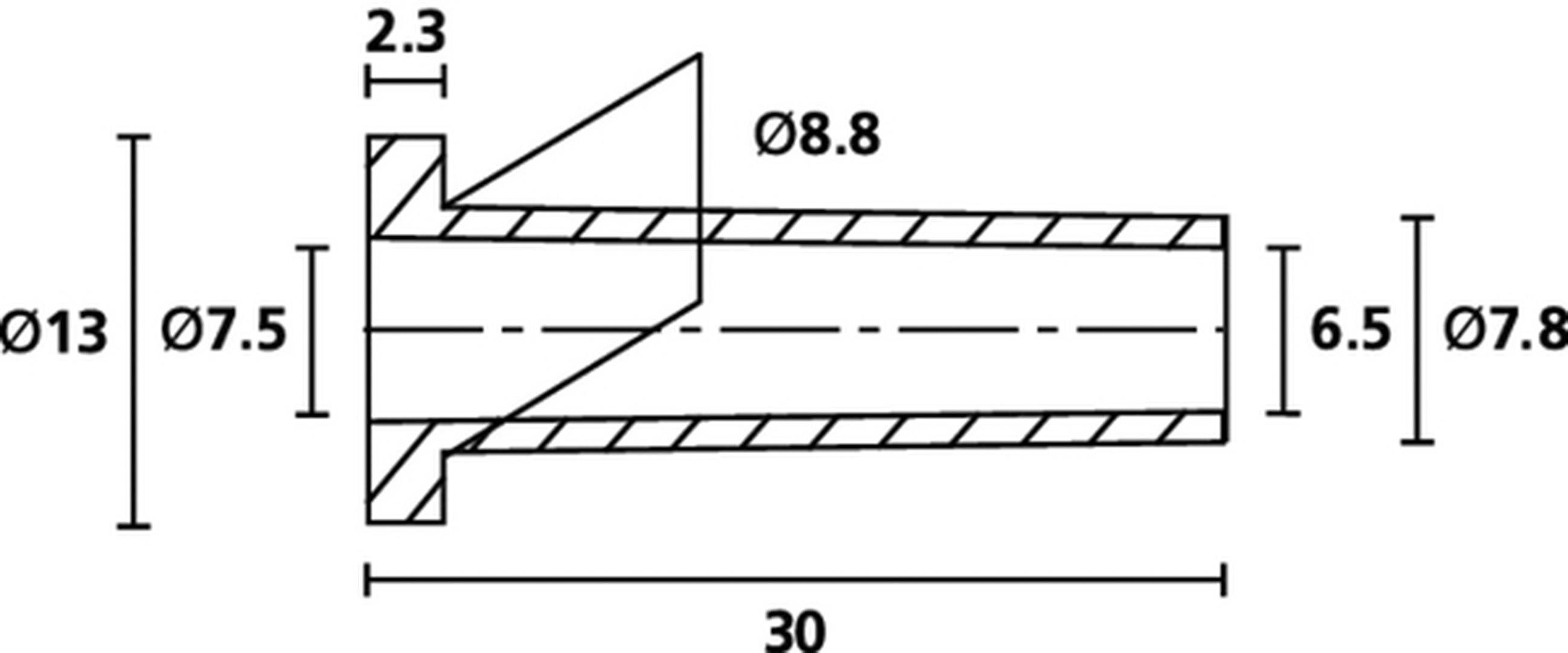

Technical drawing of a cylindrical part with dimensions: Length 30 mm, diameters 13 mm, 8.8 mm, 7.5 mm, 7.8 mm, and an opening of 2.3 mm.

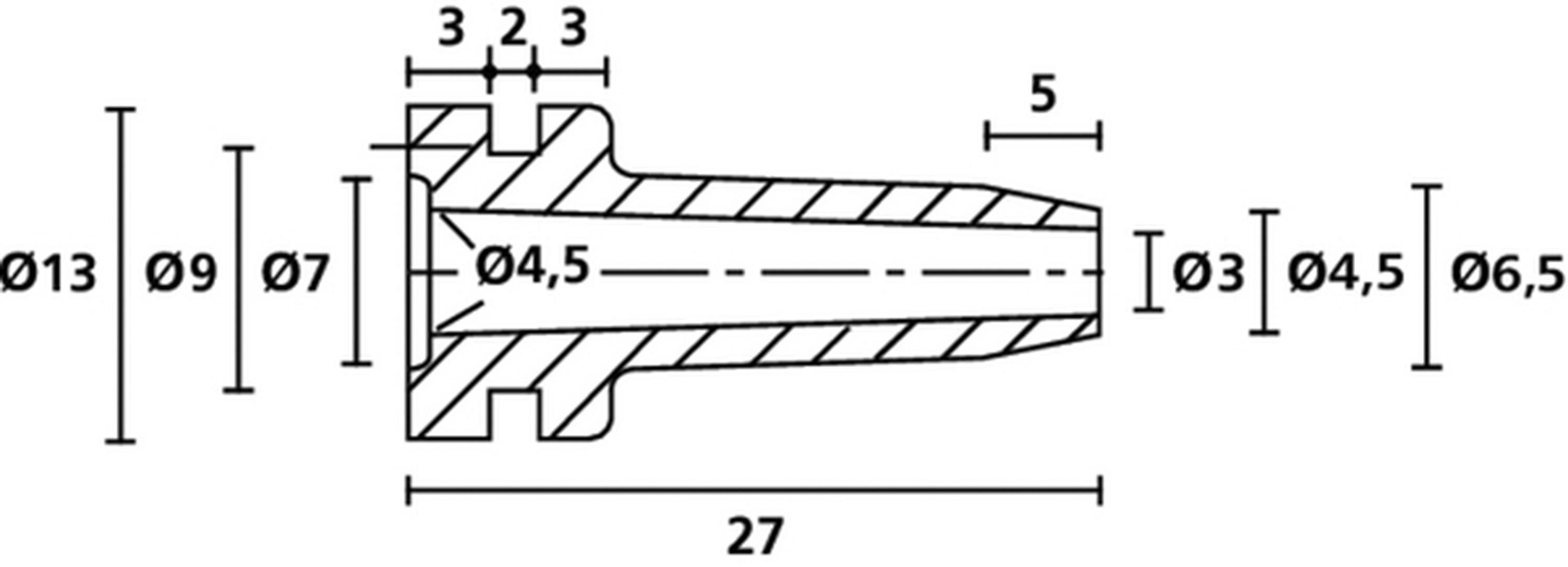

Technical drawing of a component. Dimensions: Length 27, diameter from 6.5 to 13, core diameter 4.5. Detailed cross-section view.

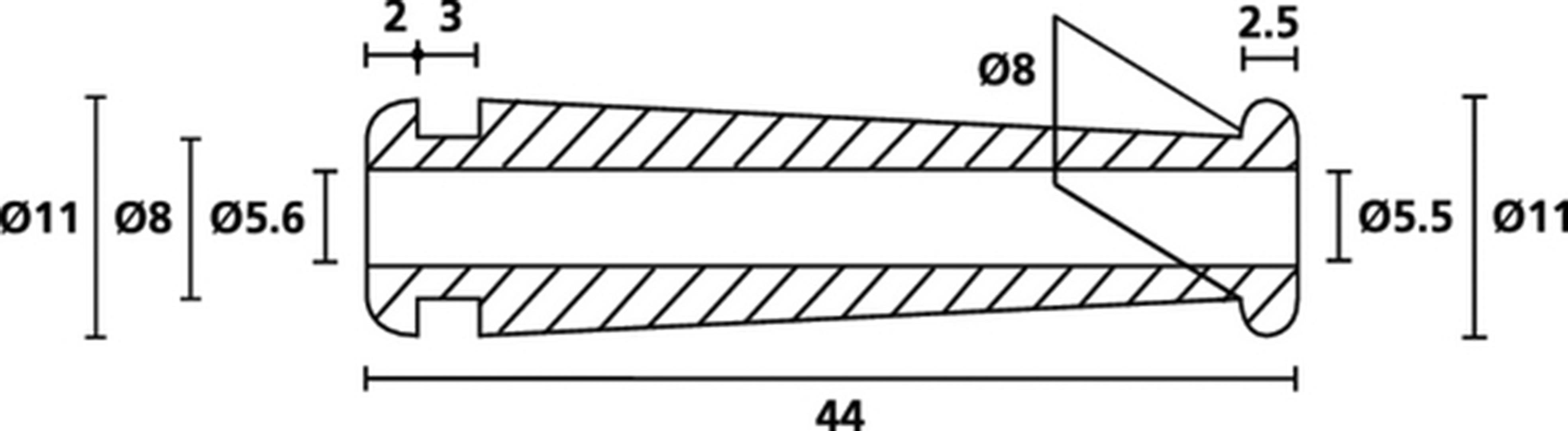

Technical drawing of a conical component. External dimensions: Length 44 mm, diameter 11 mm. Internal dimensions: Internal diameter 8 mm, end pieces 5.5 and 5.6 mm.

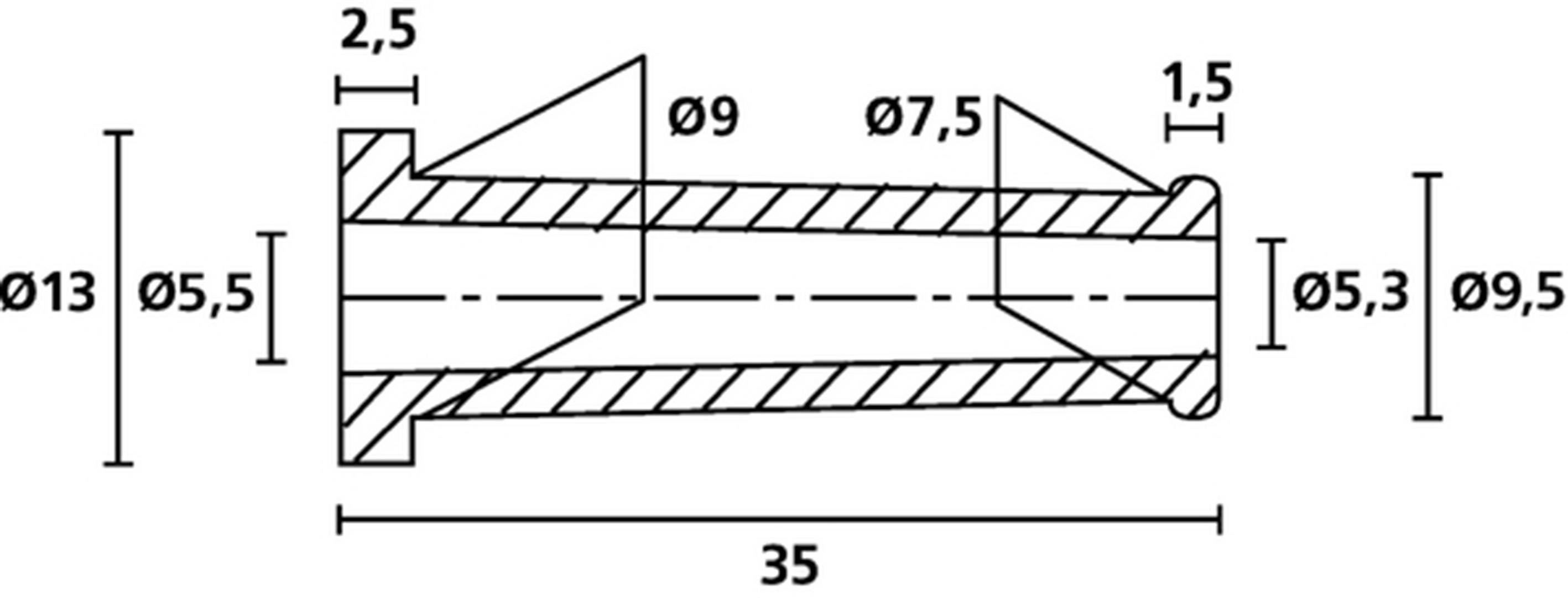

Technical drawing of a cylindrical component with dimensions: Length 35, Outer diameter 13, Inner diameter 5.5. Additional detailed measurements indicated.
Technical drawing of a component with dimensions: diameter and lengths are specified, central bore ø4.5 mm.
1/9
Stroke drawing/circuit diagram
Product type
Bend relief
Material
PVC
Clamp Ø
5.5 mm
Terminal Ø (max.)
5.6 mm
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
446 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 5
Total (€ 0.48 / piece)
€ 0.48
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Kink protection bushing

Our service for you

Technical specifications

Product type

Bend relief

Factory colour

Black

Material

PVC

Length

47 mm

Width

11 mm

Height

11 mm

(Ø)

11 mm

Dim

(Ø x H) 11 mm x 11 mm

Clamp Ø

5.5 mm

Terminal Ø (max.)

5.6 mm

Min. temperature

-30 °C

Max. temperature

60 °C

Weight

2.8 g

Halogen-free

No

Content

1 pc(s)

Manufacturer part #

632-02060

Type

HV2206 PVC-FR BK 500

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 1505909 HellermannTyton HV2206 PVC-FR BK 500 Bend relief Terminal Ø (max.) 5.6 mm PVC Black 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1505909 HellermannTyton HV2206 PVC-FR BK 500 Bend relief Terminal Ø (max.) 5.6 mm PVC Black 1 pc(s)
