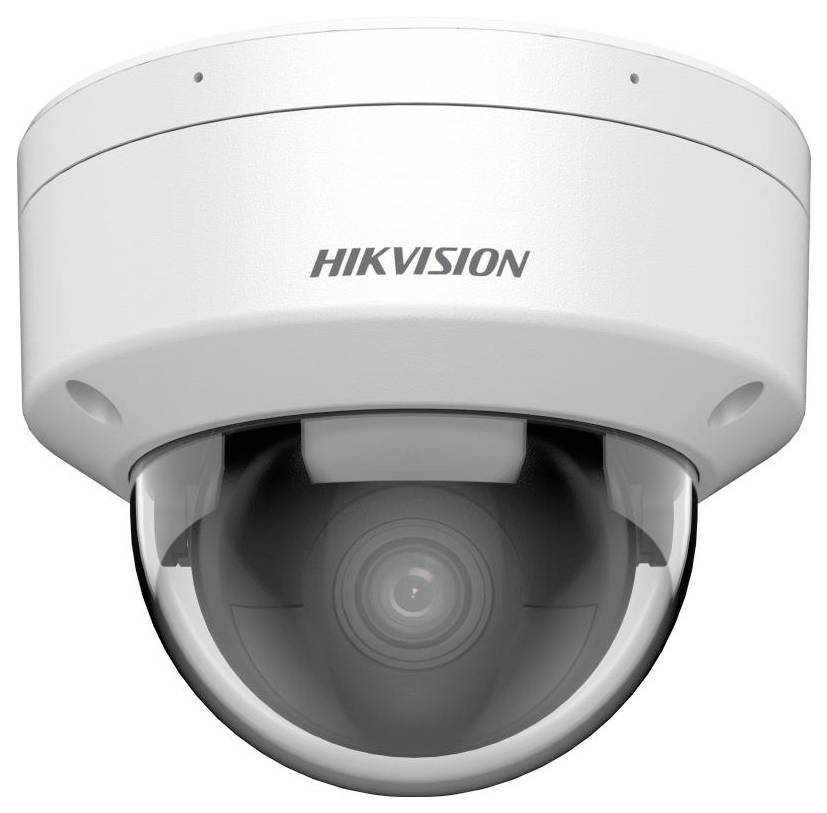

HIKVISION DS-2CD2146G2H-I(2.8mm)(eF) 311324131
EAN:
Part number:
Item no:
Number
Total (€ 224.99 / piece)
€ 224.99
incl. VAT
14-day return policy included
Highlights & Details
HIKVISION 311324131 DS-2CD2146G2H-I(2.8mm)(eF)
- 1/3" Progressive Scan CMOS
- H.265+/H.265/H.264+/H.264/MJPEG
- Powered by Darkfighter technology, Color: 0,003 lux @(F1.4, AGC ON), 0 lux with IR
- 25 fps/30 fps(2688×1520.1920×1080)
- VCA functions
- 3 streams
- 3D DNR
- BLC
- ICR
- EXIR:30m
- DC12V&PoE
- Micro SD/SDHC/SDXC slot
- HIK-Connect cloud service
- 2.8mm
- This text is machine translated.
Technical specifications
- Sensor
1/3" Progressive Scan CMOS
- Series
ABUS Professional
- Resolution
2688 × 1520 pixels (4 Megapixel)
- Light sensitivity
Colour: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with infrared (IR)
- Operating voltage
12 VDC (± 25 %) or PoE (IEEE 802.3af, Class 3)
- Outputs
100 Ω (Audio output, only with the SU variant)
- Power supply
12 V / DC
- Dim
(Ø x H) 121.5 mm x 97.6 mm
- Connections
1 RJ45 10 M/100 M self-adjusting Ethernet-port
Ø 5.5 mm coaxial power connector
- Range of uses
Indoors and outdoors
- No. of channels (details)
6
- App compatibility
Yes
- Resolution (max.)
2688 x 1520 p
- External dimensions
Ø 121,5 mm × 97,6 mm
- Outside Ø
121.5 mm
- Operating temperature
-30 °C to 60 °C
- Aperture
F1.0
- Focal length
2.8 mm
- Frequency
Audio sampling rate (SU variant): 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
- Weight
550 g
- Factory colour
Multicolour
- IR coverage
30 m
- Additional IR light
Yes
- Impedance
For the -SU version: Audio input impedance 4.7 kΩ, output impedance 100 Ω
- Camera type
Dome camera
- Max. power consumption
Max. 7.2 W (at 12 VDC) or max. 8.5 W (for PoE)
- Microphone
Yes
- Height
97.6 mm
- Depth
97.6 mm
- (Ø)
121.5 mm
IP67
- Visible screen size (diagonal)
119.7°
- Temperature range
-30°C to 60°C at a humidity of 95% or less (non-condensing) °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742911 HIKVISION DS-2CD2146G2H-I(2.8mm)(eF) 311324131
Description
Features
- Dome
- Fixed lens
- IP67
- IK10
- 4MP
Scope of delivery
- Incl. drilling template
- Fitting Material
- Quick guide
Hints
Mains adapter not included
System requirements
- Windows, iOS, Android
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
