HIKVISION DS-2CD2186G2H-I(2.8mm)(eF) 311325006
EAN:
Part number:
Item no:
Number
Total (€ 289.92 / piece)
€ 289.92
plus VAT.
Highlights & Details

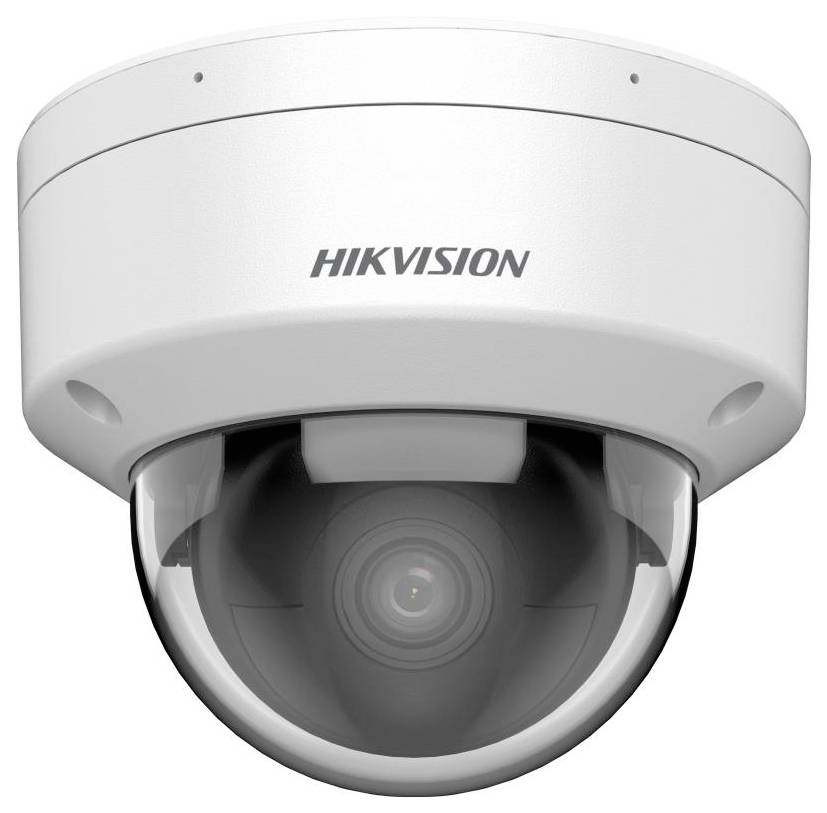

HIKVISION 311325006 DS-2CD2186G2H-I(2.8mm)(eF)
- 1/1.8" Progressive Scan CMOS
- H.265+/H.265/H.264+/H.264/MJPEG
- Powered by Darkfighter technology, Color: 0,003 lux@(F1.6, AGC ON), 0 lux with IR
- 25fps/24fps(3840×2160), 25fps/30fps (3200x1800, 2688×1520, 1920×1080)
- VCA functions
- 3 streams
- 3D DNR
- BLC/HLC
- ICR
- EXIR, up to 30 m
- DC12V&PoE
- Micro SD/SDHC/SDXC slot
- HIK-Connect cloud service
- 2.8mm
- This text is machine translated.
Technical specifications
- Series
ABUS Professional
- Outputs
For the -S version: 1 audio output (line-out) and 1 alarm output (max. 12 VDC, 30 mA)
- Dim
(Ø x H) 121.5 mm x 97.6 mm
- Connections
1 RJ45 10 M/100 M self-adjusting Ethernet-port
Ø 5.5 mm coaxial power connector
- Range of uses
Indoors and outdoors
- No. of channels (details)
6
- App compatibility
Yes
- Resolution (max.)
3840 x 2160 p
- External dimensions
Ø 121,5 mm × 97,6 mm
- Outside Ø
121.5 mm
- Operating temperature
-30 °C to 60 °C
- Aperture
F1.0
- Focal length
2.8 mm
- Frequency
Audio sampling rate (U version): 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
- Weight
525 g
- IR coverage
30 m
- Additional IR light
Yes
- Impedance
In the -S version: Audio input impedance 4.7 kΩ, output impedance 100 Ω
- Camera type
Dome camera
- Max. power consumption
Max. 8 W (at 12 VDC) or max. 9.5 W (for PoE)
- Microphone
Yes
- Height
97.6 mm
- (Ø)
121.5 mm
IP67
- Visible screen size (diagonal)
128,2°
- Temperature range
-30°C to 60°C at a humidity of 95% or less (non-condensing) °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742912 HIKVISION DS-2CD2186G2H-I(2.8mm)(eF) 311325006
Description
Features
- Dome
- Fixed lens
- IP67
- IK10
- 8MP
Scope of delivery
- Incl. drilling template
- Fitting Material
- Quick guide
Hints
Mains adapter not included
System requirements
- Windows, iOS, Android
