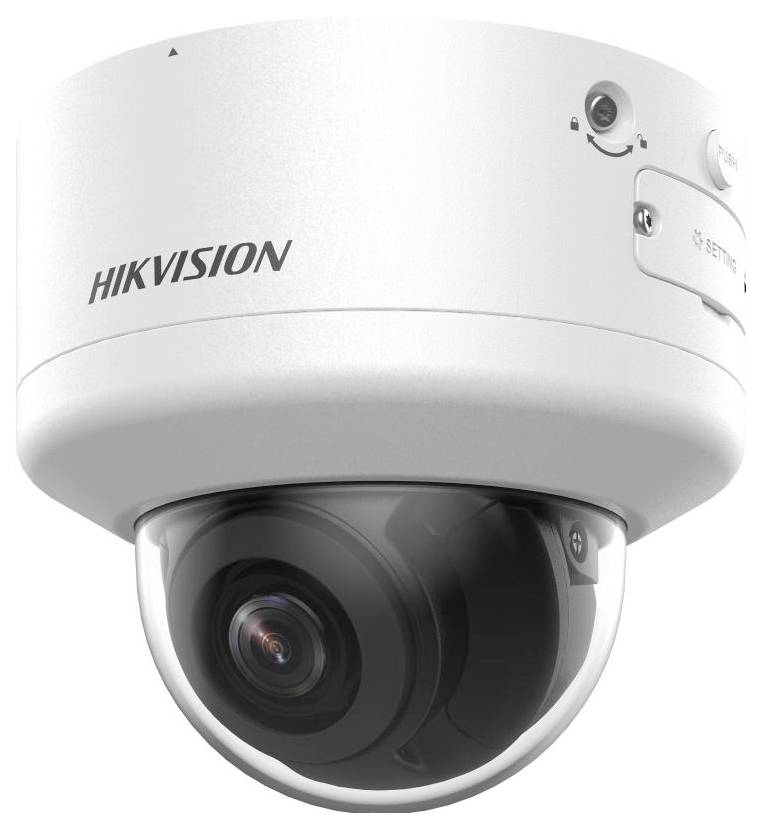

HIKVISION DS-2CD2746G2H-IPTRZS(2.8-12mm) 311327031 Network camera 4 MP
EAN:
Part number:
Item no:
Number
Total (€ 382.35 / piece)
€ 382.35
plus VAT.
Highlights & Details
HIKVISION 311327031 DS-2CD2746G2H-IPTRZS(2.8-12mm)
- 1/3" Progressive Scan CMOS((C) model)
- H.265+/H.265/H.264+/H.264/MJPEG
- Powered by Darkfighter technology, Color: 0,003 lux @(F1.4, AGC ON), 0 lux with IR
- 25 fps/30 fps(2688×1520.1920×1080)
- VCA functions
- 3 streams
- 3D DNR
- BLC
- ICR
- EXIR
- DC12V&PoE
- Micro SD/SDHC/SDXC slot
- HIK-Connect cloud service
- Audio/alarm I/O
- 2.8mm-12mm
- This text is machine translated.
Technical specifications
- Sensor
1/1.8" Progressive Scan CMOS
- Product type
Network camera 4 MP
- Series
ABUS Professional
- Resolution
2688 × 1520 pixels (4 Megapixel)
- Light sensitivity
Color: 0.0008 Lux @ (F1.2, AGC ON), Black & White: 0 Lux with Infrared (IR)
- Operating voltage
12 VDC (± 25 %) or PoE (IEEE 802.3at, class 4)
- Outputs
100 Ω (audio output)
- Current consumption
1.05 A at 12 V DC
- Dim
(Ø x H) 155 mm x 140.4 mm
- Connections
1 RJ45 10 M/100 M self-adjusting Ethernet-port
2-pin terminal block for power supply
Audio input/output and alarm input/output
- No. of channels (details)
6
- App compatibility
Yes
- Audio inputs
1 Line-In input (2-pin terminal block)
- Layout
Motorised PTRZ (Pan, Tilt, Rotate, Zoom) varifocal dome camera
- Resolution (max.)
2688 x 1520 p
- External dimensions
Ø 155 mm × 140,4 mm
- Outside Ø
155 mm
- Operating temperature
-30 °C to 60 °C
- Aperture
Max. F1.2
- Focal length
2.8 mm to 12 mm
- Weight
840 g
- IR coverage
40 m
- Additional IR light
Yes
- Impedance
Audio input impedance 4.7 kΩ, output impedance 100 Ω
- Camera type
Dome camera
- No. of channels (details)
6
- Max. power consumption
Max. 12.6 W (with 12 VDC) or max. 15 W (with PoE Class 4)
- Height
140.4 mm
- Depth
140.4 mm
- (Ø)
155 mm
IP66
- Temperature range
-30°C to 60°C at a humidity of 95% or less (non-condensing) °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742919 HIKVISION DS-2CD2746G2H-IPTRZS(2.8-12mm) 311327031 Network camera 4 MP
Description
Features
- Dome
- Motorized Lens
- IP66
- IK10
- 4MP
Scope of delivery
- Incl. drilling template
- Fitting Material
- Quick guide
Hints
Mains adapter not included
System requirements
- Windows, iOS, Android
