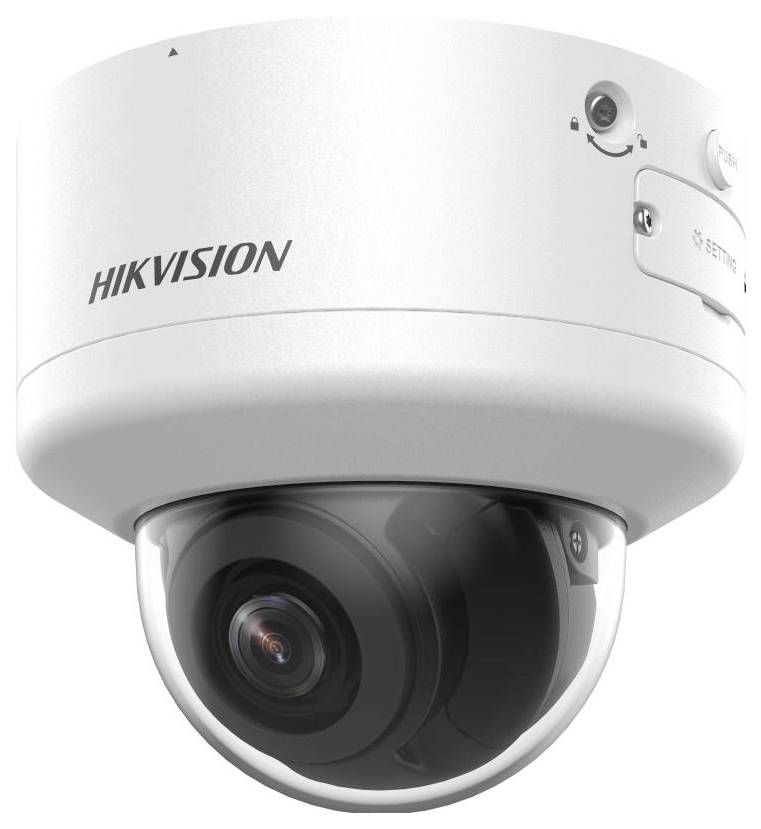

HIKVISION DS-2CD2786G2H-IPTRZS(2.8-12mm) 311327025
EAN:
Part number:
Item no:
Number
Total (€ 549.00 / piece)
€ 549.00
incl. VAT
14-day return policy included
Highlights & Details
HIKVISION 311327025 DS-2CD2786G2H-IPTRZS(2.8-12mm)
- 1/1.8" Progressive Scan CMOS
- H.265+/H.265/H.264+/H.264/MJPEG
- Powered by Darkfighter technology, Color: 0,003 Lux @ (F1.4, AGC ON), 0 lux with IR
- 25fps/24fps(3840×2160), 25fps/30fps (3200x1800, 2688×1520, 1920×1080)
- VCA functions
- 3 streams
- 3D DNR
- BLC/HLC
- ICR
- EXIR, up to 40 m
- DC12V&PoE
- Micro SD/SDHC/SDXC slot
- Built-in Audio/Alarm I/O, HIK-Connect cloud service
- 2.8mm-12mm
- This text is machine translated.
Technical specifications
- Sensor
1/1.8" Progressive Scan CMOS
- Series
ABUS Professional
- Resolution
3840 × 2160 pixels (8 Megapixel)
- Light sensitivity
Color: 0.0008 Lux @ (F1.2, AGC ON), Black & White: 0 Lux with Infrared (IR)
- Operating voltage
12 VDC (± 25 %) or PoE (IEEE 802.3at, class 4)
- Outputs
100 Ω (audio output impedance)
- Current consumption
1.05 A at 12 V DC
- Dim
(Ø) 155 mm
- Connections
1 RJ45 10 M/100 M self-adjusting Ethernet-port
2-pin terminal block for power supply
Audio input/output and alarm input/output
- No. of channels (details)
6
- App compatibility
Yes
- Resolution (max.)
3840 x 2160 p
- External dimensions
Ø 155 mm × 140,4 mm
- Outside Ø
155 mm
- Operating temperature
-30 °C to 60 °C
- Focal length
2.8 mm to 12 mm
- Screen size diagonal (inches)
1 inch
- Weight
840 g
- Factory colour
Multicolour
- IR coverage
40 m
- Additional IR light
Yes
- Camera type
Bullet camera
- No. of channels (details)
6
- Width
140.4 mm
- (Ø)
155 mm
IP66
- Visible screen size (diagonal)
137,4°
- Temperature range
-30°C to 60°C at a humidity of 95% or less (non-condensing) °C
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742920 HIKVISION DS-2CD2786G2H-IPTRZS(2.8-12mm) 311327025
Description
Features
- Dome
- Motorized Lens
- IP66
- IK10
- 8MP
Scope of delivery
- Incl. drilling template
- Fitting Material
- Quick guide
Hints
Mains adapter not included
System requirements
- Windows, iOS, Android
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
