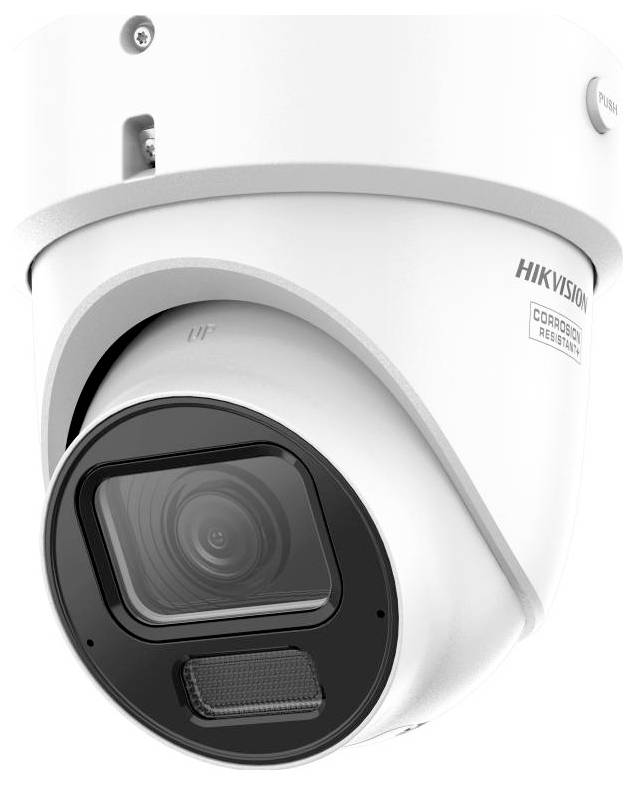

HIKVISION DS-2CD2H46G2H-IZSY(2.8-12mm)(eF) 311332122 Network camera 4MP
EAN:
Part number:
Item no:
Number
Total (€ 419.33 / piece)
€ 419.33
plus VAT.
Highlights & Details
HIKVISION 311332122 DS-2CD2H46G2H-IZSY(2.8-12mm)(eF)
- 1/3" Progressive Scan CMOS((C) model)
- H.265+/H.265/H.264+/H.264/MJPEG
- Powered by Darkfighter technology, Color: 0,003 lux @(F1.4, AGC ON), 0 lux with IR
- 25 fps/30 fps(2688×1520.1920×1080)
- VCA functions
- 3 streams
- 3D DNR
- BLC
- ICR
- EXIR
- up to 40m
- DC12V&PoE
- Micro SD/SDHC/SDXC slot
- HIK-Connect cloud service
- Audio/alarm I/O
- 2.8mm-12mm
- This text is machine translated.
Technical specifications
- Sensor
1/3" Progressive Scan CMOS
- Product type
Network camera 4MP
- Series
ABUS Professional
- Resolution
4 MP (maximum 2688 × 1520 pixels)
- Light sensitivity
Colour: 0.001 Lux @ (F1.0, AGC ON), Black/White: 0 Lux with IR
- Outputs
100 Ω output impedance in the audio output
- Dim
(Ø x H) 143.5 mm x 142.7 mm
- Connections
1x RJ45 (10 M/100 M Ethernet)
Audio input and output via two-pin terminal block
1 Alarm input
1 alarm output and a slot for microSD/microSDHC/microSDXC memory cards up to 512 GB
- No. of channels (details)
6
- Audio inputs
1 line-in input (2-pin terminal block), max. Input voltage 3.3 Vpp, input impedance 4.7 KΩ
- Resolution (max.)
2688 x 1520 p
- Outputs
1 audio output (line out) and 1 alarm output (max. 24 VDC/24 VAC, 1 A)
- External dimensions
Ø 143,5 mm × 142,7 mm
- Outside Ø
143.5 mm
- Operating temperature
-30 °C to 60 °C
- Aperture
F1.0
- Inputs
1 audio input and 1 alarm input
- Used at
Outdoors
Indoors
- Frequency
Image rates in main stream of 50 Hz or 60 Hz
- Weight
1270 g
- IR coverage
40 m
- Additional IR light
Yes
- Impedance
4.7 KΩ (audio input) / 100 Ω (audio output)
- Height
142.7 mm
- (Ø)
143.5 mm
IP66
- Visible screen size (diagonal)
125,8° bis 39,4°
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742923 HIKVISION DS-2CD2H46G2H-IZSY(2.8-12mm)(eF) 311332122 Network camera 4MP
Description
Features
- Turret
- Motorized Lens
- IP66
- IK10
- 4MP
Scope of delivery
- Incl. drilling template
- Fitting Material
- Quick guide
Hints
Mains adapter not included
System requirements
- Windows, iOS, Android
