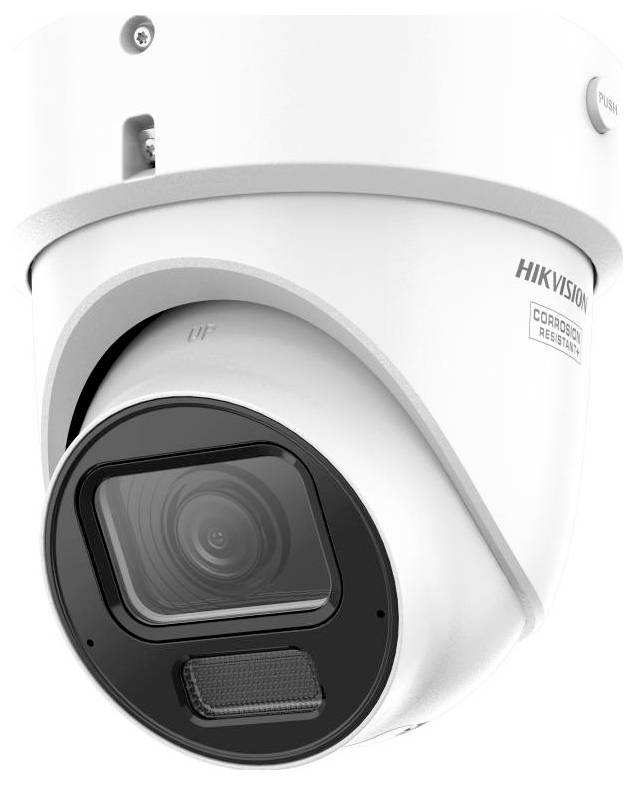

HIKVISION DS-2CD2H86G2H-IZSY(2.8-12mm)(eF) 311332127
EAN:
Part number:
Item no:
Number
Total (€ 545.38 / piece)
€ 545.38
plus VAT.
Highlights & Details
HIKVISION 311332127 DS-2CD2H86G2H-IZSY(2.8-12mm)(eF)
- 1/1.8" Progressive Scan CMOS
- H.265+/H.265/H.264+/H.264/MJPEG
- Powered by Darkfighter technology, Color: 0,003 Lux @ (F1.4, AGC ON), 0 lux with IR
- 25fps/24fps(3840×2160), 25fps/30fps (3200x1800, 2688×1520, 1920×1080)
- VCA functions
- 3 streams
- 3D DNR
- BLC/HLC
- ICR
- EXIR, up to 40 m
- DC12V&PoE
- Micro SD/SDHC/SDXC slot
- Built-in Audio/Alarm I/O, HIK-Connect cloud service
- 2.8mm-12mm
- This text is machine translated.
Technical specifications
- Sensor
1/1.8" Progressive Scan CMOS
- Series
ABUS Professional
- Resolution
8 MP (maximum 3840 × 2160 pixels)
- Light sensitivity
Colour: 0.0008 Lux @ (F1.2, AGC ON), Black/White: 0 Lux with IR
- Operating voltage
12 VDC (± 25%) or PoE (IEEE 802.3af)
- Dim
(Ø x H) 142.5 mm x 142.7 mm
- Connections
1x RJ45 (10 M/100 M Ethernet)
Audio input and output via two-pin terminal block
1 Alarm input
1 alarm output as well as a slot for microSD/microSDHC/microSDXC memory cards up to 512 GB
- No. of channels (details)
6
- Audio inputs
1 line-in input (2-pin terminal block), max. Input voltage 3.3 Vpp, input impedance 4.7 KΩ
- Resolution (max.)
3840 x 2160 p
- Outputs
1 audio output (line out) and 1 alarm output (max. 24 VDC/24 VAC, 1 A)
- External dimensions
Ø 143,5 mm × 142,7 mm
- Outside Ø
143.5 mm
- Operating temperature
-30 °C to 60 °C
- Aperture
F1.2
- Used at
Outdoors
Indoors
- Weight
1230 g
- IR coverage
40 m
- Additional IR light
Yes
- Impedance
4.7 KΩ (audio input) / 100 Ω (audio output)
- Height
142.7 mm
- (Ø)
142.5 mm
IP66
- Visible screen size (diagonal)
137,4° bis 47,3°
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742924 HIKVISION DS-2CD2H86G2H-IZSY(2.8-12mm)(eF) 311332127
Description
Features
- Turret
- Motorized Lens
- IP66
- IK10
- 8MP
Scope of delivery
- Incl. drilling template
- Fitting Material
- Quick guide
Hints
Mains adapter not included
System requirements
- Windows, iOS, Android
