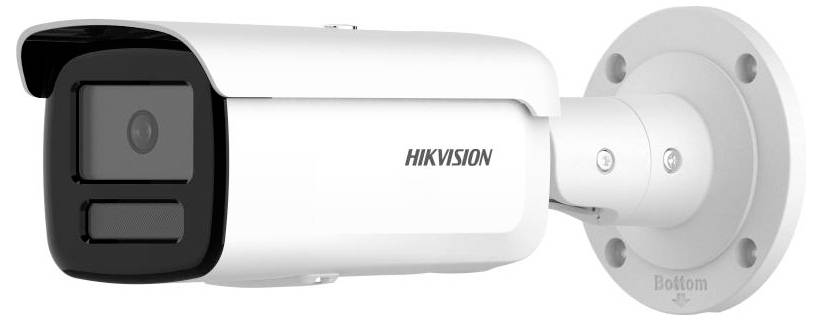

HIKVISION DS-2CD2T46G2H-2I(2.8mm)(eF) 311324143 Bullet network camera 4 MP
EAN:
Part number:
Item no:
Number
Total (€ 247.90 / piece)
€ 247.90
plus VAT.
Highlights & Details
HIKVISION 311324143 DS-2CD2T46G2H-2I(2.8mm)(eF)
- 1/3" Progressive Scan CMOS
- H.265+/H.265/H.264+/H.264/MJPEG
- Powered by Darkfighter technology, Color: 0,003 lux @(F1.4, AGC ON), 0 lux with IR
- 25 fps/30 fps(2688×1520.1920×1080)
- VCA functions
- 3 streams
- 3D DNR
- BLC
- ICR
- IR 60m IR
- DC12V&PoE
- Micro SD/SDHC/SDXC slot
- HIK-Connect cloud service
- 2.8mm
- This text is machine translated.
Technical specifications
- Sensor
1/3" Progressive Scan CMOS
- Product type
Bullet network camera 4 MP
- Series
ABUS Professional
- Resolution
2688 × 1520 pixels (4 Megapixel)
- Light sensitivity
Colour: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with infrared (IR)
- Operating voltage
12 VDC (± 25 %) or PoE (IEEE 802.3af, Class 3)
- Power supply
12 V / DC
- Current consumption
0.6 A (at 12 VDC for the -2I variant)
- Dim
(L x W x H) 286.7 x 93.1 x 91.2 mm
- Connections
1 RJ45 10 M/100 M self-adjusting Ethernet-port
- Range of uses
Indoors and outdoors
- No. of channels (details)
6
- App compatibility
Yes
- Resolution (max.)
2688 x 1520 p
- External dimensions
286,7 mm × 93,1 mm × 91,2 mm
- Operating temperature
-30 °C to 60 °C
- Aperture
F1.0
- Viewing angle
2.8 mm
- Focal length
2.8 mm
- Used at
Outdoors
Indoors
- Weight
1085 g
- Factory colour
Multicolour
- IR coverage
60 m
- Additional IR light
Yes
- Camera type
Bullet camera
- No. of channels (details)
6
- Max. power consumption
For the -2I version: Max. 7.2 W (at 12 VDC) or max. 9 W (for PoE)
- Width
93.1 mm
- Height
91.2 mm
- Length
286.7 mm
IP67
- Visible screen size (diagonal)
119,7°
- Temperature range
-30°C to 60°C at a humidity of 95% or less (non-condensing) °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742915 HIKVISION DS-2CD2T46G2H-2I(2.8mm)(eF) 311324143 Bullet network camera 4 MP
Description
Features
- Bullet
- Fixed lens
- IP67
- 4MP
- 60m IR
Scope of delivery
- Incl. drilling template
- Fitting Material
- Quick guide
Hints
Mains adapter not included
System requirements
- Windows, iOS, Android
