HIKVISION DS-2CD2T86G2H-4I(2.8mm)(eF) 311324667
EAN:
Part number:
Item no:
Number
Total (€ 357.14 / piece)
€ 357.14
plus VAT.
Highlights & Details

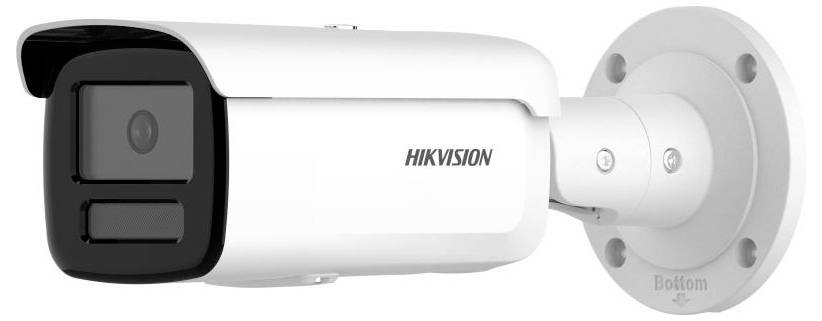

HIKVISION 311324667 DS-2CD2T86G2H-4I(2.8mm)(eF)
- 1/1.8" Progressive Scan CMOS
- H.265+/H.265/H.264+/H.264/MJPEG
- Powered by Darkfighter technology, Color: 0,003 lux@(F1.6, AGC ON), 0 lux with IR
- 25fps/24fps(3840×2160), 25fps/30fps (3200x1800, 2688×1520, 1920×1080)
- VCA functions
- 3 streams
- 3D DNR
- BLC/HLC; ICR
- EXIR 80 m IR
- DC12V&PoE
- Micro SD/SDHC/SDXC slot
- HIK-Connect cloud service
- 2.8mm
- This text is machine translated.
Technical specifications
- Sensor
1/1.8" Progressive Scan CMOS
- Series
ABUS Professional
- Resolution
3840 × 2160 pixels (8 Megapixel)
- Light sensitivity
Colour: 0.0008 Lux @ (F1.0, AGC ON), B/W: 0 Lux with infrared (IR)
- Power supply
12 V / DC
- Dim
(Ø x H) 105 mm x 91.2 mm
- Connections
1 RJ45 10 M/100 M self-adjusting Ethernet-port
- Range of uses
Indoors and outdoors
- No. of channels (details)
6
- App compatibility
Yes
- Resolution (max.)
3840 x 2160 p
- External dimensions
286,7 mm × 93,3 mm × 91,2 mm
- Outside Ø
+105 mm
- Operating temperature
-30 °C to 60 °C
- Aperture
F1.0
- Viewing angle
2.8 mm
- Focal length
2.8 mm
- Used at
Outdoors
Indoors
- Weight
1180 g
- Factory colour
Multicolour
- IR coverage
80 m
- Additional IR light
Yes
- Camera type
Bullet camera
- Width
93.3 mm
- Height
91.2 mm
- Length
286.7 mm
- (Ø)
105 mm
IP67
- Visible screen size (diagonal)
128,2°
- Temperature range
-30°C to 60°C at a humidity of 95% or less (non-condensing) °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742918 HIKVISION DS-2CD2T86G2H-4I(2.8mm)(eF) 311324667
Description
Features
- Bullet
- Fixed lens
- IP67
- 8MP
- 80 m IR
Scope of delivery
- Incl. drilling template
- Fitting Material
- Quick guide
Hints
Mains adapter not included
System requirements
- Windows, iOS, Android
