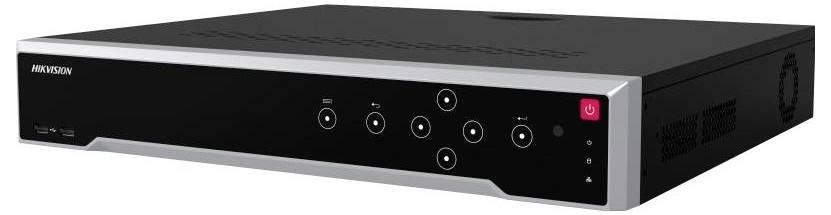

Front view of a Hikvision NVR security recorder with a black bezel, circular control buttons, status LEDs, and a red power button on the right.

Front view of a Hikvision NVR security recorder with a black bezel, circular control buttons, status LEDs, and a red power button on the right.

HIKVISION

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,474.79 / piece)

€ 1,474.79

plus VAT.

Report legal concerns

Highlights & Details

HIKVISION 303616303 DS-7716NI-M4/16P(STD)

Up to 16-ch @ 4MP decoding capacity
2 HDMI and 1 VGA interface: HDMI + VGA simultaneously, HDMI + VGA independent
Up to 32 MP high-resolution live-view, storage and playback
4 HDDs for continuous video recording
This text is machine translated.

Technical specifications

Series: ABUS Professional

Resolution: Recording resolution up to 32 MP
Video output HDMITM 1 up to 8K (7680 × 4320), HDMITM 2 up to 4K, VGA up to 1920 × 1080

Outputs: CVBS output 75 Ω, two-way audio 1 K Ω

Dim: (L x W x H) 389 x 440 x 72 mm

Connections: 16x PoE (RJ45 10 m/100 m), 1x LAN (RJ45 10 m/100 m/1000m)
2x HDMI
1x VGA
1x CVBS
1x audio input
1x audio output
4x SATA (internal)
1x eSATA, 2x USB (1x USB 2.0 front, 1x USB 3.0 rear)
16x alarm input
9x Alarm Output
2x RS-485, 1x RS-232
Show more

No. of channels (details): 16

App compatibility: Yes

Audio inputs: 1-channel two-way audio, RCA (2.0 Vp-p, 1 KΩ)

Resolution (max.): 7680 x 4320 p

Type: 16-channel NVR with 16 independent PoE interfaces

Outputs: HDMI, HDMI 2, VGA, CVBS (BNC) Audio: 1-channel RCA Alarm:9 Alarm outputs

Operating temperature: -10 °C Up to +55 °C

Inputs: 16x IP-video, 16x alarm input, 1x audio input

Used at: Indoors

Frequency: 50 to 60 Hz

Impedance: CVBS:75 Ω, audio RCA:1 K Ω

Width: 440 mm

Height: 72 mm

Length: 389 mm

Depth: 389 mm

Temperature range: -10 °C Up to +55 °C

Video output: Simultaneous output via HDMI1 and VGA
Independent output via HDMI2
Additionally 1x CVBS-output

Video input: 16-channel network camera input via IP

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3742930 HIKVISION DS-7716NI-M4/16P(STD) 303616303

Description

Features

NVR
4xHDD
2 x HDMI
H.265+/H.265/H.264+/H.264
VCA
16 x PoE

Scope of delivery

Includes power supply
Quick guide
Cable for hard drive
Screws for hard drive
USB mouse

Hints

No hard disk is included

System requirements

Windows, iOS, Android
