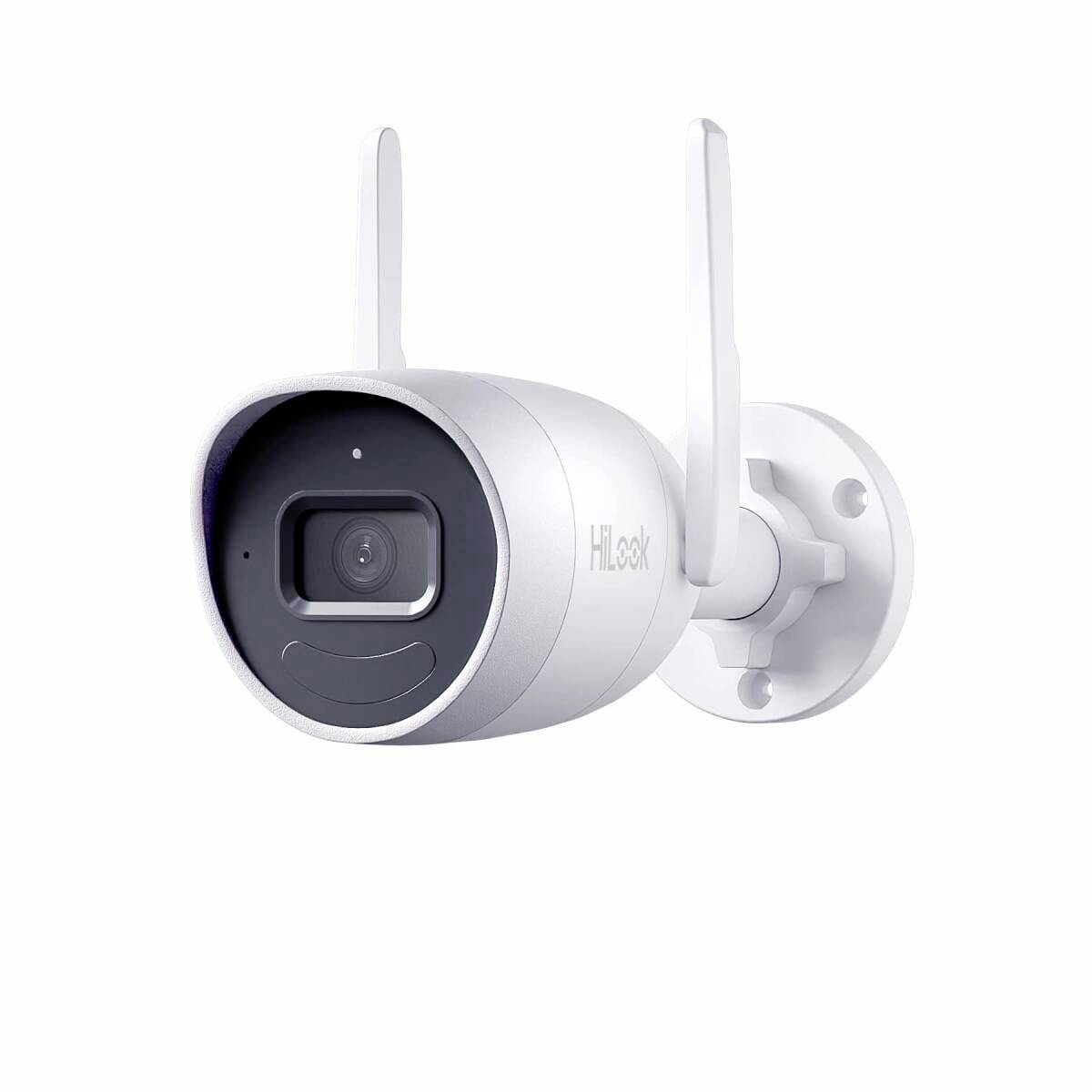

HiLook IPC-B140HA-D/W(2.8mm)(W) Wi-Fi IP CCTV camera
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
Highlights & Details
Wi-Fi IP-Bullet camera;HiLook;IPC-B140HA-D/W(2.8mm)(W)Outdoors, Indoors
- 4 MP resolution – sharp and detailed video recordings for precise monitoring;EXIR 2.0 night view & weather-proof (IP66) – clear pictures in darkness up to 30 m range, protected from wind and weather;Wi-Fi & microSD memory up to 512 GB – Wireless installation and optional storage space for local recordings;Two-way audio – built-in microphone and speakers enable direct communication;Hik-Connect APP – remote access and control via smartphone for convenient, location-independent monitoring.
Technical specifications
- Product type
CCTV camera
- CCTV features
Saves footage on SD card
2-way communication
Motion detector
IR LEDs
Speaker
Microphone
Identity recognition
- Camera type
Bullet camera
- Power supply
12 V / DC
- Focal length
2,8 mm
- App compatibility
Yes
- Transfer type
Wi-Fi
- Used at
Outdoors
Indoors
- Type
microSD card (up to 256 GB)
IP66
- Signal standard
IP
Documents & Downloads
Datasheet
Datasheet 3775791 HiLook IPC-B140HA-D/W(2.8mm)(W) Wi-Fi IP CCTV camera
User & Safety Instructions
User & Safety Instructions 3775791 HiLook IPC-B140HA-D/W(2.8mm)(W) Wi-Fi IP CCTV camera
Description
The HiLook wireless camera IPC-B140HA-D/W (2.8 mm) is a powerful 4 megapixel outdoor camera that offers a resolution of 2560 × 1440 pixels. It is equipped with a 2.8 mm fixed focal length lens and has the EXIR-2.0 night vision technology, which enables a clear view in darkness to up to 30 meters. The camera supports WLAN according to the standards 802.11b/g/n and offers a two-way audio function thanks to the integrated microphone and loudspeaker. Micro SD cards with a capacity of up to 512 GB can be used for local storage. With protection class IP66 the camera is weather-proof and suitable for indoor as well as outdoor use.
The camera is equipped with a 1/2.9" Progressive Scan CMOS image sensor, a light sensitivity of 0.01 Lux at F1.6 and 0 Lux with IR. The IR LEDs work with a wavelength of 850 nm. It features a digital WDR for better clarity in difficult lighting conditions and a flexible installation range with 360° pan and 90° tilt angle.
In the video area the camera supports the formats H.265 and H.264. The main stream achieves a resolution of up to 2560 × 1440 at 20 frames per second, the lower stream up to 1280 × 720 at 30 frames per second. The G.711 and AAC-LC compression formats are available for audio playback, supplemented by noise suppression.
When it comes to the network, the camera supports common protocols such as TCP/IP, HTTP, HTTPS, DHCP, RTP, RTSP and IPv4 and IPv6. The WLAN range is up to 120 meters, depending on the environment. Security is ensured by WPA-PSK/WPA2-PSK encryption as well as HTTPS-secured data transfer and password protection.
The general specifications include dimensions of 175.6 × 73 × 89.1 mm, a weight of about 345 grams and a wide temperature range of –30 °C to 60 °C. The front side is made of metal, the back side is made of sturdy plastic. The power is supplied via 12 VDC, an appropriate power supply unit is included in the delivery. The camera is compatible with the Hik-Connect APP and thus supports mobile live monitoring. An SD-card is not included in the delivery.
This text is machine translated.
The camera is equipped with a 1/2.9" Progressive Scan CMOS image sensor, a light sensitivity of 0.01 Lux at F1.6 and 0 Lux with IR. The IR LEDs work with a wavelength of 850 nm. It features a digital WDR for better clarity in difficult lighting conditions and a flexible installation range with 360° pan and 90° tilt angle.
In the video area the camera supports the formats H.265 and H.264. The main stream achieves a resolution of up to 2560 × 1440 at 20 frames per second, the lower stream up to 1280 × 720 at 30 frames per second. The G.711 and AAC-LC compression formats are available for audio playback, supplemented by noise suppression.
When it comes to the network, the camera supports common protocols such as TCP/IP, HTTP, HTTPS, DHCP, RTP, RTSP and IPv4 and IPv6. The WLAN range is up to 120 meters, depending on the environment. Security is ensured by WPA-PSK/WPA2-PSK encryption as well as HTTPS-secured data transfer and password protection.
The general specifications include dimensions of 175.6 × 73 × 89.1 mm, a weight of about 345 grams and a wide temperature range of –30 °C to 60 °C. The front side is made of metal, the back side is made of sturdy plastic. The power is supplied via 12 VDC, an appropriate power supply unit is included in the delivery. The camera is compatible with the Hik-Connect APP and thus supports mobile live monitoring. An SD-card is not included in the delivery.
