Name: Honeywell Home EVO-TRV Evohome Thermostitc radiator valve electronical 0 up to 35 °C
Brand: Honeywell Home
SKU: 3457579
Availability: InStock

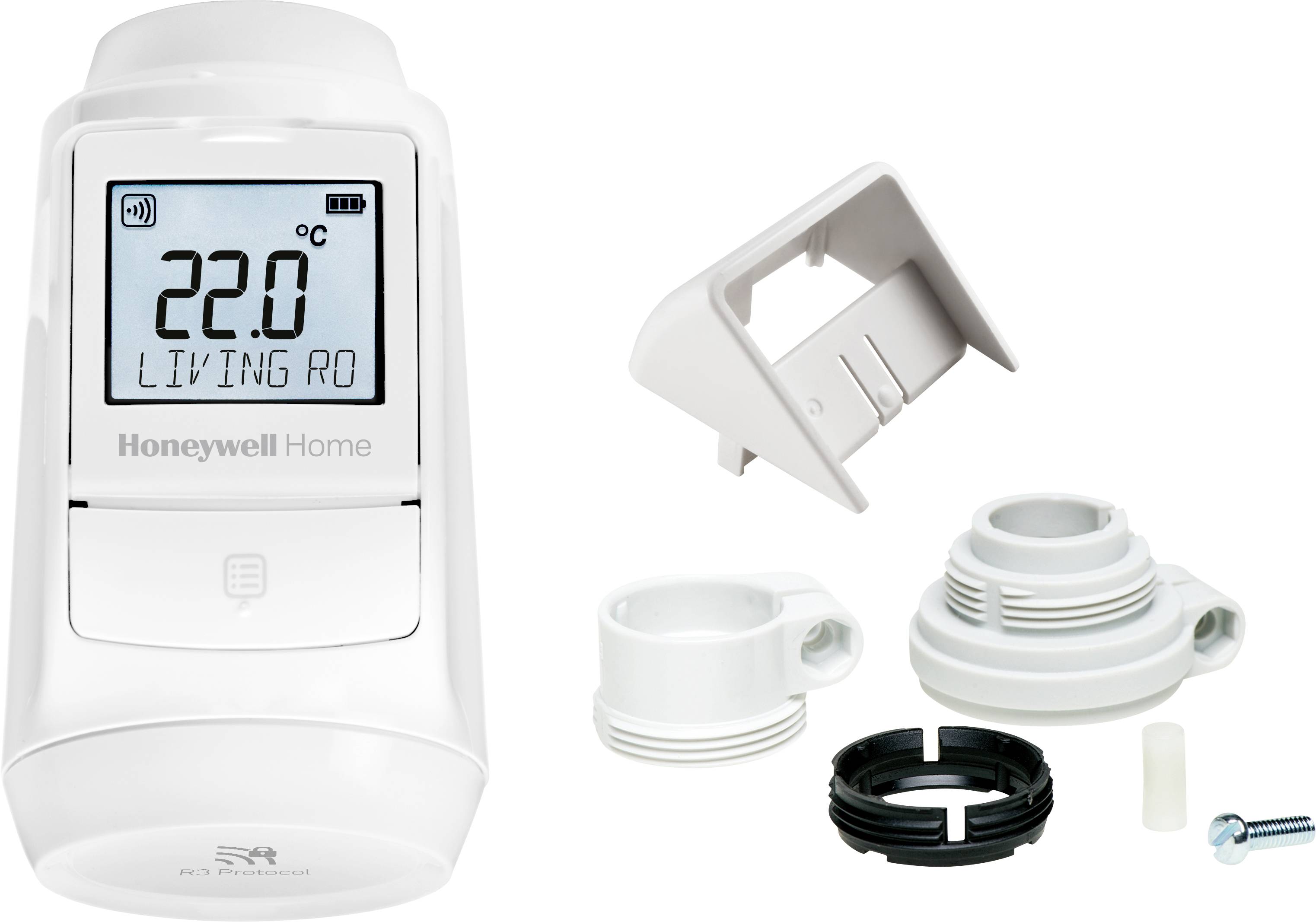

Digital thermostat displaying '22.0°C' and 'LIVING RO' with various mounting components.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 27 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Evohome radiator thermostat – Heating comfort according to size: Intelligently controlled, individually controlled, energy-saving heated (1 pieces)

Quick and easy installation and start-up
;Fits directly to the most common radiator valves
Connection : M30 x 1.5. Adapter for others
Connection types in accessories
; Easy to use thanks to the large display
With backlight, which takes easy readings
and can fold flat
;Many operational settings (parameters) are
adjustable:
– Local language
– Backlit display on/off
– Adjustment of the sensitivity of the "open windows"
function
– Valve lift
– Correct the temperature setting (temperature
Offset)
; Display of the zone name
; Attractive design with highly polished surface

Technical specifications

Radiator controller EVO-TRV Wireless radiator controller Electrical data
Power supply: Batteries
2 x Alkaline 1.5 V, LR6, AA
Display: Background-lit text display 9 characters 30 x 26 mm (W x H)
Temperature sensor: NTC sensor (internal)
Temperature range 0 – 35 oC
IP30 protection
Specifications
Dimensions 60 x 54 x 96 mm (H x W x L)
Housing material: Polycarbonate (PC)
M30 x 1.5 valve connection
Radio communication
Radio frequency SRD (868 - 870 MHz)
Radio power 25 mW
Wireless range: RX class 2 30 m within residential buildings

Product type: Thermostitc radiator valve

Operation type: electronical

Min. temperature setting: 0 °C

Max. temperature setting: 35 °C

Operating voltage: 1.5 V

Radio frequency: 868 MHz

Compatible with: Heaters

Height: 60 mm

Depth: 96 mm

Width: 54 mm

Dim: (W x H x D) 54 x 60 x 96 mm

Connections (home appliances): M30 x 1.5

Content: 1 pc(s)

Temperature settings: 0 up to 35 °C

Weight: 1000 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3457579 Honeywell Home EVO-TRV Evohome Thermostitc radiator valve electronical 0 up to 35 °C

User & Safety Instructions

User & Safety Instructions 3457579 Honeywell Home EVO-TRV Evohome Thermostitc radiator valve electronical 0 up to 35 °C

Description

Evohhome — the smart way to control energy in your home.
You can enjoy your favorite temperature in every room - whenever and however you want. With evohhome you can control your heating intelligently, efficiently and easily by APP or directly at the device.
Whether living room, bedroom or bathroom: Evohhome thinks along – and saves energy and costs. Individual temperature control - room for room.Energy saving has never been so convenient.Easy to retrofit, benefit immediately.

This text is machine translated.

Scope of delivery

Inc. batteries
With 6 bits. Adapters (Danfoss RA RAV RAVL, 28x1.5, GIACOMINI)

System requirements

Evohhome can be used via Android and Apple smartphones
Or a browser on each PC. The same is true
Smart-home integration into systems of
Third parties through IFTTT, Google Assistant, and Amazon
Alexa possible.
