Name: HT Instruments THT80 IR camera -20 up to +550 °C 120 x 90 Pixel 25 Hz Built-in digital camera, Wi-Fi, Touchscreen
Brand: HT Instruments
SKU: 2587921
Availability: InStock

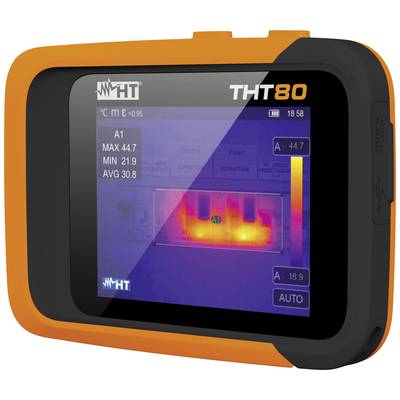

An orange-black thermal imaging device shows a thermal display with temperatures ranging from 44.7°C to 21.9°C and an average of 30.8°C.

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 735.00 / piece)

€ 1,029.00

-29 %

€ 735.00

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Compact, pocket-sized infrared camera with 120x90 pixels, touch-screen, Wi-Fi

25 Hz Thermal imaging camera
Temperature reading range -20 up to +550 °C
120 x 90 Pixel Bolometer matrix
Thermal sensitivity 50 mK

Technical specifications

IR resolution: 120x90 pixelsInternal memory: 3.4 GB

Type: THT80

Product type: IR camera

Bolometer array: 120 x 90 Pixel

Interfaces: Wi-Fi

Temperature reading range (max.): +550 °C

Temperature reading range (min.): -20 °C

Optics: 50° x 37°

Frame rate: 25 Hz

Display resolution: 120 x 90 Pixel

Thermal sensitivity: 50 mK

Dim: (L x W x H) 133 x 87 x 24 mm

Digital zoom: 32 x

Geometric resolution (IFOV): 7.3 mrad

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Temperature reading range: -20 up to +550 °C

Width: 87 mm

Height: 24 mm

Length: 133 mm

Features: Built-in digital camera
Wi-Fi
Touchscreen

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2587921 HT Instruments THT80 IR camera -20 up to +550 °C 120 x 90 Pixel 25 Hz Built-in digital camera, Wi-Fi, Touchscreen

Description

The small and excellent HT infrared technology is now available in pocket format. With your compact IR camera in your pocket, you can carry out your inspections quickly and easily at any time.Thermal imaging is the best way to detect clogged pipes, water leaks, and other problems. The use of hot water makes it easy to locate the problem.Overloading, incorrect cable dimensioning, faulty connections, unbalanced loads and many other problems can cause a cable to fail during operation and, in the worst case, lead to a fire. THT cameras help to detect the most common electrical problems very easily and quickly.
