Name: HTB UCP 206 Plummer block Grey iron Bore diameter 30 mm Hole spacing 121 mm
Brand: HTB
SKU: 197167
Availability: InStock

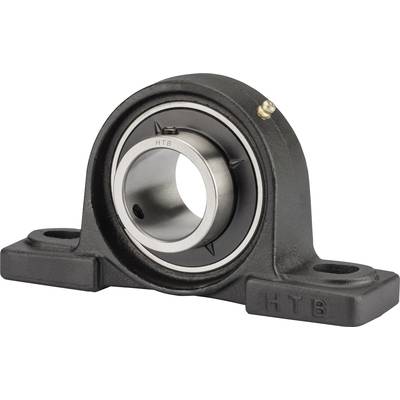

Industrial housing bearing with cylindrical bore, mounted on a black metal base. Used for shaft support.

Housing with integrated ball bearing, next to a package labelled 'High Technology Bearings'.

Technical drawing of a bearing with two views: Front view shows dimensions a, g, w; Side view shows dimensions b, Bi, S1.

1/3

Image similar

Product type

Plummer block

Bore Ø

30 mm

Enclosure material

Grey iron

Type

UCP 206

Dim

(h x A x E x B x s1 x s2 x g x w x L uc x n uc) 42.9 x 165 x 121 x 48 x 17 x 21 x 19 x 83 x 38.1 x 15.9

Datasheet (PDF)

Fast track dispatch on Wed 21 Oct

33 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 15.99 / piece)

€ 15.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: UCP 206

Product type: Plummer block

Bore Ø: 30 mm

Enclosure material: Grey iron

Dim: (h x A x E x B x s1 x s2 x g x w x L uc x n uc) 42.9 x 165 x 121 x 48 x 17 x 21 x 19 x 83 x 38.1 x 15.9

Weight: 1.27 kg

Hole spacing: 121 mm

Dimensions: (h x A x E x B x s1 x s2 x g x w x L uc x n uc) 42.9 x 165 x 121 x 48 x 17 x 21 x 19 x 83 x 38.1 x 15.9

Dynamic load rating (radial): 15400 N

Radial load rating: 10200 N

Documents & Downloads

Datasheet

Datasheet 197167 HTB UCP 206 Plummer block Grey iron Bore diameter 30 mm Hole spacing 121 mm

User & Safety Instructions

User & Safety Instructions 197167 HTB UCP 206 Plummer block Grey iron Bore diameter 30 mm Hole spacing 121 mm

Description

For simple bearings as e.g. in agricultural machinery, conveyor systems, construction machines The UCP unit consists of a sealed bearing with spherical exterior surface and a housing of pedestal bearing made of cast iron. The attachment of shaft is done by means of stud screws at the inner ring. Misalignments at the shaft can become balanced by the spherical exterior surface of the bearing
