Name: HTB UCP 208 Plummer block Grey iron Bore diameter 40 mm Hole spacing 136 mm
Brand: HTB
SKU: 197207
Availability: InStock

Industrial housing bearing with cylindrical bore, mounted on a black metal base. Used for shaft support.

Housing with integrated ball bearing, next to a package labelled 'High Technology Bearings'.

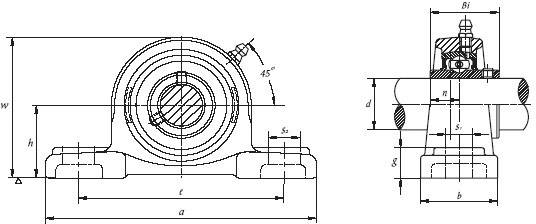

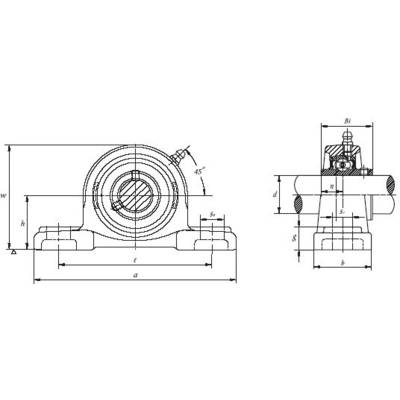

Technical drawing of a bearing with dimensioning. Shows the front and side view with axis indications, lines, and arrows.

1/3

Image similar

Product type

Plummer block

Bore Ø

40 mm

Enclosure material

Grey iron

Type

UCP 208

Dim

(h x A x E x B x s1 x s2 x g x w x L uc x n uc) 49.2 x 184 x 136 x 54 x 17 x 21 x 19 x 98 x 49.2 x 19 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 9 Nov

27 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: UCP 208

Product type: Plummer block

Bore Ø: 40 mm

Enclosure material: Grey iron

Dim: (h x A x E x B x s1 x s2 x g x w x L uc x n uc) 49.2 x 184 x 136 x 54 x 17 x 21 x 19 x 98 x 49.2 x 19 mm

Weight: 1.97 kg

Features: Cover for both sides

Hole spacing: 136 mm

Dimensions: (h x A x E x B x s1 x s2 x g x w x L uc x n uc) 49.2 x 184 x 136 x 54 x 17 x 21 x 19 x 98 x 49.2 x 19 mm

Dynamic load rating (radial): 23000 N

Radial load rating: 16000 N

Documents & Downloads

Datasheet

Datasheet 197207 HTB UCP 208 Plummer block Grey iron Bore diameter 40 mm Hole spacing 136 mm

User & Safety Instructions

User & Safety Instructions 197207 HTB UCP 208 Plummer block Grey iron Bore diameter 40 mm Hole spacing 136 mm

Description

For simple bearings as e.g. in agricultural machinery, conveyor systems, construction machines The UCP unit consists of a sealed bearing with spherical exterior surface and a housing of pedestal bearing made of cast iron. The attachment of shaft is done by means of stud screws at the inner ring. Misalignments at the shaft can become balanced by the spherical exterior surface of the bearing
