Name: HTB SBPP 202 Plummer block Steel plate Bore diameter 15 mm Hole spacing 68 mm
Brand: HTB
SKU: 197102
Availability: InStock

Bearing housing with integrated ball bearing, made of metal, silver-coloured, on a white background. Suitable for mechanical applications.

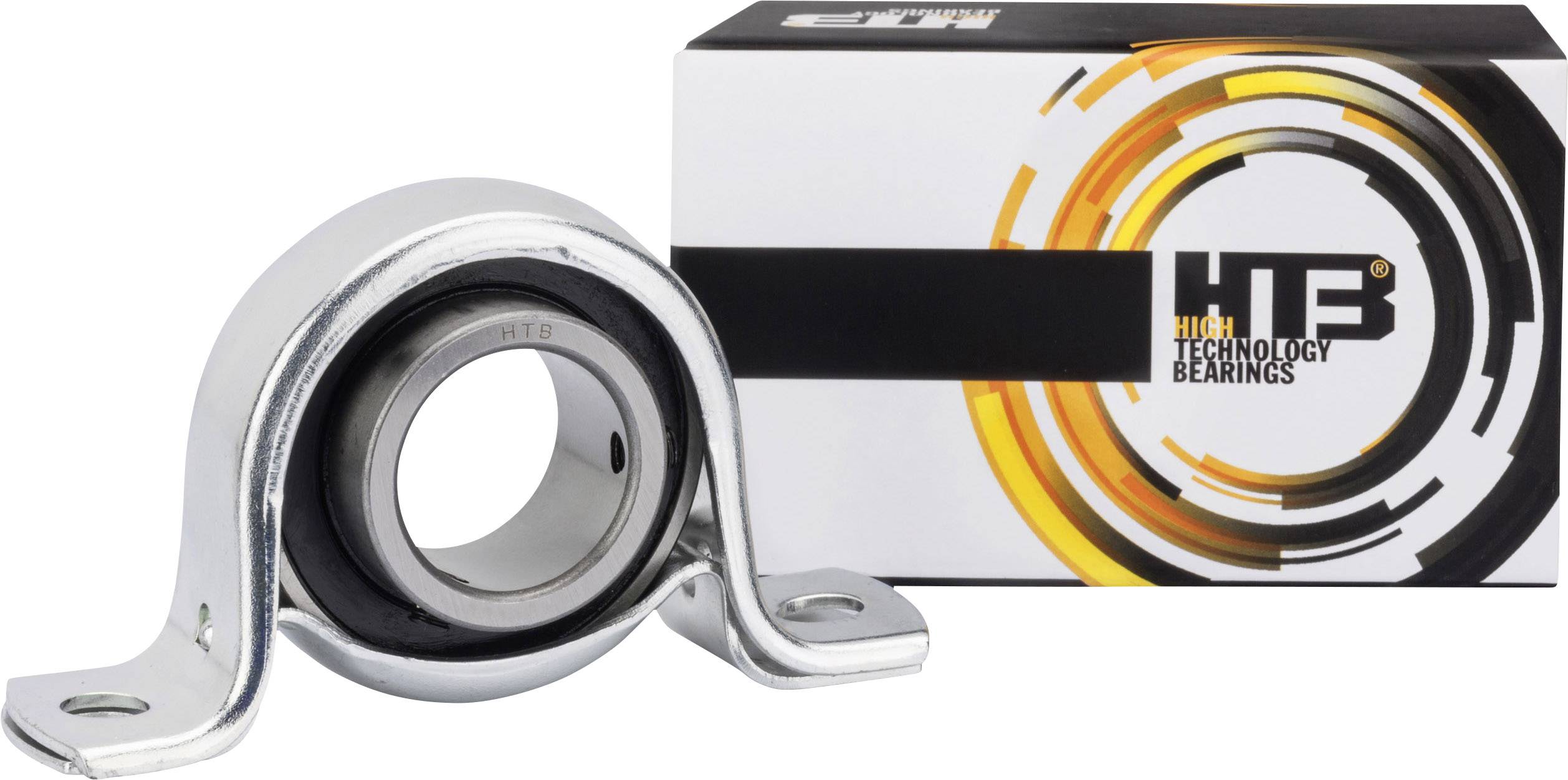

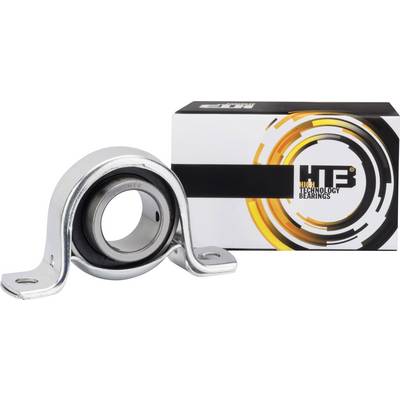

Metal bearing housing with a mounted ball bearing, next to a product packaging with 'High Technology Bearings' inscription.

Technical drawing of a bearing block with dimensions: a, b, h, w, d. Front view and cross-section on the right. Main components detailed.

1/3

Image similar

Product type

Plummer block

Bore Ø

15 mm

Enclosure material

Steel plate

Type

SBPP 202

Max. case load (mechanical)

220 kg

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

24 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 6.99 / piece)

€ 6.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: SBPP 202

Product type: Plummer block

Bore Ø: 15 mm

Max. case load (mechanical): 220 kg

Enclosure material: Steel plate

Dim: (h x a x E x b x s x g x w x nB) 22.2 x 86 x 68 x 25 x 9.5 x 3.5 x 43.8 x 6

Weight: 0.16 kg

Hole spacing: 68 mm

Dimensions: (h x a x E x b x s x g x w x nB) 22.2 x 86 x 68 x 25 x 9.5 x 3.5 x 43.8 x 6 mm

Dynamic load rating (radial): 7500 N

Radial load rating: 4550 N

Documents & Downloads

Datasheet

Datasheet 197102 HTB SBPP 202 Plummer block Steel plate Bore diameter 15 mm Hole spacing 68 mm

User & Safety Instructions

User & Safety Instructions 197102 HTB SBPP 202 Plummer block Steel plate Bore diameter 15 mm Hole spacing 68 mm

Description

For simple bearings e.g. in farm equipment, conveyors, construction machinery. The SBBP unit consists of a sealed bearing and a steel plummer. The shaft mounting done by set screws on the inner ring. Because of the spherical outer surface of the bearing misalignment can be compensated at the shaft.
